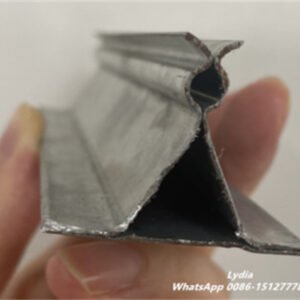

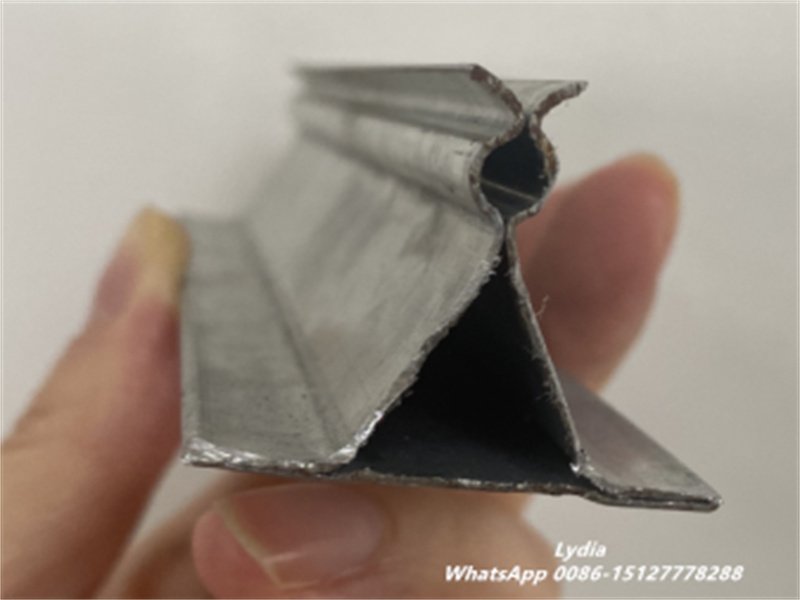

What Is a Triangle Tee Carrier?

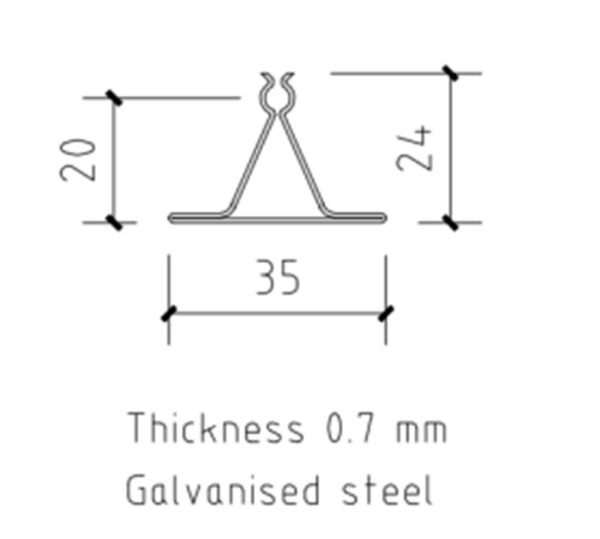

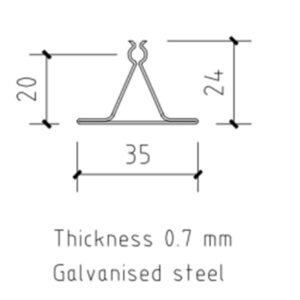

A triangle tee carrier is a key structural component widely used in modern architectural decoration. Named after its triangular cross-section, this metal ceiling carrier is typically manufactured from galvanized steel strips or aluminum alloy. Featuring light weight, high strength, and excellent corrosion resistance, it is commonly applied as the framework for ceiling and partition systems in commercial and residential buildings.

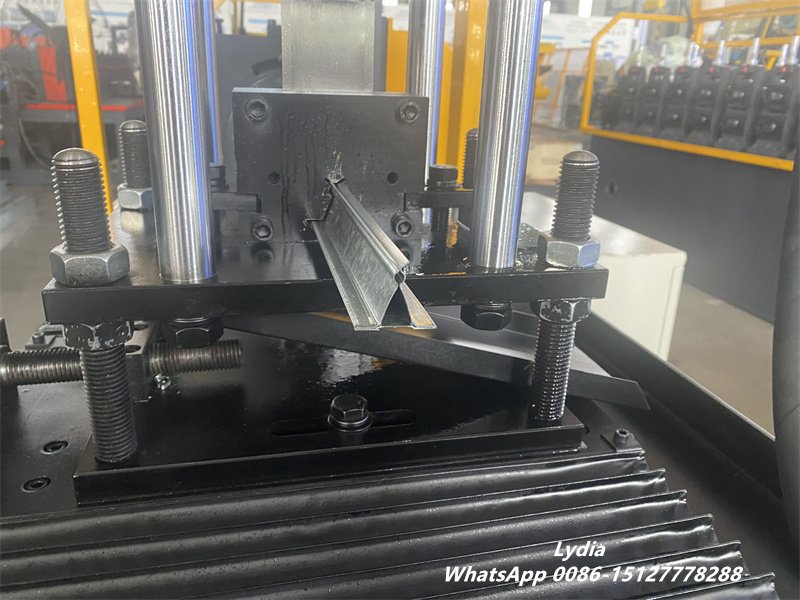

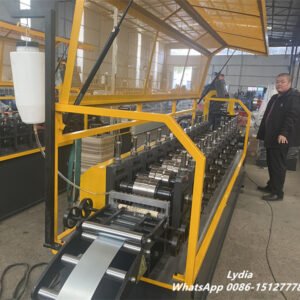

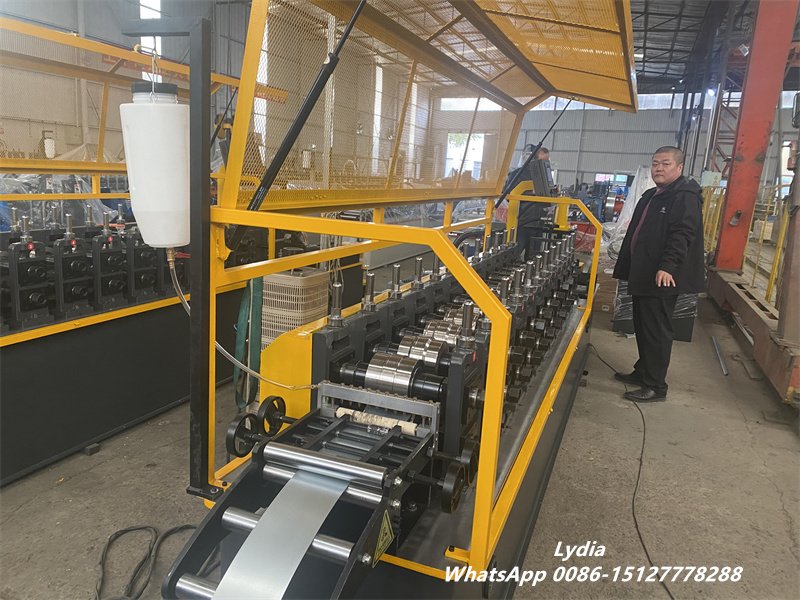

These triangle tee carriers are produced by dedicated roll forming machinery—such as the ceiling triangular grid machine, metal ceiling carrier machine, and false ceiling carrier machine—which transform metal coils into accurate and stable triangular profiles.

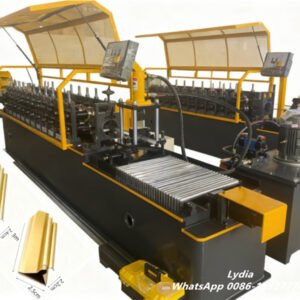

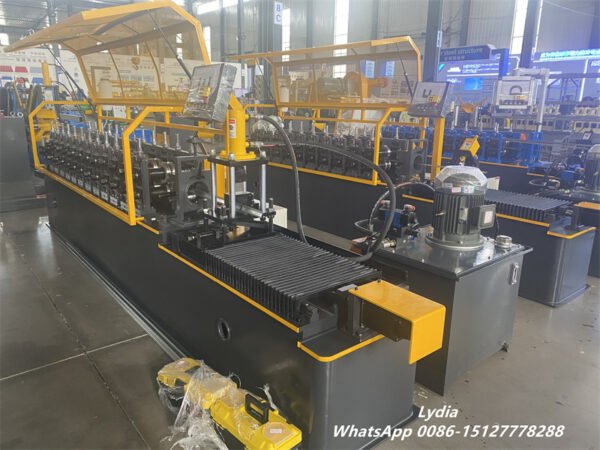

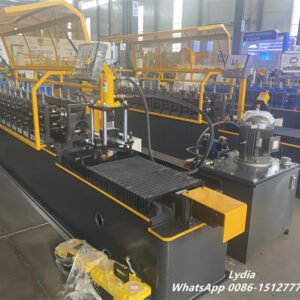

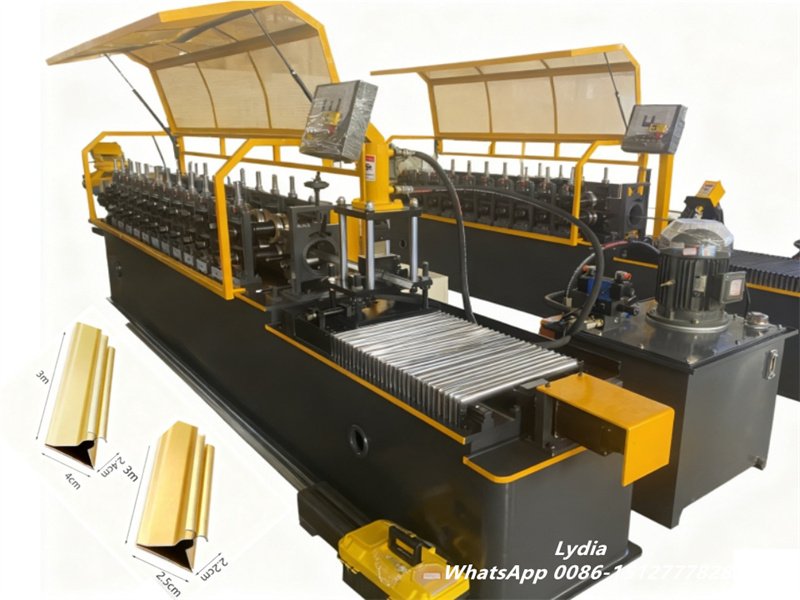

Machine Technical Specifications (Example Model 0.6mm Triangle Keel Roll Forming Line)
| Item | Specification |
|---|---|
| Material | 0.6mm stainless steel or galvanized steel |
| Rolling Speed | ~10m/min |
| Roller Stations | 12 stations |
| Roller Material | GCr15 with 60mm shaft |
| Main Motor | 5.5 kW |
| Hydraulic Power | 4 kW |
| Cutting Blade | CR12, HRC 58–62 |
| Servo Motor | 1.8 kW Delta |
| Control | PLC system |
| Power Source | 380V / 50Hz / 3-phase |
| Weight | ~3.5 tons |
| Machine Size | 5500 × 600 × 1000 mm |
| Drive | 1-inch single chain |
Key Features of the Triangle Tee Carrier
1. Excellent Structural Stability
Thanks to its triangular geometry—the most stable shape in structural mechanics—the spring tee carrier offers outstanding load-bearing capacity and deformation resistance. Even in humid or high-load environments, it maintains reliable performance.
2. Easy and Fast Installation
With standardized sizes and universal connectors, metal ceiling carriers drastically reduce installation time. This makes them suitable for large-scale commercial buildings and residential decoration.
3. Superior Corrosion Resistance
Galvanized or specially coated surfaces prevent rusting in moisture-prone environments like kitchens, bathrooms, and underground facilities.
4. Lightweight but Strong
Their lightweight design reduces building load, while high structural strength ensures long-term durability, especially in suspended ceiling systems.

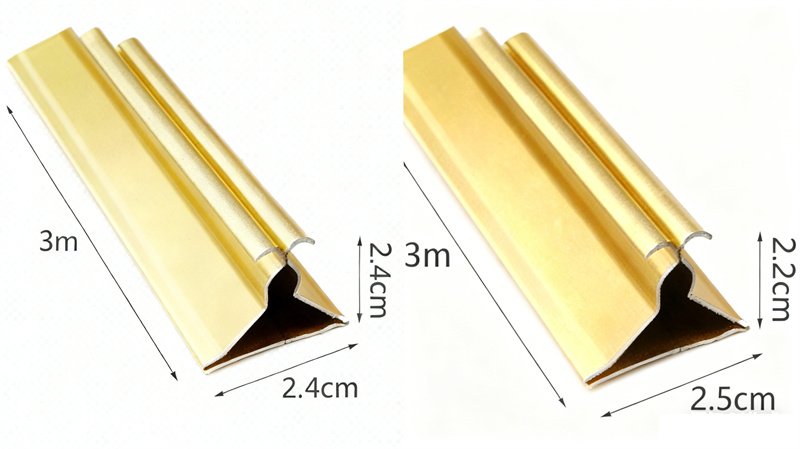

Classification of Metal Ceiling Carriers
Triangle tee carriers can be categorized into several types:
- Light Steel Triangle Tee
- Made from galvanized steel strips
- Cost-effective and widely used in standard ceilings and partitions
- Aluminum Spring Tee
- Lighter weight, excellent rust resistance
- Often used in premium decoration projects
- Stainless Steel Triangle Tee
- High resistance to corrosion and extreme environments
- Suitable for areas requiring advanced durability
Zhongtuo Machine Common Applications

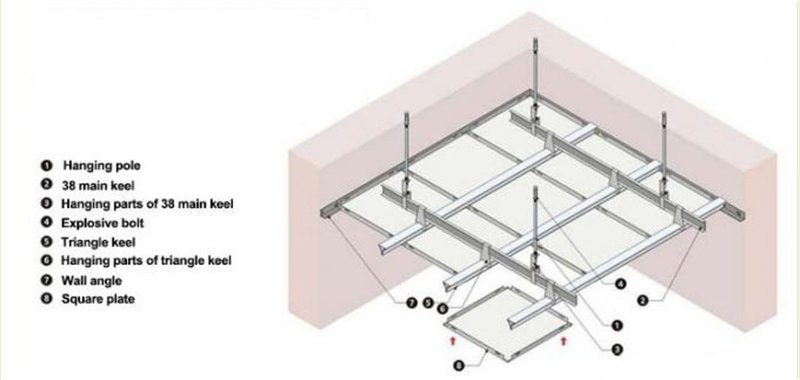

1. Ceiling Grid Systems
Used as an essential component in T-bar ceiling systems, providing support and stability for ceiling panels in homes, offices, and public buildings.
2. Partition Wall Framework
Offers strong structural support for lightweight interior partition walls, ensuring flatness and rigidity.
3. Curtain Wall Support
Used as a supplementary support structure in certain curtain wall installations.
4. Fire-Resistant Ceilings
Ideal for applications requiring enhanced fire resistance, such as server rooms, kitchens, and parking structures.
5. Custom Architectural Designs
Suitable for curved or artistic ceilings through flexible installation arrangements.
