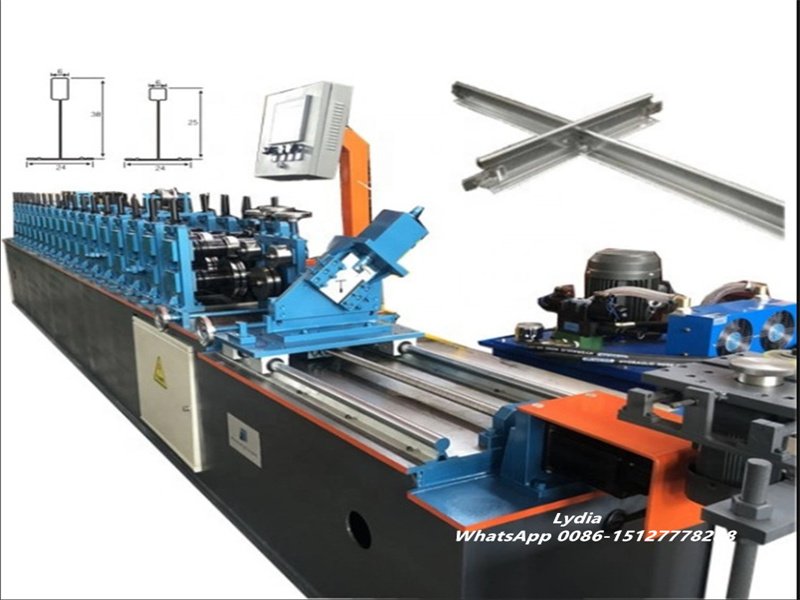

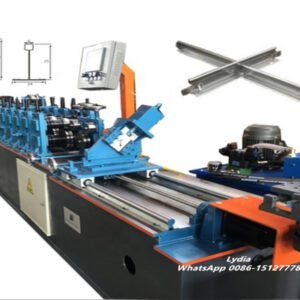

30m/Min PPGI High Speed Roll Forming Machine for Flat Ceiling T Bar
Efficient, Stable, Fully Automatic T-Bar Ceiling System Production
The 30m/min PPGI High Speed Roll Forming Machine for Flat Ceiling T Bar is specifically designed to produce high-precision exposed ceiling T-grid/T-bar profiles, widely used in commercial buildings, public spaces, and modern office ceiling systems. By adopting advanced servo feeding technology and integrated punching stations, this ceiling T bar roll forming machine ensures superior stability and high-speed continuous production.
Whether you manufacture Main Tee / Cross Tee / Wall Angle, this machine delivers excellent performance with low labor requirements and high output efficiency—ideal for expanding factory capacity and optimizing project delivery speed.
Key Features of the High Speed 30m/min Ceiling T Bar Roll Forming Machine
| Item | Specification |
|---|---|
| Raw Material | Galvanized Steel / PPGI |
| Thickness Range | 0.3–0.6 mm |
| Production Speed | 30 meters per minute (including punching) |
| Punching Dies for Main Tee | 13 stations |
| Roller Stations | 18 / 16 |
| Roller Material | GCr12MoV High-Strength Alloy |
| Shaft Diameter | 50 mm solid shaft |
| Transmission | Worm Gearbox / Gear + Chain |
| System Control | PLC + Servo Feeding |
| Decoiler | Manual or Hydraulic (Optional) |

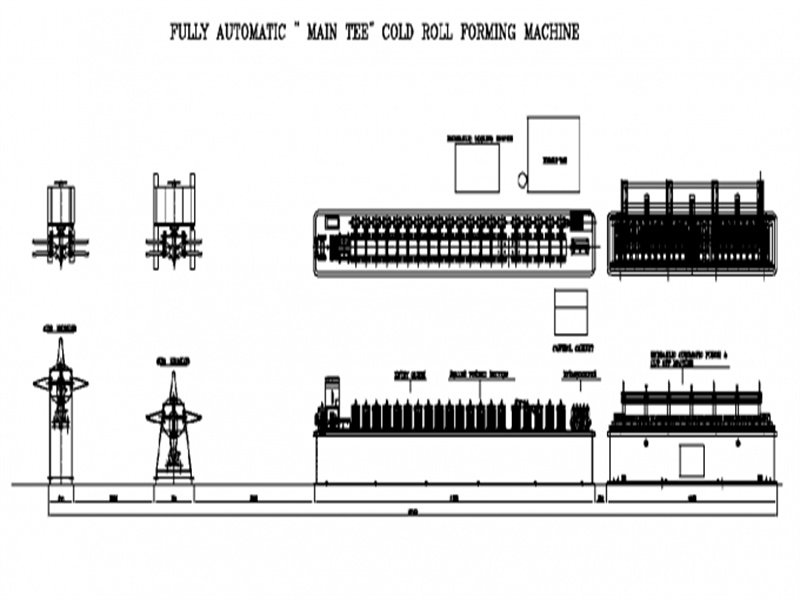

Production Flow

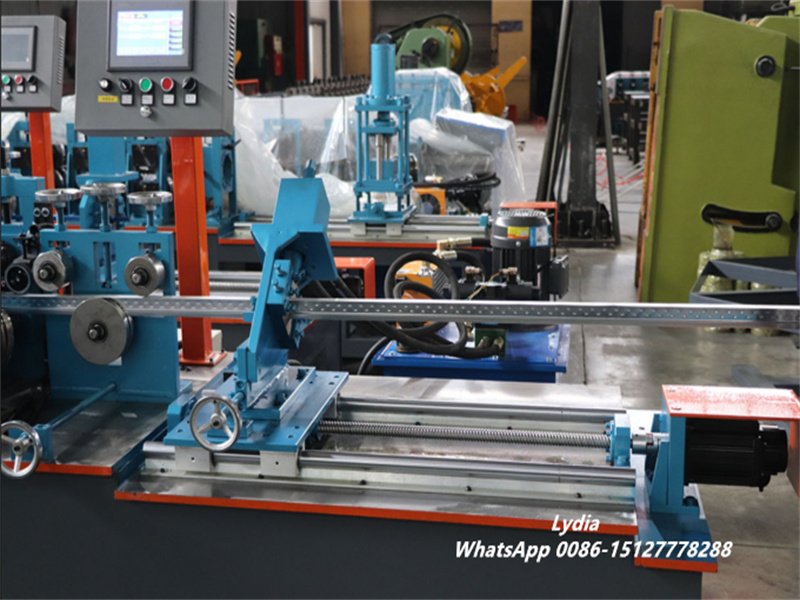

Coil Decoiling → Leveling → Servo Feeding → Roll Forming → Punching (with Logo Optional)
→ Length Measuring → Hydraulic Cutting → Finished Product Output
Why Choose This PPGI Ceiling T-Bar Metal Roll Forming Machine?
High-Speed Continuous Production
Even with continuous punching and shaping, the line runs steadily up to 30m/min, greatly improving output efficiency.

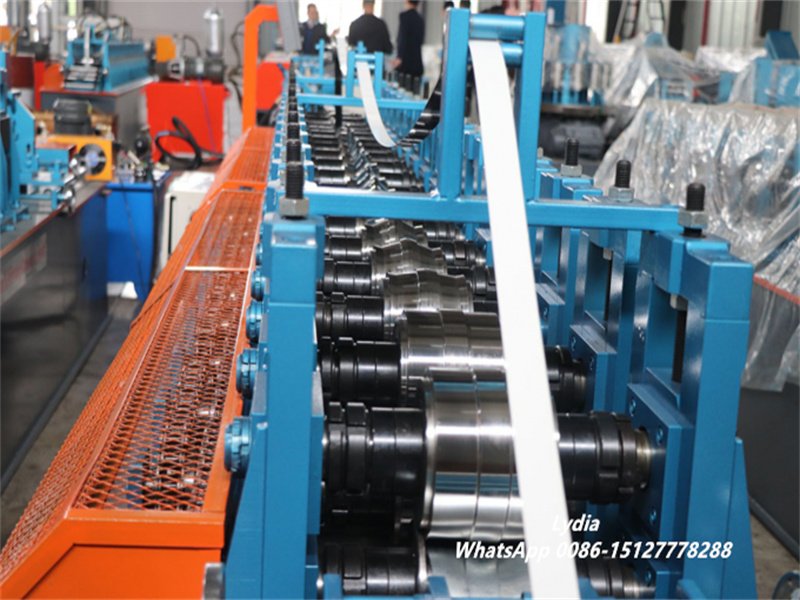

Precision Roll Forming, Zero Deformation

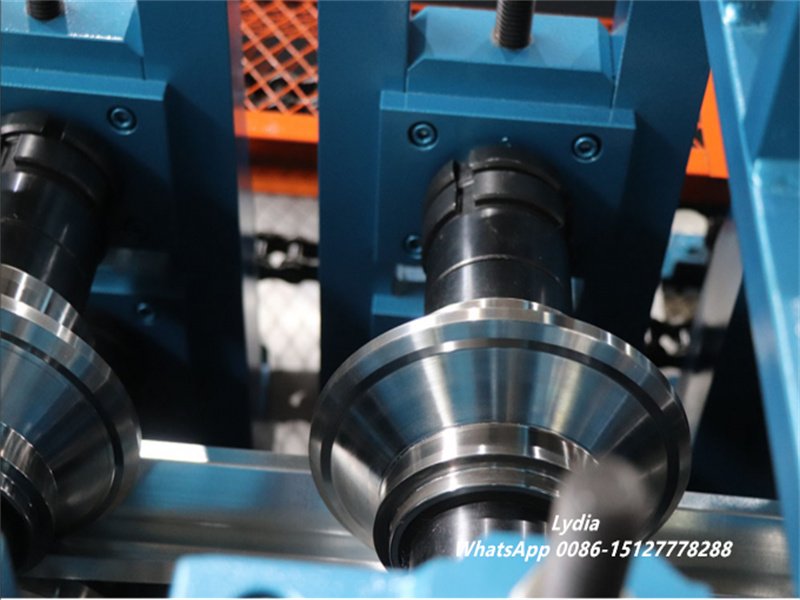

All rollers are made of GCr12MoV, CNC-machined and heat treated to guarantee long-term accuracy and stable profile shape.
Automatic feeding → roll forming → punching → cutting → product output.
Reduces labor cost and ensures consistent quality.
Flexible Configuration Options
- Manual / Hydraulic decoiler

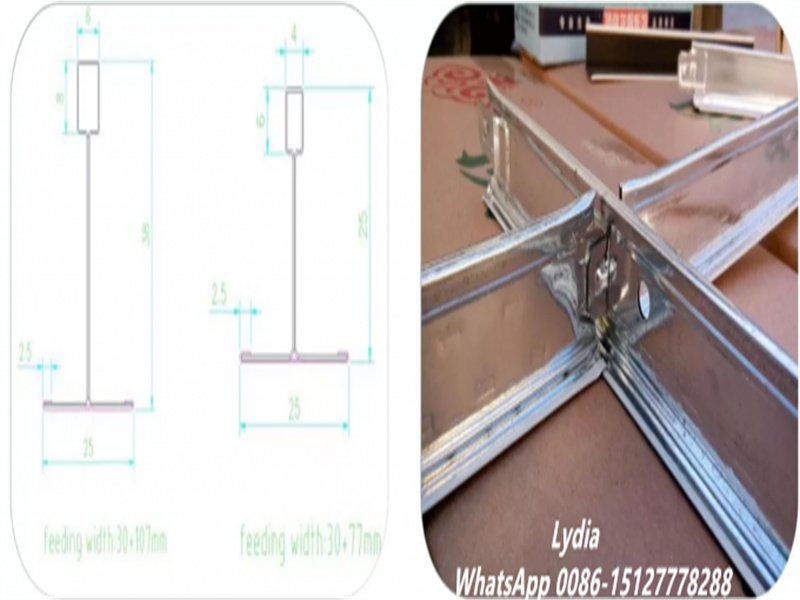

- Main tee / cross tee / wall angle interchangeable production
- Optional metal ceiling tile production line (600×600 / 300×300 / 600×1200 mm)
Related Products
- Light steel keel roll forming machine
- Metal stud and track roll forming machine
- Fully automatic metal ceiling tile forming line
Ready to Upgrade Your Ceiling Production Capacity?
We provide:
- Factory direct pricing
- Free equipment layout consultation
- Installation & online technical training
- Lifetime after-sales support
Contact us to get the latest price & video demo.
