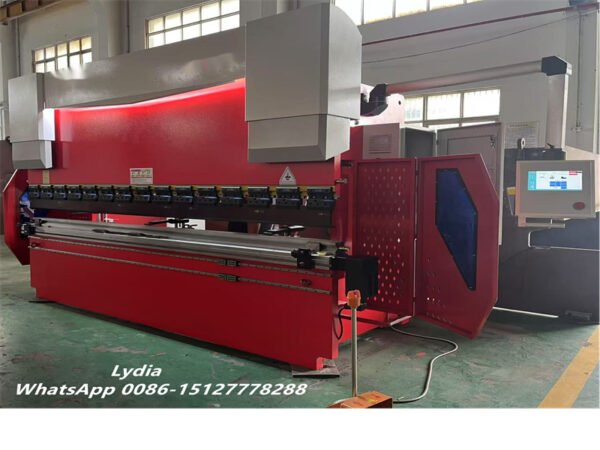

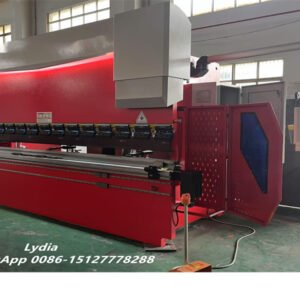

ZTRFM press brakes deliver the dependability and reliability your operation demands. Easy-to-use controls offer an unparalleled user-friendly approach. ZTRFM’s 350T6000 hydraulic press brake is an advanced method engineered for large-format sheet metal bending. Equipped with the TP10S CNC control system and a mechanical crowning system, this machine ensures precise, stable, and powerful forming across extended lengths—ideal for heavy-duty industrial applications. Our press brakes can handle a wide range of materials, including soft brass, heat-treated aluminum alloys, stainless steel, soft aluminum, and chrome molybdenum.
Key Technical Parameters of 350T6000 Torsion Bar Hydraulic Press Brake Machinewith TP10S CNC System
| Item | Specification |
|---|---|
| Nominal Pressure | 3500 KN (350 Tons) |
| Working Table Length | 6000 mm |
| Distance Between Columns | 4800 mm |
| Throat Depth | 400 mm |
| Slide Stroke | 250 mm |
| Max Opening Height | 570 mm |
| Max Working Pressure | 26 MPa |
| Backgauge Range | 500 mm |
| Slider Speed (Down/Work/Up) | 120 / 8 / 110 mm/s |
| Main Motor Power | 22 kW |

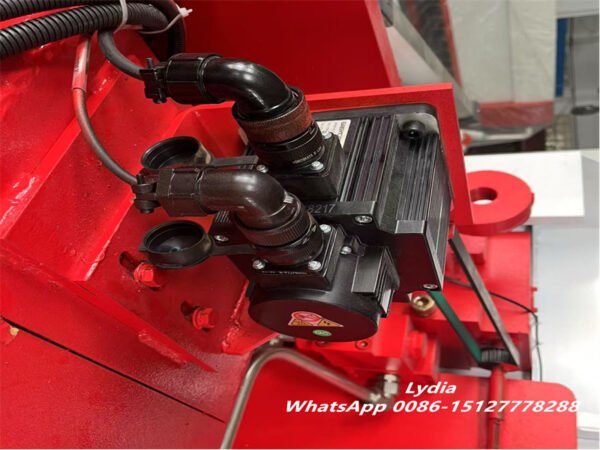

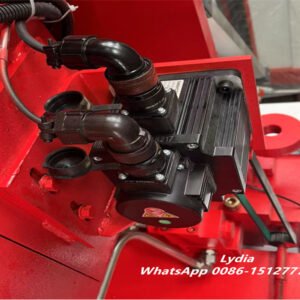

| Stroke Servo Motor | 0.85 kW, EMG Series |

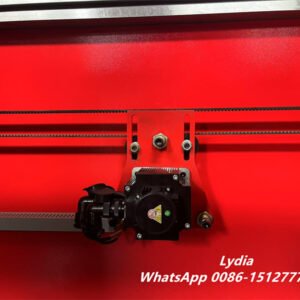

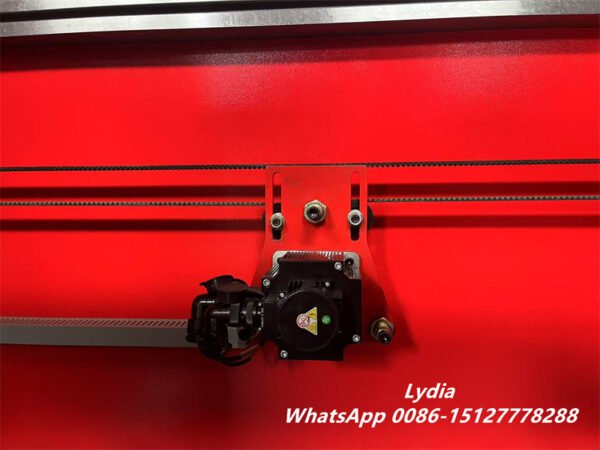

| Backgauge Servo Motor | 0.85 kW, EMG Series |
| Oil Pump | CPO-50-P-10R, 50 ml/r, 35 MPa |
| Dimensions (L×W×H) | 4500 × 1900 × 2850 mm |
| Weight | 17,500 kg |
| Oil Tank Capacity | 560 kg (46# anti-wear oil) |
Main Components of 350T6000 Torsion Bar Hydraulic Press Brake with TP10S CNC System
| Component | Specification / Brand |
|---|---|
| CNC System | TP10S Touchscreen (China) |
| Hydraulic Pump | USA Sunny Gear Pump |
| Hydraulic Valves | XINLI High-precision valves |
| Pipe Fittings | JS German-type ferrule fittings |
| Main Motor | Wannan (China) |
| Servo System | Estun EMG Series + EASYCUT ES10 Drive |

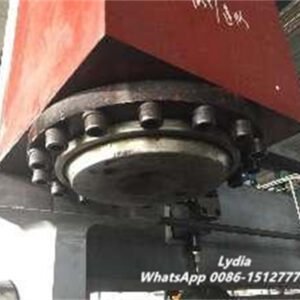

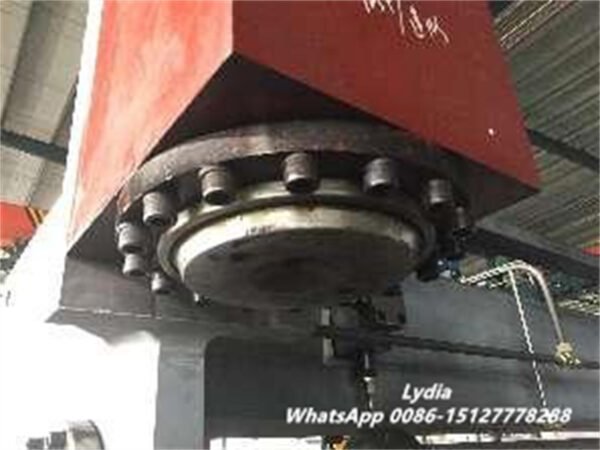

| Cylinder | Wuyang (20+ years of experience) |
| Molds | 42CrMo, HRC 47±2°, customized per client drawing |
| Crowning System | Mechanical Crowning System |
Optional Features
- Light Curtain / Laser Safety Protection
- Oil Cooling System (Air Cooler / Oil Cooler)
- Siemens Main Motor (optional)
- DELEM DA41t or E300P CNC System Upgrade
- Special Mold Design Available per Drawing
Machine Features at a Glance

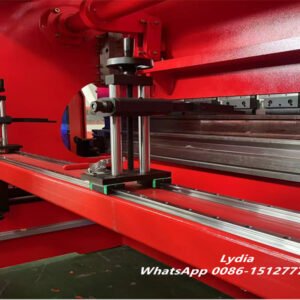

- Precision ball screw & linear guide for X-axis

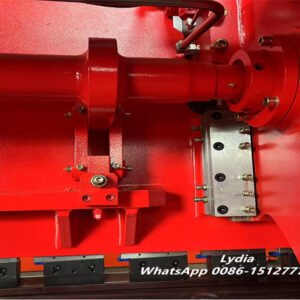

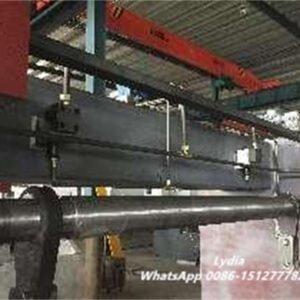

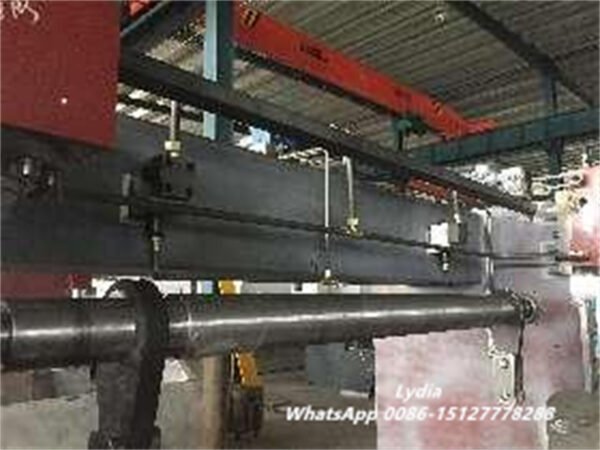

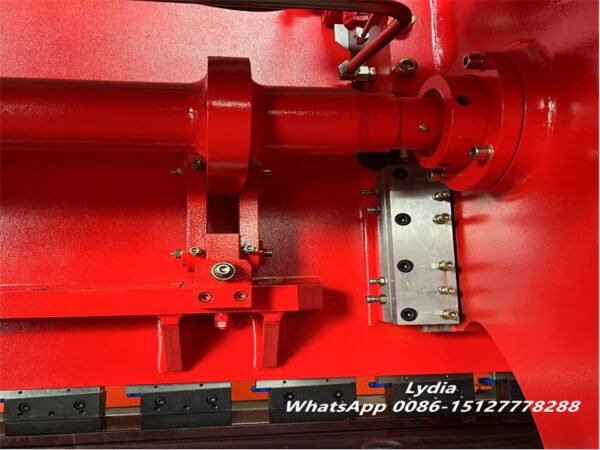

- High-rigidity torsion bar structure
- Intuitive operation interface with clear safety markings

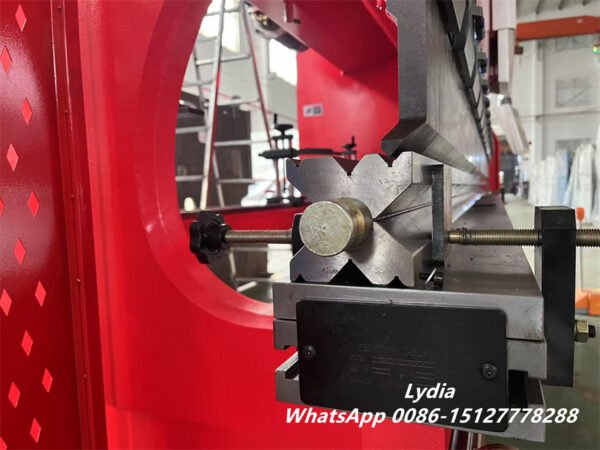

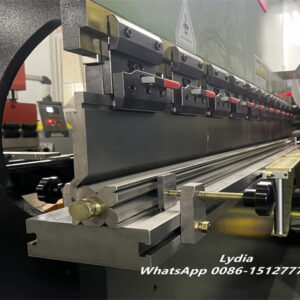

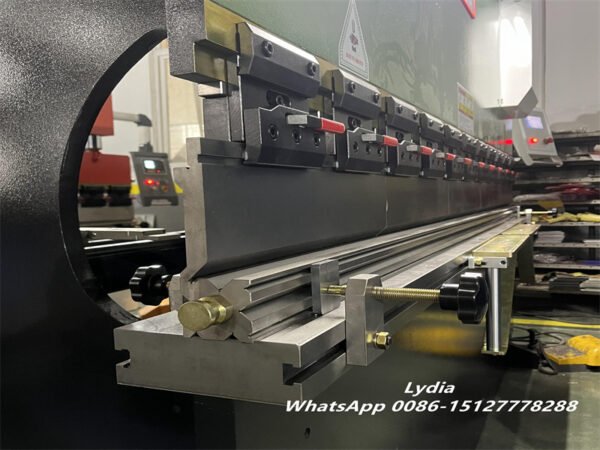

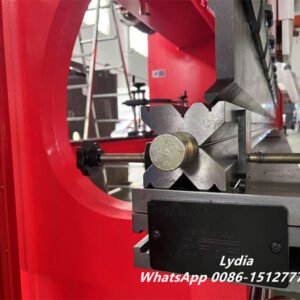

- Standard punch & die holders
- Adjustable and stable backgauge structure
- Lighting function for the working area

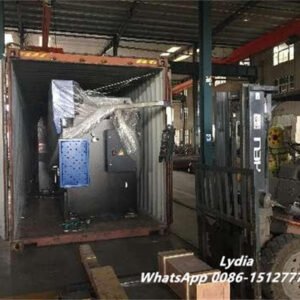

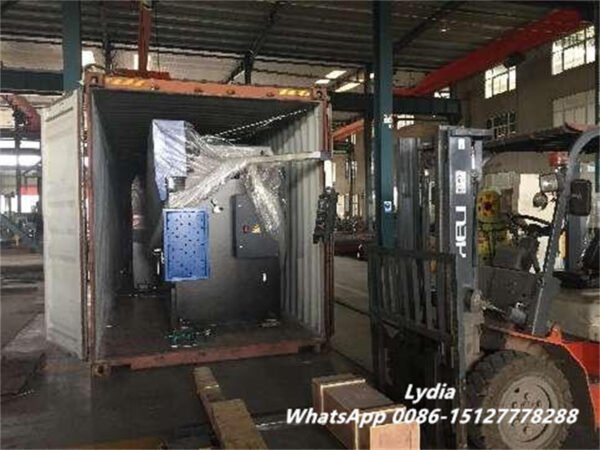

Packing & Delivery
| Details | Information |
|---|---|
| Model | 350T6000 TP10S |
| Quantity | 1 Unit |
| Unit Price | USD 52,000 |
| Packaging | Simple plastic film cover |
| Container Requirement | 40 ft Open Top Container |
| Delivery Time | 35 working days |
| Payment Terms | 30% T/T deposit, 70% before shipment |
This press brake is ideal for processing large-scale steel plates in construction, heavy industry, and custom fabrication fields. With reliable hydraulic performance, top-tier components, and a user-friendly CNC interface, the ZTRFM 350T6000 provides unmatched durability and precision in long-format bending.
Contact us today for detailed drawings, customization options, or to schedule a live demo
