065-400-425 Standing Seam Roofing Machine Automatic Metal Roof Roll Forming Line

65-400-425 Standing Seam Roofing Machine

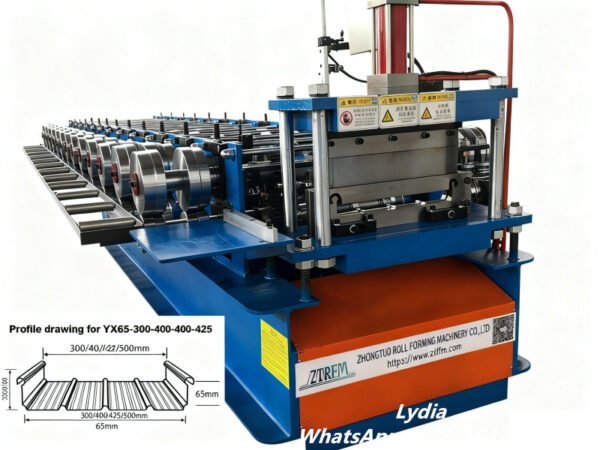

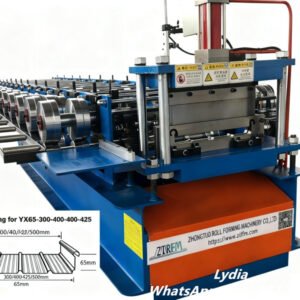

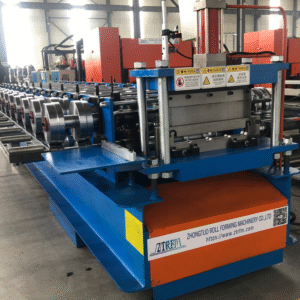

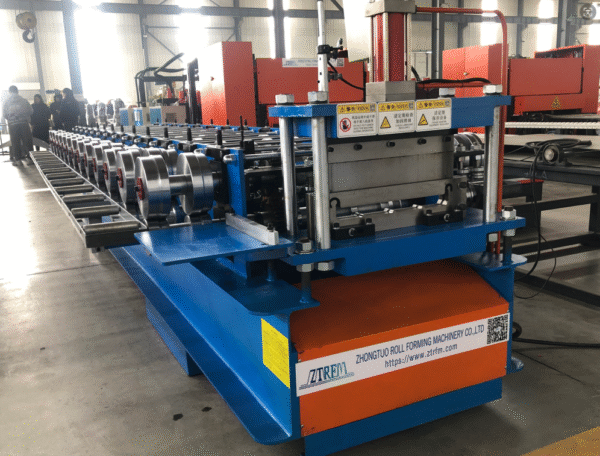

The YX65-400-425 Standing Seam Roofing Machine is a high-performance metal roof roll forming machine designed for producing both straight and tapered standing seam roof panels. It supports two effective panel widths — 400mm and 425mm, making it ideal for a wide range of roofing designs and modern construction projects.

This automatic roofing production line processes aluminum sheets (0.7–1.0mm) and steel sheets (0.5–0.8mm) with precision. The integrated PLC control system enables fully automatic operation, allowing operators to easily set length, quantity, and batch parameters for continuous, stable production.

Thanks to its compact design, the entire machine can be conveniently loaded into a 20-foot GP container, providing easy transportation and fast on-site installation — perfect for mobile construction or overseas delivery.

Technical Overview of Automatic Roofing Machine

• Model: ZT65-400-425
• Forming Speed: 8–15m/min
• Forming Steps: 13
• Motor Power: 7.5KW×2 + 2.2KW hydraulic system
• Material Width: 575mm / 600mm

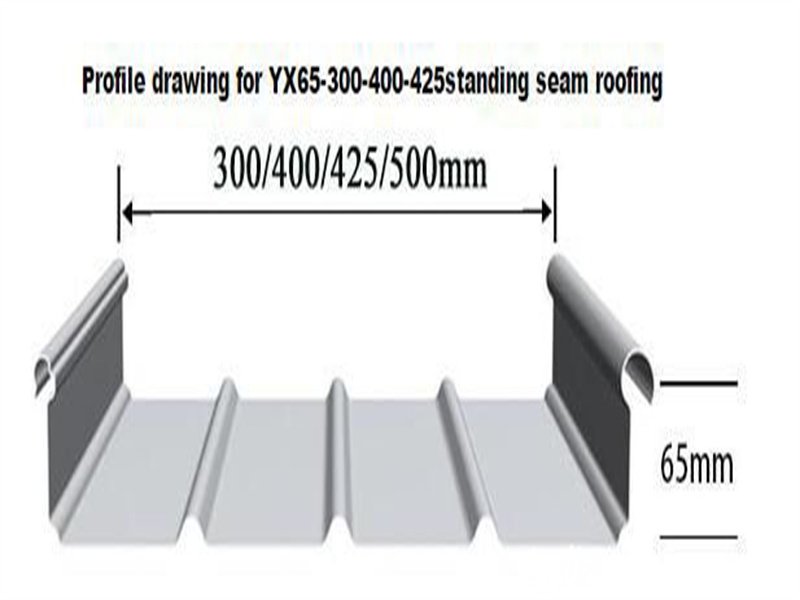

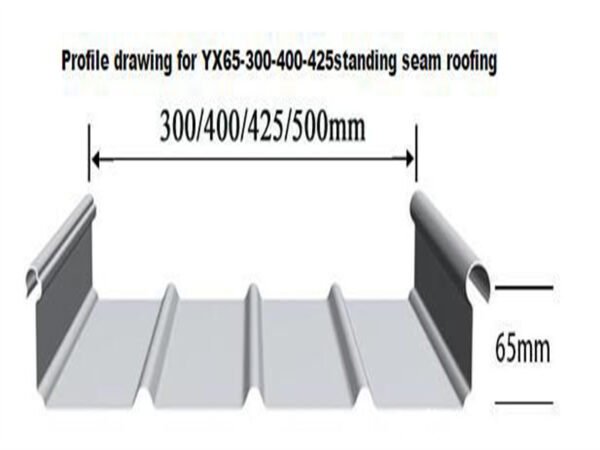

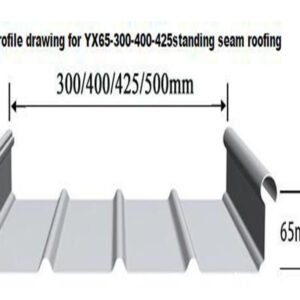

• Profile Height: 65mm
• Voltage: 380V / 50Hz / 3 Phase

Main Features of Metal Roof Roll Forming Machine

• Dual Width Forming (400/425mm): Flexible production for various roof panel profiles.
• Straight & Tapered Forming: One-time or two-time forming available for tapered profiles.

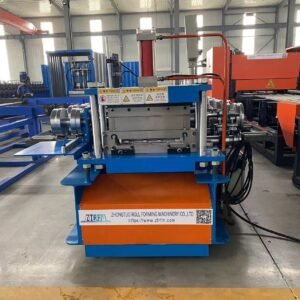

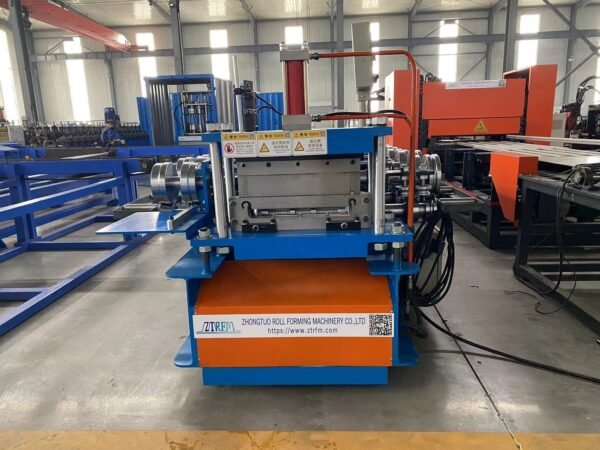

• Hydraulic Post Cutter: Made from Cr12Mov mold steel, heat-treated to ensure durability and precise cutting.

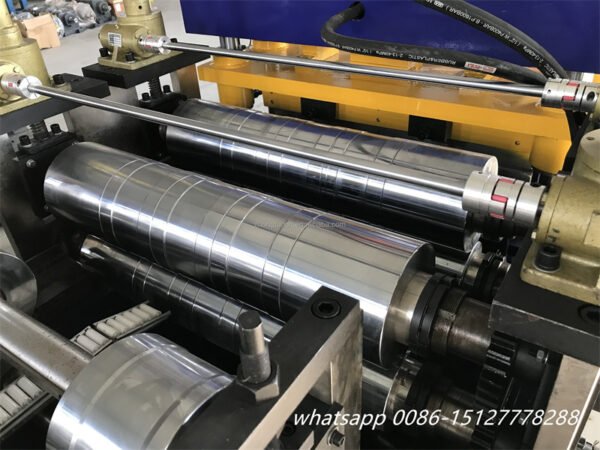

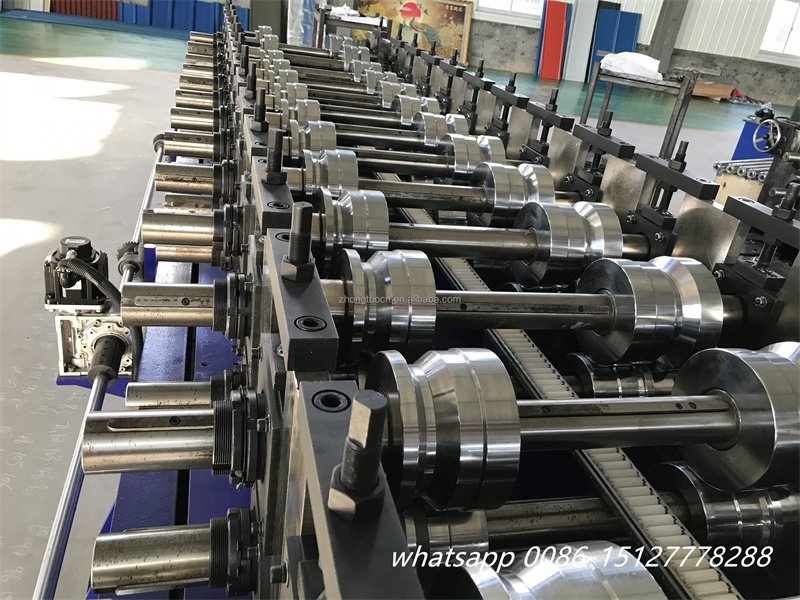

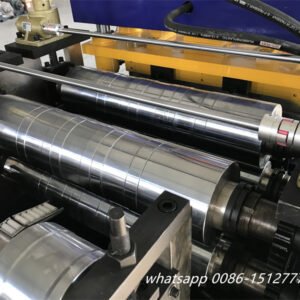

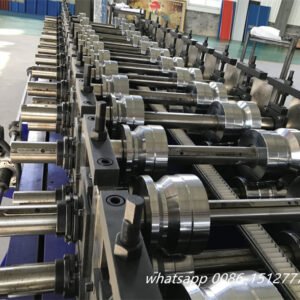

• High-Quality Rollers: Crafted from 45# steel and CNC-machined for accuracy, with optional hard chrome plating for extended service life.
• Automatic Control: Schneider PLC system with touch screen interface for easy operation and real-time adjustment.
• Portable Design: Compact size fits perfectly in a 20GP container for easy transport and site setup.

Included Equipment

Main forming machine, 5-ton manual or hydraulic uncoiler, auto seamer, hand seamer, Schneider PLC system, run-out table, and operation manual — all neatly packed in a 20GP container for efficient delivery.

Applications of the roof forming line

The YX65-400-425 Standing Seam Roofing Machine is ideal for producing architectural, industrial, and commercial metal roofs. With its automatic control, tapered forming capability, and portable structure, it is an excellent solution for contractors seeking a reliable, high-speed, and cost-effective roofing production machine.
