Snap-Lock Standing Seam Roof Panel Roll Forming Machine Product Overview

Our precision roll forming equipment specializes in manufacturing interlocking metal roofing panels featuring tool-free snap-lock seam technology. This innovative joining system enables secure panel interconnection through a mechanical hooking mechanism, with concealed fasteners protected by subsequent sheet overlaps, eliminating specialized installation requirements.

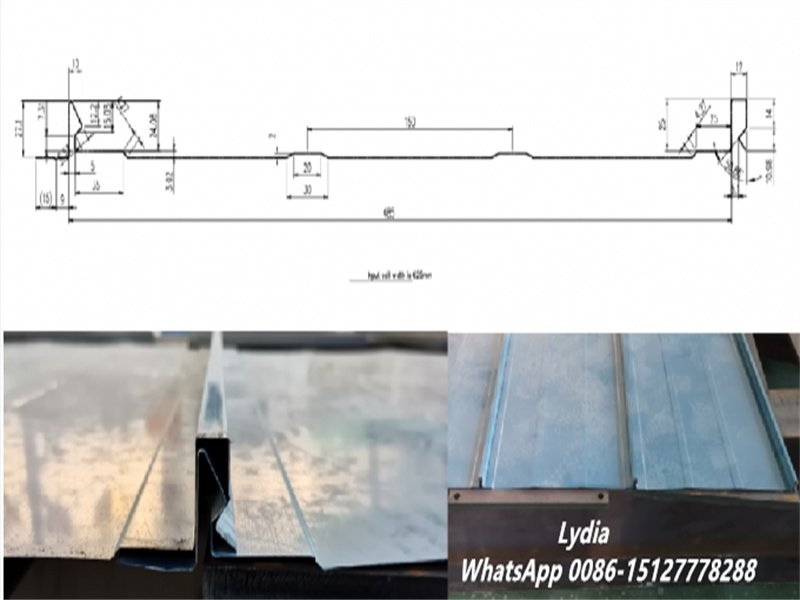

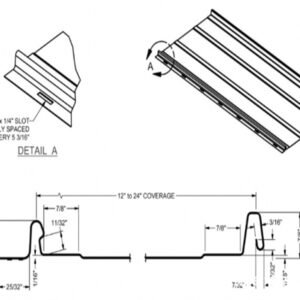

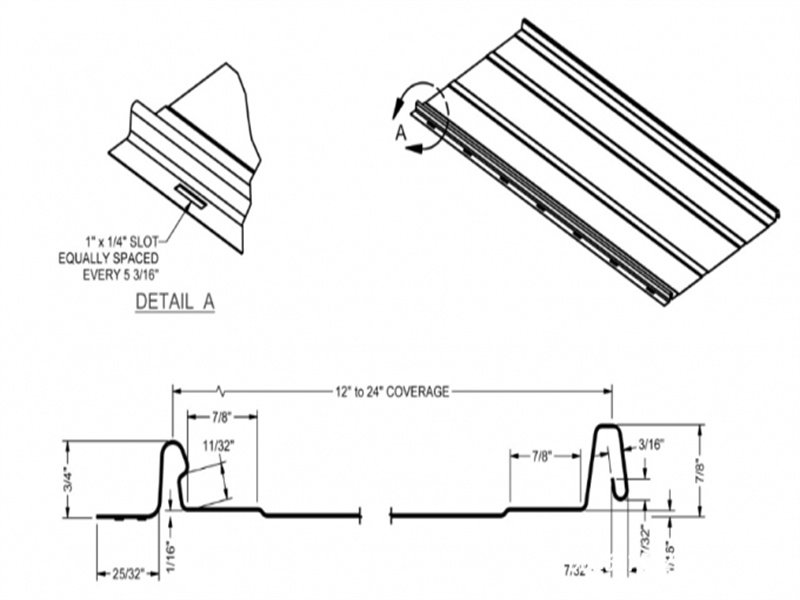

  1. Profile drawing:

Advanced Snap-Lock Standing Seam Roof Panel Production System

Snap-Lock Standing Seam Roofing Machine
Snap-Lock Standing Seam Roofing Machine

Snap-Lock Standing Seam Roof Panel Roll Forming Machine – Technical Specifications

Category Specification
Material Compatibility GI, PPGI, G550 steel grades
Thickness Range 0.3-0.8mm
Coil Capacity Max 1220mm width
Formed Panel Width 930mm (effective)
Production Speed 20 m/min
Power System 7.5kW main drive
Forming Stations 20-stage progressive forming
Shaft Specifications 45# steel, Ø75mm, tempered
Roller Treatment Chrome-plated (HRC 58-62)
Frame Construction 350# H-beam welded structure
Transmission System Enclosed chain drive with automatic lubrication
Dimensional Tolerance ±0.5mm/m longitudinal
Material Utilization 93% efficiency rate
Surface Protection Scratch-free treatment with dynamic balanced rollers
Snap-Lock Standing Seam Roofing Machine
Snap-Lock Standing Seam Roofing Machine

Operational Advantages

Feature Benefit
Tool-free interlock design Enables faster installation with standard tools
Concealed fastening system Superior weather resistance and waterproof performance
Precision leveling system Protects material surface during processing
Modular design Accepts optional automation packages (stacking/length measurement)

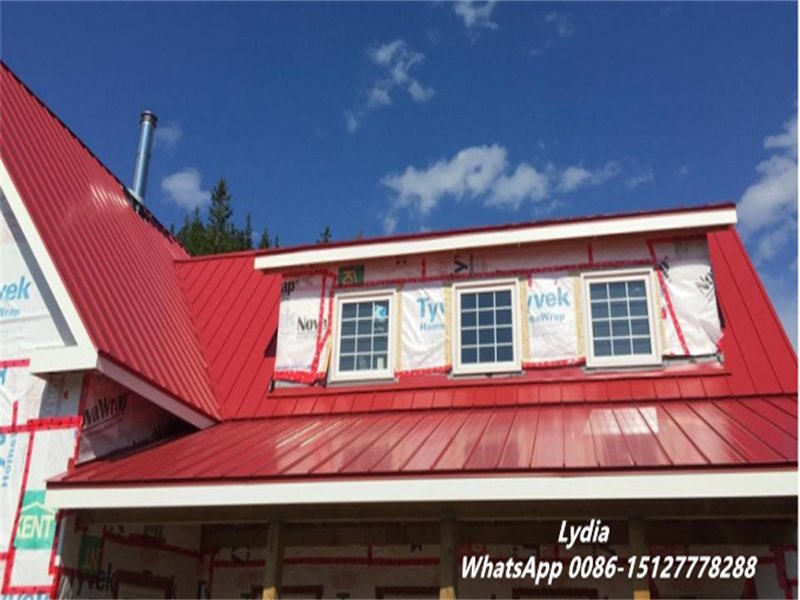

Application Scope

Sector Use Cases
Commercial Roofing Office buildings, shopping centers
Industrial Facilities Warehouses, manufacturing plants
Architectural Projects Premium standing seam applications
Institutional Buildings Schools, hospitals, government facilities
Snap-Lock Standing Seam Roofing Machine
