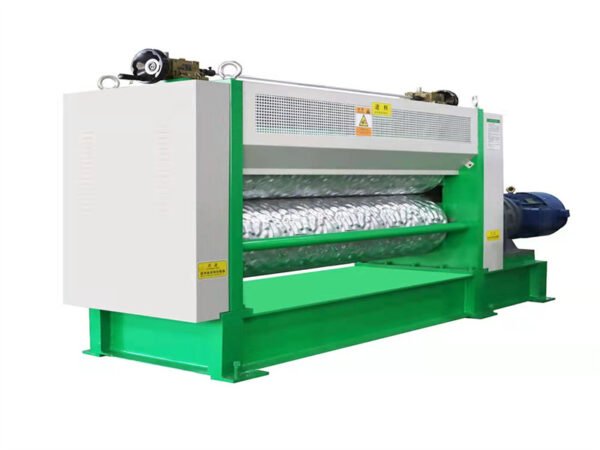

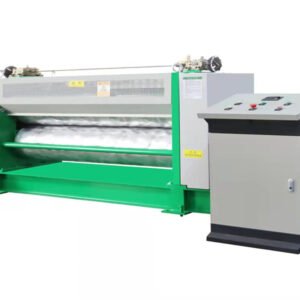

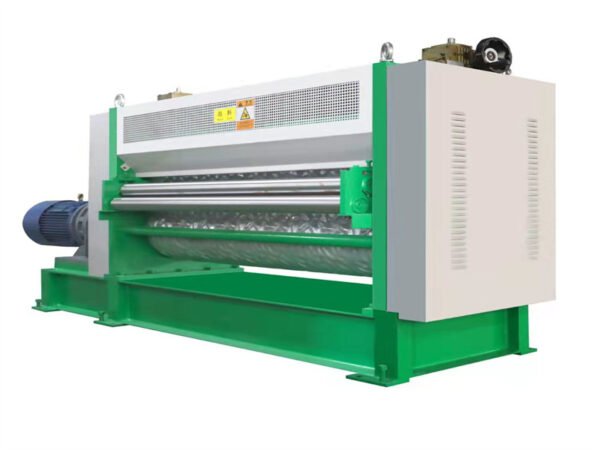

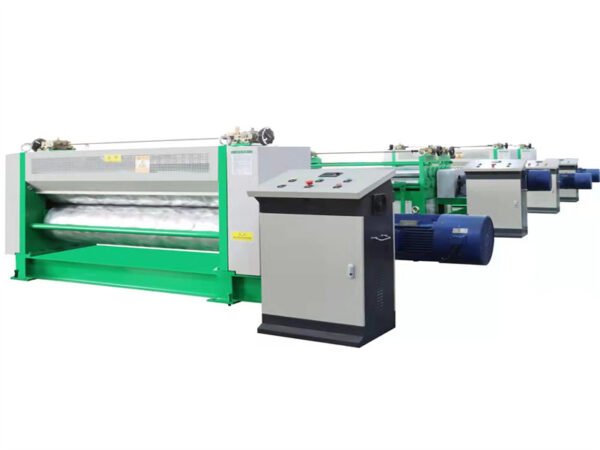

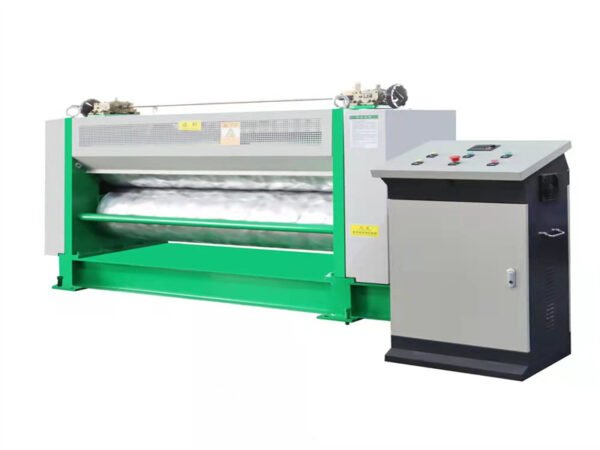

Advanced Decorative Metal Embossing Machine Coil Embosser Machine for Steel, Aluminum, and Metal Sheet Applications

High-Performance Metal Embossing Machine for Decorative Steel Sheets

As a professional roll forming and embossing machine manufacturer, we design and build high-quality solutions for companies in the sheet metal, construction, and manufacturing industries. Our goal is to provide durable, flexible, and user-friendly machines that deliver outstanding performance and reliability.

Technical Specifications of Our Steel Embossing Equipment

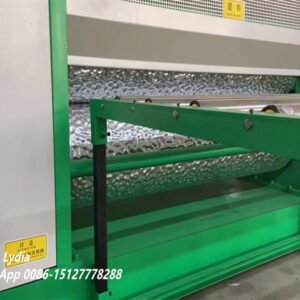

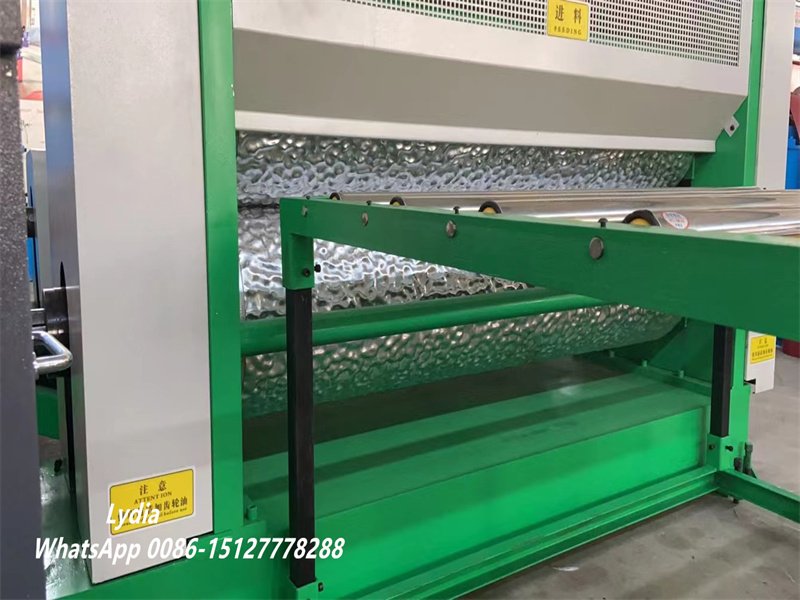

1. Embossing Rollers: Two integrated solid forged rollers made of 42CrMo alloy steel, processed with heat treatment to a hardness of HRC55°–60°, and finished with chrome plating for extra durability.

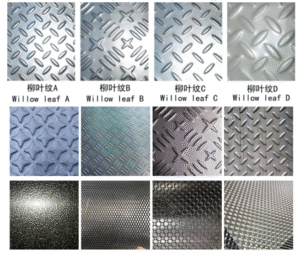

2. Embossing Roller Size: Φ450mm × 1450mm; working plate thickness 1–4mm. The engraved depth on the concave roller is 2.7mm, while the convex roller height is 2.0mm. Pattern: customizable leaf pattern. Suitable for embossing carbon steel sheets.
3. Power System: Equipped with one 15kW national standard motor and one special reducer (China National Standard brand). Working speed: 7m/min.

4.

5. Machine Frame: Overall welded frame design; side wall thickness 110mm, made of solid material for stability. Machine dimensions: 3.2m (L) × 1m (W) × 1.8m (H). Total weight: 8 tons.
6. Pressure Adjustment: Screw-type up and down adjustment with worm gear transmission, manually controlled on both sides. Equipped with a manual pressure adjustment scale for accurate reference.

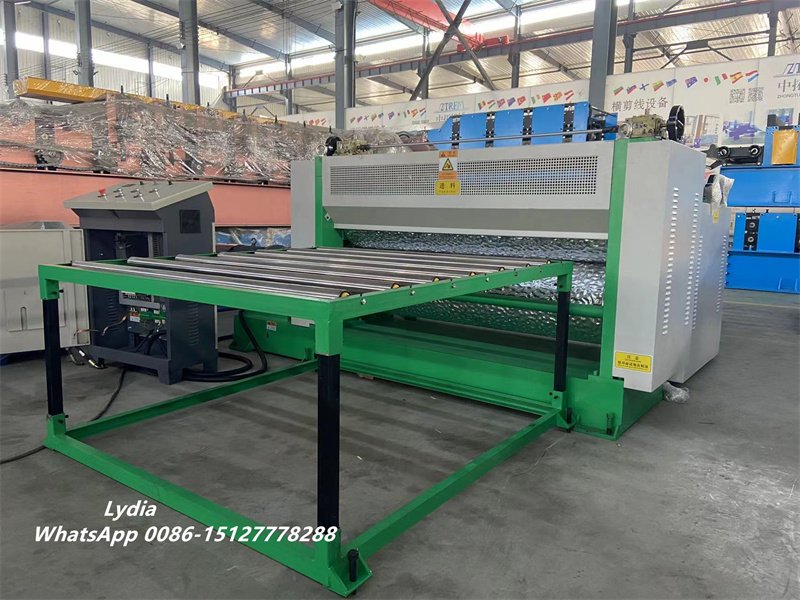

7. Accessories: One feeding rack 1.5m × 5m, 13 support rollers, and 4 guide wheels.
8. Inspection and Acceptance: The supplier will conduct a factory test run. Acceptance is based on achieving the embossing effect of the provided samples.

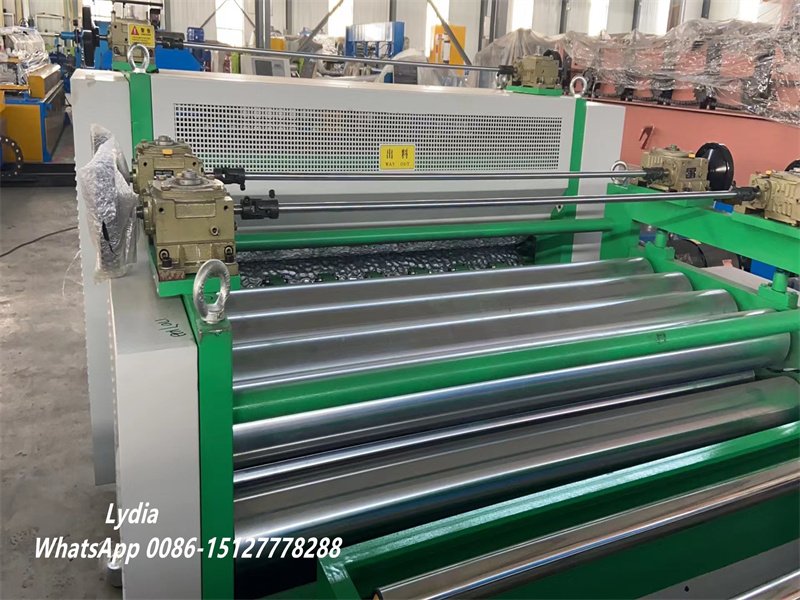

9. Leveling Machine: Φ120mm × 1450mm, 11 rollers, powered by a 4kW motor.

Why Choose Our Metal Embossing Machine?

• Durable Structure: Forged alloy steel rollers with heat treatment and chrome plating ensure long service life.
• High Precision: Customizable patterns with deep engraving create beautiful decorative finishes.
• Efficient Operation: With 7m/min working speed, it enhances productivity while maintaining stable performance.
• Flexible Design: Manual pressure adjustment with reference scale provides excellent control and repeatability.
• Complete Accessories: Includes feeding rack, support rollers, and guide wheels for smooth material handling.

Applications of Decorative Embossing Machines

Our metal embossing machines are widely used in industries requiring:

• Decorative steel sheets for architectural projects
• Embossed panels for interior wall designs
• Industrial steel embossing equipment for sheet processing
• Custom decorative embossing machines for high-end applications

•

Thanks to the precise metal embossing rollers, the finished products achieve a premium appearance and enhanced durability.

Service, Warranty, and Customization

All steel embossing equipment is fully assembled and tested at our factory in Cangzhou, Hebei. Moreover, we provide a 1-year warranty for parts and labor. Each machine can also be customized according to customer’s profile and requirement, ensuring that every client receives the best solution.
