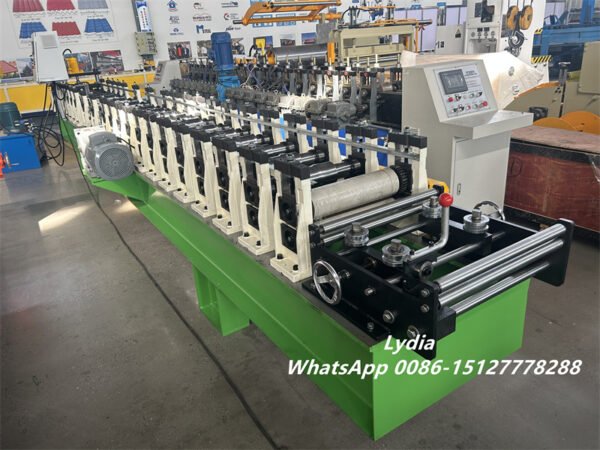

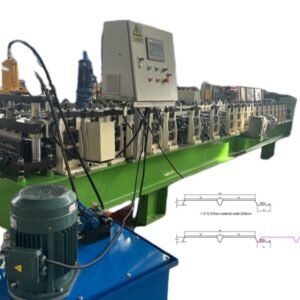

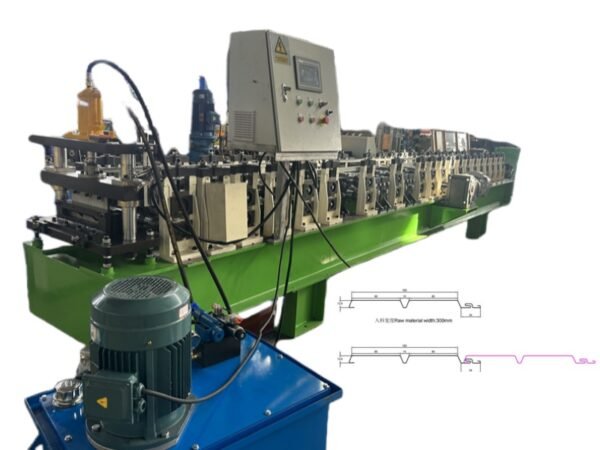

Galvanized Metal Fascia Reveal Creative Wall Panel Roll Forming Machine with Width Auto Adjustable
Are you looking for a Creative Wall Panel Roll Forming Machine that can make your metal fascia, soffit, or wall panels the highlight of your building? With Zhongtuo Machinery, you will achieve bold and clean directional sight lines that immediately enhance the overall appearance. Compared with flat sheets, our wall cladding roll forming machine provides stronger panels that are also much easier to install. Moreover, when using flat sheets, the process often turns into a design-build application, which may complicate construction.
In contrast, Zhongtuyo’s soffit panel roll forming machine offers a versatile solution that ensures both durability and style. This advanced system allows you to freely choose the gap between each sheet. For example, you can select from no reveal, 1-inch, 2-inch, or 3-inch reveals. Additionally, you may mix and match different reveal sizes to create a unique and modern façade. As a result, your building will stand out with a bold and distinct design.
Technical Specifications of Wall Cladding Machine
| Item NO | Description | Unit Type | RF-RP |
|---|---|---|---|
| 1 | Material Thickness | mm | 0.3–0.8mm for Color Coated Steel |
| 2 | Forming Speed | m/min | 0–10 |
| 3 | Roller Stands | stands | 20 |
| 4 | Roller Material | — | 45# steel, coated with chrome, heat treated, HRC 58–62 |
| 5 | Shaft Diameter & Material | — | Ф70, 45# steel, heat treated, HRC 58–62 |
| 6 | Cutting Device | — | Hydraulic Cutting |
| 7 | Main Motor Power | Kw | 7.5 |
| 8 | Hydraulic Cutting Power | Kw | 4 |
| 9 | Hydraulic Pressure | Mpa | 12 |
| 10 | Power Supply | — | According to Client’s Requirement |
| 11 | Tolerance | mm | ±1.5 |
| 12 | Material of Cutting | — | Cr12 |
| 13 | Control System | — | PLC with Touch Screen |
| 14 | Main Machine Weight | T | 6–7 Ton |
| 15 | Outer Specification | m | 7 × 1 × 1.2 |
| 16 | Transmission Type | — | 1 Inch Chain Drive |
Main Components

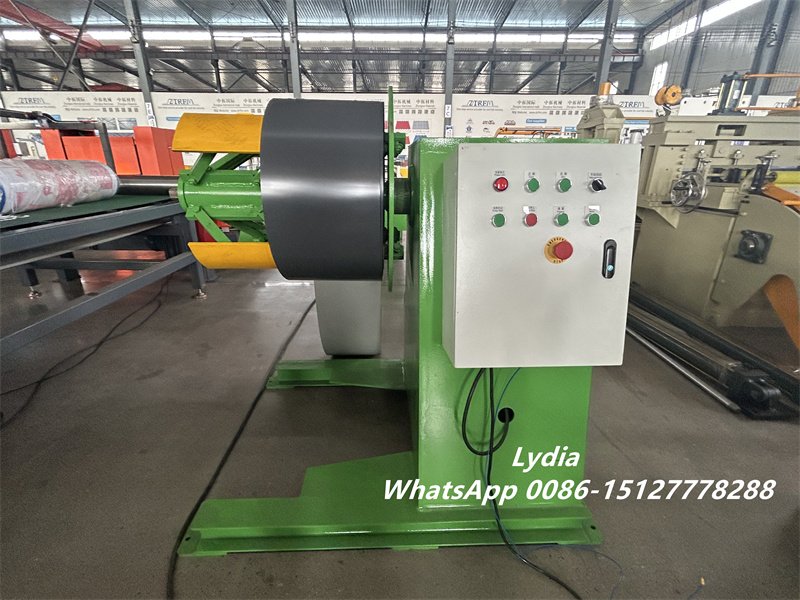

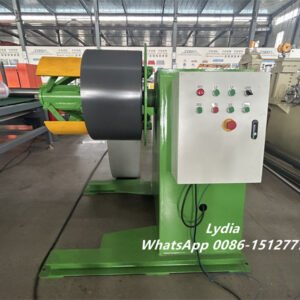

- 5 Ton Passive De-Coiler – 1 set
-

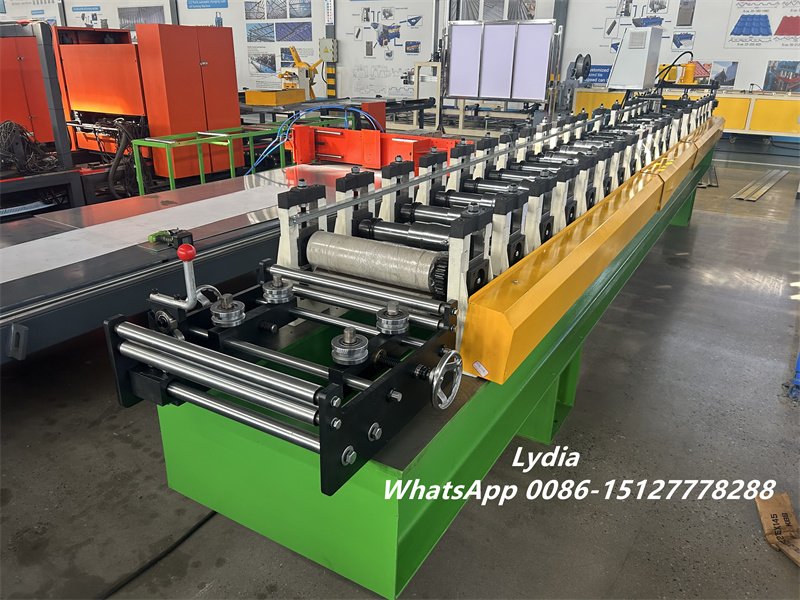

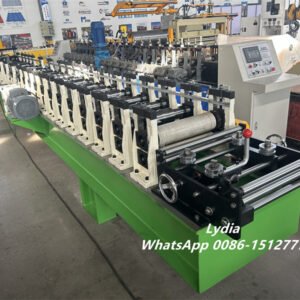

Decoiler - Main Roll Forming Machine – 1 set

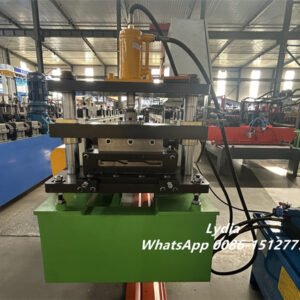

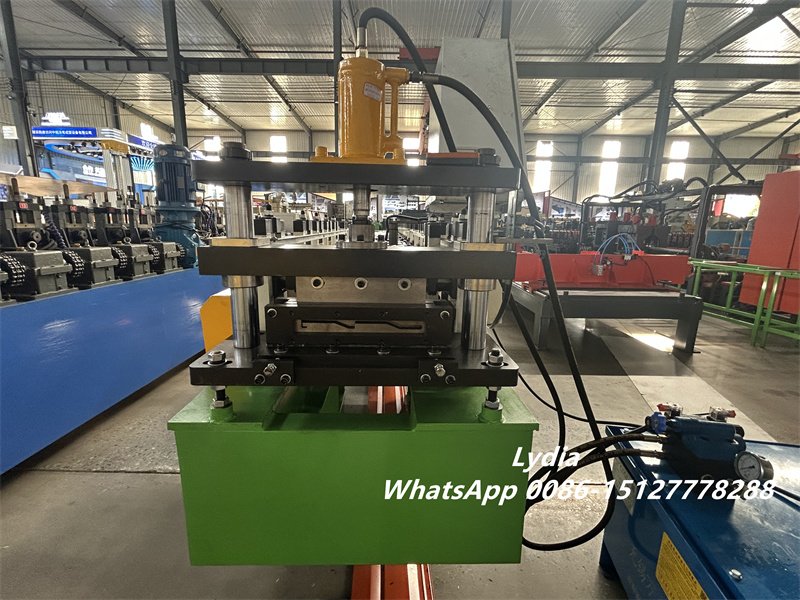

- Hydraulic Cutting Unit – 1 set

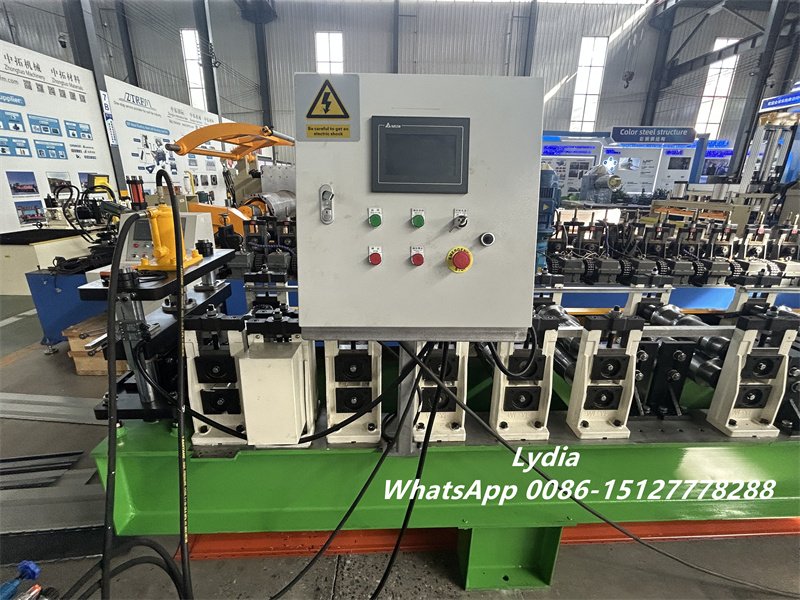

- PLC Control Box – 1 unit
- Hydraulic Station – 1 unit
- 4-Meter Passive Table – 1 unit
- Spare Parts – 1 package
Each component is carefully engineered to ensure long-term stability and efficiency. In addition, this galvanized sheet forming machine is designed to meet international quality standards, making it highly reliable for continuous production.
The Design Wall Roll Forming Machine
The Design Wall System is a structural wall cladding panel with optional louvered-style venting, which increases both functionality and aesthetics. It consists of a 12-inch wide panel offered in two distinct profiles:
- Smooth Panel – delivering a clean, modern look.
- “Board” Panel – featuring a 2-inch upside extension, which can be expanded further in 1-inch increments.
Importantly, the panels can be installed horizontally or vertically, which makes them highly adaptable. As a result, they are widely used for walls, soffits, fascia, or equipment screens.
Why Choose This Roll Forming Machine?
- Flexibility: Adjustable width and reveal sizes provide diverse design possibilities.
- Durability: Stronger than flat sheets thanks to chrome-coated rollers and heat-treated shafts.
- Efficiency: Hydraulic cutting and PLC control ensure fast, accurate production.
- Versatility: This metal wall panel machine is suitable for multiple applications, from cladding to soffit and Creative Wall Panel panels.
In summary, the Galvanized Metal Creative Wall Panel Roll Forming Machine not only enhances your building’s appearance but also ensures durability, precision, and ease of installation. With its advanced control system, robust components, and customizable design options, this equipment is the ideal solution for modern construction projects seeking long-lasting performance.
