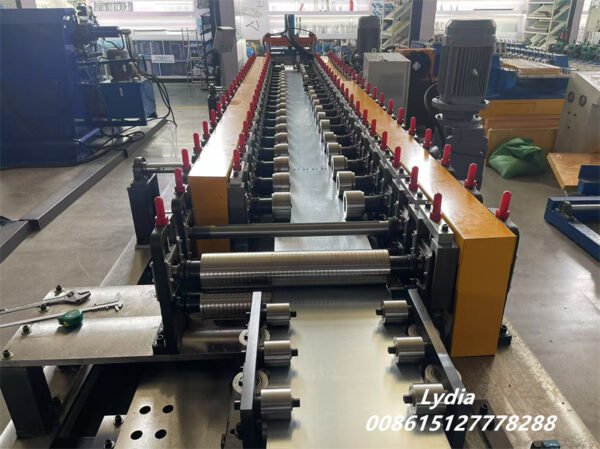

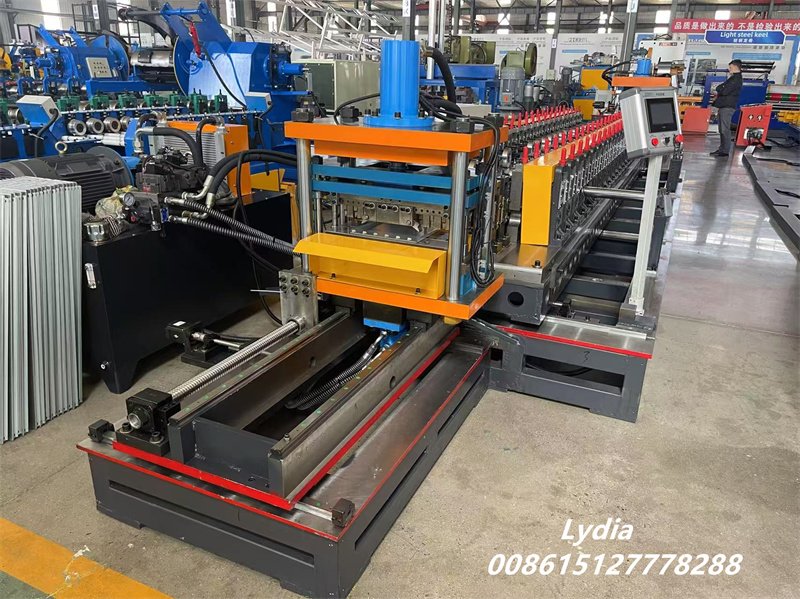

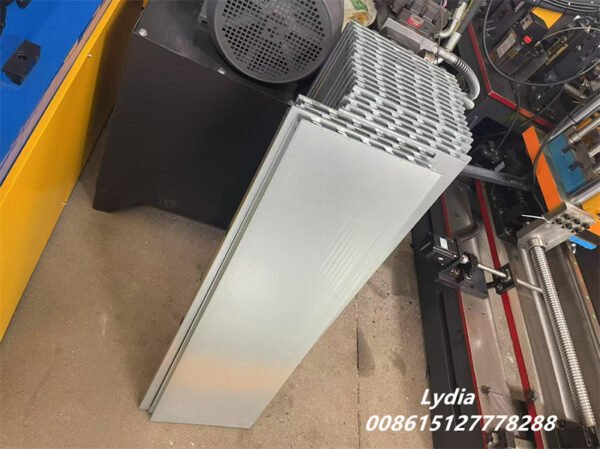

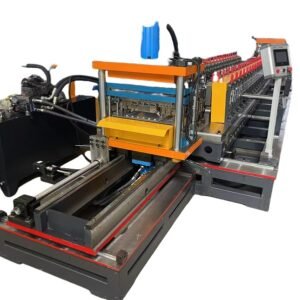

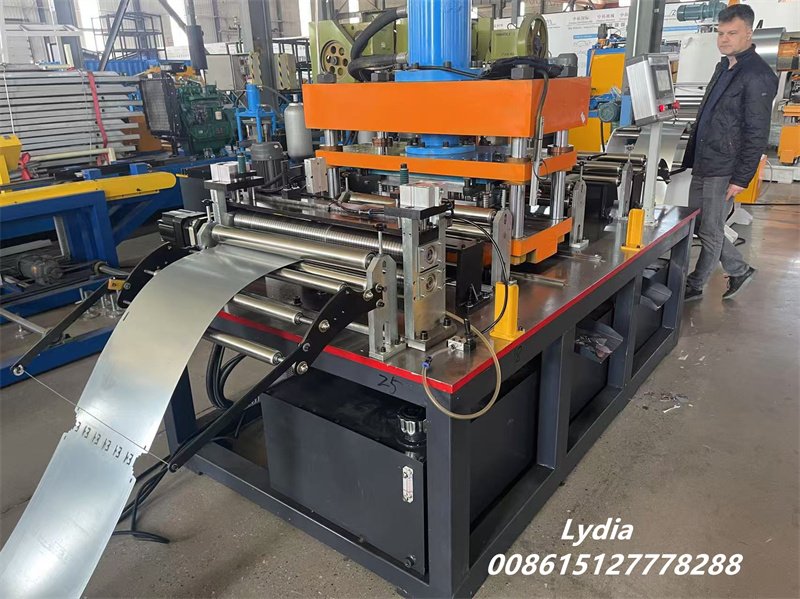

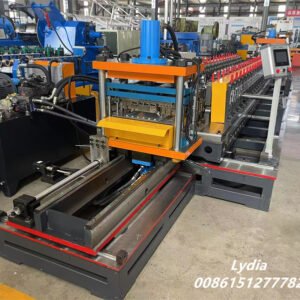

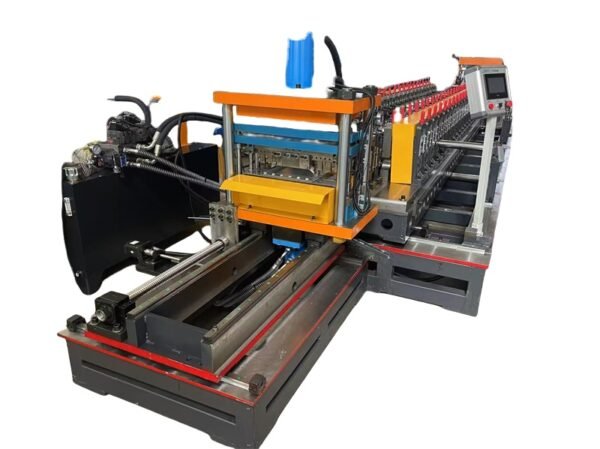

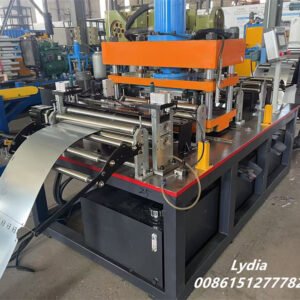

The Supermarket Shelf Panel Roll Forming Machine by ZTRFM is designed for high-volume supermarket back panel production. It integrates leveling, punching, bending, and cutting into one automated line, ensuring speed, accuracy, and flexibility.
This machine is widely used in:
-
Supermarket shelf manufacturing
-
Storage rack production
-
Pallet racking systems
-
Custom shelving solutions
👉 Ideal for both small workshops and large-scale production factories.
Technical Specifications Supermarket Shelf Panel Roll Forming Machine
| Item | Specification |
|---|---|
| Material | Cold rolled coil (0.4–0.7mm) |
| Panel Widths | 410 / 510 / 610 / 710 mm |

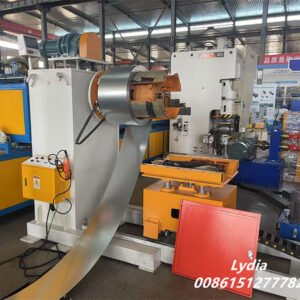

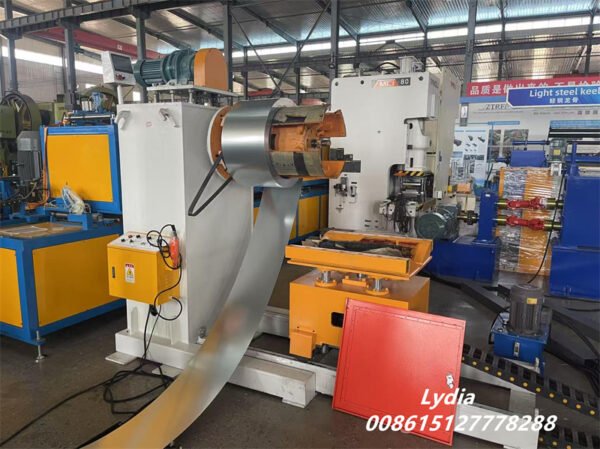

| Decoiler | 5T capacity, ID φ450–550mm, OD φ1300mm |

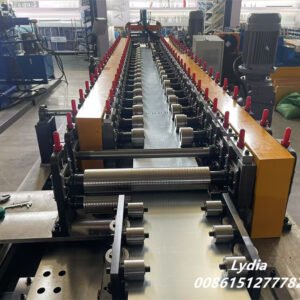

| Roller Stations | 20 rows (customizable) |
| Roller Material | Cr12MoV, heat treated, HRC55–58 |
| Shaft Diameter | φ50mm solid shaft |
| Cutter | Cr12MoV, automatic, no deformation |
| Main Power | ≤ 30 KW |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Control System | PLC automation, gear transmission |
| Forming Speed | 10m/min (customizable) |
Case Study: Bartels, Germany
ZTRFM successfully delivered a fully automated supermarket shelf panel production line for Bartels (Germany).
Key Features at a Glance
Adjustable width (410–710mm) – meet multiple supermarket shelf panel requirements
Integrated cutting & bending – one compact line for efficiency
Servo feeding precision ±0.1mm – perfect punching & forming
Forming speed up to 10m/min – customizable for higher capacity
PLC intelligent control – automation with multi-language support
Durable rollers (Cr12MoV, HRC55–58) – long life & stability
FAQ
Q1: Can the shelf panel widths be customized?
✅ Yes, the machine supports adjustable widths (410–710mm) and can be tailored for other sizes.
Q2: What is the forming speed?
✅ Standard speed is 10m/min, but we offer customized higher-speed models.
Q3: What is the lifespan of rollers?
✅ Rollers are made of Cr12MoV steel with heat treatment, ensuring durability and long-term stability.
Q4: Does it support remote monitoring?
✅ Yes, our smart system allows remote control, parameter input, and fault monitoring.
Call to Action
🚀 Upgrade your supermarket shelf panel production with ZTRFM’s intelligent roll forming solutions.
💬 Contact us today for free consultation, customized design, and best factory price!
