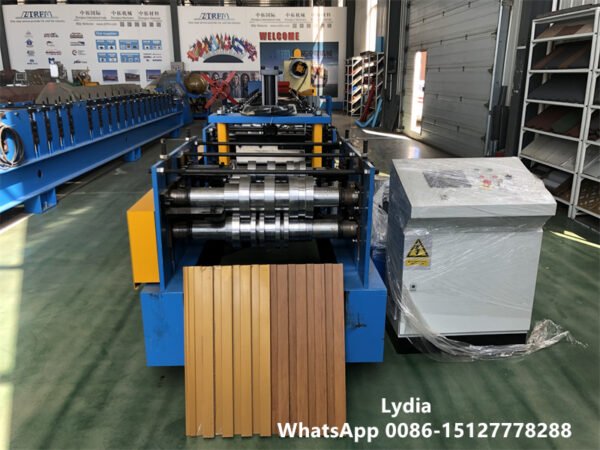

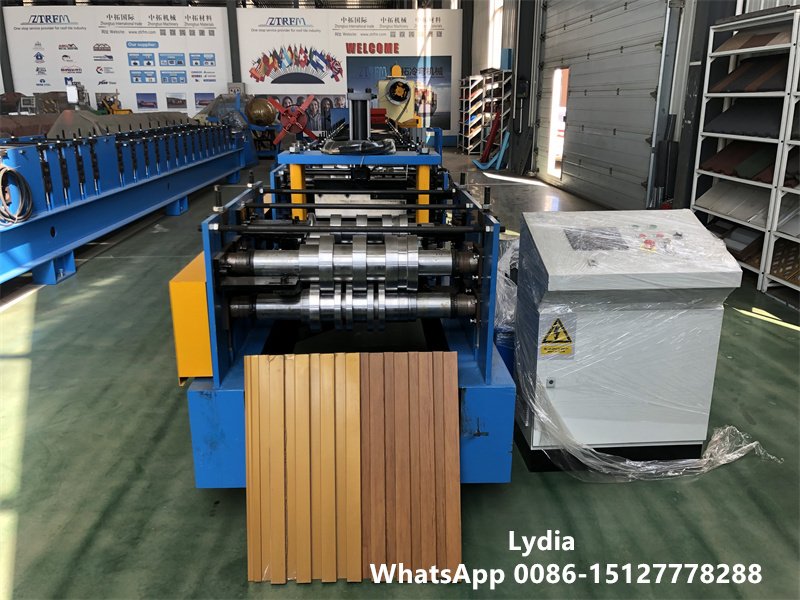

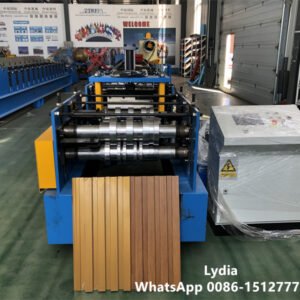

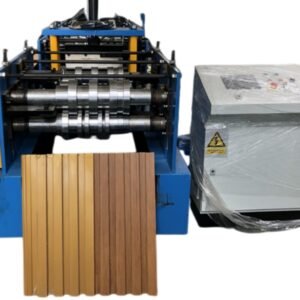

Concept Wall Roll Forming Machine
Looking for a modern, flexible, and precise solution to produce architectural wall panels with clean sightlines and excellent durability?
The Concept Wall Roll Forming Machine from Zhongtuo Machinery is designed to meet the aesthetic and structural demands of contemporary construction.
This machine integrates auto-width adjustment, multiple reveal options, and a durable forming system, making it ideal for producing fascia panels, soffit panels, architectural wall panels, and custom concept wall profiles. At the same time, modern metal wall panels have become a mainstream choice for building cladding because they deliver more than just good looks — they offer durability, energy efficiency, easy installation, low maintenance, and sustainability

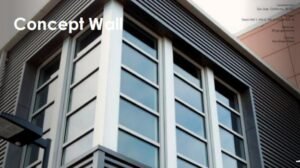

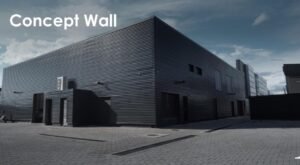

What Are Metal / Concept Wall Panels?
Metal wall panels are factory-produced panels — typically steel or aluminum — that are used to clad walls (both exterior and interior). Compared with traditional materials (like wood, gypsum, stone), metal wall panels offer a compelling combination of value and performance
Some of the more advanced wall-cladding systems on the market (e.g. the Metl‑Span “Concept Series” panels) offer:
-
Concealed fastening systems for clean, smooth façades
-
Multiple substrate and coating options — hot-dip galvanized steel, Galvalume, aluminum, stainless steel, etc.
-
A wide selection of colors and finishes; over 60 standard colors in some systems, plus custom colors to match design needs.
-
Panels that can be installed horizontally or vertically, offering great flexibility for architectural design.
-

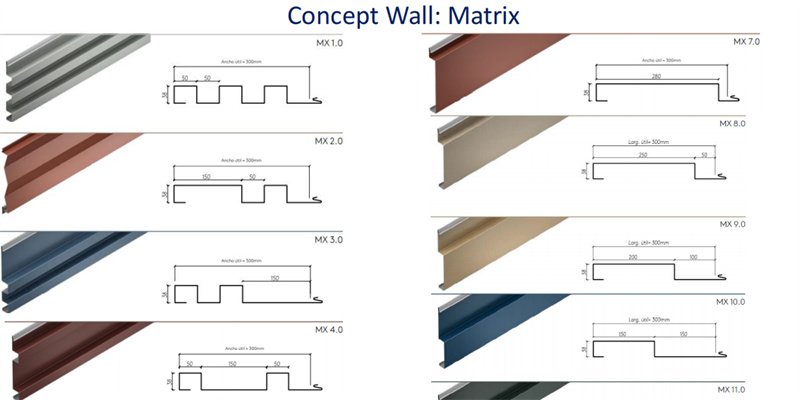

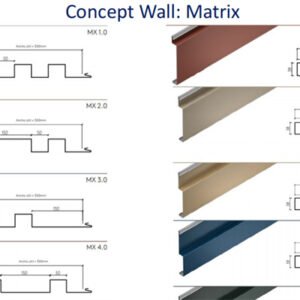

Concept Wall : Matrix
These features make metal wall panels a popular choice for modern architecture and construction.
What is a Concept Wall Roll Forming Machine?
The Concept Wall Roll Forming Machine is engineered for producing creative metal wall panels with customizable reveals. Instead of basic flat sheets, it forms panels with:
- Clean vertical or horizontal lines
- Adjustable reveal gaps (no reveal / 1 in / 2 in / 3 in)
- Stronger structural rigidity
- Easier installation on site
Designers can mix reveal sizes to create unique façades, making the machine ideal for modern architectural concepts.
Technical Specifications
| Item | Description | Unit | RF-RP |
|---|---|---|---|
| 1 | Material Thickness | mm | 0.3–0.8mm (PPGI / Color Steel) |
| 2 | Forming Speed | m/min | 0–10 |
| 3 | Roller Stands | stands | 20 |
| 4 | Roller Material | — | 45# steel + chrome coated, heat-treated HRC 58–62 |
| 5 | Shaft Diameter | — | 70mm, 45# steel, heat-treated |
| 6 | Cutting | — | Hydraulic cutting |
| 7 | Main Motor Power | kW | 7.5 |
| 8 | Hydraulic Power | kW | 4 |
| 9 | Pressure | Mpa | 12 |
| 10 | Power Supply | — | As required |
| 11 | Accuracy | mm | ±1.5 |
| 12 | Cutting Blade | — | Cr12 |
| 13 | Control System | — | PLC + Touch Screen |
| 14 | Machine Weight | T | 6–7 Ton |
| 15 | Machine Size | m | 7 × 1 × 1.2 |
| 16 | Transmission | — | 1-inch chain drive |
Features of Zhongtuo Concept Wall Roll Forming Machine
1. Adjustable Width & Reveal
- No reveal / 1 inch / 2 inch / 3 inch
- Mix & match for creative façade patterns
- Horizontal or vertical installation
Perfect for concept wall designs requiring flexibility.

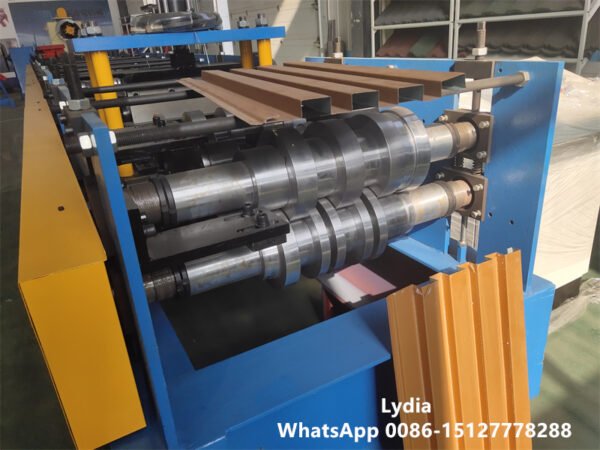

2. Stronger & More Durable Panels
Compared to flat sheets:
- Increased panel rigidity
- Chrome-coated rollers ensure a scratch-free surface
- Heat-treated shafts increase stability
Ideal for long-term outdoor wall cladding.
3. Efficient Production
- Hydraulic cutting for clean edges
- PLC touchscreen for fast parameter adjustment
- Consistent accuracy ±1.5 mm
Suited for continuous, high-volume production.
4. Multi-Application Flexibility
This concept wall roll forming system can manufacture panels for:
- Wall cladding
- Fascia panels
- Soffit panels
- Equipment screens
- Creative architectural walls
- Indoor & outdoor decorative surfaces
One machine covers multiple product types.
Panel Design Options
The Concept Wall System can produce two primary styles:
• Smooth Concept Panel
- Minimalist appearance
- Suitable for modern commercial buildings
• Board-Style Panel
- Features a 2-inch extension
- Can be extended in 1-inch increments
- Ideal for textured façade effects
Both styles support both horizontal and vertical installation.
Why Choose Zhongtuo Concept Wall Roll Forming Machine?
- High Design Freedom
Adjustable reveal and width settings create unlimited architectural possibilities. - Stronger Metal Panels
Ensures better building performance compared to flat sheet use. - High Accuracy & Efficiency
PLC automation + hydraulic cutting = stable and precise production. - Durable Machine Construction
Chrome-coated rollers and heat-treated shafts improve lifespan. - Versatile Applications
One machine can produce wall, fascia, soffit, and concept wall panels.
The Concept Wall Roll Forming Machine is a powerful, flexible, and modern solution for producing premium architectural wall panels. With customizable reveals, precise forming capability, and durable machine construction, it is the ideal choice for contractors, builders, design studios, and panel manufacturing factories.
If you want to upgrade your façade systems with stronger, cleaner, and more creative metal wall panels, Zhongtuo’s Concept Wall Machine delivers everything needed for modern construction demands.
