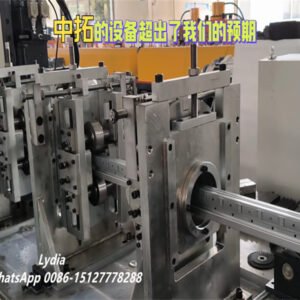

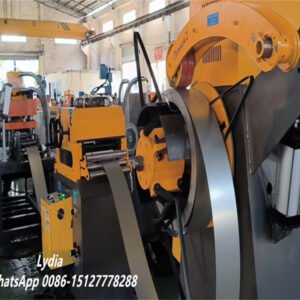

Supermarket Shelving Upright Roll Forming Machine

Product Overview

The Supermarket Shelving Upright Roll Forming Machine is designed for the precise and efficient production of shelving uprights widely used in supermarket racking systems, warehouse storage solutions, and retail display stands.
Developed with advanced cold roll forming technology, this equipment guarantees high straightness accuracy, superior surface protection, and durability. It is an ideal choice for companies seeking to meet strict DIN and international standards while maintaining high productivity.

Key Features & Advantages of supermarket shelving upright roll forming machine

• No Rust-Prone Weld Spots
  Unique clinch connection geometry eliminates corrosion issues caused by welding.

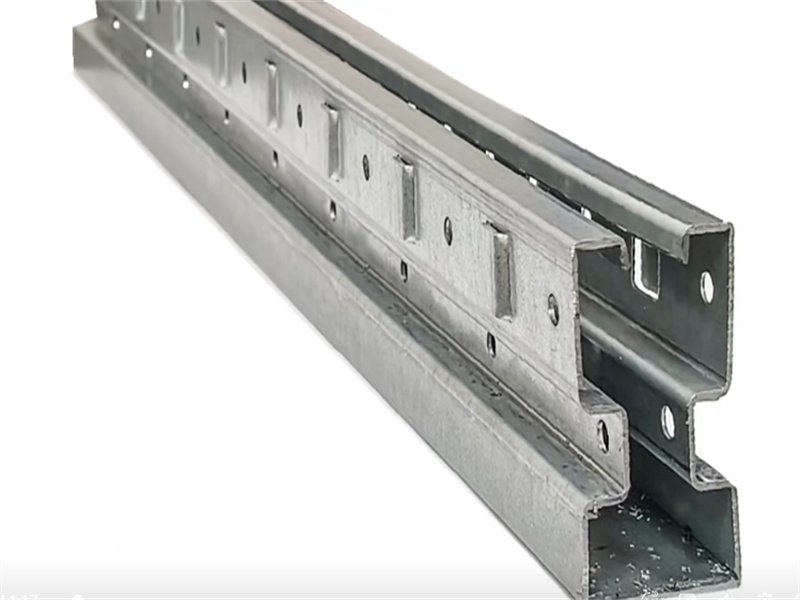

• Enhanced Grip with Stamped Toothing
  Uprights feature stamped teeth that hold better under heavy load without slipping.

• Safety and Visual Appeal
  Optional end caps ensure smooth edges and a professional finish.

• Easy Installation
  Lateral scale lines allow for quick alignment and positioning.

• High Load Capacity
  Optimized profile cross-sections and continuous seams ensure superior strength.

• Flexible Fastening Options
  Supports additional branch lines with 41/22 or 41/41 C profiles and through-holes for double profiles.

• Sustainable & Certified
  Cradle to Cradle Certified® for eco-friendly, recyclable, and low-pollutant production.
  Fire protection compliant.

Technical Specifications of supermarket shelving upright roll forming machine

• Material thickness: 1.2–2.5mm

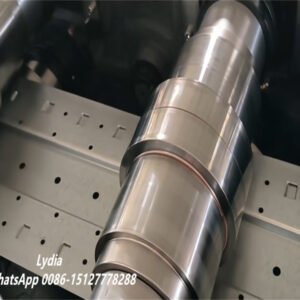

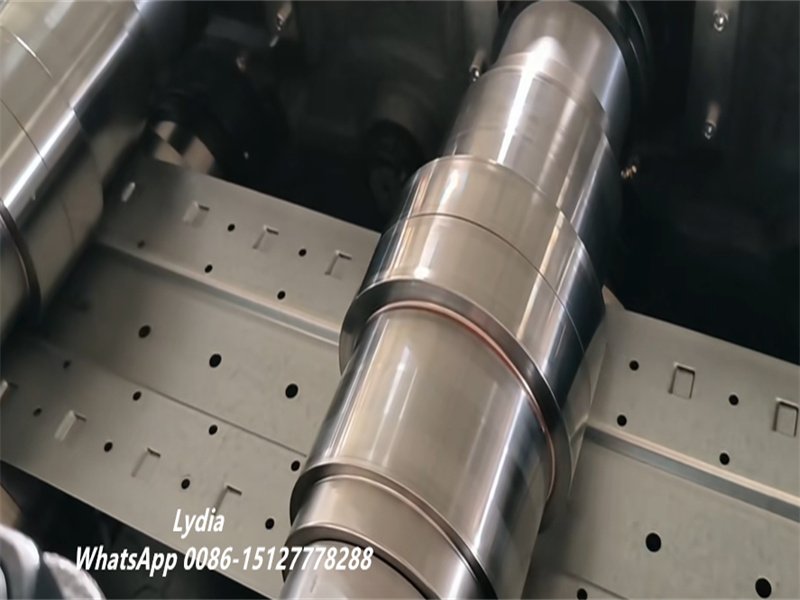

• Roller material: GCr15 mold steel

• Forming speed: 25–30m/min (max. 30m/min)

• Drive system: Gear & chain drive / gearbox drive (optional)

• Capacity: Up to 5000 uprights/day

• Automation: PLC control system with remote monitoring and fault alarm

• Standard compliance: DIN & international rack system standards

Application Fields

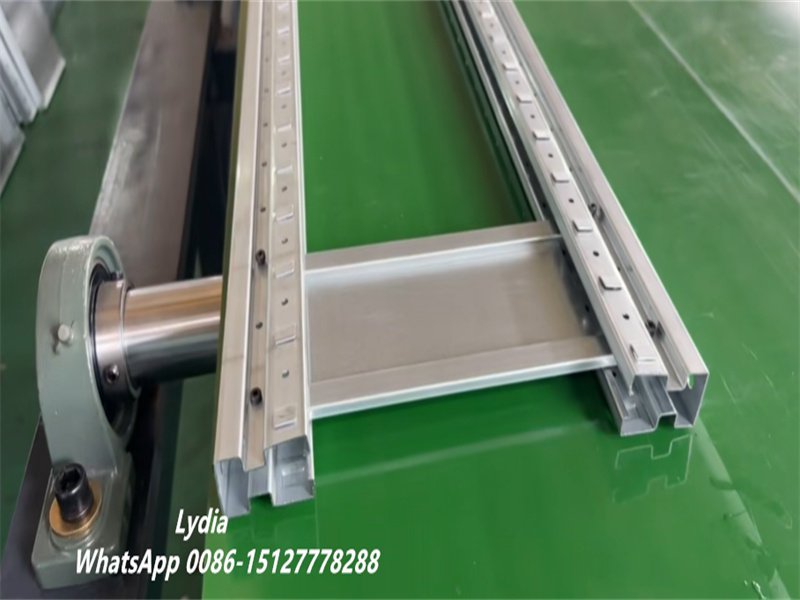

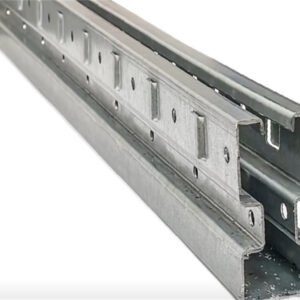

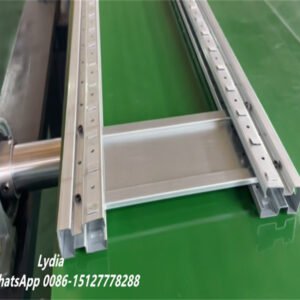

• Supermarket shelving uprights

• Retail display racks

• Warehouse storage systems

• Industrial shelving uprights

• Customized racking profiles

Successful Project Case: Germany

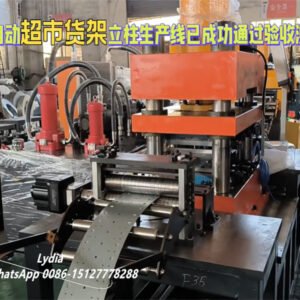

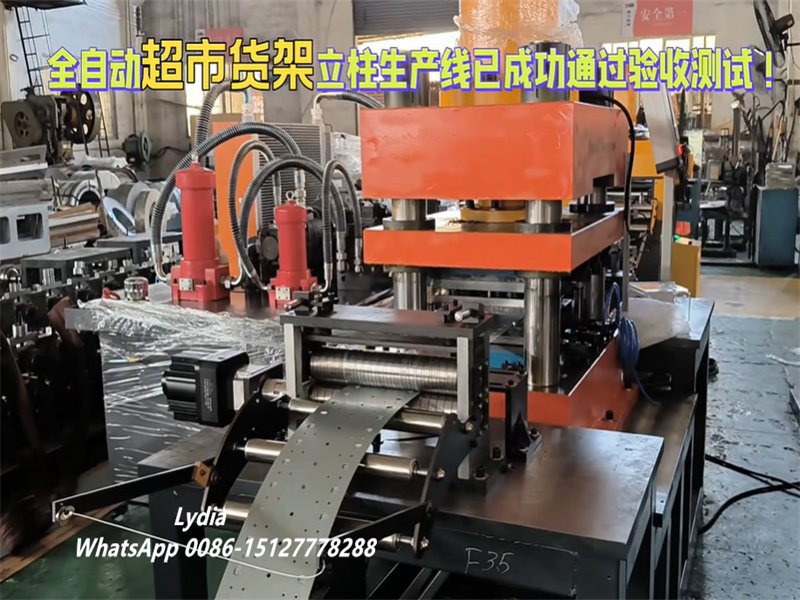

ZTRFM customized a fully automatic supermarket shelving upright production line for the German company Bartels.

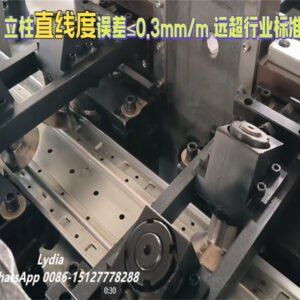

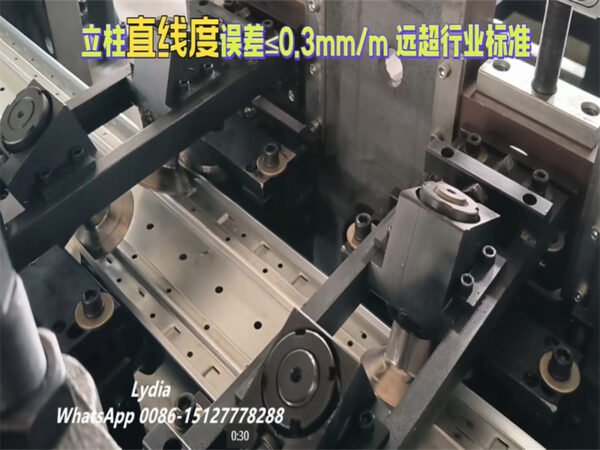

• Precision: ≤0.3mm/m straightness error

• Efficiency: 30% lower energy consumption, daily output 5000 pieces

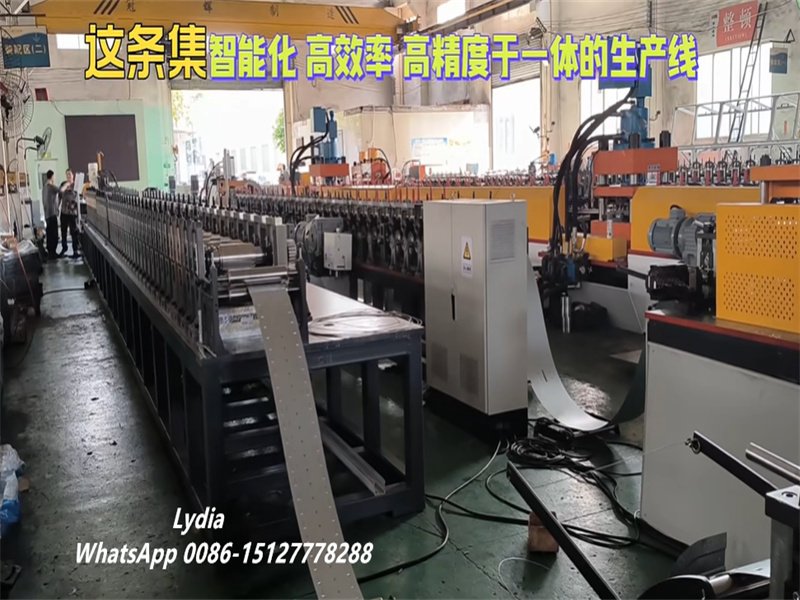

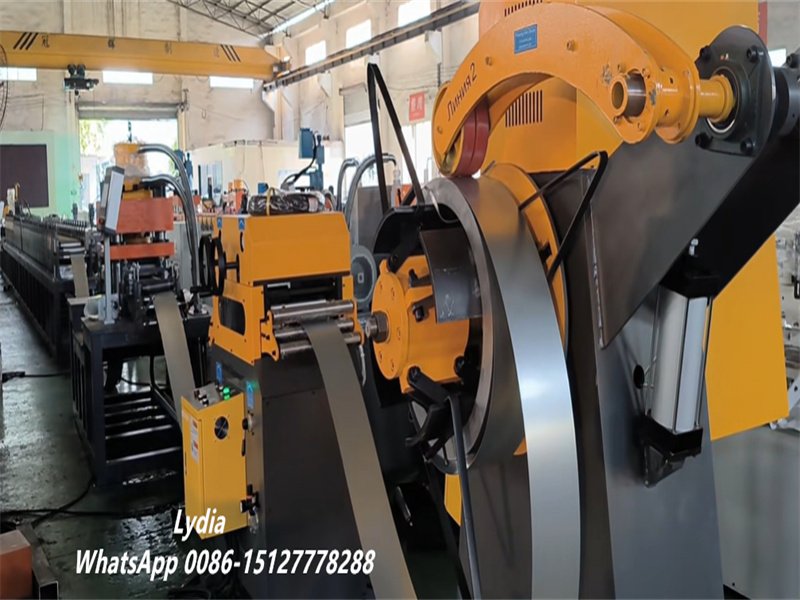

• Automation: Fully automatic from decoiling to stacking with remote control

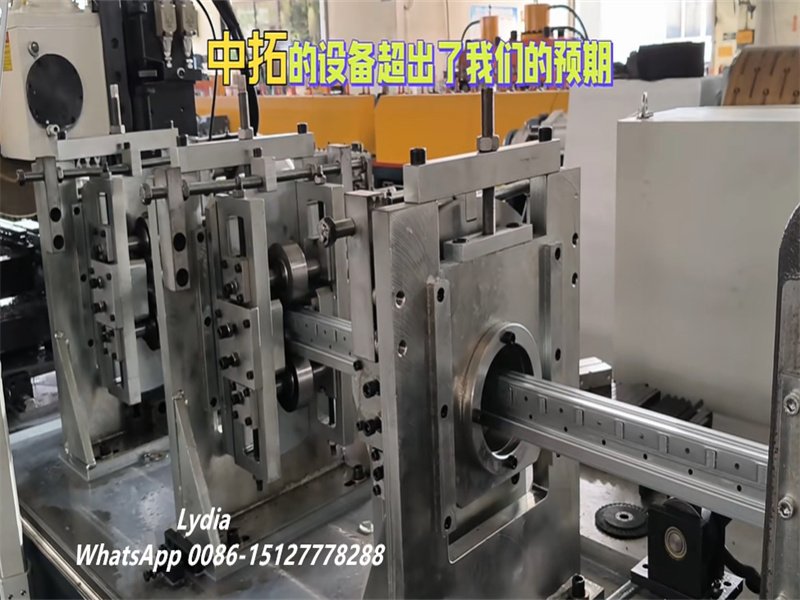

• Customer feedback: “Zhongtuo’s machine exceeded expectations, providing stability and automation that gives us a strong market advantage.”

Why Choose Zhongtuo?

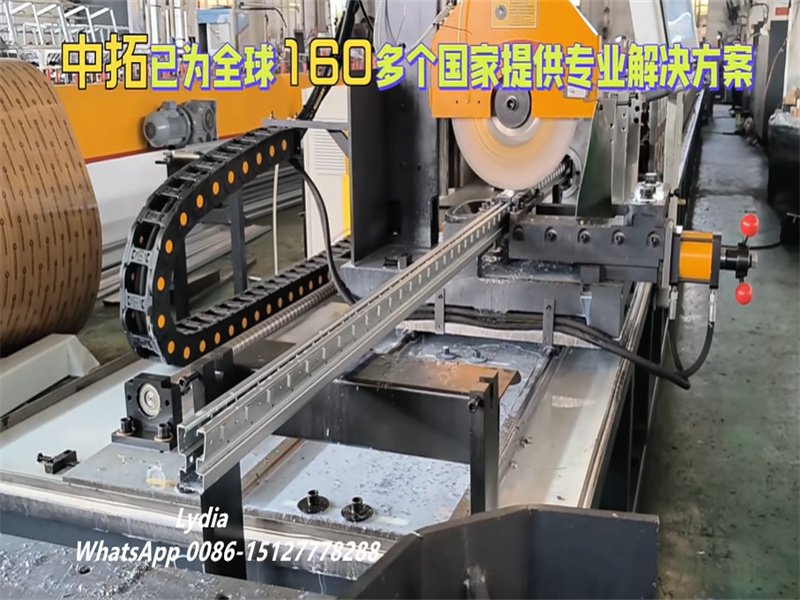

• Exported to 160+ countries worldwide

• Strict compliance with DIN, ISO, CE, and other international certifications

• Combination of German craftsmanship, Japanese precision, and Chinese speed

• Long service life, stable performance, and guaranteed after-sales service
