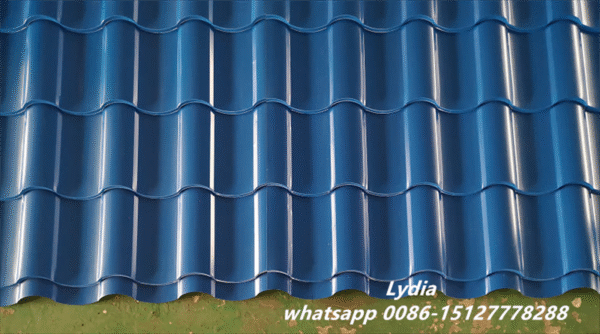

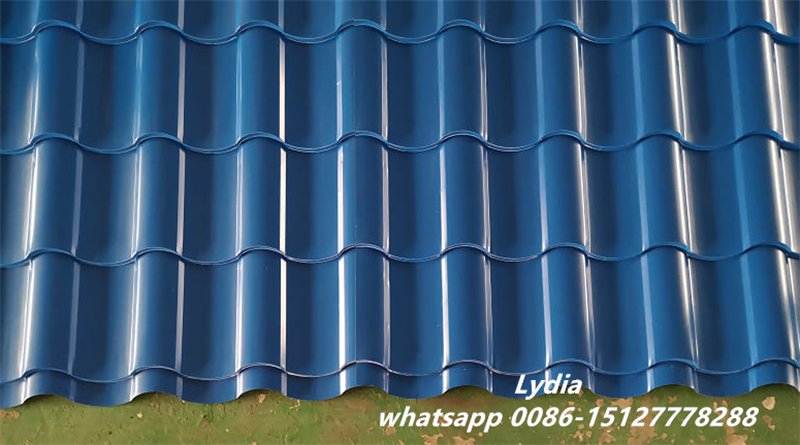

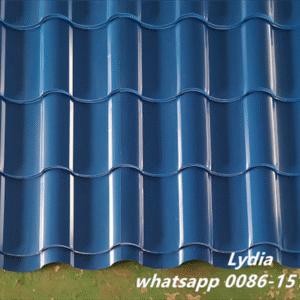

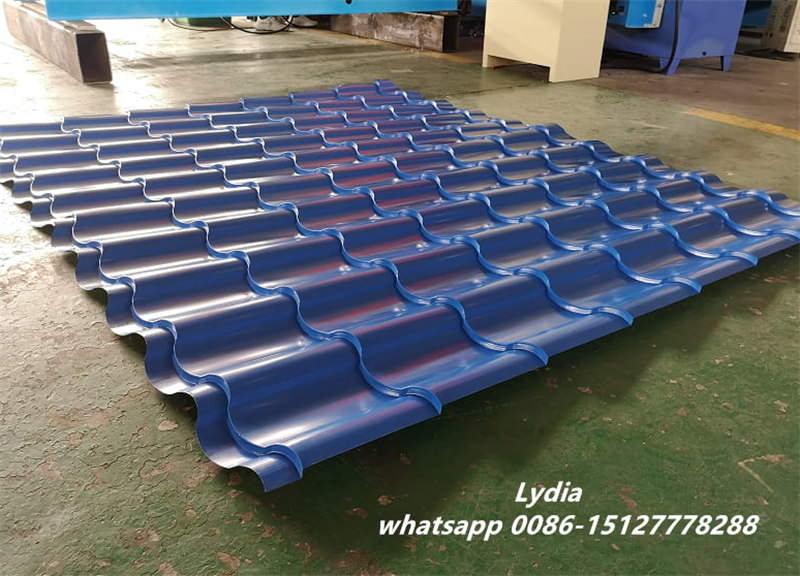

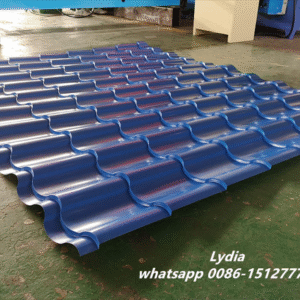

Application of High-Speed Glazed Tile Roof Sheet Roll Forming Machine

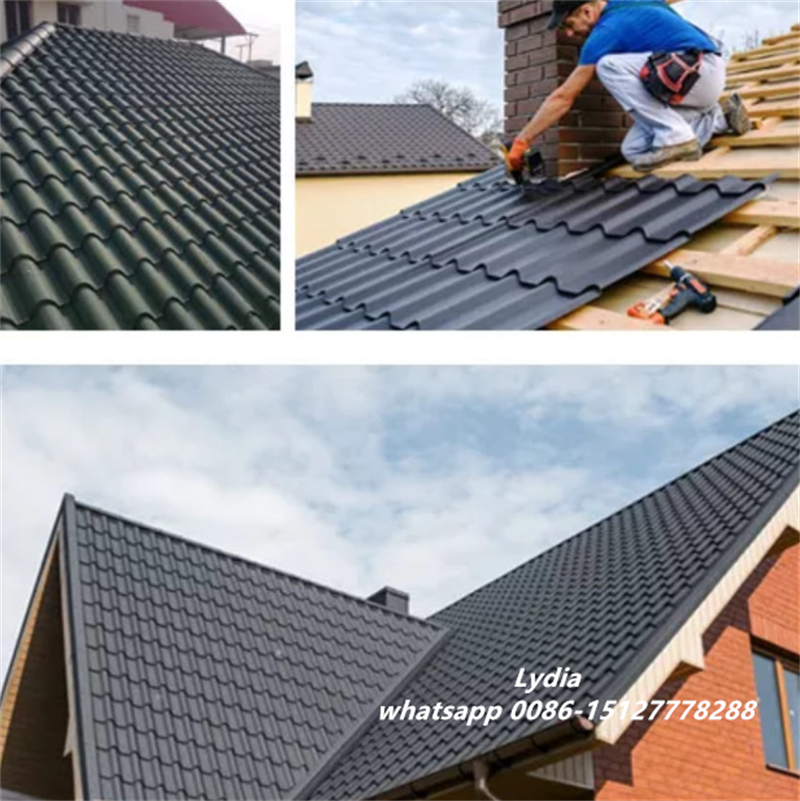

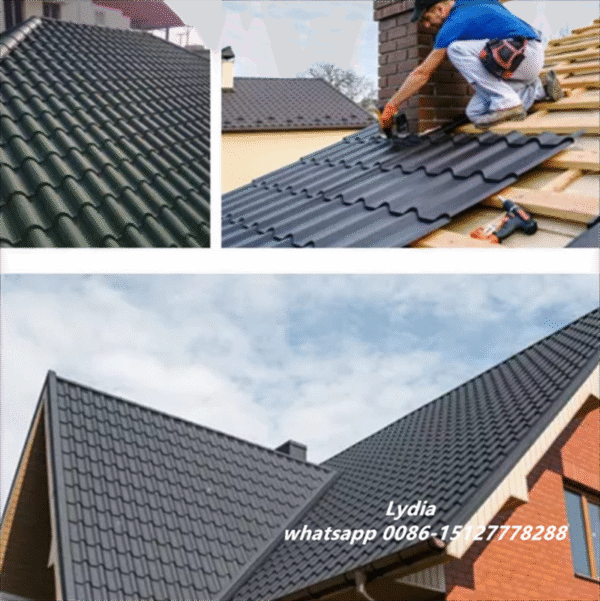

This advanced roll-forming system produces high-quality roof sheets essential for diverse architectural applications. Ideal for steel-framed structures, it serves:
- Industrial complexes & warehouses
- Commercial centers & retail spaces
- Sports arenas & hospitality venues
- Residential projects & greenhouses
Custom configurations ensure perfect alignment with your architectural specifications.
Pioneering Smart Manufacturing Technology
As industries embrace unmanned smart factories with IoT integration, Zhongtuo’s Glazed Tile Machine leads this transformation. Develop, our system recently completed successful commissioning for an Italian client.
Key Technological Advantages:
- Predictive Maintenance System
Our proprietary remote monitoring platform anticipates maintenance needs, minimizing downtime through real-time diagnostics.
- Weather-Tight Performance
Interlocking panels eliminate water/light penetration with reversible overlapping for versatile installations.
- Continuous Operation Capability

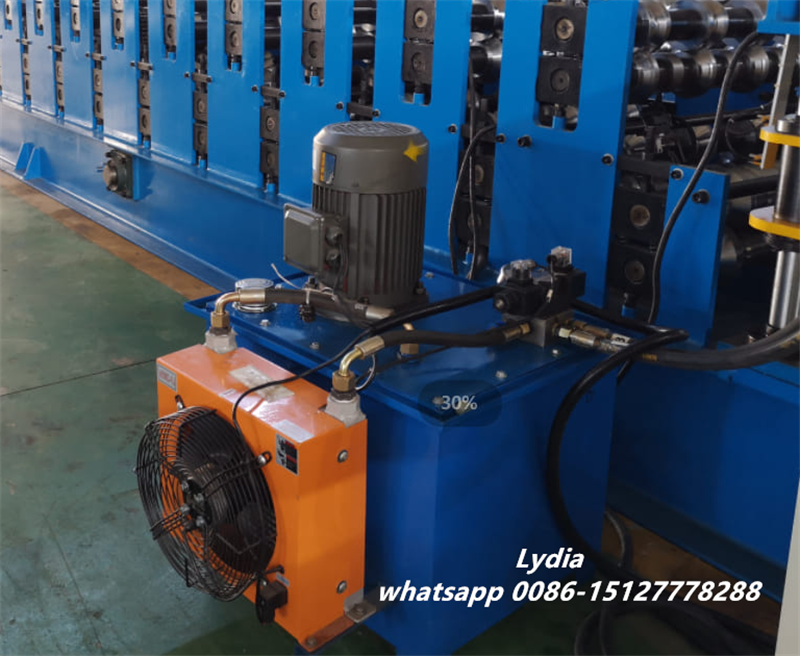

Industrial-grade components (plunger pumps, accumulators, oil coolers) ensure 24/7 production stability
Production Workflow

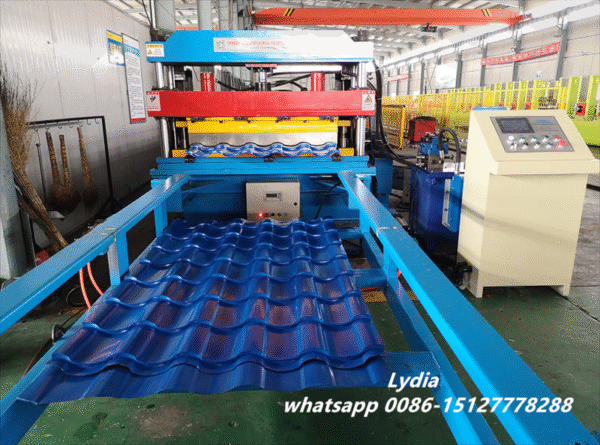

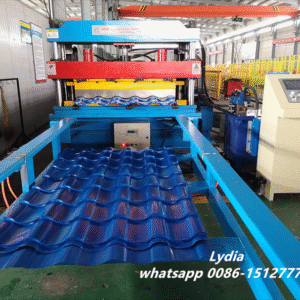

Coil Unwinding → Guided Feeding → Material Leveling → Precision Roll Forming → PLC Control → Embossing Station → Hydraulic Cutting → Finished Product Output
Here is your Technical Specifications section in table format
| Category | Parameters |
| Material | Pre-painted steel, galvanized steel, aluminum-coated steel |
| Thickness Range | 0.2 – 0.8 mm |

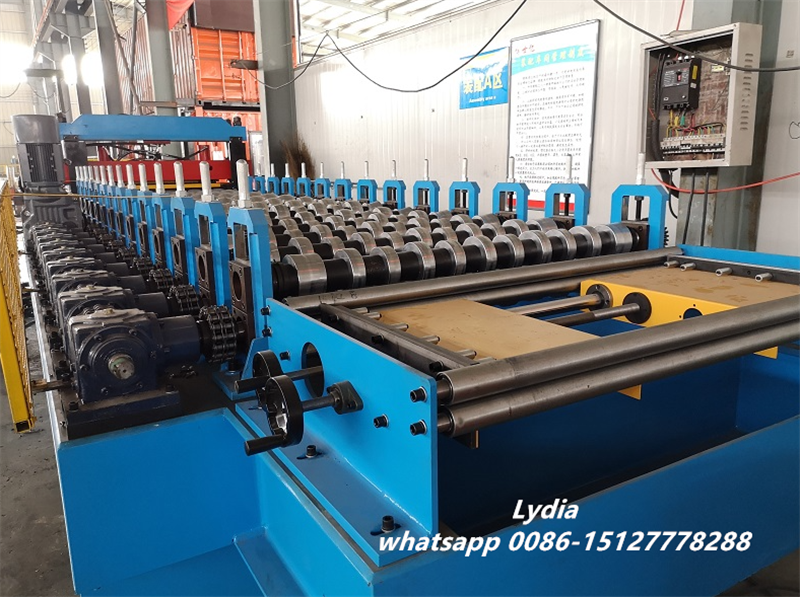

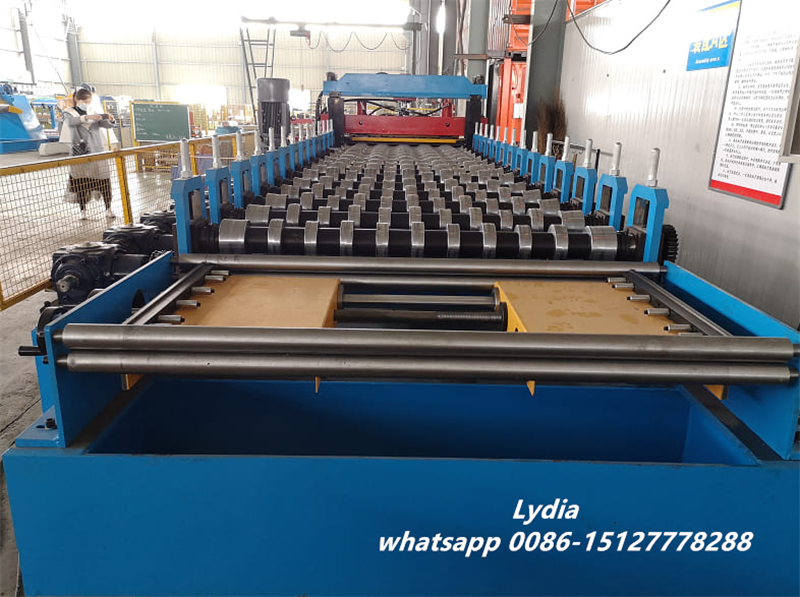

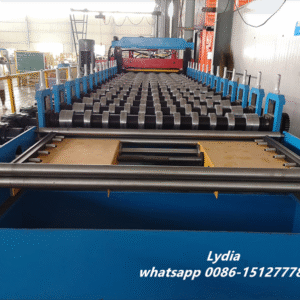

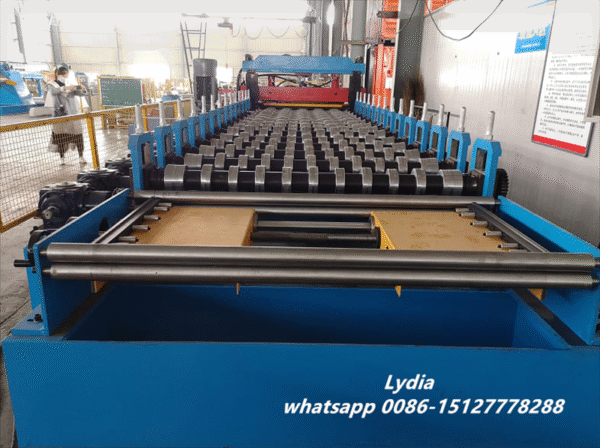

| Roller System | 13-stage forming (customizable), 45# steel rollers with chromium plating |
| Output Speed | 15 – 20 m/min (excluding embossing process) |
| Drive System | Ø75 mm shafts made of 40Cr alloy steel, chain-driven, single-station operation |

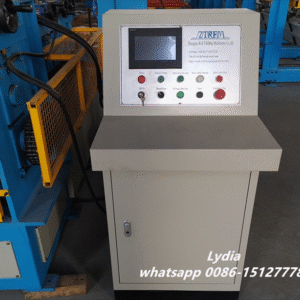

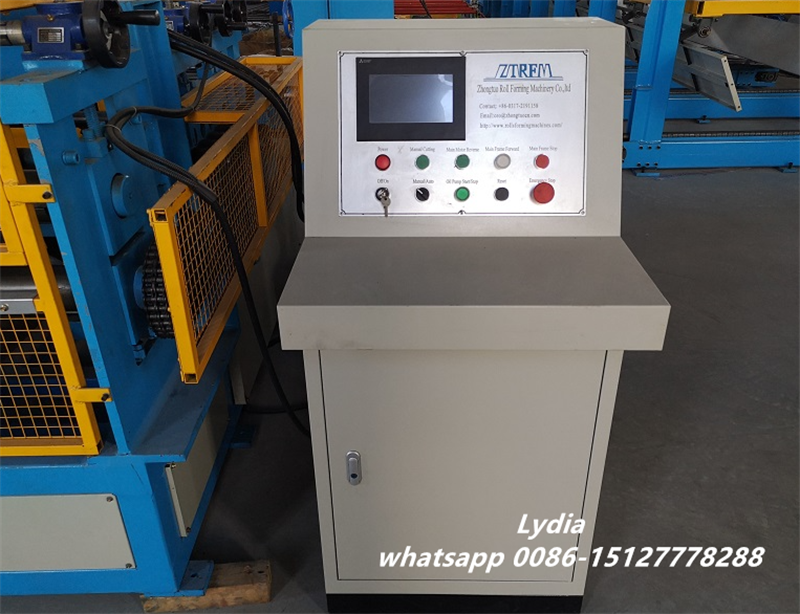

| Control | Mitsubishi PLC and frequency converter |
| Cutting | Hydraulic shear equipped with Cr12Mov blades (quenched to HRC 58-62° hardness) |
| Power Supply | 415V / 3 Phase / 50 Hz (customizable) |
| Main Motor Power | 7.5 kW |

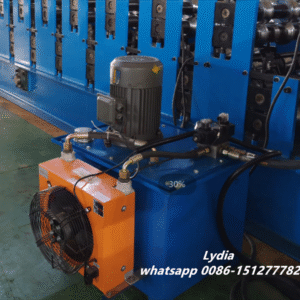

| Hydraulic Unit | 3 kW |
Competitive Advantages
Adjustable Manufacturing
Modify step length/height during production for design flexibility
Certified Performance
CE-compliant & patented technology meeting European standards
High-Yield Production
Achieve 10m/min output speeds with precision tolerances
Rapid Deployment
Popular profiles available from stock for immediate shipment
Why Professionals Choose Our System
The combination of IoT-driven maintenance and precision forming allows contractors to deliver complex roof systems with reduced labor costs and material waste. Reversible panel design accommodates unique architectural geometries while maintaining superior weather resistance.
