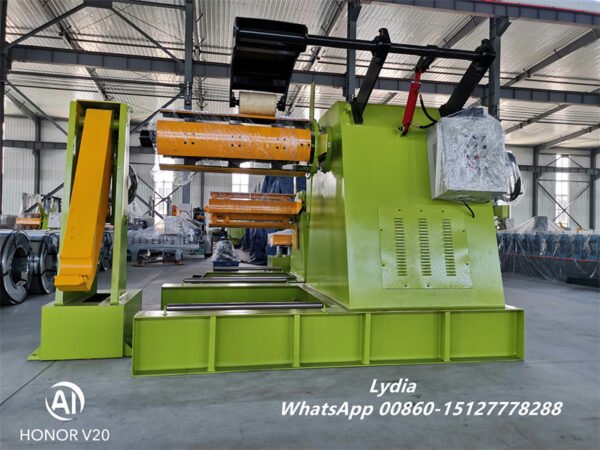

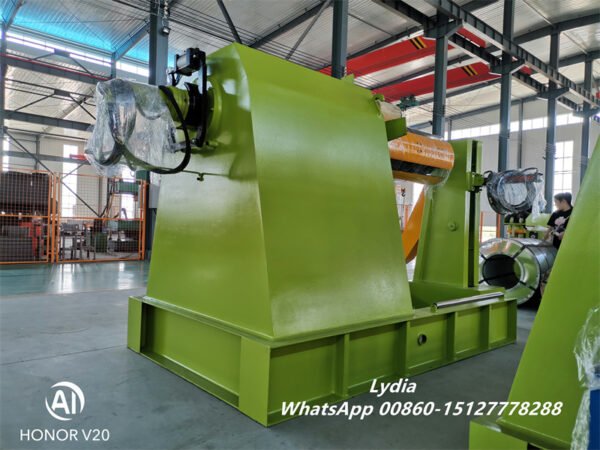

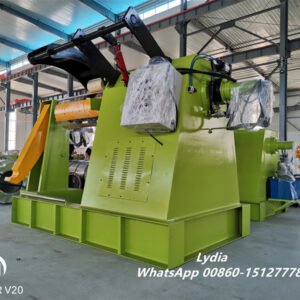

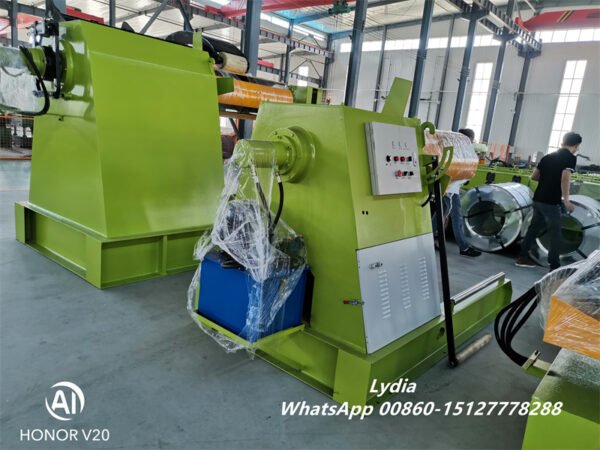

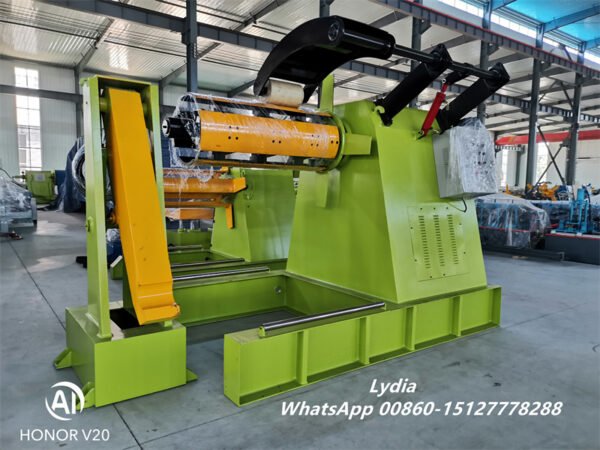

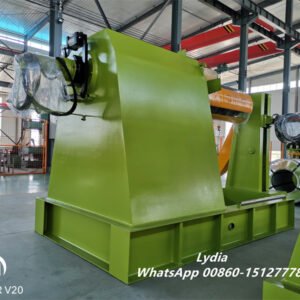

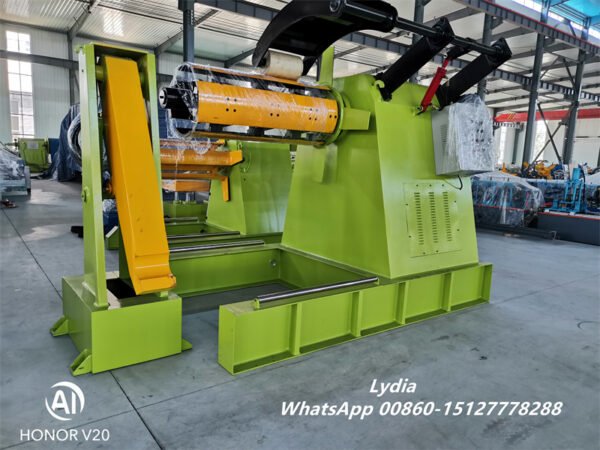

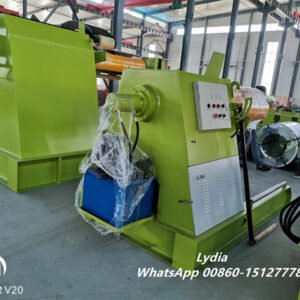

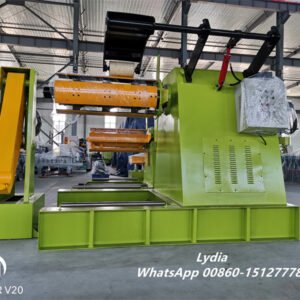

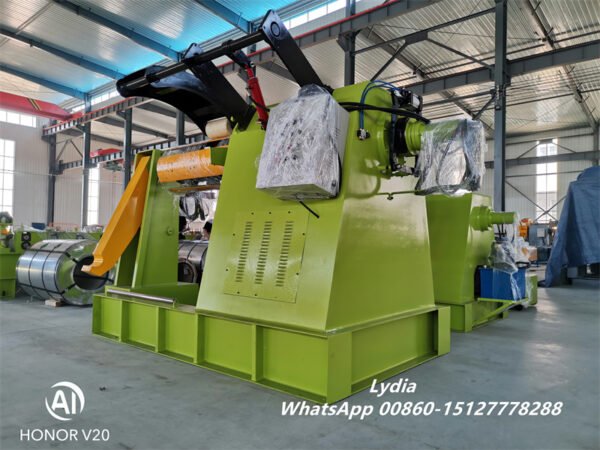

High-Capacity Hydraulic Decoiler with Loading Car Recoiler 15T/10T/8T/5T Uncoiling Open Steel Coil

Advanced Hydraulic Decoiler Features

Our premium hydraulic decoiling systems offer efficient material feeding for a wide range of coil types, including specialty alloys. Designed to integrate perfectly with straightening equipment, these units offer both motorized and non-motorized configurations to suit different production needs.

Key Specifications:

Maximum Capacity: 20 metric tons

Material Width Range: Up to 1800mm

Core Expansion: Adjustable from Ø450-550mm

Feeding Speed: 0-40 m/min (variable)

Enhanced Design Elements:

• Heavy-duty welded steel frame with stress-relieved construction

• Precision four-blade support system with material-friendly surface

• Industrial-grade hydraulic expansion mechanism

• Optional speed-adjustable drive motor

Reliable Performance Components:

• High-torque reduction motor with belt transmission

• Tempered steel spindle with seamless tubing reinforcement

• Premium electrical components (Siemens/Schneider)

• User-friendly control interface

Hydraulic Loading Car System

Functions & Benefits:

1. Dual-Axis Movement:

   • Vertical operation via hydraulic cylinder with guide pillars

   • Horizontal travel with motorized drive (6-7 m/min)

2. Efficient Material Handling:

   • 10-ton load capacity (other sizes available)

   • Automated coil positioning and retrieval

   • Auxiliary control panel operation

3. Technical Parameters:

   • Drive motor: 0.75 kW

   • Hydraulic power unit: 5.5 kW

Complete Decoiling Workflow

1. Coil loading onto transfer car

2. Centering alignment with decoiler

3. Hydraulic arm expansion for secure grip

4. Automated material feed initiation

5. Continuous uncoiling with tension control

Material Compatibility:

• PPGI, GI, Aluminum, Stainless Steel

• Thickness range: 0.3-2.0mm (30-13 gauge)

Safety & Control Features:

• Pneumatic braking system

• Anti-unwinding press arm

• Automatic coil diameter adaptation

• Synchronized arm movement prevents material deformation

Technical Specifications Table

Why Choose Our Decoiler System?
✔ Proven Market Leader – Continuously improved through customer feedback
✔ Flexible Configuration – Multiple capacity and automation options
✔ Premium Construction – Durable components for long service life
✔ Smart Automation – Reduces labor requirements and improves safety
