High Efficiency Automatic Stacker 3m 6m 9m12m Customized Stacker Roll Forming Machine Stacker

Automatic Stacker 3m 6m 9m12m Customized Stacker Roll Forming Machine Stacker：

Full automatic: easy operation for finished roof sheet stacking.

Save labor

Provide a customized 3 m/6m/12m normal length stacker, which can also be customized for your use with your roofing tile machine.

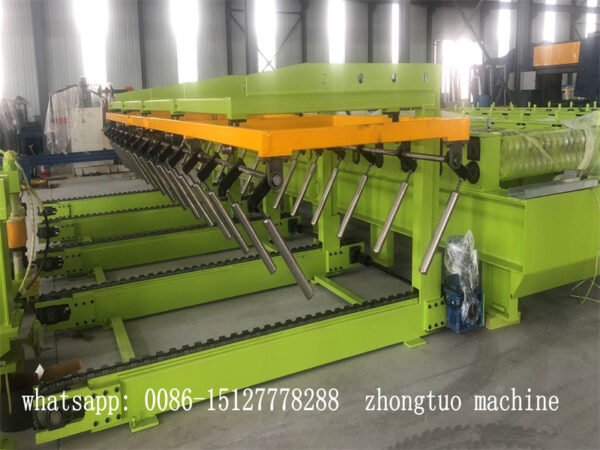

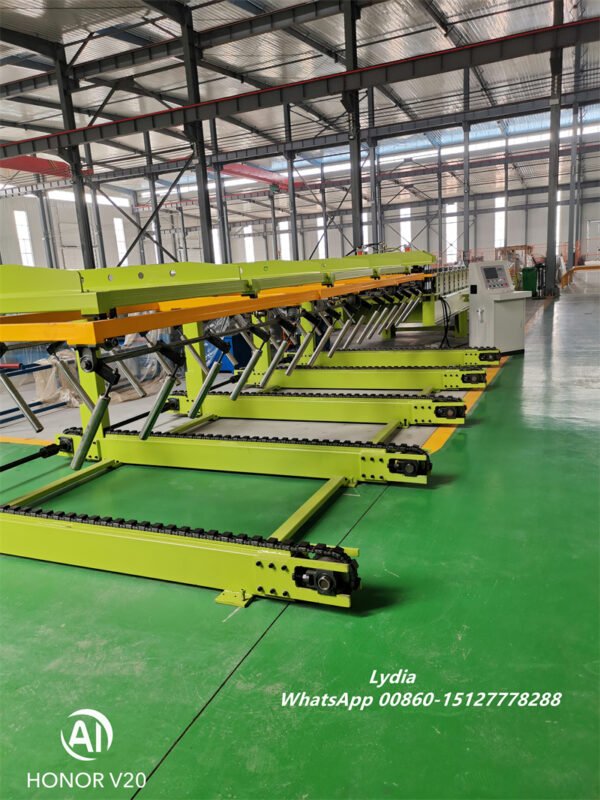

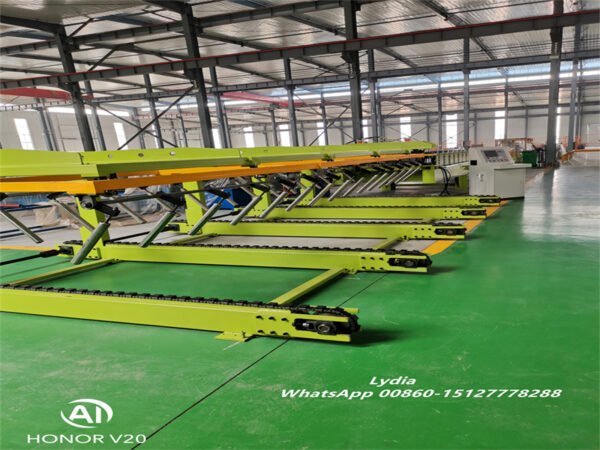

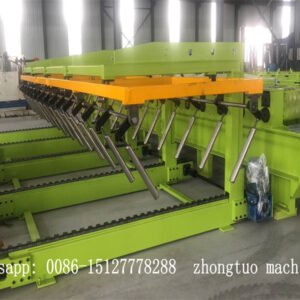

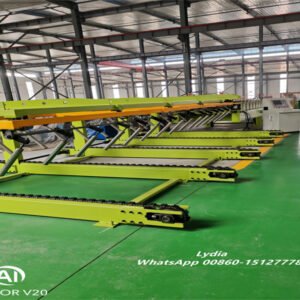

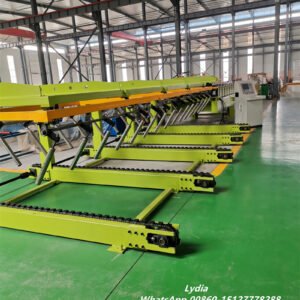

Automatic Stacker for Metal Roofing Roll Forming Machine

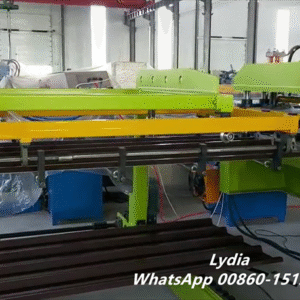

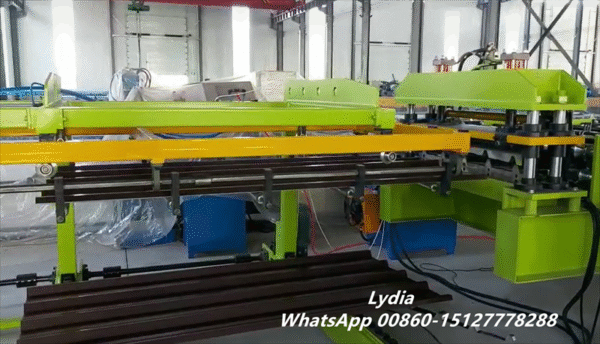

With a stacker, sheets are protected from scratches, all the while keeping your roll former in production.  The sheets remain protected by sliding along the rollers and guides, rather than against each other.  The pneumatic-powered stacker arms are triggered by a photo eye, which releases the panels and drops them onto the stacked sheets.  The design of both stackers allows for minimal drop distance of the panel which is critical key to a successful stacker. The drop distance is normally four inches. The less distance the sheet has to drop, the more uniform the stacked sheets will be.
Once an order is complete, the discharge table transfers the order onto the C-frames for packaging, then returns to the stacker to allow the rollformer to stay running.  The discharge table is fully powered – in, out, up, down. This results in a higher production rate, which, in turn, makes your company more profitable.
