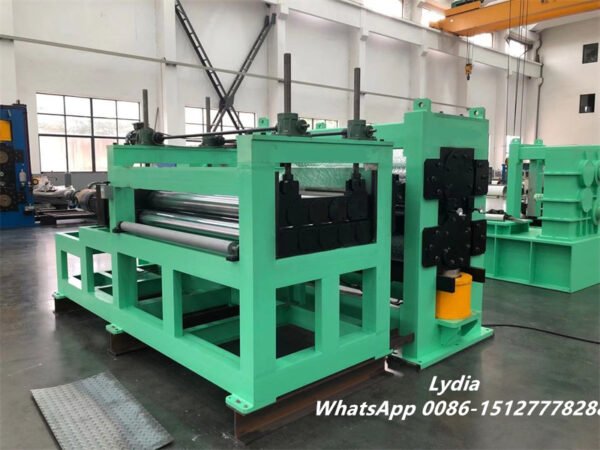

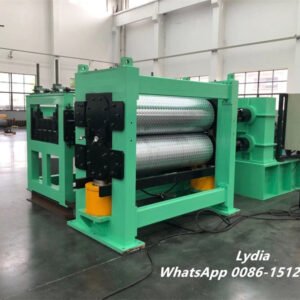

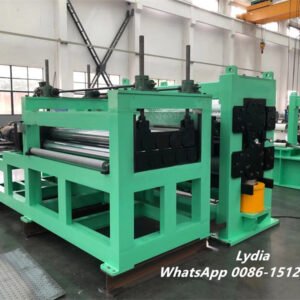

Metal Plate Stainless Steel Checkered Plate Embossing Machine 3-6mm1-3mm Steel Sheet Metal Embossing Machine Checker Plate Embossing Machine Easy Operate
¥60,000.00Original price was: ¥60,000.00.¥58,000.00Current price is: ¥58,000.00.
Roll forming machines we can supply: 1. Trapezoidal sheet roofing panel roll forming machine 2. Corrugated sheet roll forming machine 3.Step tile/Roof tile roll forming machine 4. Floor deck roll forming machine 5.CZ purlin roll forming machine 6.Light steel stud and track roll forming machine 7.Main Tee Cross Tee bar roll forming machine for ceiling 8. Highway guardrail roll forming machine 9. Embossing machine 10. Cut to length machine 11. Other related machines that support customization
A Metal Embossing Machine is essential for creating high-quality, textured surfaces on a wide range of metal products. It is widely used in the production of decorative panels for interior and exterior applications, adding depth and detail to wall art, signage, and architectural features. In the automotive industry, it is ideal for manufacturing custom trims and premium parts, while in packaging, it enables the embossing of logos and designs on metal containers to enhance brand recognition. This machine is designed to emboss stainless steel, iron plate, aluminum plate, and copper plates, as well as gutter coil, flashing material, and siding material. The rollers measure Φ310×700 mm, with embossing roller sizes ranging from 350 to 450 mm and widths between 1000 and 1600 mm. Powered by a 380V, 11.0 kW motor at 50 Hz, the line runs at an adjustable wire speed of 0–10 m/min. It includes a retractable reel with a 30-ton capacity and will be loaded directly onto your truck, ensuring both efficiency and reliability for industrial-scale production.
I. Embossing Machine
Item
Specification
Application
Embossing stainless steel and carbon steel plates, thickness 1–4 mm, width 1250–1500 mm
Embossing Rollers
Ø510 × 1650 mm, 2 pcs; solid forged, heat-treated, tempered, medium-frequency quenched; HRC60 hardness; engraved with customer-supplied pattern (leaf), chromium-plated
Main Motor
Siemens Beide, 30KW-4P with helical gear reducer
Bearings
TWB 24044, Ø220 × Ø340 × 118 mm, 4 pcs
Bearing Housings
520 × 480 × 160 mm, 4 pcs
Pressing Method
Hydraulic pressing with hydraulic station
Auxiliary Devices
Registration flange, registration gear, fine adjustment device
Frame
Steel plate welded, tempered, ground, and machined; solid wall plates
Transmission
Full gear transmission; motor + cycloidal reducer (1st reduction), gearbox (2nd reduction)
Line Speed
0–7 m/min
Safety
Equipped with protective cover
II. Electrical Control
Item
Specification
Power Supply
380V, 3-phase 4-wire, 50Hz
Control Equipment
Vertical control cabinet
Cooling
Electrical cabinet with cooling fan
III. 9-Roller Leveling Machine
Item
Specification
Rollers
Ø130 × 1650 mm, 9 pcs
Inverter
7.5KW, Shenzhen Inovance
Reducer
BWD5-87-7.5KW, 1 set
Synchronization
Leveling machine synchronized with embossing machine
Feeding Platform
5 m length, with roller feeding rack and side positioning wheels
