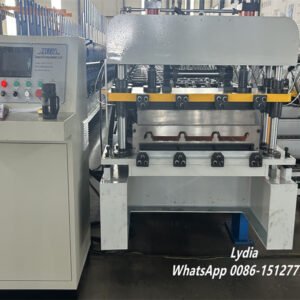

New Condition Photovoltaic Roof Panel Tile Forming Machine for Industrial Plants & Public Buildings Solar Glazed Tile Roll Forming Machine

The Photovoltaic Roof Panel Tile Forming Machine (also known as Solar Glazed Tile Roll Forming Machine) is a high-speed production line designed for manufacturing colored steel glazed tiles and photovoltaic roofing panels. Widely applied in residential housing, commercial complexes, industrial plants, and solar energy projects, this equipment offers efficiency, accuracy, and durability.

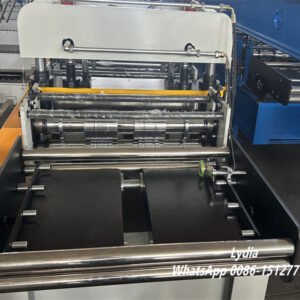

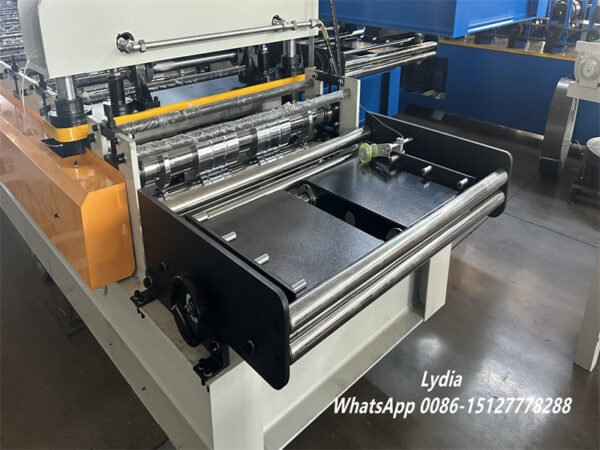

With advanced roll forming technology, it integrates decoiling, leveling, forming, and hydraulic cutting into a fully automated line, ensuring consistent panel quality and cost-effective production.

Key Features of Photovoltaic Roof Panel Machine

• High Productivity – Forming speed up to 30 m/min, suitable for mass production.

• Versatile Material Capacity – Processes 0.3–0.8 mm color steel sheets (PPGI/GI).

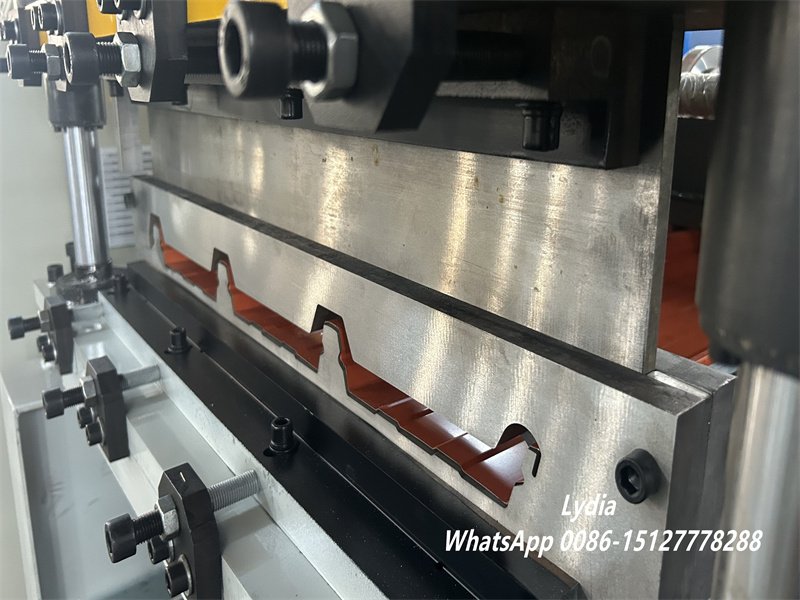

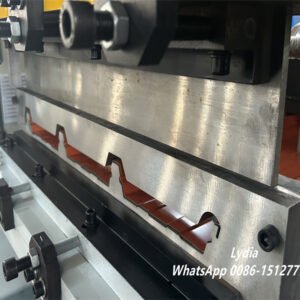

• Precision Cutting System – Equipped with Cr12Mov blades for burr-free cutting.

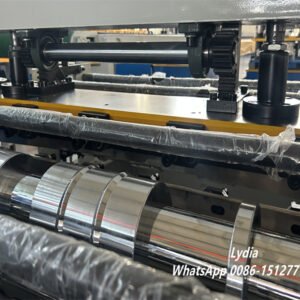

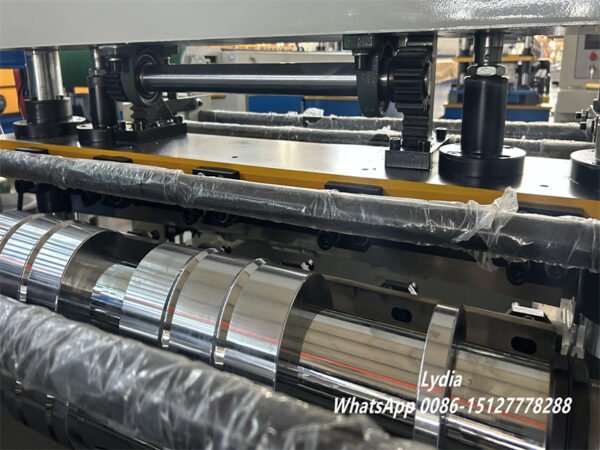

• Strong Frame & Rollers – 350H steel frame, Ø80 mm hardened shafts, chrome-plated rollers.

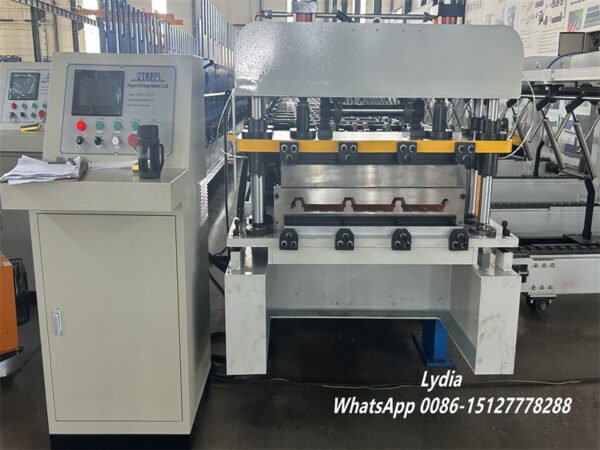

• Advanced Control System – Siemens motor, Delta PLC, Schneider electronics for stable performance.

• Energy-Saving & Cost-Efficient – Automated operation reduces labor and operating costs.

• Customizable Options – Coil width, tile profiles, embossing, motor brands, and PLC languages.

Technical Specifications of Photovoltaic Roofing Sheet Machine

Parameter	Details
Material	Color-coated steel (GI/PPGI)
Thickness	0.3 – 0.8 mm
Feeding Width	1000 mm
Production Speed	Up to 30 m/min
Shaft Diameter	80 mm (solid, 45# steel)
Roller Material	45# steel, hard chrome plated
Frame	350H steel
Cutting Blade	Cr12Mov steel
Main Motor Power	11 kW (Siemens)
Hydraulic Power	7.5 kW
Voltage	380V / 50Hz / 3Ph (customizable)
Dimensions	22000 × 2500 × 1800 mm
Weight	Approx. 5000 kg
Warranty	1 year

Advantages of Solar Roof Tile Roll Forming Machine

• High Accuracy – Precise forming and cutting, ensuring uniform roof tiles.

• Durable Structure – Long-lasting machine frame and rollers.

• Quick Changeover – Easy adjustment for different profiles and coil sizes.

• Low Maintenance – Reliable components reduce downtime.

• Global Certification – CE, ISO9001, and CAS approved.

 Applications of Photovoltaic Roof Tile Forming Machine

This machine is widely used in producing roof panels for photovoltaic solar projects as well as traditional construction roofing:

• 🏭 Industrial Buildings – Warehouses, workshops, factories.

• 🏢 Commercial Projects – Malls, supermarkets, office buildings.

• 🏠 Residential Housing – Villas, apartments, housing estates.

• ✈️ Public Facilities – Airports, train stations, stadiums.

• 🌞 Solar Roof Projects – Photovoltaic integrated roofing systems.
