Unistrut P1000T Slotted Metal Framing Channel & C Strut Channel Roll Forming Machine

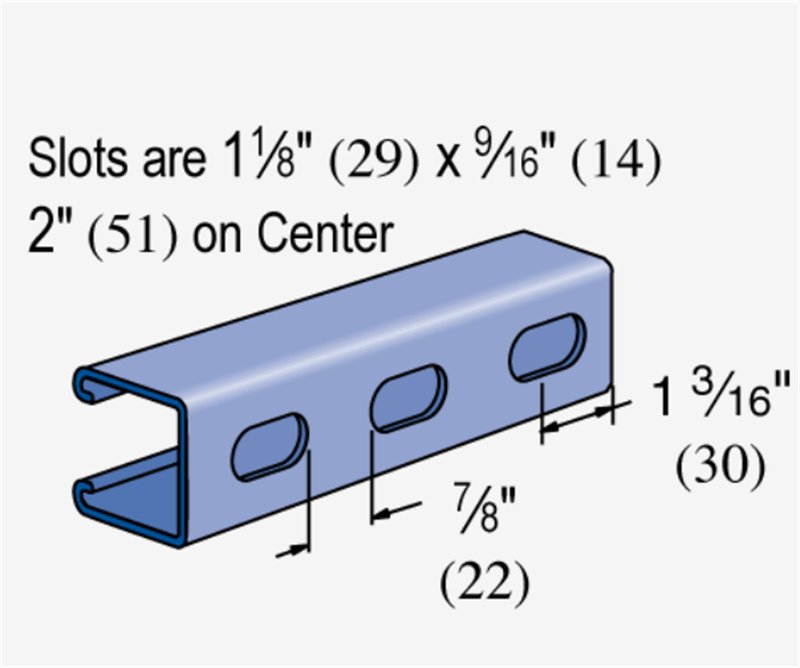

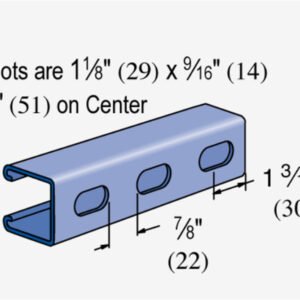

Product Overview: Unistrut P1000T Slotted Strut Channel

The Unistrut P1000T is the original metal framing channel, widely recognized as the industry standard for nearly 100 years. Also called the 12-gauge standard slotted channel, it is a trusted choice for structural framing across multiple industries.

Applications of P1000T Channel

• Trapeze hangers and seismic bracing

• Ceiling grids and cable tray supports

• Pipe, conduit, and duct supports

• Racks and general construction framing

Key Features

• OPM pre-approved for seismic applications

• Dimensions: 1-5/8″ x 1-5/8″, 12 gauge steel

• Slotted for 1/2″ threaded rods and fasteners

• Available finishes: PG, DF, HG, PL, GR, ZD, SS/ST, EA

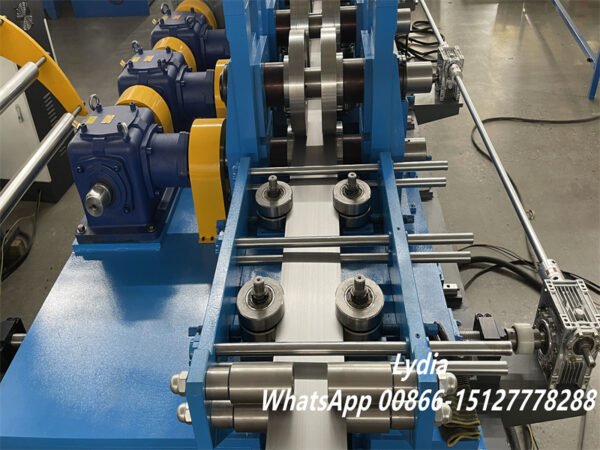

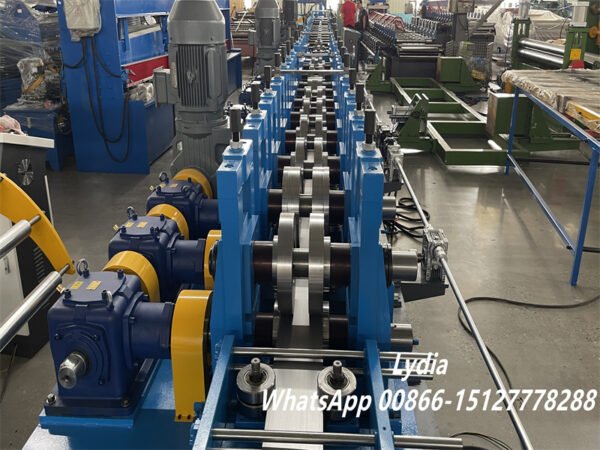

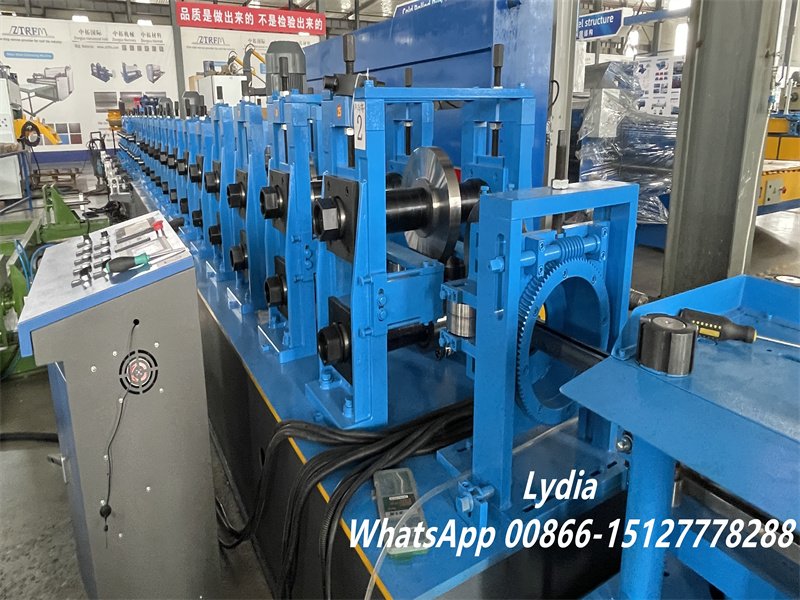

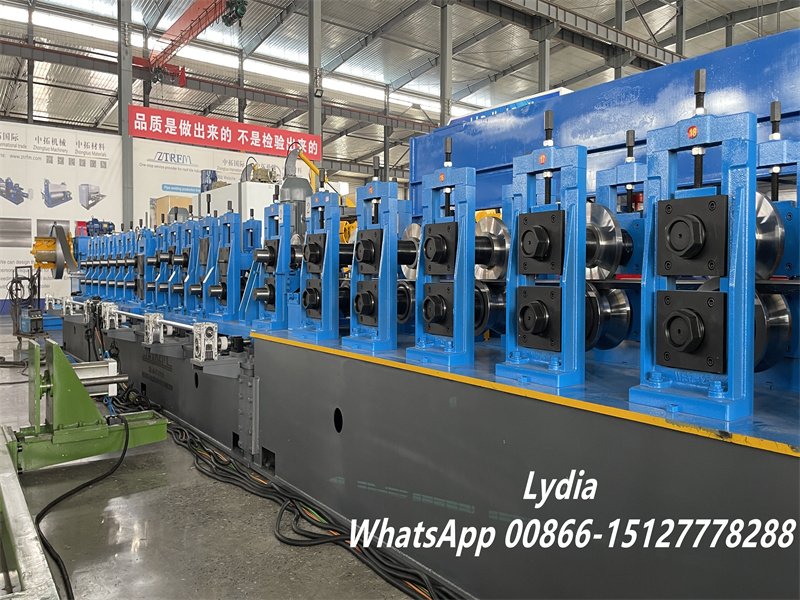

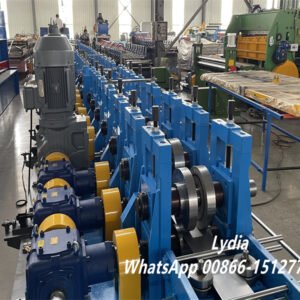

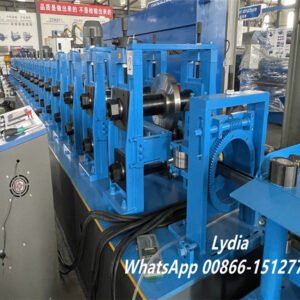

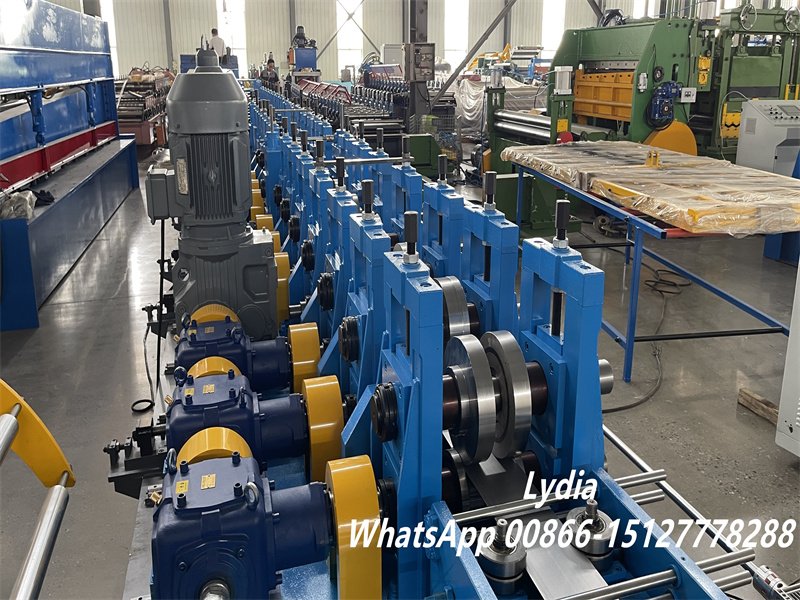

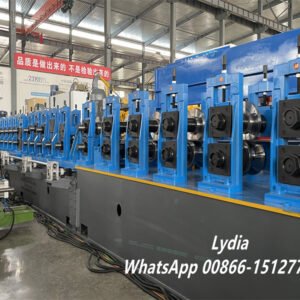

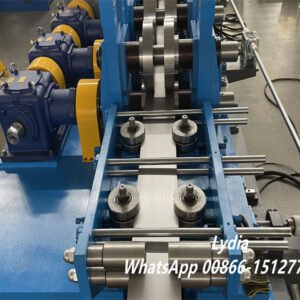

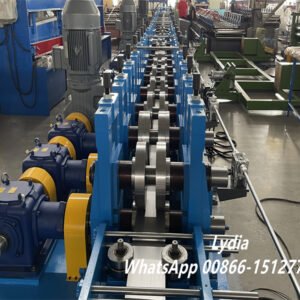

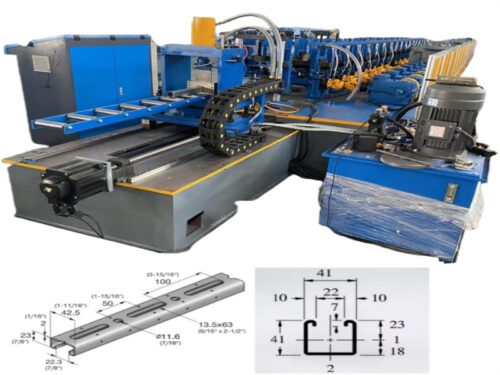

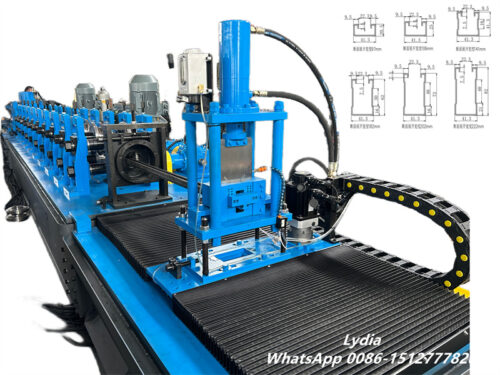

C Strut Channel Roll Forming Machine

The C Strut Channel Roll Forming Machine is specially designed to produce high-quality channels for solar photovoltaic mounting systems and other construction projects. It ensures fast, precise, and reliable production with long service life and flexible customization options.

Standard Strut Channel Sizes

• 41 x 41 mm

• 41 x 21 mm

Production Process

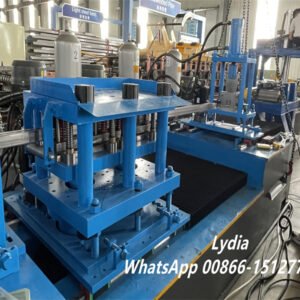

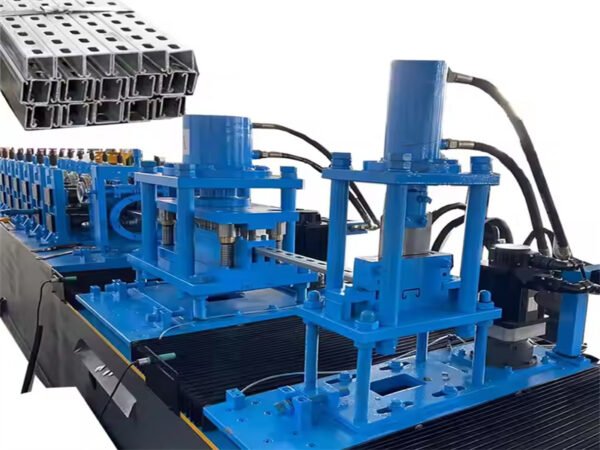

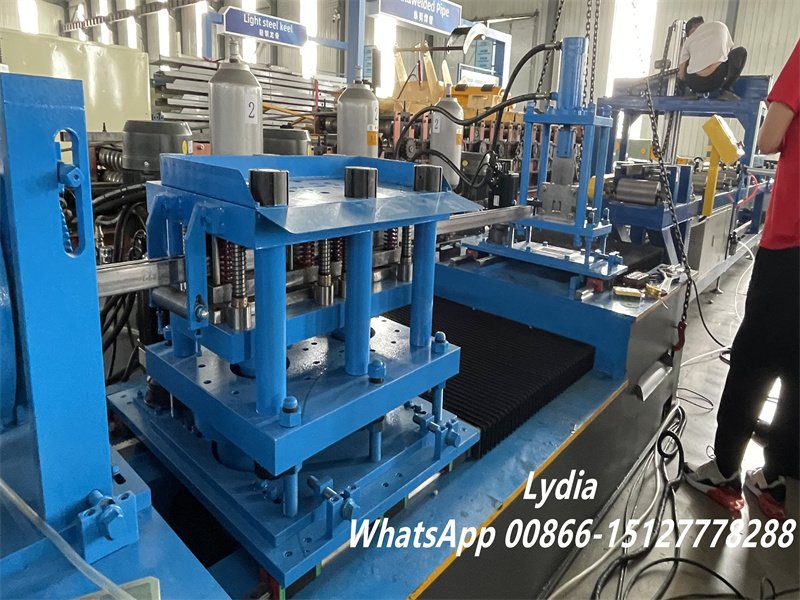

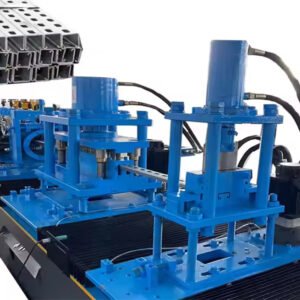

Coil Decoiling → Leveling → Servo Feeding → Punching → Roll Forming → Cutting → Run-out Table

Machine Advantages

• Compatible material thickness: 1.2–2.5 mm

• Rollers made of GCr15 mold steel for durability

• Transmission options: gear & chain drive or gearbox drive

• Smooth curved edges for solar panel mounting frames

• Welding-free installation, providing flexibility and easy assembly

Strut Channel Types Produced

This machine can manufacture multiple-channel designs depending on project needs:

• Solid channels

• Slotted channels

• Half-slotted channels

• Long-slotted channels

• Perforated/mixed perforated channels

Performance & Capacity

• Designed for solar mounting systems and structural frameworks

• Production speed: 25–30 m/min

• Supports diverse materials: hot-rolled steel, cold-rolled steel, galvanized steel, aluminum, stainless steel, etc.

• High-precision forming with consistent product quality

Technical Specifications & Options

• Machine weight up to 5,000 kg (model-dependent)

• Equipped with PLC control, gearbox, motor, bearings, gears, pumps

• Customization options: logo printing, packaging, special patterns
