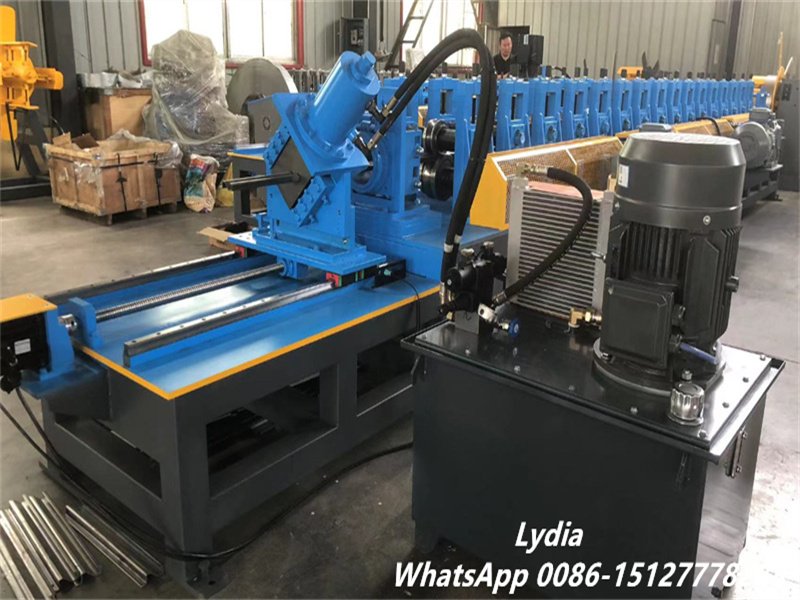

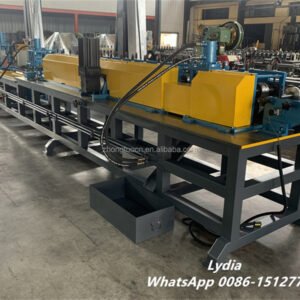

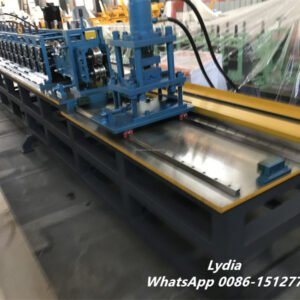

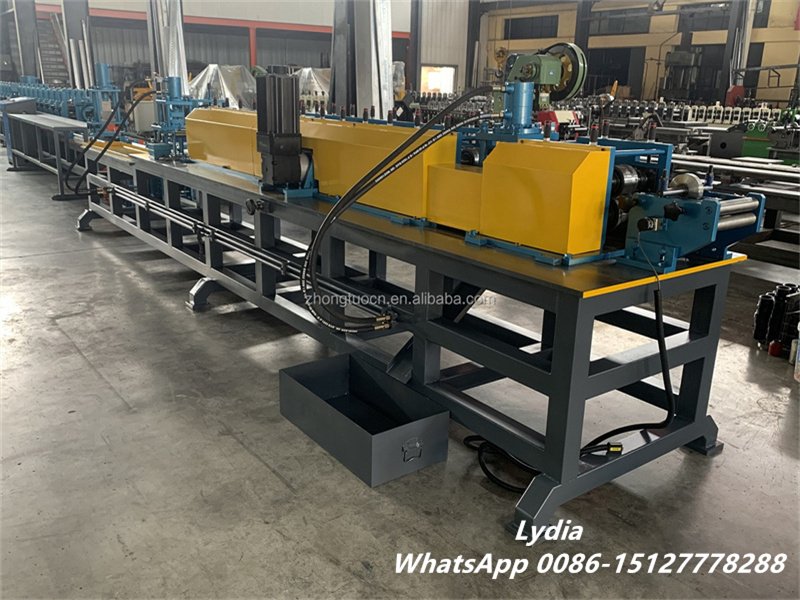

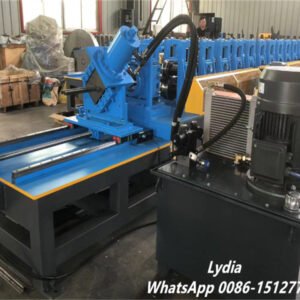

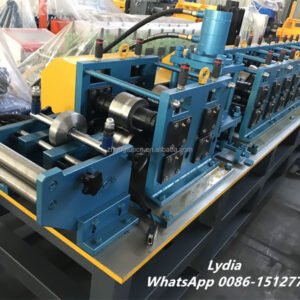

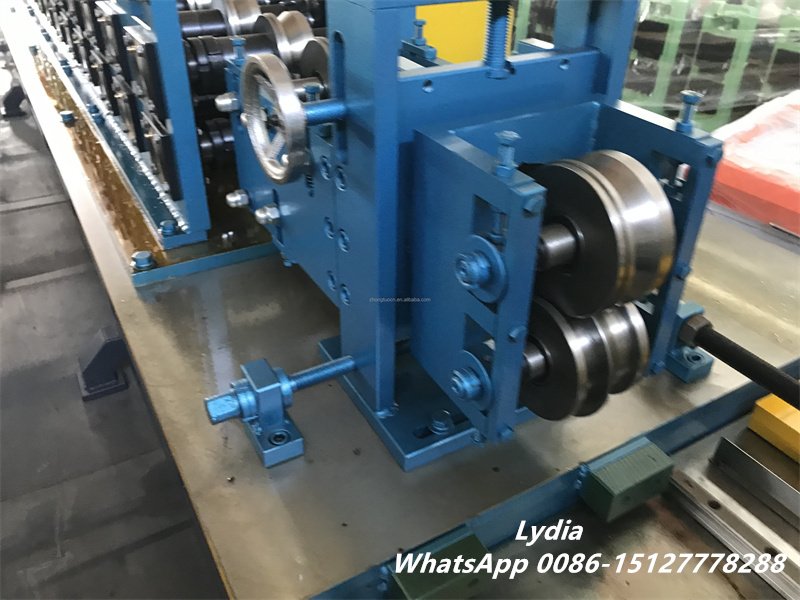

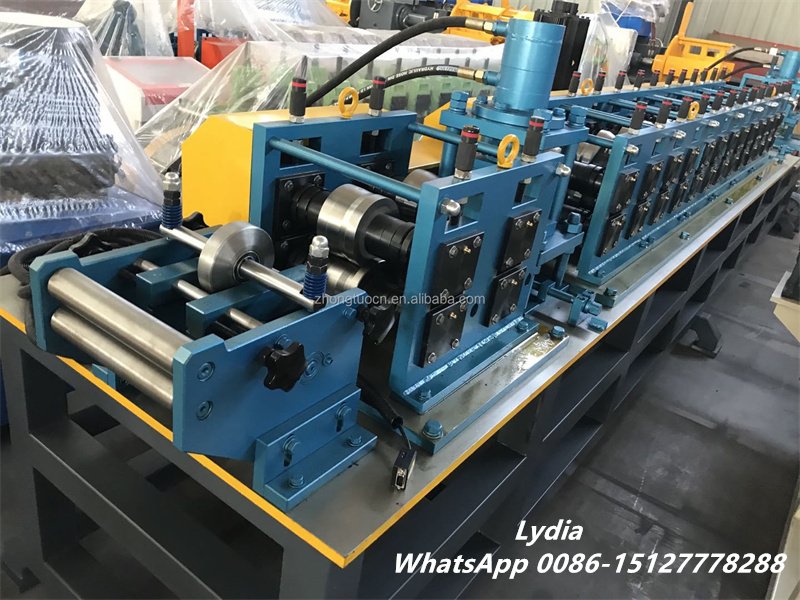

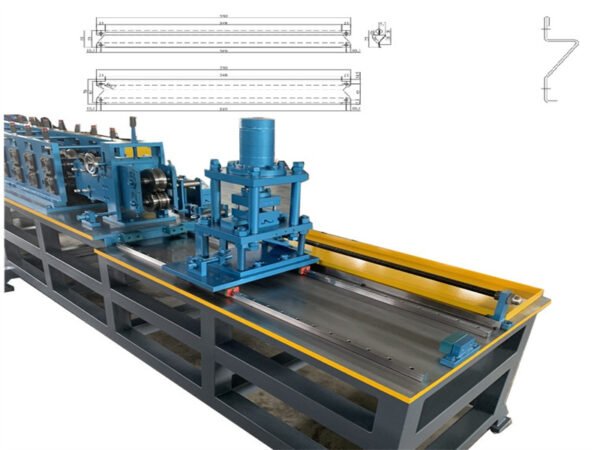

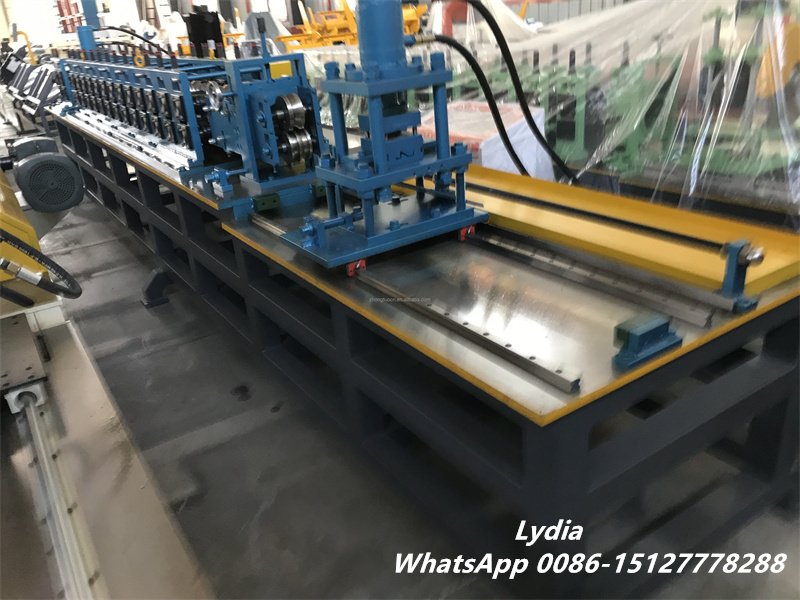

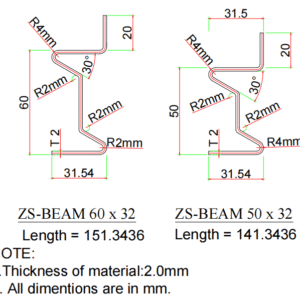

The Z Beam roll forming machine for slotted angle storage shelves is now available at a special price. This equipment is expertly engineered to produce Z-shaped beams in bulk, offering an automated, efficient manufacturing process.

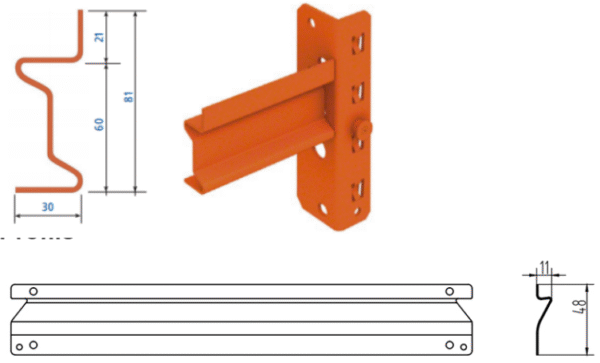

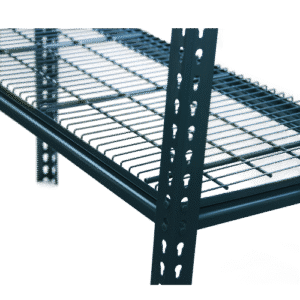

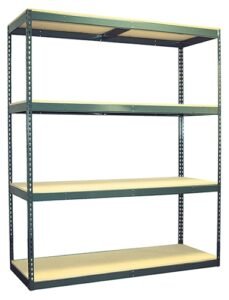

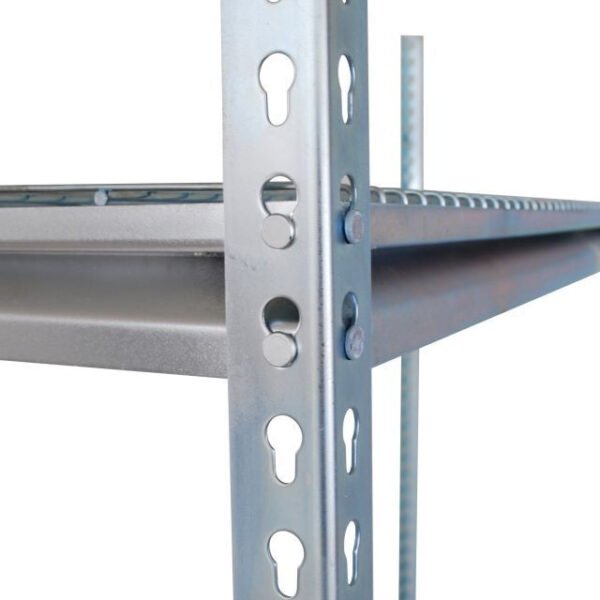

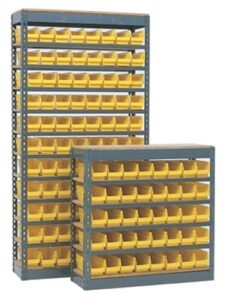

Z-Beam shelving systems are an ideal choice for businesses looking to optimize storage space in warehouses, stockrooms, or office environments. Designed for low-profile yet long-span shelving, they deliver the perfect balance of strength and space efficiency. Key benefits of this shelving system include:
-
Shelf spans of up to 1,800 mm (6 feet), accommodating a wide range of storage needs.
-
Each individual shelf is capable of supporting loads of up to 1,100 kg (2,400 lbs), providing exceptional strength.
-
The reduced beam height increases vertical clearance between shelves, enhancing overall storage capacity.
Zhongtuo’s advanced roll forming technology ensures consistent production quality, making this Z beam roll forming machine a smart investment for your shelving manufacturing needs.
Technical Parameters of Z Beam Roll Forming Machine
| Item | Specification |
|---|---|
| Loading capacity | 3 Tons |
| Uncoiling width | 300 mm |
| Inner diameter | 450–550 mm |
| Power | 3 kW |
| Pressure roller material | Stainless steel |
| Feeding width adjustment | Manual |
| Voltage | 380V, 60Hz, 3 Phase (customizable) |
| Frame type | Cast iron arch frame |
| Drive mode | Chain transmission |
| Material of rollers | GCr12MoV |
| Material of shafts | 45# steel with tempering |
| Diameter of shafts | Φ70 mm |
| Number of rollers | 14 rollers |
| Main power | 11 kW + 11 kW |
| Raw materials of steel coil | Galvanized steel plate |
| Forming speed | 30 meters per minute |
