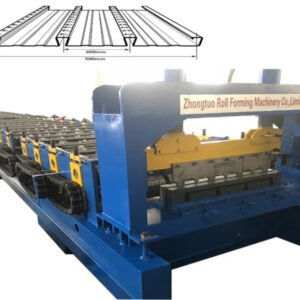

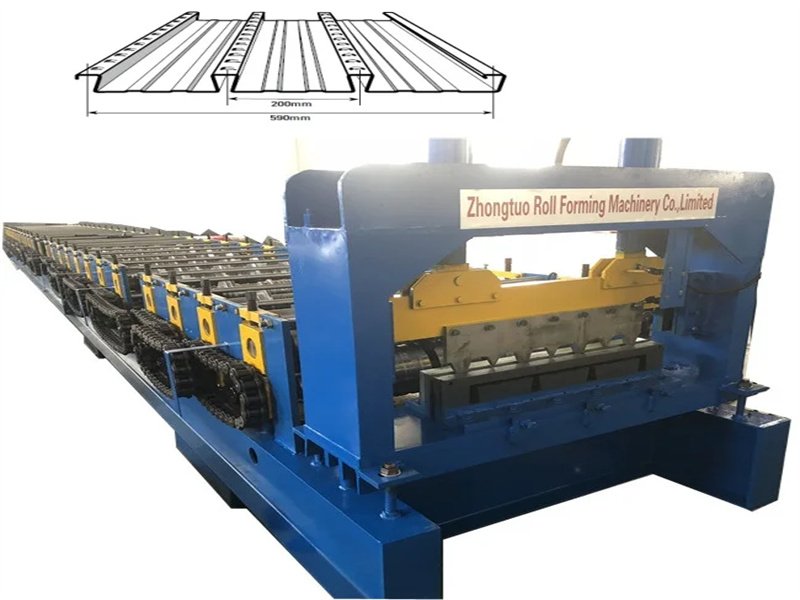

Dovetail Decking & R51+ Roof Decking Roll Forming Machine for the USA Market
The U.S. floor and roof decking market has strict structural and fire-rating requirements. To meet these standards, Zhongtuo (ztfrm machine) offers a USA-specific Dovetail Decking Roll Forming Machine that can produce multiple widely used American profiles—including FormLok, acoustical & non-acoustical dovetail decks, and the increasingly popular R51+ Roof Decking for composite roof systems.
These machines ensure premium structural performance, excellent ceiling appearance, long spans, and superior concrete bonding—perfect for high-rise buildings, commercial centers, stadiums, schools, and industrial projects across North America.
USA Standard Profiles Supported by Zhongtuo Machine
Zhongtuo machines can produce all frequent U.S. deck designs, including：

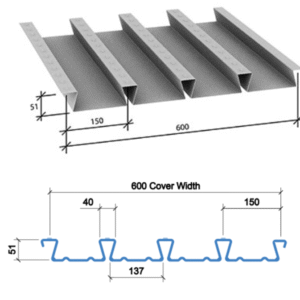

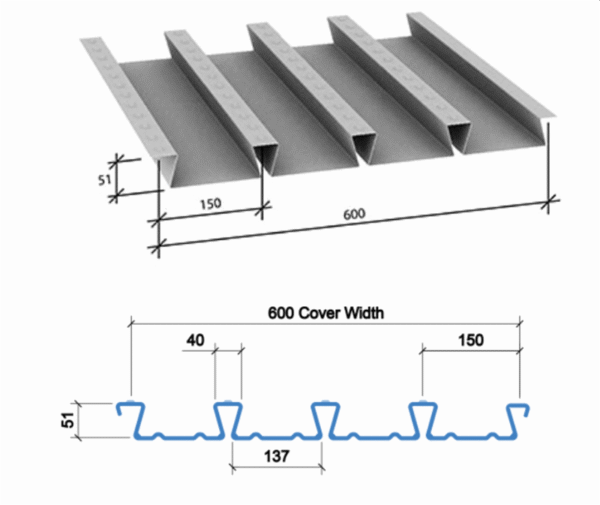

R51+ Roof Decking (NEW – included as requested)
— Designed for 1.5″ (38mm)–2″ (51mm) rib heights and optimized for long-span roofing systems.
Machine Specifications — Designed for U.S. Production Requirements
| Item | Specification |
|---|---|
| Forming Speed | 8–12 m/min |
| Hydraulic Shearing | Yes |
| Roller Stations | 18–24 stations |
| Total Rollers | 36 |
| Main Power | 15 kW × 2 |
| Hydraulic Power | 5.5 kW |
| Shaft Diameter | 90 mm |
| Shaft Material | 45# Steel |
| Frame Thickness | 20 mm |
| Decoiler | Manual / Optional Hydraulic |
| Usage | Dovetail Floor Decking / R51+ Roof Decking |
| Control System | PLC (Delta / Siemens / Mitsubishi) |

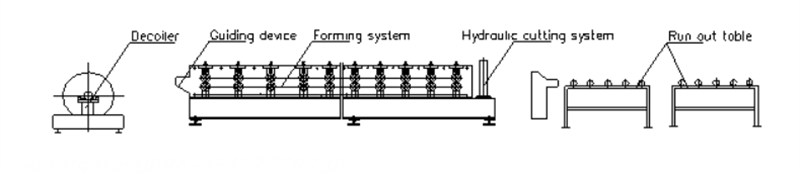

Optimized Production Flow
Uncoiling → Feeding → Roll Forming → Embossing (optional) → Hydraulic Cutting → Run-Out Table
This ensures：
- Precise cutting
- Smooth forming
- Consistent deck profiles
- High production efficiency
Machine Highlights Compared with Other Suppliers
1. 90mm solid shafts for U.S.-grade GI materials
Avoids deformation under thick materials.
2. Gear-assisted forming section
Ensures synchronized roller rotation.
3. Reinforced embossing mechanism
Critical for FormLok, dovetail, and R51+ decks.
4. Dual-cylinder hydraulic shearing
±1 mm precision.
5. Plug-and-play aviation connectors
Faster installation & easier maintenance.
6. 350# H-beam welded frame
Built for long-term industrial usage.
Applications of Dovetail & R51+ Decking in U.S. Projects
- High-rise steel structures
- Multi-story composite buildings
- Industrial warehouses & logistics centers
- Stadiums, schools, and public facilities
- Parking garages (acoustical type)
- Long-span roof structures using R51+ roof decking
- Buildings needing strong diaphragm action and fire-rated flooring
Technical Summary (USA-Focused Configuration)
- Material: GI / GL
- Feeding width: 1220 mm
- Finished width: ~1020 mm (depends on profile)
- Rollers: GCr15, heat-treated
- Blade: Cr12MoV hardened 58–62 HRC

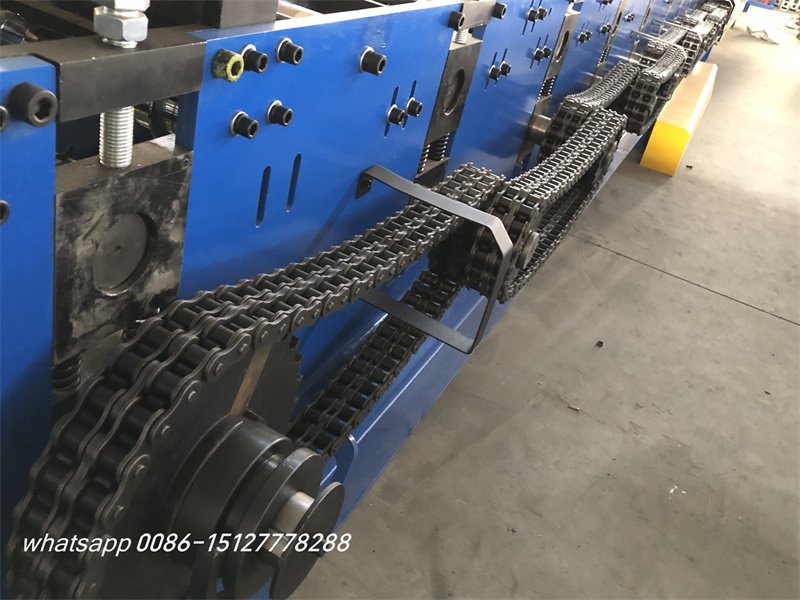

- Transmission: Chain / Gearbox (optional)
- Speed: 8–15 m/min
- Cutting: Hydraulic shearing
- Weight: 15–18 tons

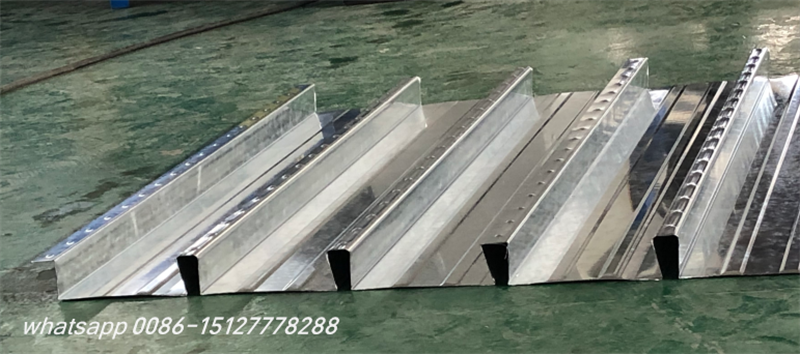

Supports dovetail, FormLok, acoustical, non-acoustical, and R51+ roof deck production.
Why the USA Uses Dovetail Decking & R51+ Roof Decking
Dovetail decks and R51+ roof decks are preferred in the U.S. construction market because they offer:
Architectural-grade underside finish
No extra ceiling required.
Easy installation of MEP systems
HVAC, lighting, and pipelines can be hung directly from the profile ribs.
Superior composite action
Dovetail and R51+ ribs increase stiffness, reduce deflection, and enhance load capacity.
Long-span capability
Highly suitable for warehouses, offices, steel structures, and multi-story buildings.
Available in acoustical versions
Ideal for stadiums, public buildings, and parking structures.
Why Choose Zhongtuo (ztfrm machine) for the USA Market?
- 15+ years of experience exporting to the U.S.
- Capable of FormLok, R51+, and other U.S.-standard profiles
- High precision CNC roller machining
- Professional engineering support
- Reliable after-sales service & remote training
- 90+ countries served
- Strong expertise in custom profile development
Whether you need R51+ roof decking, composite FormLok deck, or USA-standard dovetail flooring, Zhongtuo delivers turnkey equipment engineered for the American market.
