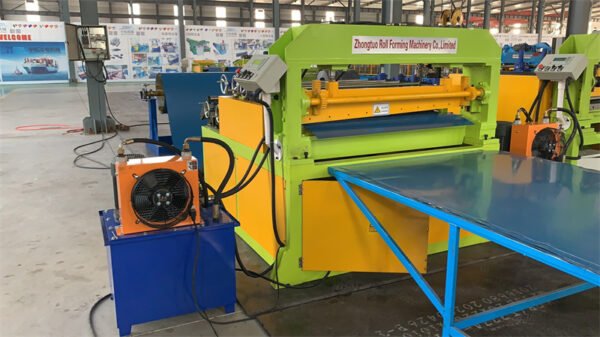

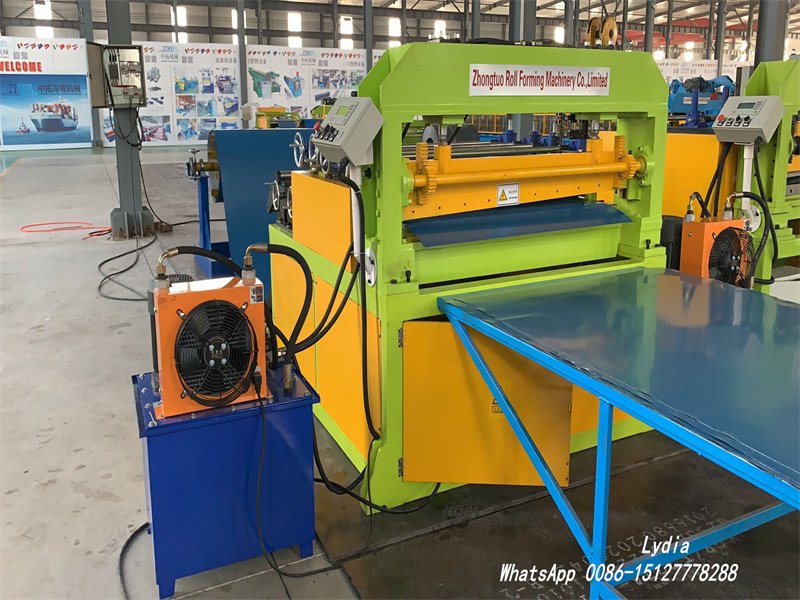

Simple Cut to Length Machine Introduction

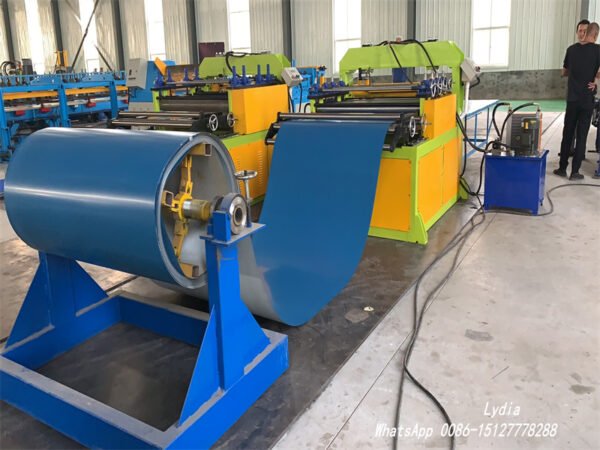

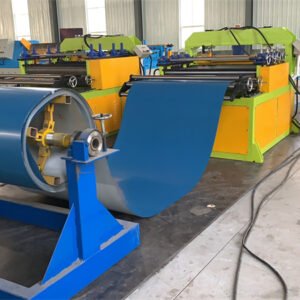

A simple cut-to-length machine is designed to cut various coils, such as GI, GL, PPGI, and PPGL coils, into required lengths. It works efficiently with materials up to 1mm thickness, making it ideal for small to medium-sized metal processing businesses. Depending on your needs, you can choose between a manual or an automatic decoiler, with loading capacities ranging from 5 tons to 10 tons. This machine helps customers minimize investment costs while enabling them to deliver products according to their end users’ specifications.

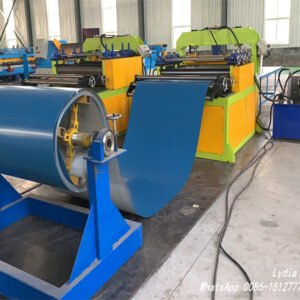

Decoiler Specifications:

Hydraulic coil inner diameter: 450-520mm
Maximum coil width: 1250mm
Loading capacity: 5000kg
Hydraulic expansion system
Automatic feeding capability
Inner tight hydraulic clamping
Hydraulic power: 3kW, Drive power: 3kW
Dimensions: 2.7m x 1.3m x 1.8m (L x W x H)

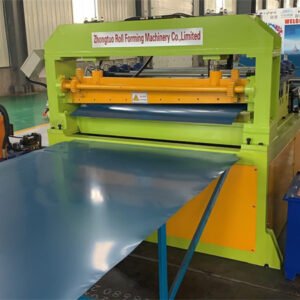

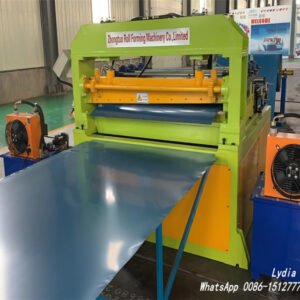

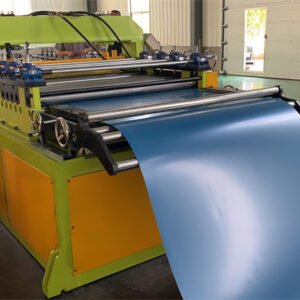

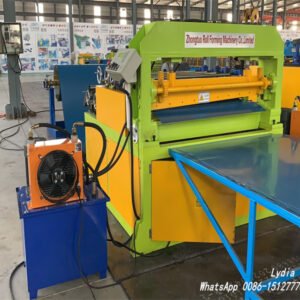

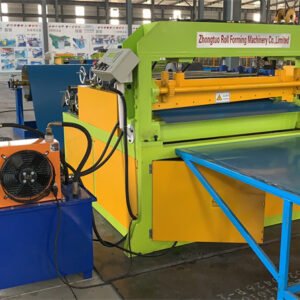

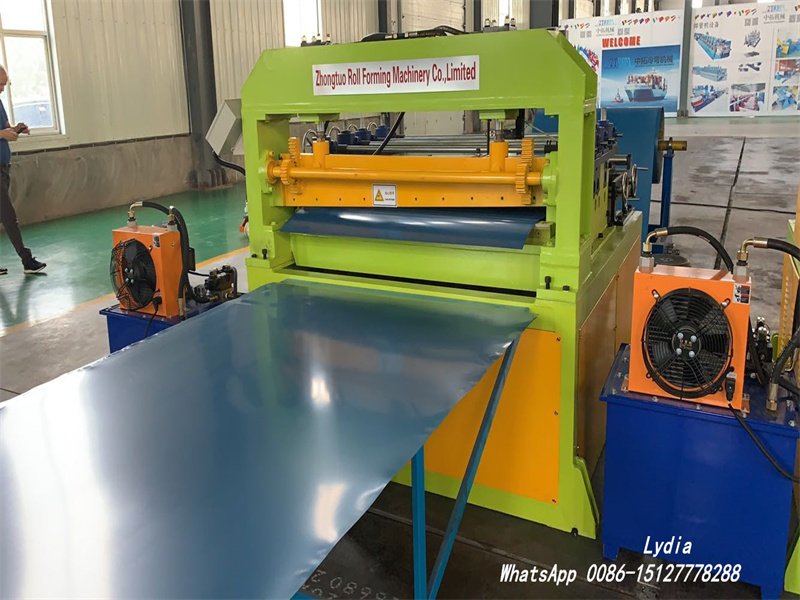

Main Cut-to-Length Machine Specifications:

Frame: 350H steel welded structure
Forming mold material: 45# steel with quenching treatment
Roller outer diameter: φ90mm
Main motor power: 5.5kW
Working speed: 10-15m/min
Forming steps: Upper layer: 5 steps, Lower layer: 6 steps
Transmission: Chain drive
Voltage: 380V, 50Hz, 3-phase (customizable)

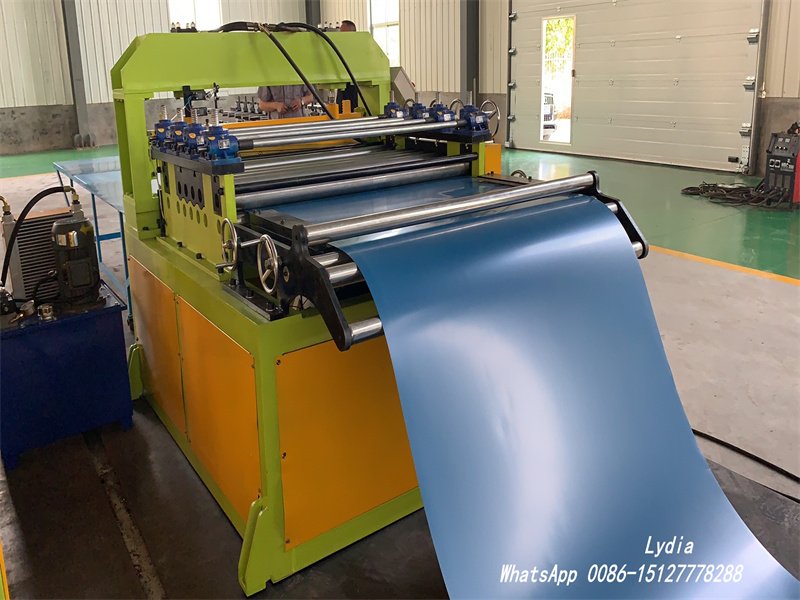

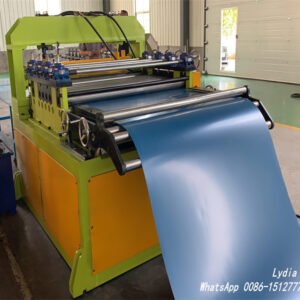

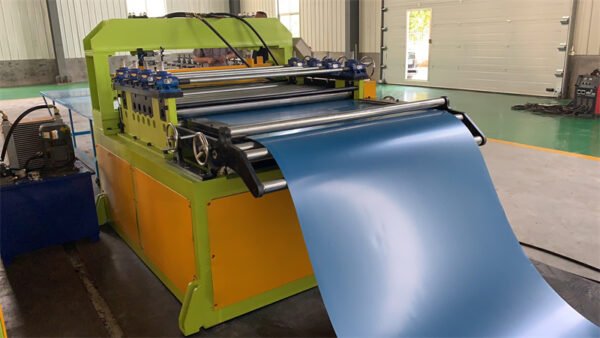

Optional Simple Slit and Cut-to-Length Machine:

We also provide machines with combined slitting and cut-to-length functions. This version can slit thin metal sheets and recoil the strips. The recoiled strips are suitable for producing roofing accessories such as ridge caps, gutters, downspouts, barge boards, and valley trays. If you’re interested in these machines, feel free to reach out to us.
