Product Overview
The ZTRFM 6” K-Style Gutter Machine is the most versatile seamless gutter machine to hit the market in 30 years. Designed to run all standard gutter materials and gauges up to 24 gauge, it delivers outstanding performance and consistency in 6-inch gutter size. The system is virtually adjustment-free, and its chromed free-floating forming rollers eliminate the excessive pressure common with conventional driven forming rollers, ensuring long life and smooth cutting of all materials.
The ZTRFM 5” K Gutter Machine is engineered specifically to produce 5-inch K-style gutters. Both machines feature our exclusive polyurethane drive system and chrome-plated steel forming rollers, offering maximum durability and precision.
Key Features & Advantages
| Base Frame Structure | 350 H-beam welded |
| Sidewall thickness | 16mm A3 Carbon Steel seamless welded with base frame |

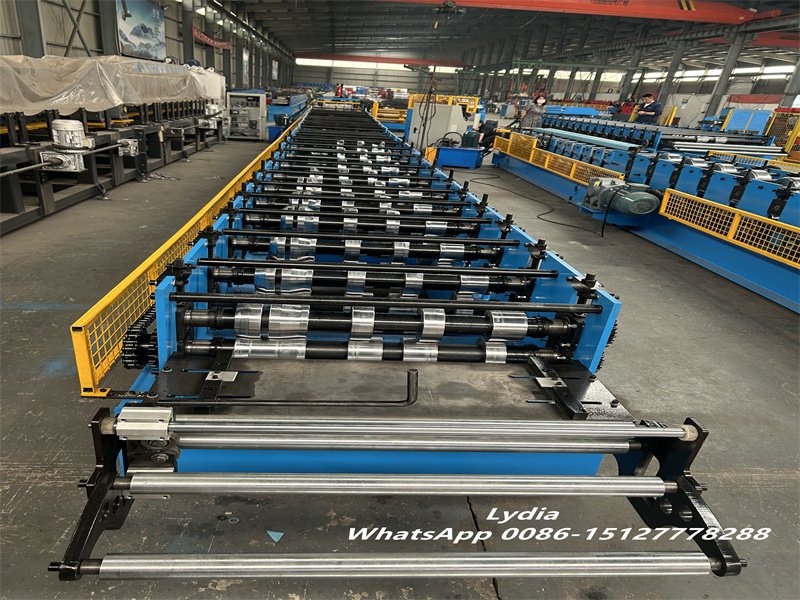

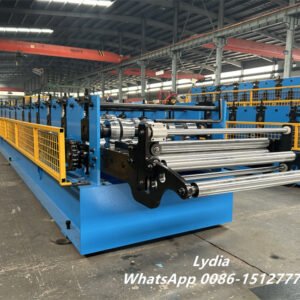

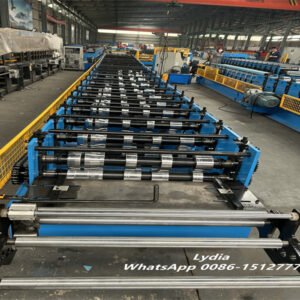

| Roller Stations | 18 forming units |
| Connect Bar | Diameter 25mm galvanized steel rod |
| Roller Shaft(Solid) | 70mm-0.01~-0.03 with Key-way |
| Shaft Material(Hard) | High grade 45# steel，lathe then polishing smoothly |
| Roller Material(Hard) | High grade 45# steel，CNC lathe then chromed plated 0.05mm |
| Bearing type | standard 6210(Wanxiang,Wuxi), single units inside wall box |
| Screw and bolts | Common 8.8 standard |
| Transmission method | 0.6 inch (Jindun,Hangzhou) |
| Driving motor | 4.0KW(Lichao,Shanghai) |
| Motor reducer | 4.0KW (Wujin,Changzhou) |
| Forming speed | 10-12m/min |
-
Polyurethane Drive System
-
Eliminates the need to load coil prior to transportation, reducing material waste.Prevents slippage caused by cold weather and condensation.
-
-

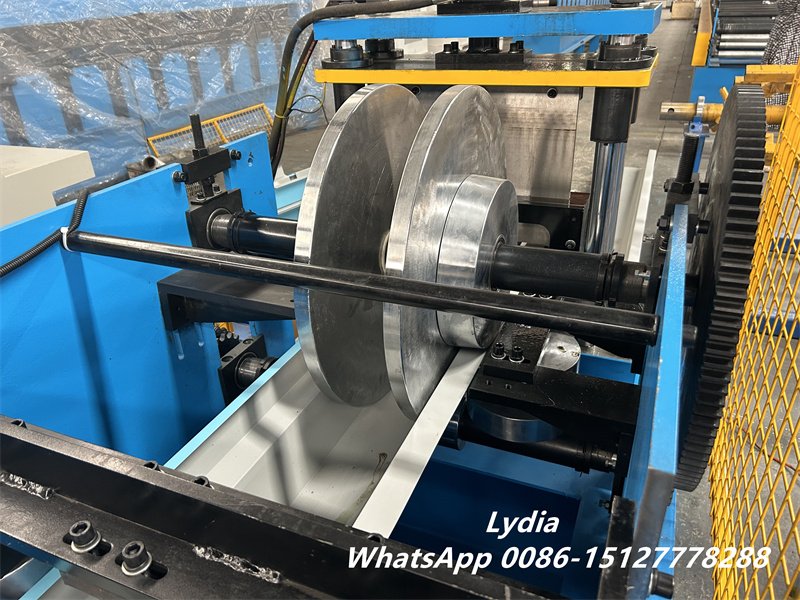

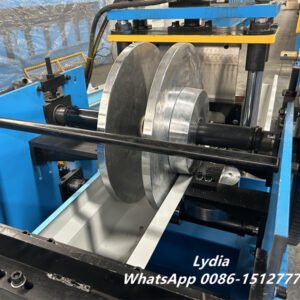

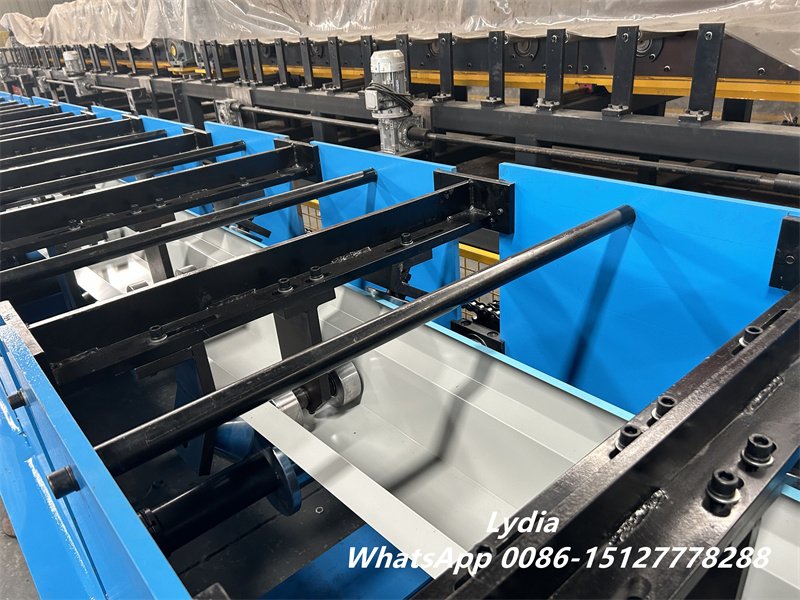

Chrome-Plated Steel Forming Rollers
-
Rollform all recommended materials with minimal or no adjustment.Free-floating design applies less pressure, resulting in higher product uniformity.
-
-
Durable Construction
-
Heavy-duty tubular steel frame with welded structure.Powered polyurethane drive rollers with chain and sprocket system.
-
-
Ease of Use
-
Virtually adjustment-free operation.Push-button entry and exit controls with “jog” feature for safe handling.
-
-
High Performance
-
Handles all gutter materials up to 24 gauge steel with ease.Approximate speed: 35 feet per minute.
-
Technical Specifications
-
Power: 3/4 HP, 110V, single-phase, 13.6 amperes, T.E.F.C. motor
-

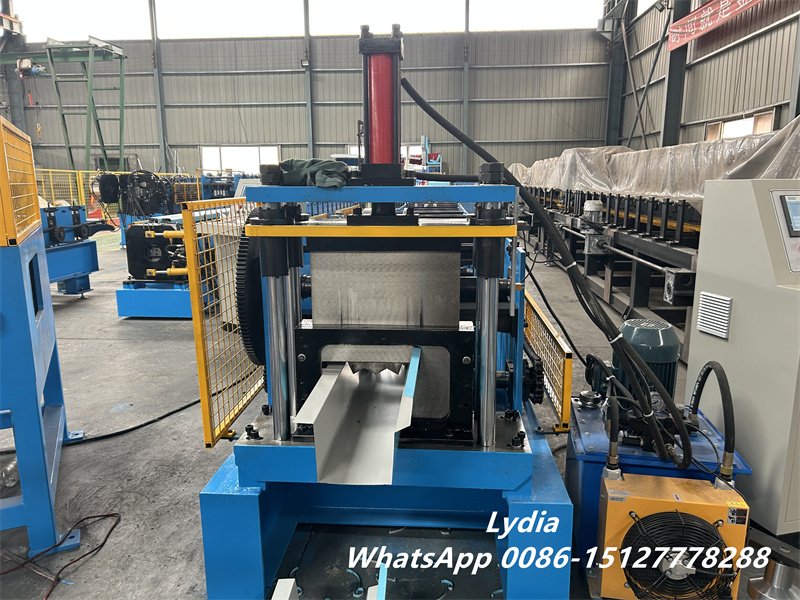

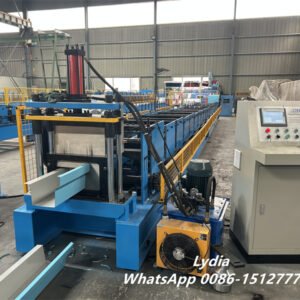

Shear: Front-pull guillotine system
-
Dimensions:
-
Length: 98 1⁄2″ (250.2 cm)
-
Height: 48″ (122.0 cm)
-
Width: 24″ (61.0 cm)
-
-
Weight: Approx. 1,100 lbs (499.0 kg)
Recommended Materials
-
Maximum width: 11 3⁄4″ – 12 3⁄8″
-
Maximum gauges:
-
Painted Steel: 24
-
Galvalume: 24
-
Aluminized Steel: 24
-
Ternecoat Steel: 24
-
Aluminum: .032
-
Copper: 16–20 oz, 3⁄4 hard
-
Optional Configurations
-
Smart Machine (automated length control)
-
Machine-mounted cradles
-
Additional runout support stands
-
CE-certified wiring
-
Additional turnstiles & spools
-
Alcoa-style hook
-
Roof flange 1″
-
Trailer riser pad
Warranty & Service
-
Made in the China with strict quality standards.
-
Backed by the most comprehensive warranty in the industry:
-
3-year parts & labor on all mechanical components1-year warranty on electrical components
-
We guarantee the best value in the market: We will beat any competitor’s price!
-
