In today’s transportation and logistics industry, manufacturers need equipment that delivers both productivity and versatility. The Carriage Board Roll Forming Machine from ZTRFM is designed to produce high-strength side panels for truck bodies, trailers, and container structures with outstanding accuracy and consistency.
More importantly, this production line is not limited to truck carriage boards. By adjusting tooling and profile design, manufacturers can also use it as a Container Wall Panel Roll Forming Machine, making it an ideal solution for companies serving multiple markets.
As a result, a single investment can support a wider range of products while reducing equipment costs and factory floor space requirements.

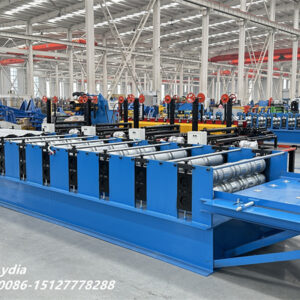

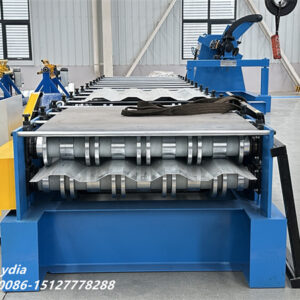

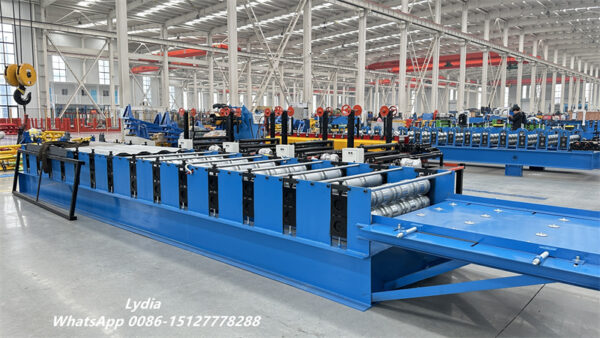

Heavy-Duty Design Ensures Stable Carriage Board Roll Forming Machine
A reliable production line starts with a robust machine structure. Therefore, ZTRFM equips this system with industrial-grade components designed for continuous operation.

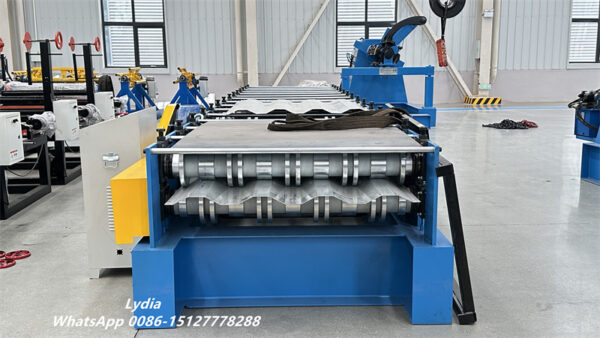

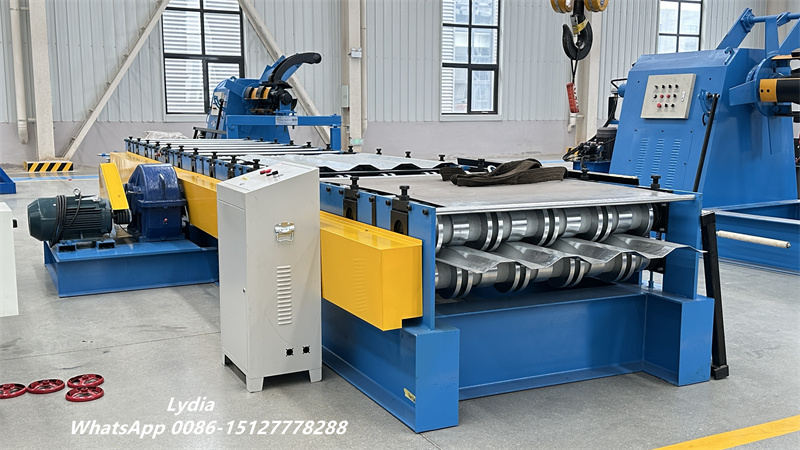

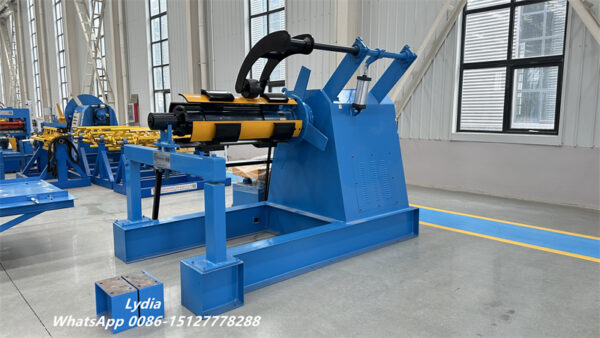

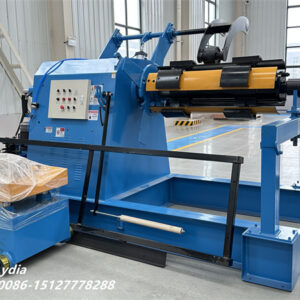

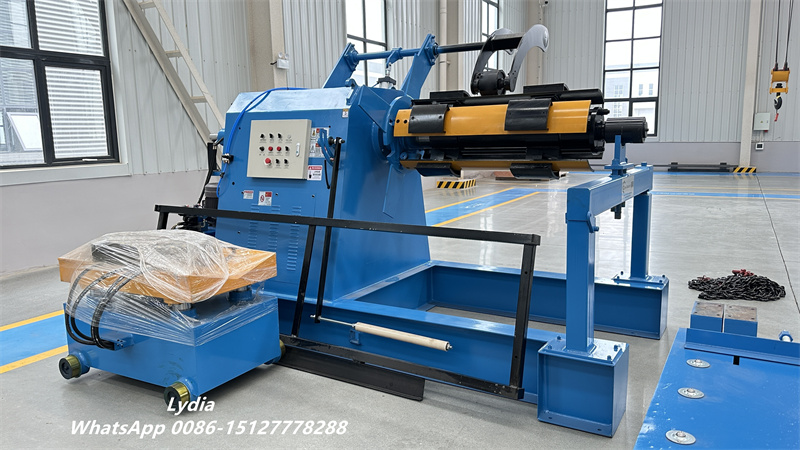

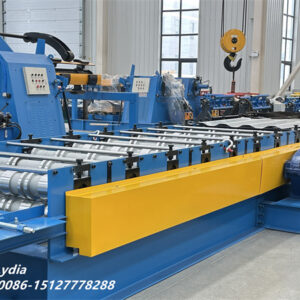

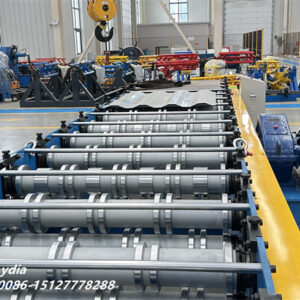

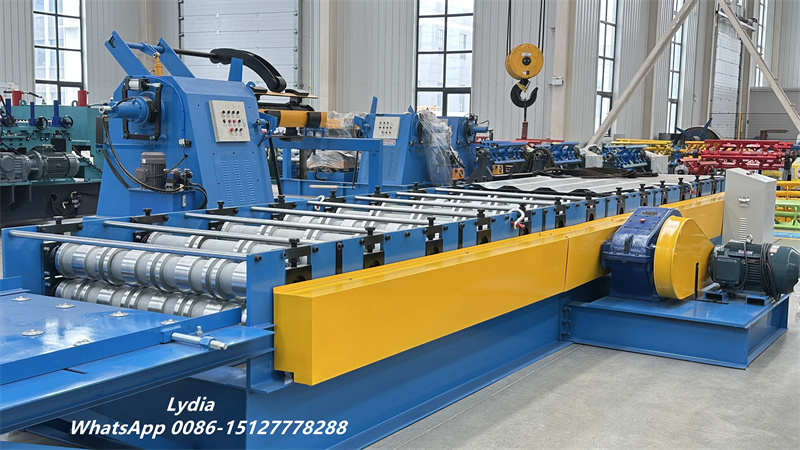

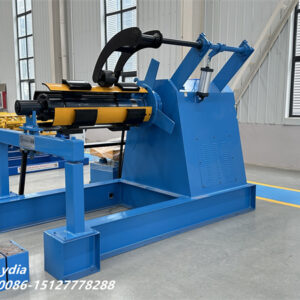

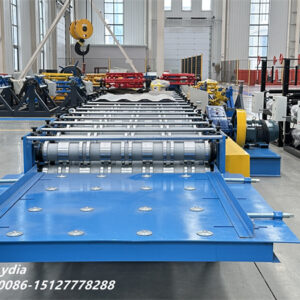

The production process begins with a 5 Ton Hydraulic Uncoiler, which handles large steel coils smoothly and maintains stable feeding tension. Next, the material enters the guiding and feeding section before moving into the roll forming system.

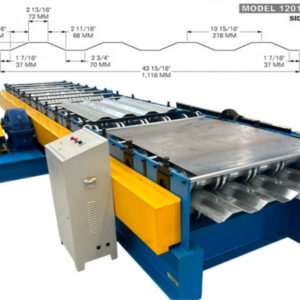

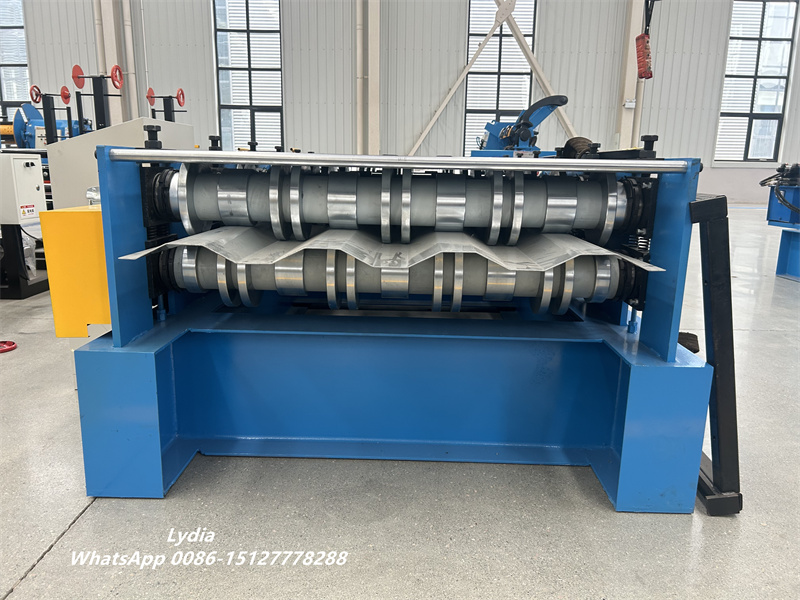

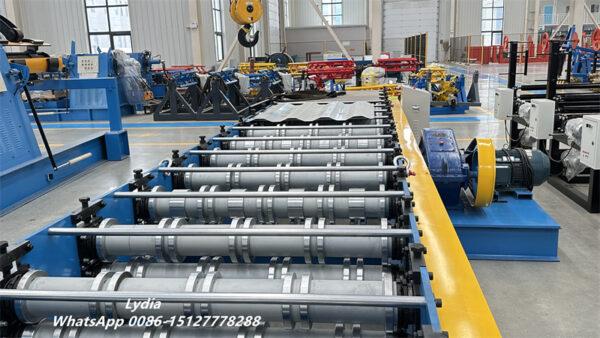

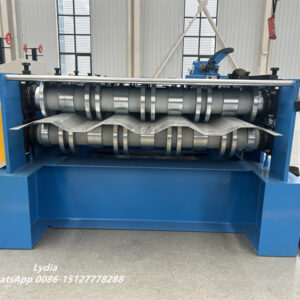

Unlike conventional chain-driven machines, this line uses a gearbox transmission. Consequently, the machine delivers higher torque, smoother operation, and improved forming accuracy, especially when processing thicker steel materials commonly used in truck bodies and container wall panels.
Meanwhile, the integrated hydraulic punching and cutting unit completes profile cutting and end flattening in a single operation. This design minimizes secondary processing and improves assembly efficiency.
Intelligent Automation Reduces Labor Requirements

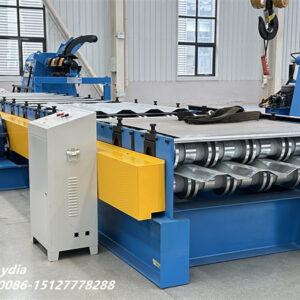

Modern manufacturing requires precision and repeatability. For this reason, the machine is equipped with a PLC control system and HMI touchscreen interface.
Operators can easily set:
- Production length
- Quantity requirements
- Cutting parameters
- Production speed
Once the settings are entered, the system automatically controls the entire production process. Consequently, manufacturers can reduce labor costs while maintaining consistent product quality throughout long production runs.

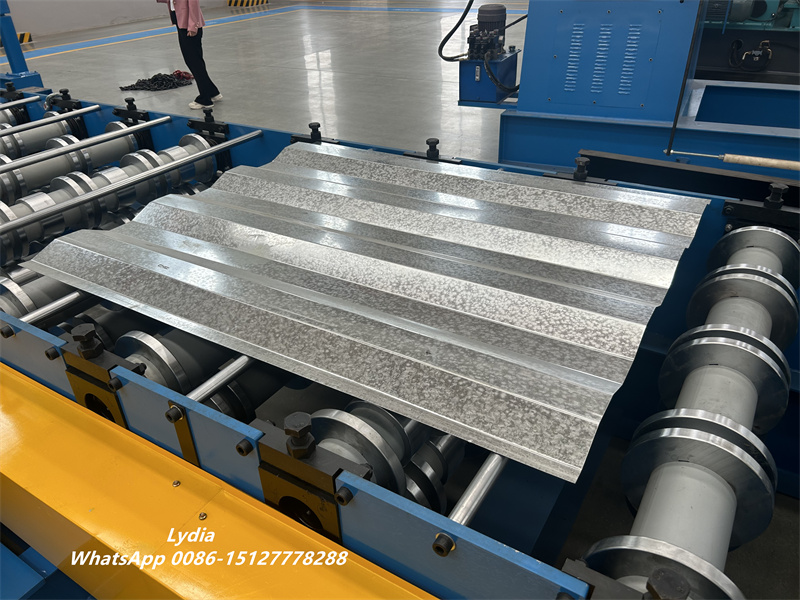

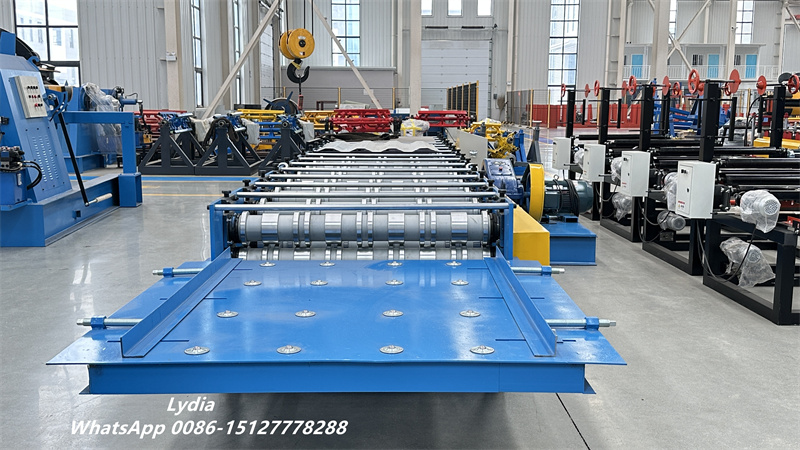

Furthermore, the collection table supports finished panels and prevents surface damage during unloading.

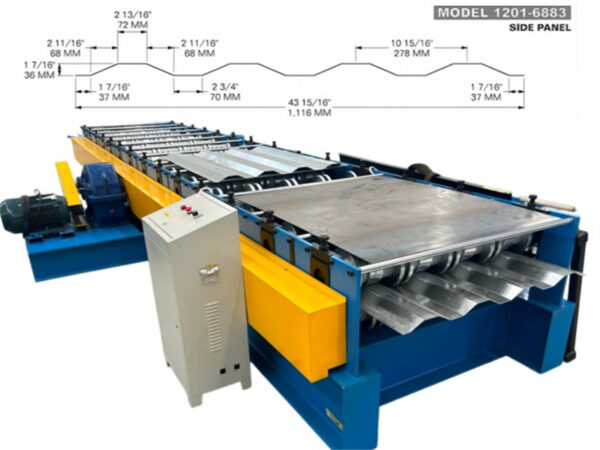

Technical Specifications of Carriage Board Roll Forming Machine
The following specifications represent a standard configuration of the Carriage Board Roll Forming Machine.
| Parameter | Specification |
|---|---|
| Material Thickness | 1.5-3.0 mm |
| Material Type | GI, Carbon Steel, PPGI |
| Yield Strength | ≤350 MPa |
| Forming Speed | 8-12 m/min |
| Forming Stations | 18-22 Stations |
| Transmission System | Gearbox Drive |
| Uncoiler Capacity | 5 Ton Hydraulic Uncoiler |
| Main Motor Power | 15 kW |
| Cutting Method | Hydraulic Cutting & End Flattening |
| Control System | PLC + HMI Touch Screen |
| Voltage | Customized According to Customer Requirements |
For customers seeking higher productivity, optional upgrades include larger hydraulic decoilers, automatic stacking systems, hardened roller tooling, and high-speed production packages.
Suitable for Multiple Transportation Applications
One of the biggest advantages of this machine is its wide application range.
The finished profiles can be used in:
- Truck body side panels
- Cargo trailer wall panels
- Semi-trailer body structures
- Dry van trailer panels
- Shipping container wall panels
- Refrigerated vehicle body panels
- Railway freight carriage panels
- Specialized transportation equipment
Because these industries demand strong yet lightweight structures, roll-formed carriage boards remain one of the most economical manufacturing solutions available.

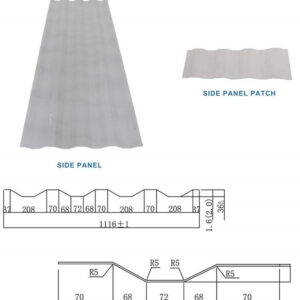

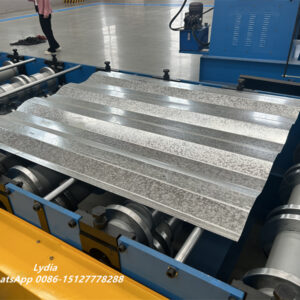

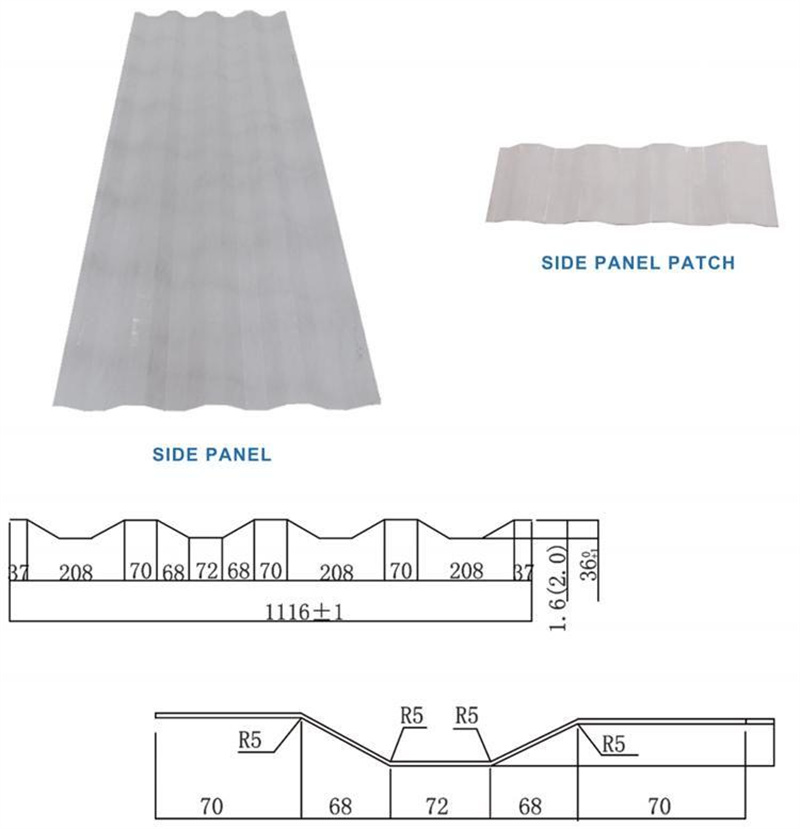

In addition, the machine can produce customized corrugated or reinforced profiles according to customer drawings, allowing manufacturers to meet different market requirements without investing in multiple production lines.
Built for Long-Term Performance and Global Support
At ZTRFM, we focus not only on machine performance but also on long-term reliability. Therefore, we use high-quality bearings, precision-machined rollers, durable gearbox transmissions, and dependable hydraulic systems throughout the production line.
To ensure smooth operation after installation, our engineering team provides:
- Machine installation guidance
- Operator training
- Production commissioning
- Technical troubleshooting
- Spare parts support
- Lifetime technical assistance
Additionally, all machines are supplied with a comprehensive warranty covering mechanical and electrical components.
Whether you manufacture truck carriage boards, trailer side panels, or container wall panels, the Carriage Board Roll Forming Machine offers a productive, durable, and cost-effective solution for expanding your production capabilities.
