Zhongtuo Soffit Panel Roll Forming Machine Pan Roof Forming Line for USA & Canada

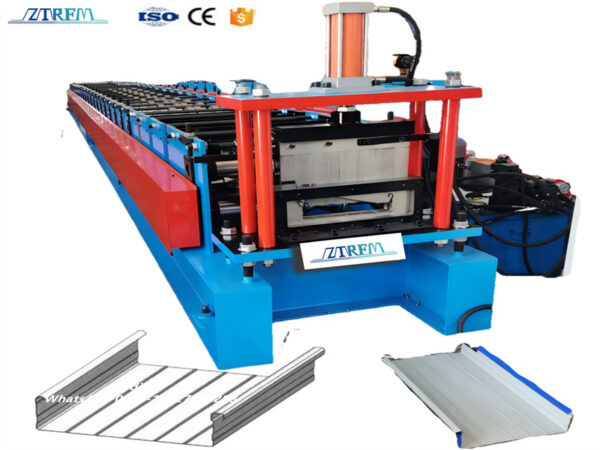

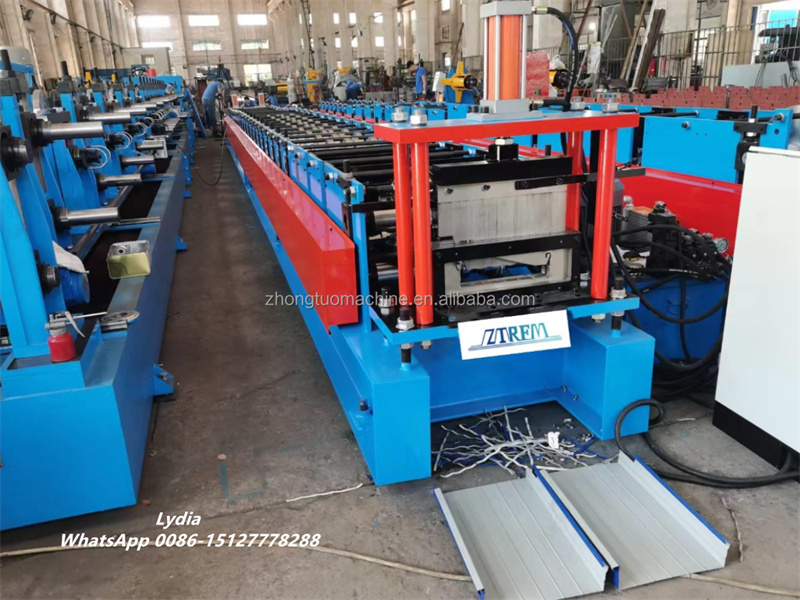

Soffit Panel Roll Forming Machine for North America

In North America,  soffit and pan roof systems are widely used in carports, patio covers, screen rooms, and residential roofing transitions. To meet this demand, our Soffit Panel Roll Forming Machine is engineered for high efficiency, long service life, and consistent panel quality — even under continuous production conditions.

This machine is also commonly referred to as a Pan Roof Roll Forming Machine or Flat Soffit Panel Machine, capable of producing 3-inch height profiles with excellent surface protection and optional ventilation punching.

Designed for Real North American Job Sites

Our soffit panel roll forming machines have already been exported to the United States and Canada, where they are operating reliably in local factories. The equipment is optimized for:

• light-gauge steel coils
• 20-inch feeding width (standard pan roof size)
• High-speed production for commercial and residential projects
• Profiles with or without pre-punched ventilation holes

The result is a cost-effective production solution that balances durability, aesthetics, and installation efficiency.

Key Technical Specifications

Flexible Profile & Punching Options

This soffit panel machine is designed with adjustability in mind:

• One machine, multiple profiles: adjustable forming system supports different soffit or pan roof designs

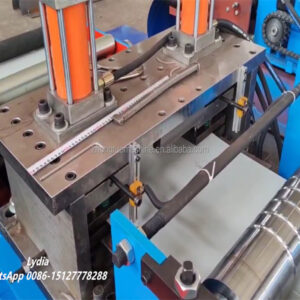

• Pre-punching unit optional:
  • Ventilation holes for airflow
  • Waterproof installation gaps
  • Punching rollers can be turned ON/OFF during production

This flexibility allows manufacturers to quickly switch between solid panels and ventilated soffit panels without complex tooling changes.

Core Machine Components & Advantages

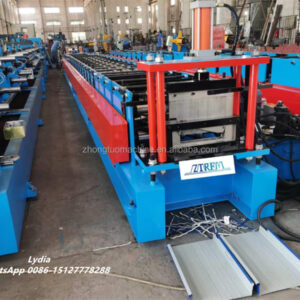

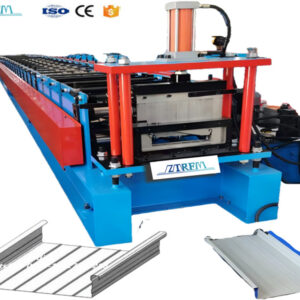

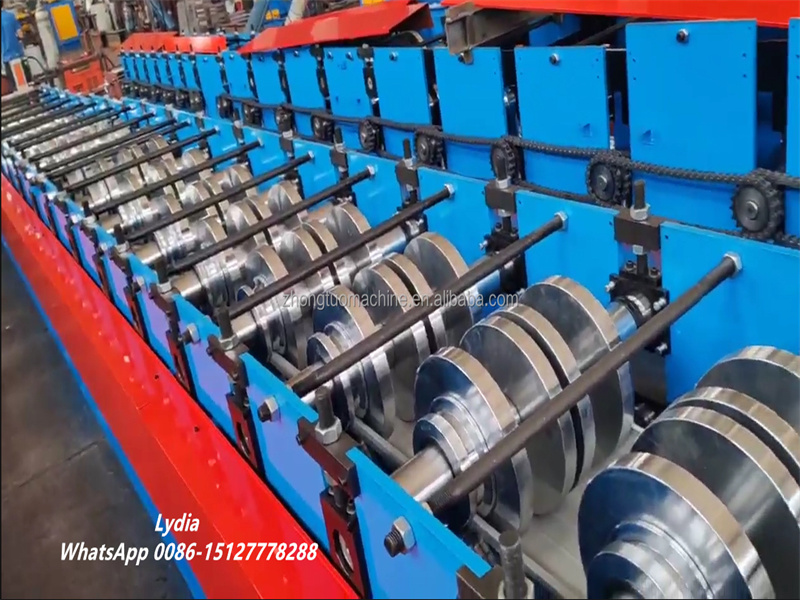

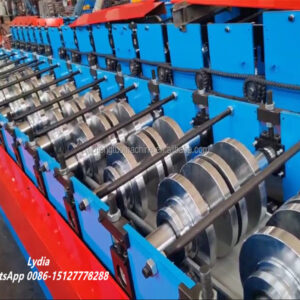

Main Roll Forming Unit

• 20 precision forming stations
• Gear-driven top & bottom rollers
• Spring-loaded design ensures constant pressure on the material
• Minimal adjustment needed for different materials

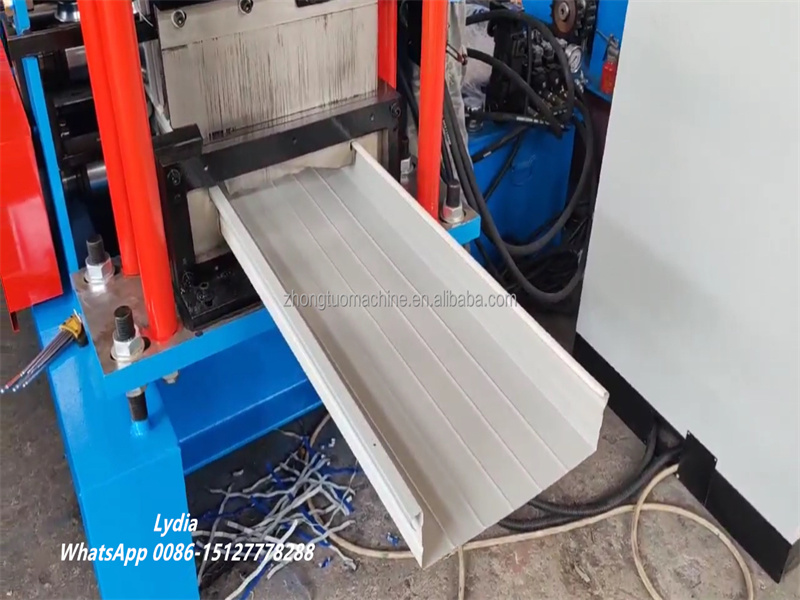

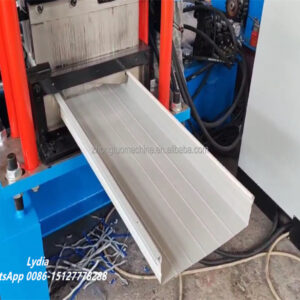

Hydraulic Cutting System

• Cr12 quenched cutting mold
• Clean, burr-free cutting
• Stable operation at high speed

PLC Control Cabinet

• Siemens electronic control system
• Touch screen operation
• Remote control support
• Multi-language interface available
• Aviation plugs for fast installation

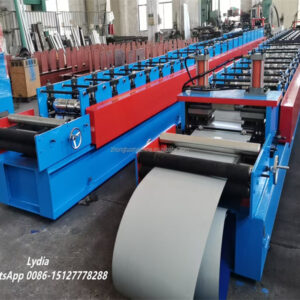

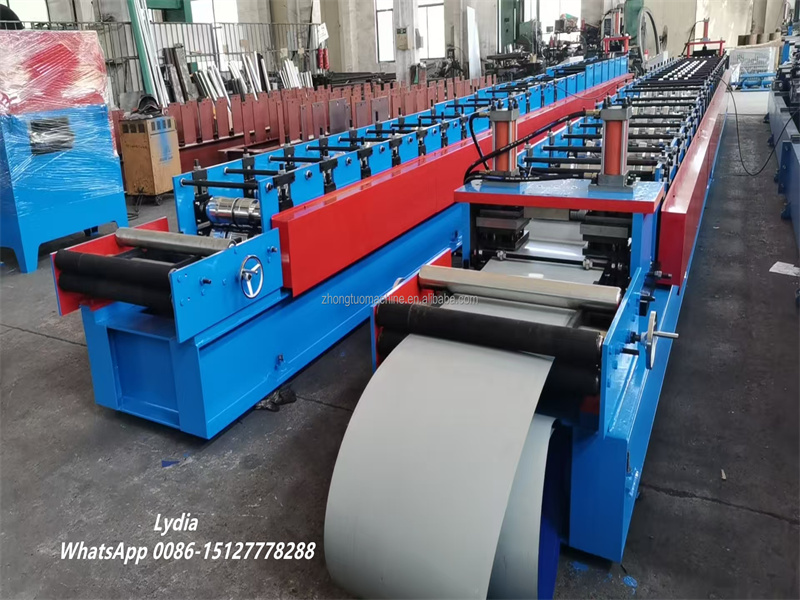

Complete Production Line Configuration

A full soffit panel production line typically includes:

1. Electric Automatic Decoiler (3 Tons)
   • Automatic coil opening
   • Infrared sensing for safe feeding
   • Reduced labor cost
2. Feeding & Edge Protection Device
   • Handwheel adjustment
   • Stainless steel protective rollers
   • Prevents scratches on panel edges

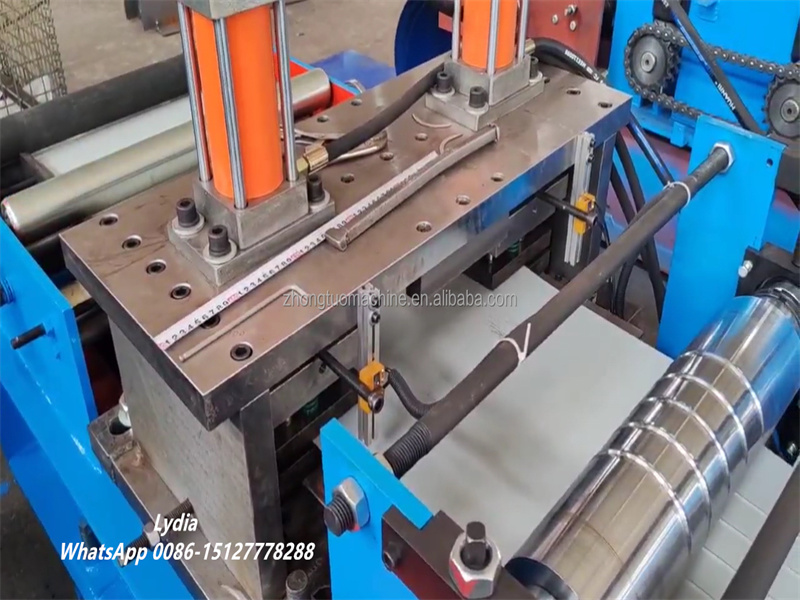

3. Pre-Punching Device (Optional)
   • Improves ventilation efficiency
   • Enhances waterproof performance
4. Roll Forming Machine
   • High-precision rollers
   • Stable gear or double-chain transmission

1. Hydraulic Cutting & Oil Lubrication System
   • Automatic oil filler reduces maintenance
2. Finished Product Receiving Table
   • Stainless steel rollers
   • Smooth panel transfer
   • Improved operator safety

Why Soffit & Fascia Matter More Than You Think

For some builders, soffit and fascia panels simply block birds, insects, and weather intrusion.
For others — architects, designers, and building owners — they define the visual transition between roof and wall systems.

Our soffit panel roll forming solution supports both perspectives by delivering:

• Clean, uniform panel appearance
• Long-term corrosion resistance
• Structural protection and ventilation
• Cost-efficient mass production

Reliable Partner for Global Markets

Manufactured in Hebei, China, our machines are built with internationally recognized components and tested before shipment. We provide:

• Machinery test reports
• Video outgoing inspection
• Overseas installation and service support
• Long-term spare parts supply

If you are looking to expand or upgrade your soffit or pan roof production for the North American market, this machine offers a proven, scalable solution.
