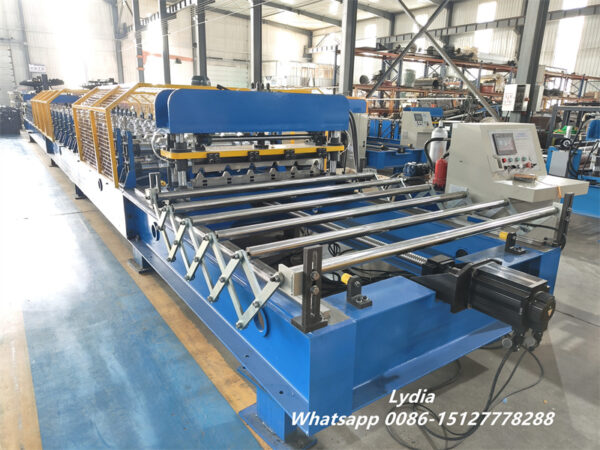

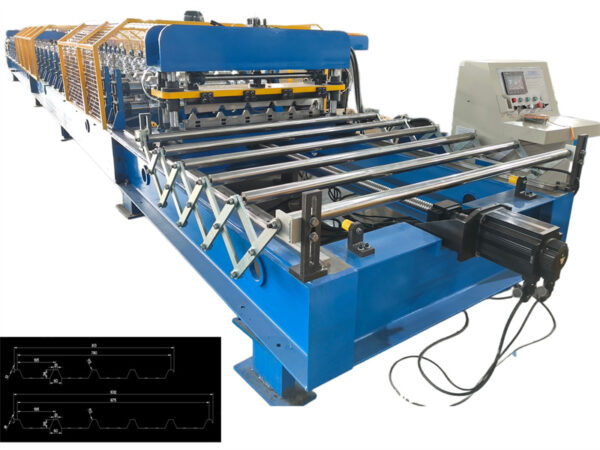

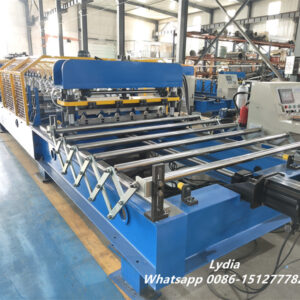

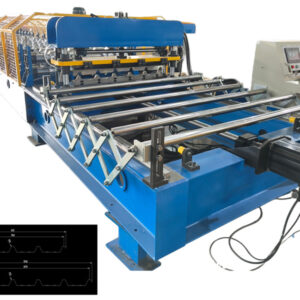

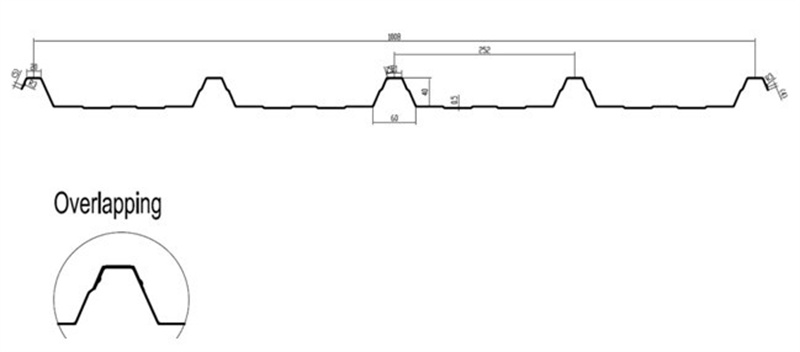

The TN40 IBR roof sheet roll forming machine is specially engineered to produce high-strength trapezoidal roofing sheets for modern steel structure buildings. The profile design features an overlapping corrugated structure that improves waterproof performance and installation stability. Both roofing sheet types use identical wave profiles with precise trapezoidal forming geometry, including 38 mm wave height, 195 mm wave spacing, smooth R2 fillet transitions, and specially designed edge laps for stronger overlapping connections. One profile offers an effective covering width of 780 mm with 4 waves, while the larger version provides a 975 mm effective width with 5 waves, making them suitable for different roof and wall cladding requirements.
Because the overlapping joint structure enhances wind resistance and rainproof performance, these TN40 roof sheets are widely used in Algeria and many African construction markets. As a result, the TN40 roll forming machine has become a popular solution for manufacturers seeking stable production, reduced labor costs, and high-speed automatic operation.
Compared with traditional roofing production methods, this automatic metal tile making machine significantly improves efficiency while maintaining consistent panel quality. The production line combines hydraulic decoiling, high-speed roll forming, servo tracking cutting, automatic conveying, and stacking into one intelligent system. Consequently, operators can achieve continuous production with minimal manual intervention.
The machine is suitable for processing color-coated galvanized steel, galvanized steel coils, and similar metal materials with thicknesses ranging from 0.3 mm to 0.8 mm. Moreover, the finished TN40 roofing sheets provide excellent waterproof performance, wind resistance, and long service life.
Why TN40 IBR Roofing Sheets Are Popular
TN40 trapezoidal roof sheets are widely recognized for their durability and economical installation. In recent years, steel roofing systems have become increasingly popular because they combine lightweight construction with high structural strength.
Unlike traditional roofing materials such as clay tiles or concrete roofing systems, metal roof sheets are easier to transport and install. In addition, they offer excellent corrosion resistance and can withstand harsh weather conditions, including strong winds and heavy rainfall.
Another important advantage is sustainability. Metal roofing panels contain recyclable materials and can be fully recycled after long-term use. Therefore, many contractors and developers prefer TN40 roofing sheets for modern industrial and commercial construction projects.
Because of their interlocking structure, TN40 metal roof panels also provide stronger wind resistance than many traditional roofing systems. This feature makes them highly suitable for large-span steel structure buildings and agricultural projects.
Main Features of the TN40 Roll Forming Machine

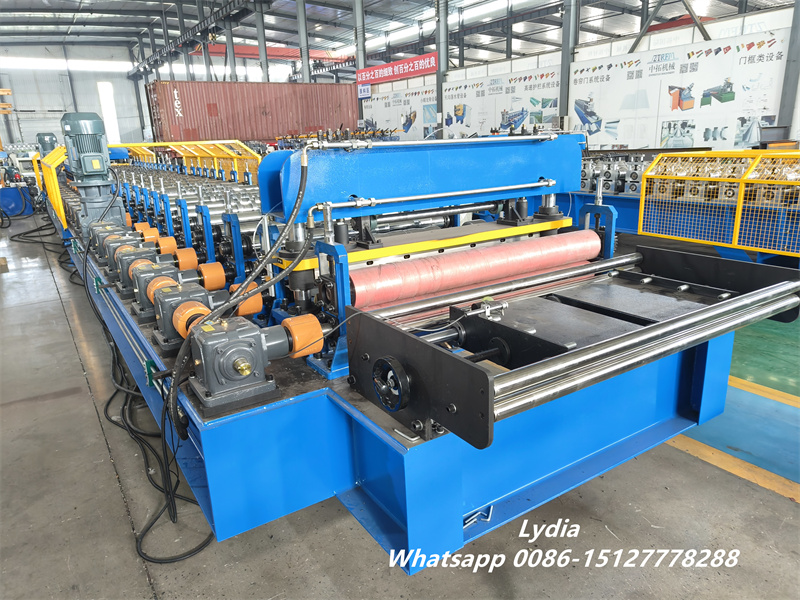

This high-speed TN40 roof sheet forming machine is designed for continuous industrial production. The complete line operates automatically through a PLC control system, helping manufacturers reduce labor dependency while improving production accuracy.
Key Advantages
- Fully automatic roof sheet production line
- High-speed forming up to 40–50 m/min
- Servo motor tracking cutting system
- Stable gearbox transmission structure
- Automatic stacking system
- Low maintenance and long service life
- Compatible with galvanized and pre-painted steel coils
- Suitable for both wall panels and roofing sheets
Furthermore, the hydraulic decoiler, conveyor system, and automatic stacker work together with the roll forming machine to ensure smooth high-speed operation throughout the production process.
Technical Specifications
| Item | Specification |
|---|---|
| Product Profile | TN40 Trapezoidal Roofing Sheet |
| Material Thickness | 0.3–0.8 mm |
| Suitable Material | PPGI, GI Steel Coil |
| Forming Stations | 20 Stations |
| Production Speed | 40–50 m/min |
| Main Motor Power | 15 KW |
| Hydraulic Cutting Power | 5.5 KW |
| Shaft Diameter | 80 mm |
| Roller Material | ASTM 1045 Chrome-Coated |
| Shaft Material | ASTM 1045 Steel |
| Cutting Type | Servo Tracking Cutting |
| Decoiler Capacity | 5 Ton Hydraulic Decoiler |
| Control System | PLC Automatic Control |
| Stacker | Automatic Stacking System |

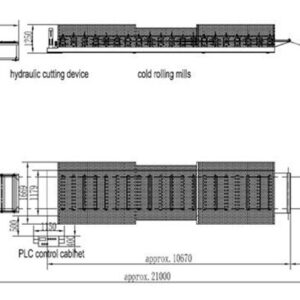

Stable Automatic Production System

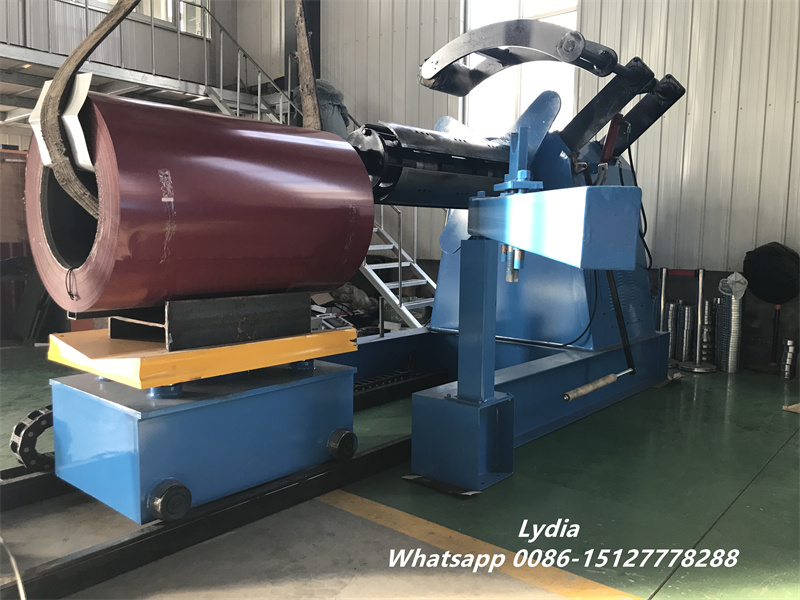

The TN40 roofing sheet production line uses a hydraulic decoiler with automatic expansion and electric uncoiling functions. Consequently, coil feeding becomes smoother and more stable during high-speed production.

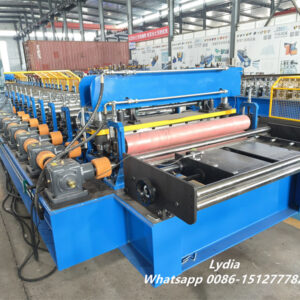

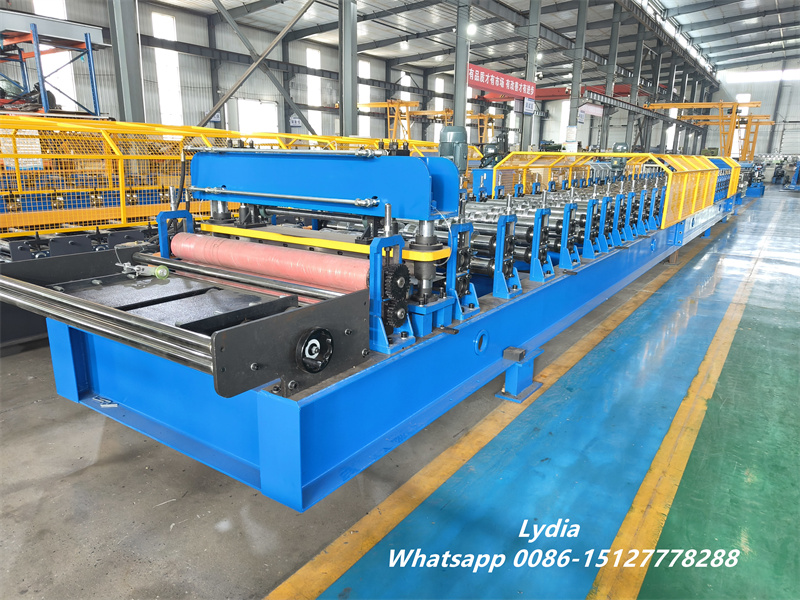

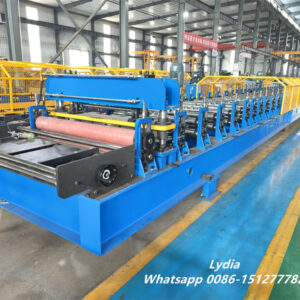

At the forming section, precision-machined rollers gradually shape the steel strip into TN40 trapezoidal roofing panels. Meanwhile, the gearbox transmission system ensures stable machine operation even at high speeds.
The servo tracking cutting device is another major advantage. Unlike traditional stop-to-cut systems, servo tracking cutting allows continuous production without interrupting the forming process. Therefore, manufacturers can achieve higher efficiency and cleaner cutting edges.

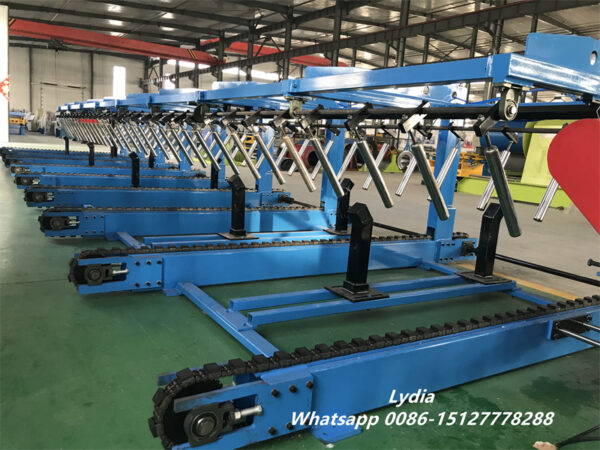

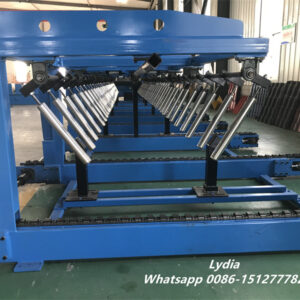

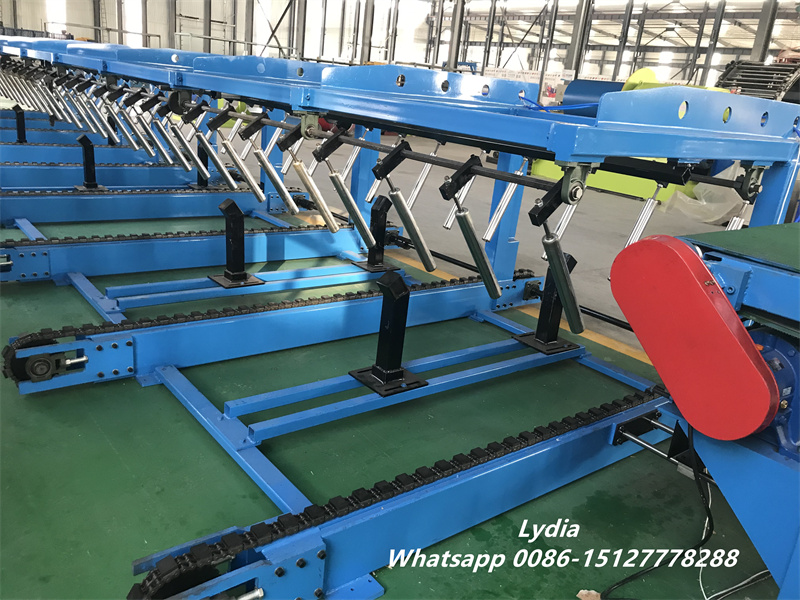

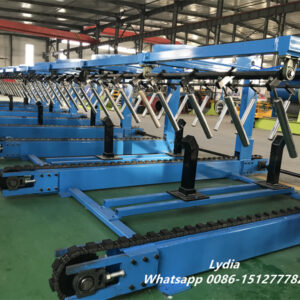

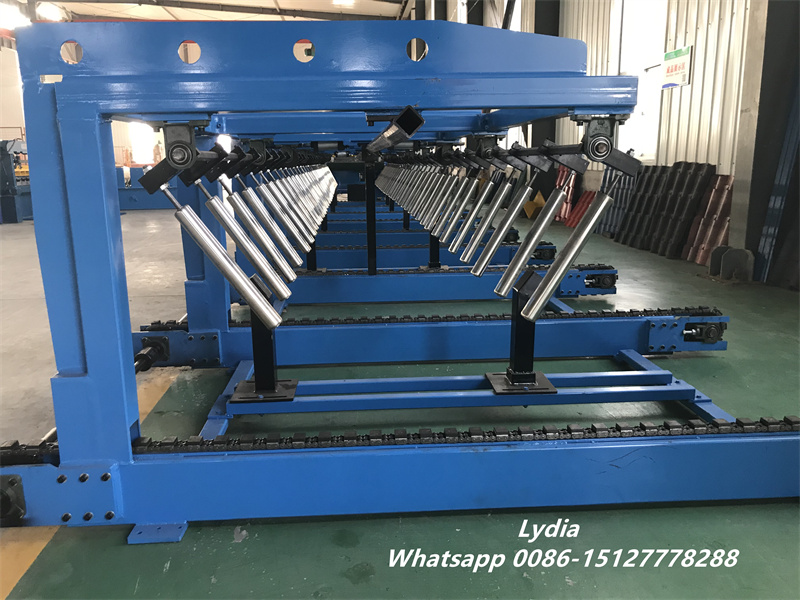

After cutting, the automatic stacker collects finished roof sheets neatly. This not only reduces labor costs but also improves packaging efficiency and workshop organization.
Additionally, the machine uses internationally recognized electrical components, making replacement and maintenance easier in local markets.
Wide Applications of TN40 Roofing Sheets
TN40 trapezoidal roofing sheets are widely used in modern steel structure construction because of their excellent strength-to-weight ratio and weather resistance. Their clean appearance and fast installation also make them ideal for large-scale building projects.
Industrial Factories and Workshops
Industrial plants and manufacturing workshops often require durable roofing systems that can cover large areas quickly. TN40 roof panels provide reliable waterproofing and excellent wind resistance while reducing the total structural load on the building.
Moreover, steel roofing sheets help shorten construction time, which is extremely important for industrial projects with strict delivery schedules.
Warehouses and Logistics Centers
Large warehouses and logistics hubs demand roofing materials that offer long-term durability and low maintenance costs. TN40 roofing sheets perform exceptionally well in these environments because they resist corrosion and maintain structural stability for many years.
In addition, the lightweight nature of metal roofing reduces steel structure costs for large-span buildings.
Cold Storage Buildings
Cold storage facilities need roofing systems with good sealing performance and reliable durability. TN40 roof sheets can work together with insulation materials to create energy-efficient building envelopes.
Because the panels are easy to install and maintain, they help reduce overall project operating costs.
Shopping Malls and Commercial Buildings
Modern shopping centers and supermarkets prefer roofing systems that combine functionality with attractive appearance. TN40 trapezoidal roofing sheets provide a clean and professional exterior while offering excellent drainage performance during heavy rain.
At the same time, the fast installation process helps developers complete projects more efficiently.
Stadiums and Exhibition Centers
Large public buildings such as sports halls and exhibition centers require roofing systems capable of handling wide roof spans and changing weather conditions. TN40 metal roofing panels provide strong structural performance and excellent wind resistance, making them suitable for these demanding environments.
Transportation and Public Infrastructure
Railway stations, airports, hospitals, and transportation terminals also use trapezoidal roofing sheets because they support rapid construction and low long-term maintenance costs. Furthermore, metal roofing systems can withstand continuous exposure to outdoor conditions while maintaining stable performance.
Agricultural Buildings
Agricultural warehouses, livestock farms, and storage sheds benefit greatly from TN40 roofing sheets. The panels resist moisture and corrosion effectively, helping protect equipment, feed, and agricultural products from environmental damage.
Because the sheets are lightweight and easy to install, farmers can also reduce installation time and labor expenses.
Roofing Sheet Machine Manufacturer
This TN40 IBR roof sheet roll forming machine combines high production efficiency, automatic operation, and durable machine structure into one advanced roofing solution. Whether you plan to produce roofing sheets for industrial buildings, commercial projects, agricultural facilities, or public infrastructure, this machine can help increase output while reducing operating costs.
With stable performance, intelligent automation, and strong adaptability to the Algerian market, the TN40 roofing sheet machine remains an ideal investment for metal roofing manufacturers worldwide.
