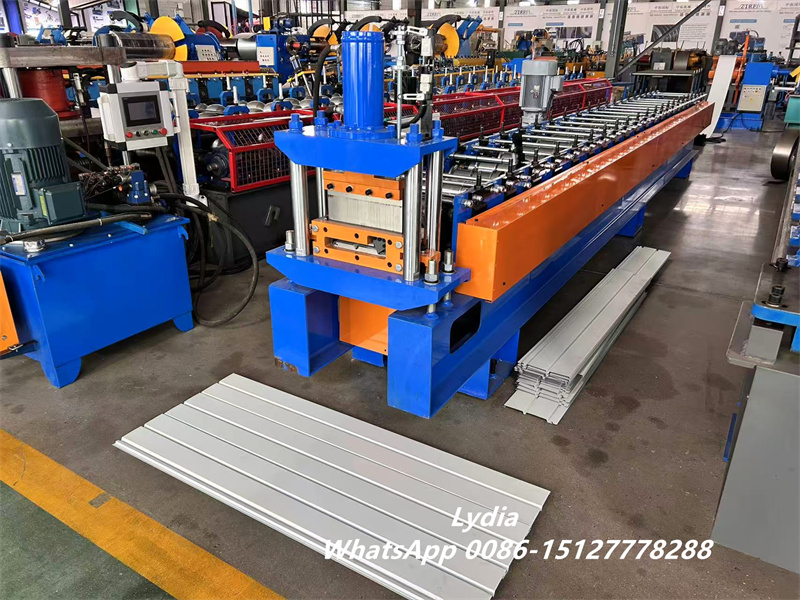

Wall Cladding Roll Forming Machine
High-Performance Solution for Metal Wall Panel Production
The wall cladding roll forming machine is designed to produce high-precision metal wall panels with stable quality and high efficiency. By integrating a robust mechanical structure, intelligent PLC control, and a reliable hydraulic cutting system, this machine delivers consistent performance for long-term industrial production.

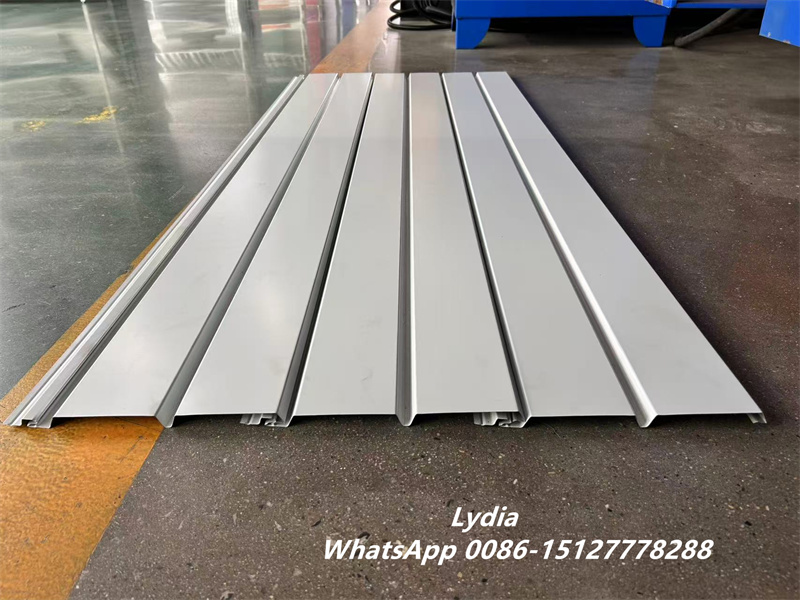

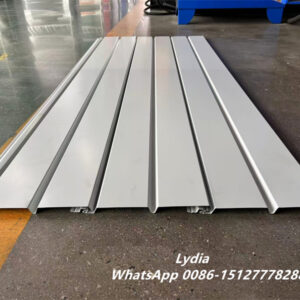

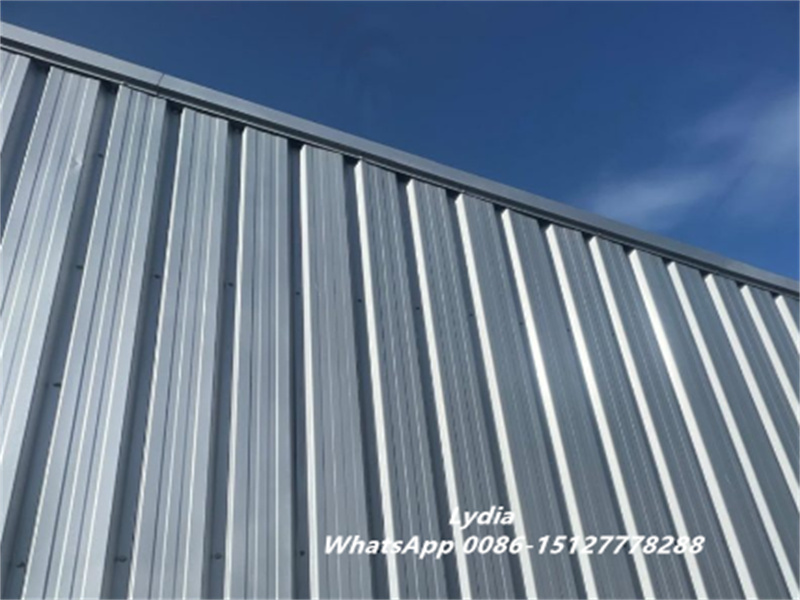

As a result, it is widely used in residential, commercial, and industrial wall cladding projects worldwide.
Quotation Overview
- Machine: Wall Cladding Roll Forming Machine
- Quantity: 1 Set
- Total Price: USD 36,000
- Delivery Time: 60 working days after receiving advance payment
Machine Working Flow
Decoiling → Feeding & Guiding → Roll Forming → Hydraulic Cutting → Product Collection
This streamlined workflow ensures smooth material movement, accurate forming, and clean cutting. Therefore, the machine significantly reduces manual intervention and improves overall production efficiency.
Technical Specifications
Raw Material Parameters
| Item | Specification |
|---|---|
| Material Type | PPGI & GI |
| Coil Width | 152.4 mm |
| Material Thickness | 24 gauge |
| Cutting Length | Adjustable |

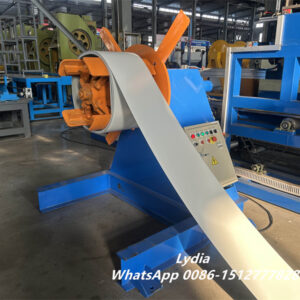

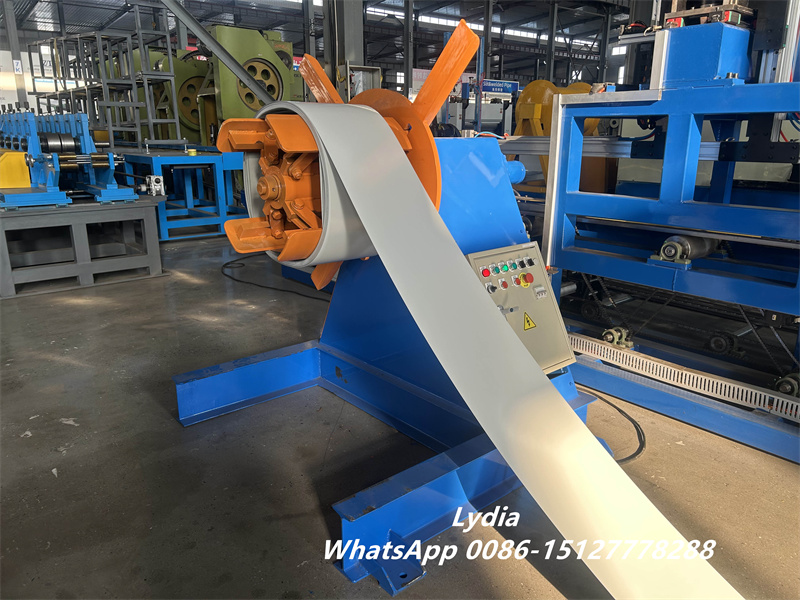

3 Ton Hydraulic Decoiler
The machine is equipped with a 3-ton passive hydraulic decoiler, which supports stable coil uncoiling and reliable feeding into the roll forming line.
- Automatic hydraulic expansion and shrinkage
- 2.2 kW motor with inverter control
- 1.5 kW hydraulic power unit
- Heavy-duty steel channel welded frame
- Coil width up to 600 mm
- Inner diameter range: 450–550 mm
Moreover, customers may choose a manual decoiler at no additional cost, offering greater flexibility for different project budgets.

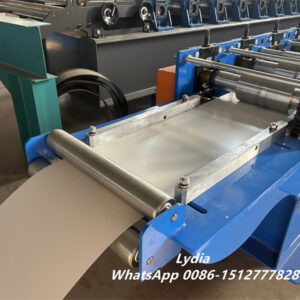

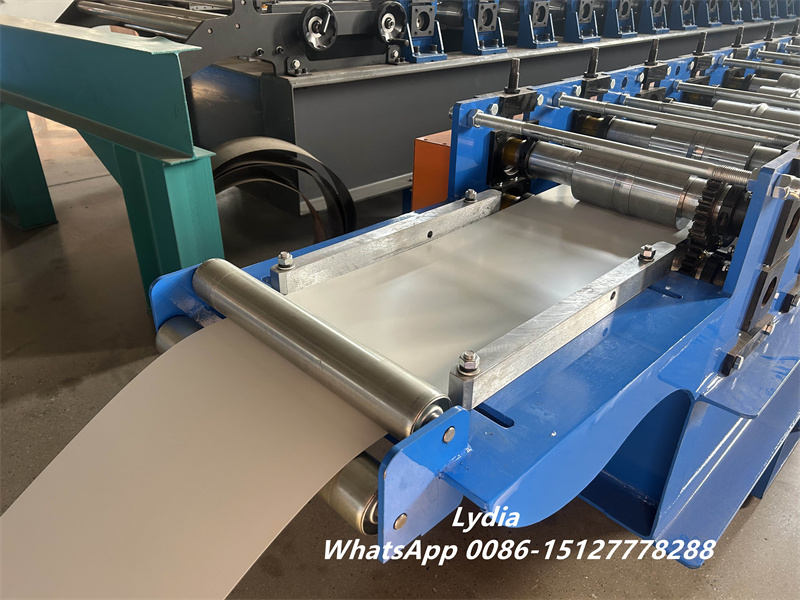

High-Precision Feeding Device
The feeding system plays a critical role in ensuring product quality. Therefore, this machine adopts a reinforced feeding structure designed for accuracy and material protection.
- Steel plate welded feeding platform for long-term stability
- One set of guiding rollers for precise strip alignment
- 2–3 feeding stripes installed in the center to reduce friction and prevent surface scratches
- Multiple side bearings to protect material edges during feeding
- Roller material: Cr12MoV, ensuring high wear resistance
- Motor power: 2.2 kW with frequency inverter for adjustable feeding speed
As a result, the steel sheet enters the roll forming system smoothly, without surface damage or edge deformation.

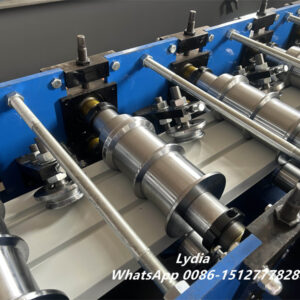

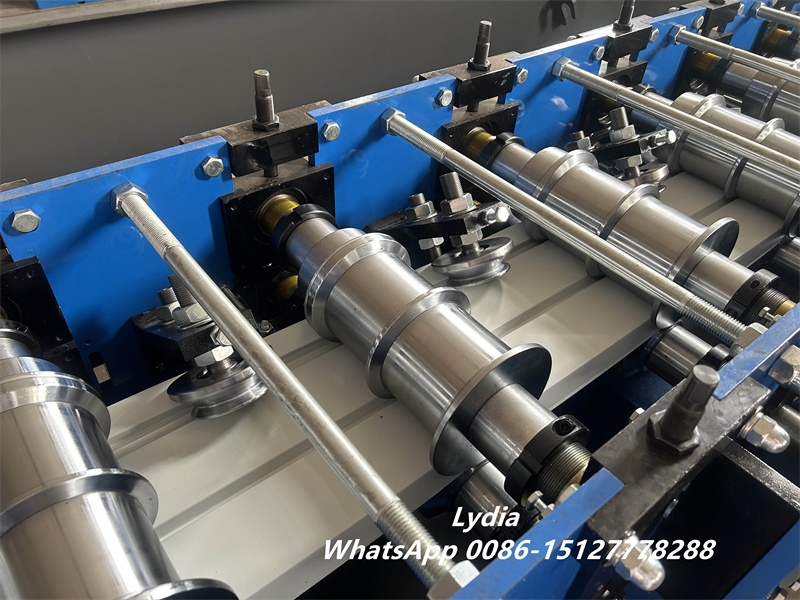

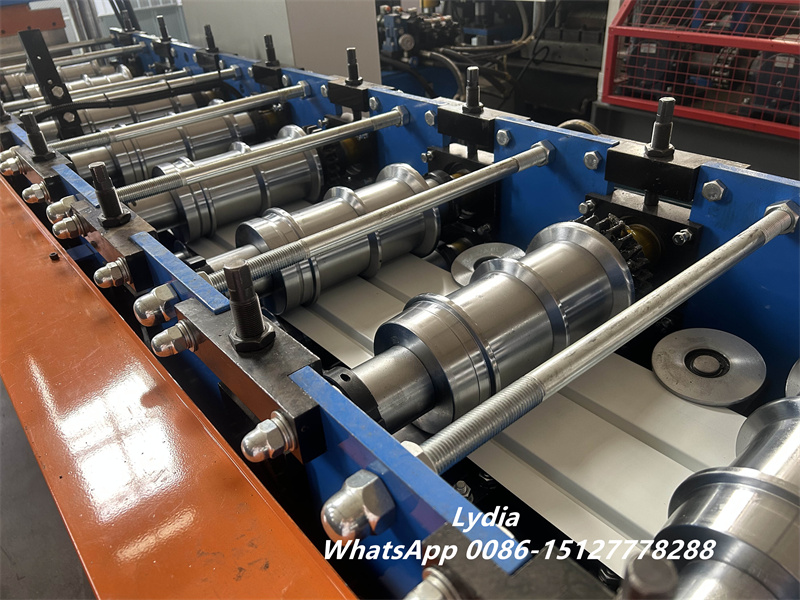

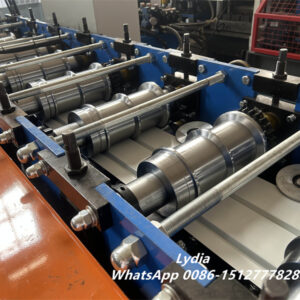

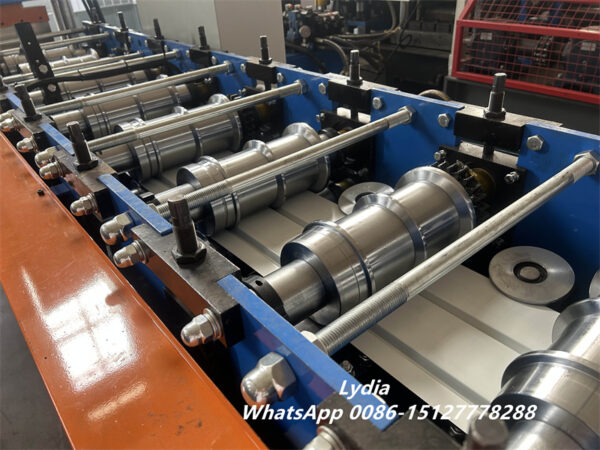

18-station roll forming system with 40Cr rollers for wall cladding panel production line
Shafts
- Material: 45# steel with chrome coating
- Solid shaft structure
- Diameter: 60 mm
- Tempering treatment to prevent deformation and increase hardness
Rollers
- Material: 40Cr steel
- Heat treatment hardness: HRC 48–52
- 0.03 mm chrome plating for smooth surface finish
- Excellent abrasion resistance and corrosion protection
| Item | Parameter |
|---|---|
| Rolling stations | 18 stations |
| Working speed | 0–20 m/min |
| Main motor power | 7.5 kW |
| Transmission | Chain drive with safety cover |
| Machine structure | Carbon steel welded |
| Base frame | 350# H-beam welded |
| Side wall thickness | 18 mm |
Design Advantage:
Grooved shafts with double nuts and cushions are used to prevent shaft loosening. Consequently, the shafts become more stable during continuous operation, ensuring long-term accuracy and reliability.

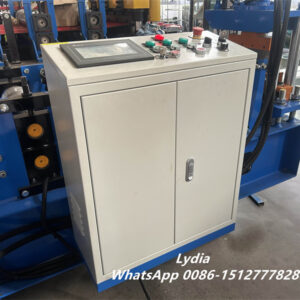

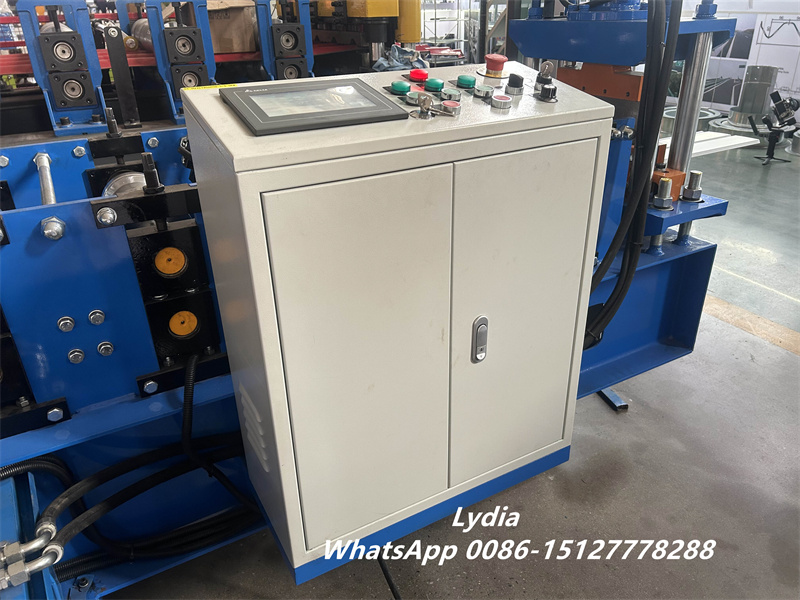

Intelligent PLC Control System
The machine adopts an advanced Delta PLC control system, ensuring precise control and easy operation.
- Delta PLC & inverter (original)
- Omron encoder for accurate length control
- Schneider low-voltage electrical components
- Touch screen + physical buttons
- Language options: English / Chinese / Spanish
- Automatic cutting command
- Adjustable length and batch quantity programming
Furthermore, the control cabinet is equipped with aviation plugs, allowing fast installation and reducing on-site wiring time.

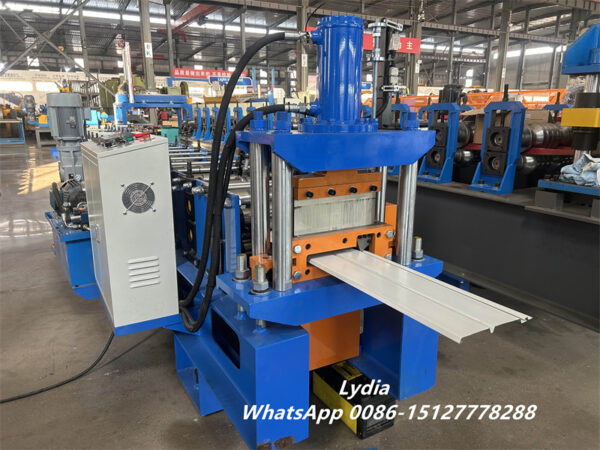

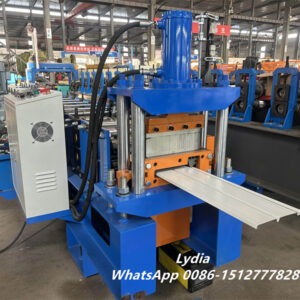

Hydraulic Cutting System
The hydraulic cutting system ensures clean and accurate cutting under stable working conditions.
- Cutting type: Hydraulic cutting
- Driving method: Pillar-type hydraulic cylinder
- Hydraulic motor power: 3 kW
- Cutter material: GB-Cr12
- Cutting tolerance: ±1 mm per 3 meters

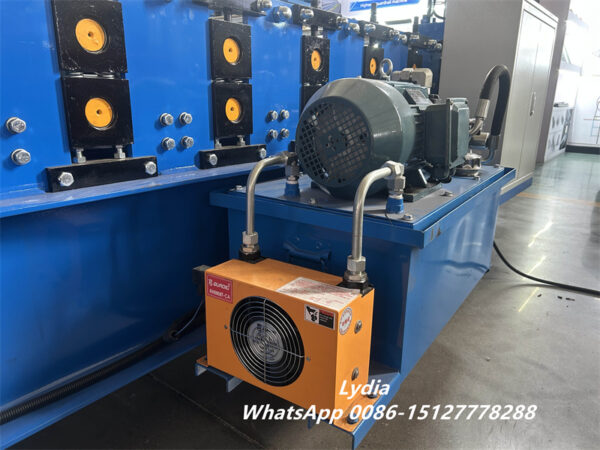

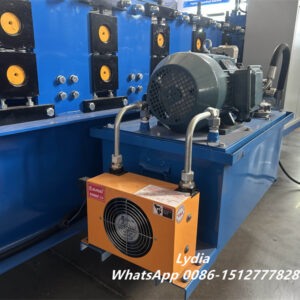

To adapt to high-temperature working environments, the hydraulic station is equipped with a cooling fan on the oil tank, ensuring stable oil temperature during long continuous operation.
In addition, all oil pipes and electrical wires are clearly marked, making installation faster and reducing the risk of connection errors.
Product Collection Table
- Length: 3 meters
- Width: 0.5 meter
- Structure: Square pipe welded
- Manual operation, simple and durable
Spare Parts Supplied
- Travel switch × 4 pcs
- Chains × 4 pcs
- Chain gears × 2 pcs
- Tools × 1 set
- Hydraulic oil pipes × 2 pcs
