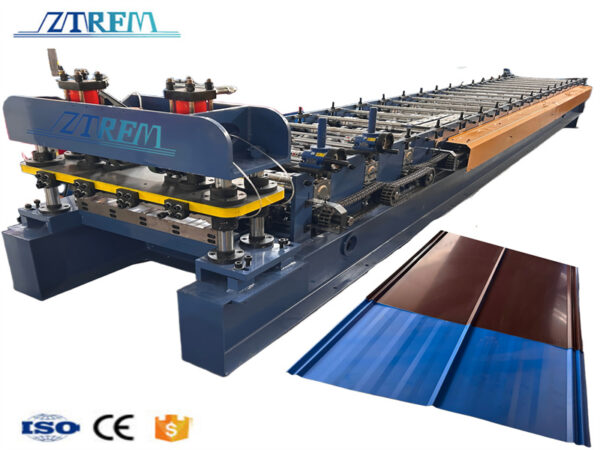

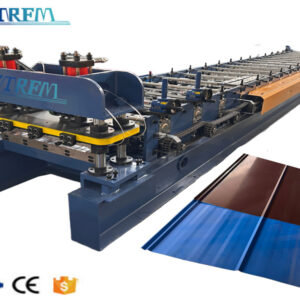

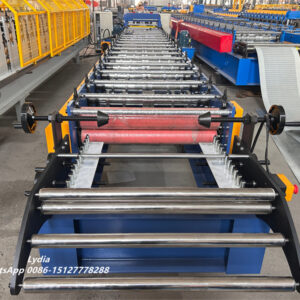

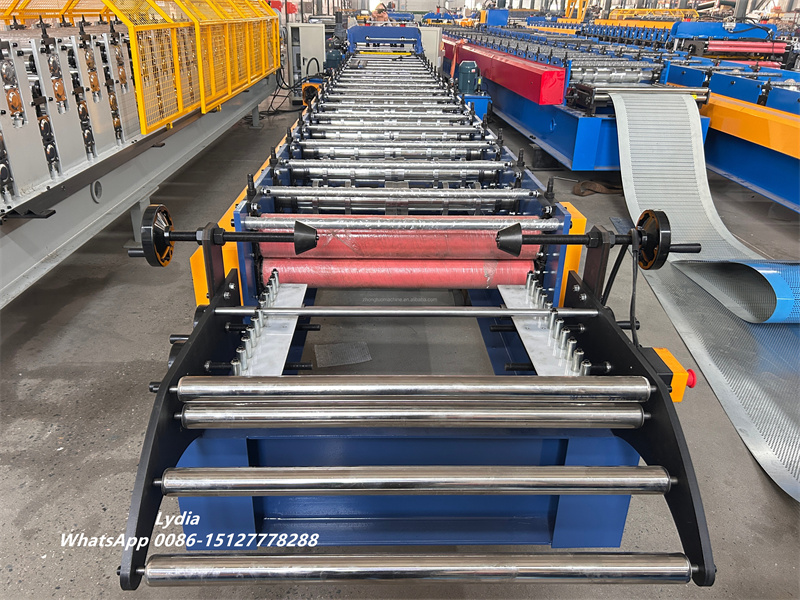

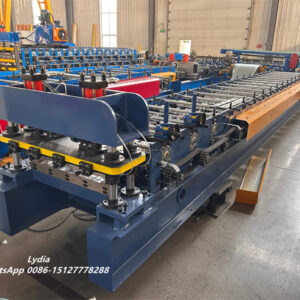

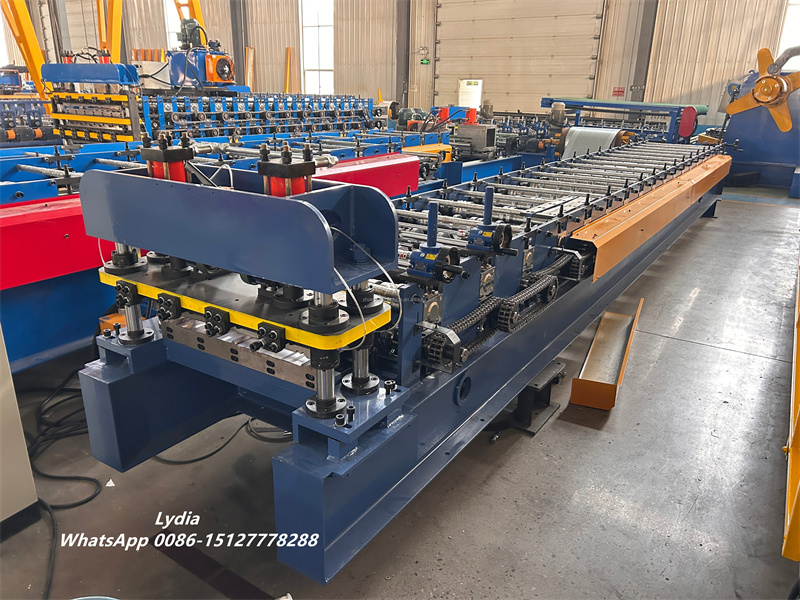

5V Metal Roof Roll Forming Machine for the USA Market

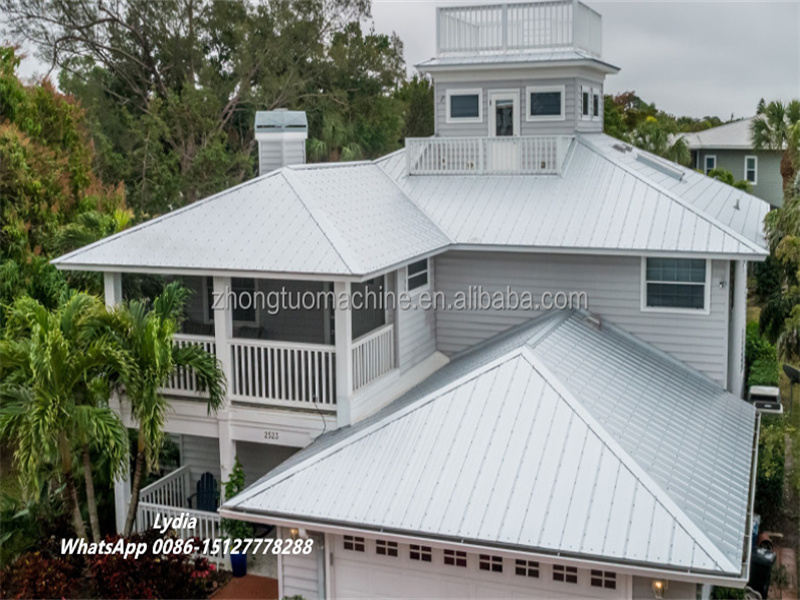

The 5V Metal Roof Roll Forming Machine is a professional solution designed for manufacturing classic 5V Crimp metal roofing panels, widely used across the United States and Canada. Known for its durability, cost-effectiveness, and excellent water-shedding performance, 5V Crimp roofing remains a popular choice for residential, agricultural, coastal, and light commercial buildings.
To meet the strict quality expectations of the North American market, ZTRFM has engineered this machine with a heavy-duty frame, high-precision forming rollers, and an intelligent PLC control system. As a result, manufacturers can achieve stable production, consistent panel profiles, and long-term operational reliability.

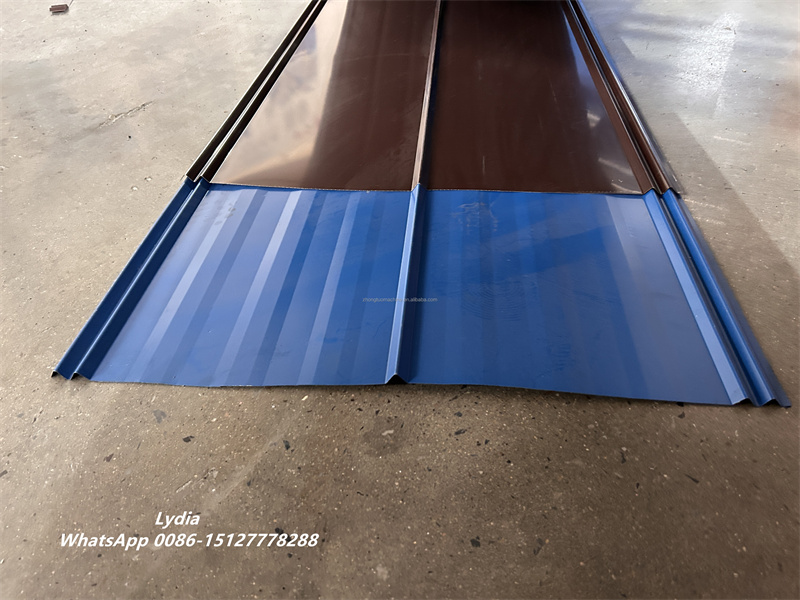

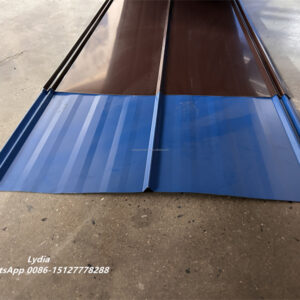

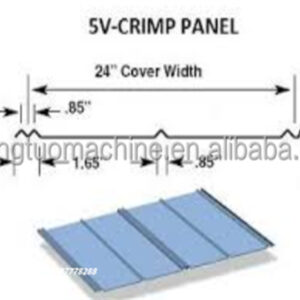

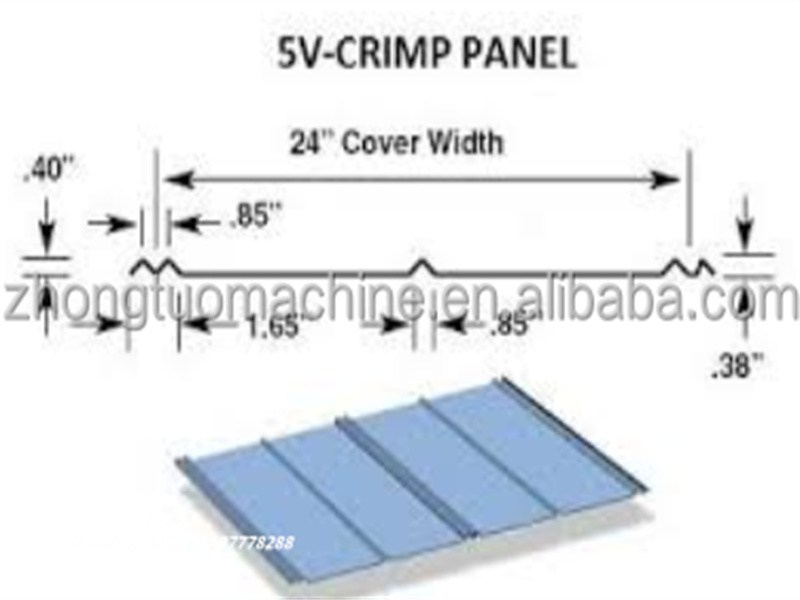

What Is 5V Crimp Metal Roofing?
5V Crimp is a traditional exposed-fastener metal roofing panel featuring five distinct V-shaped ribs. These ribs enhance panel strength while efficiently directing rainwater away from the roof surface.

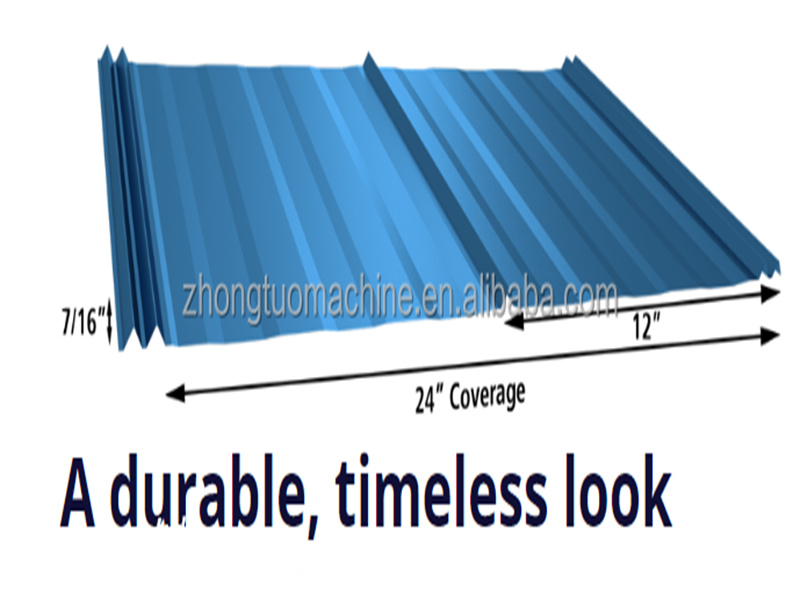

Typical 5V Crimp Panel Features:
- Coverage width: 24 inches
- Rib height: 3/8 inch
- Material: Galvanized steel or color-coated steel
- Fastening method: Exposed fasteners
- Common gauges: 24–26 gauge (0.4–0.8 mm)
Therefore, producing accurate rib shapes and uniform panel dimensions is essential—this is where a high-quality roll forming machine makes the difference.
Why Choose ZTRFM 5V Roof Panel Making Machine?
Our ZTRFM 5V metal roof roll forming machine has been exported to the USA and Canada in large quantities and is highly recognized by local roofing panel manufacturers and equipment dealers.
Moreover, based on feedback from North American customers, we have added multiple safety and surface-protection upgrades, ensuring smoother operation and safer production.
Key advantages include:
- High forming accuracy with stable panel shape
- Easy operation suitable for new workers
- Surface protection coating device to prevent scratches
- Emergency stop button at feeding section for safer operation
- CE, BV, STV, ISO certified
As a result, this machine is ideal for both start-up roofing factories and large-scale production lines.
Technical Specifications of 5V Metal Roof Roll Forming Machine
| Item | Specification |
|---|---|
| Machine Type | 5V Metal Roof Roll Forming Machine |
| Suitable Market | USA & Canada |
| Raw Material | Galvanized Steel / Color Steel |
| Thickness Range | 24–26 Gauge (0.4–0.8 mm) |
| Forming Speed | 15 m/min |
| Finish Panel Width | 27.5 inch (698.5 mm) |
| Roller Material | CR15 |
| Shaft Diameter | Φ80 mm solid |
| Shaft Material | High-grade 45# with heat treatment |
| Forming Stations | 16 rows |
| Cutting Type | Hydraulic post cutting |
| Control System | PLC (Siemens / Delta optional) |
| Voltage | 220V / 60Hz / 3 Phase (Customized) |
| Main Motor Power | 5.5 kW |
| Machine Weight | Approx. 5600 kg |
| Certification | CE, BV, STV, ISO |
| Warranty | Long-term after-sale service |

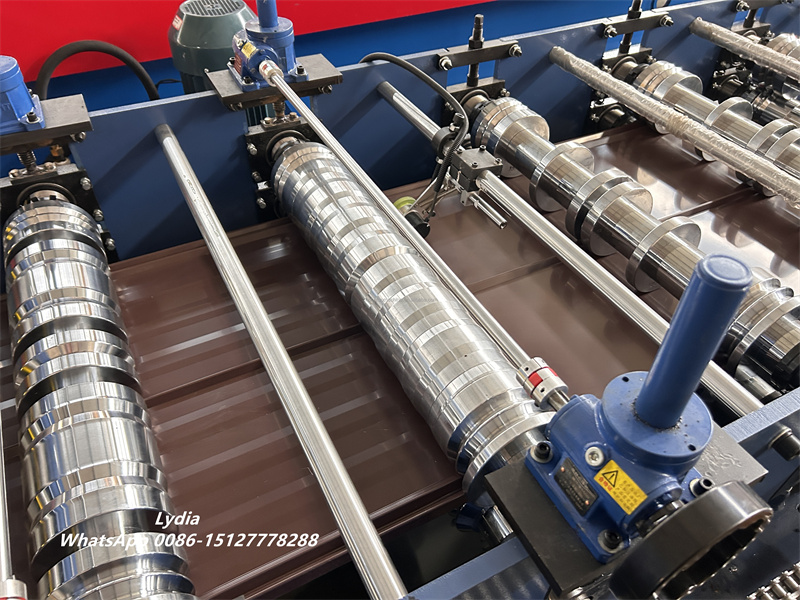

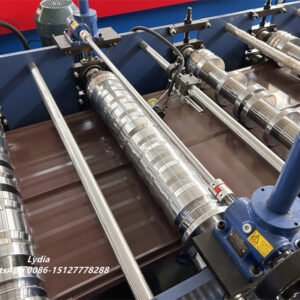

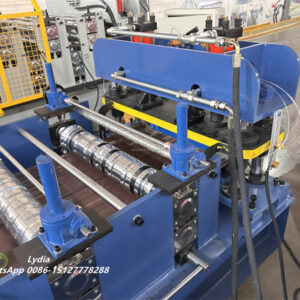

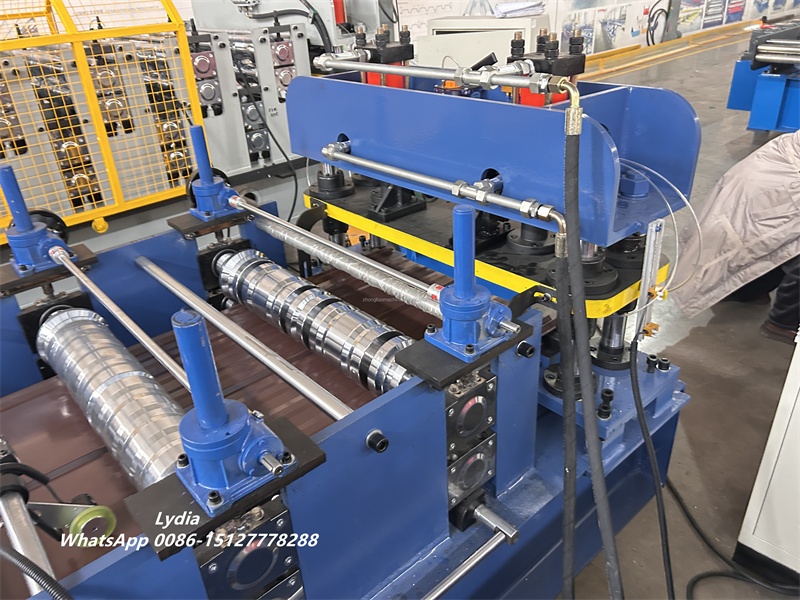

Advanced Roll Forming Design for High Precision
The main roll forming machine adopts a separate rolling design concept, which effectively releases internal stress from steel sheets. Consequently, finished panels maintain excellent straightness, dimensional accuracy, and surface quality.
In addition, CR15 rollers and heat-treated 45# solid shafts ensure long service life and stable performance even during continuous production.
Intelligent PLC Control System
The machine is equipped with a PLC control cabinet using Delta or Siemens components, designed specifically for overseas markets.
Control system features:
- Touch screen operation for easy parameter setting
- Support for remote control and diagnostics
- Aviation plugs for fast installation
- Multi-language interface available
Therefore, operators can quickly master the system, reducing training time and improving overall efficiency.
Safety-Focused Hydraulic Cutting System
The hydraulic post-cutting system uses GCr12 cutting blades with quenched treatment, delivering clean and accurate cuts without damaging panel profiles.
Moreover, the system includes:
- Automatic oil filling to extend cutter life
- Pillar-type hydraulic cylinder for stable cutting force
- Customized air-cooling hydraulic station with temperature monitoring
These features significantly reduce maintenance costs while improving cutting reliability.
Optional Automatic Stacker for Higher Productivity
To further enhance production efficiency, an automatic stacker can be added to the 5V roof panel machine line.
Benefits of the automatic stacker:
- Saves labor costs
- Improves stacking consistency
- Protects panel surfaces with rubber wheels and nylon pads
As a result, finished panels are easier to transport and store without surface damage.
Ideal Solution for USA Roofing Manufacturers
The 5V metal roof roll forming machine for USA is designed to meet American roofing standards and on-site construction requirements. It supports fast installation, stable long-term operation, and high-quality output—making it a trusted solution for metal roofing panel manufacturers across North America.
Send us your panel drawings or sample photos, and our engineering team will customize the most suitable 5V crimp roofing machine for your production needs.
