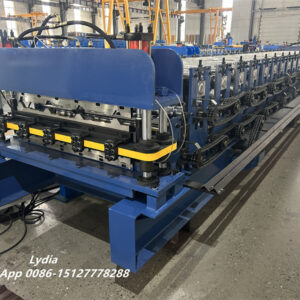

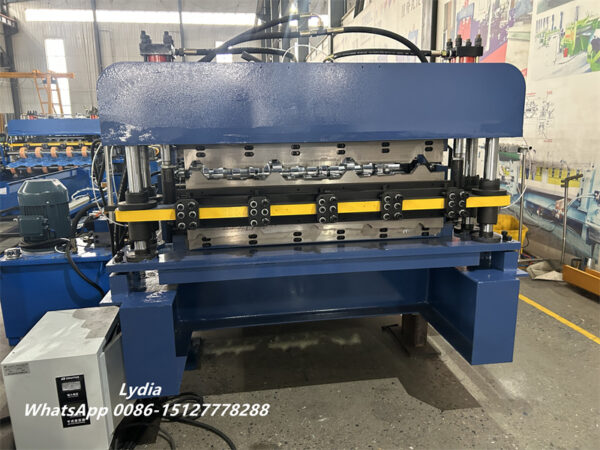

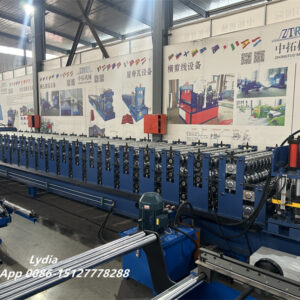

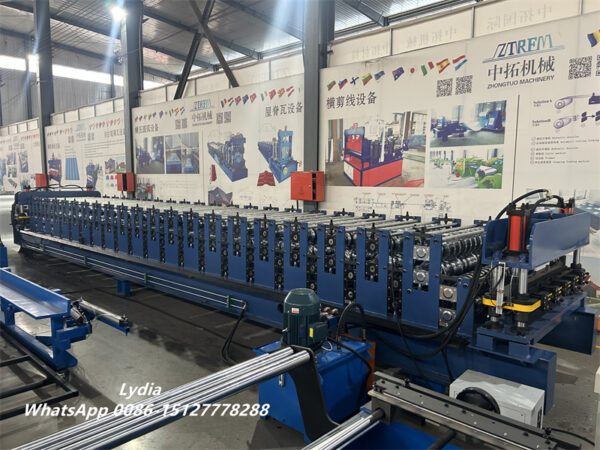

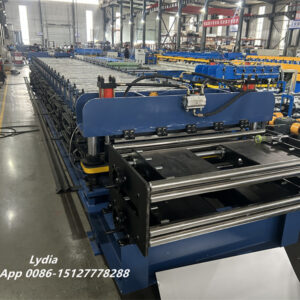

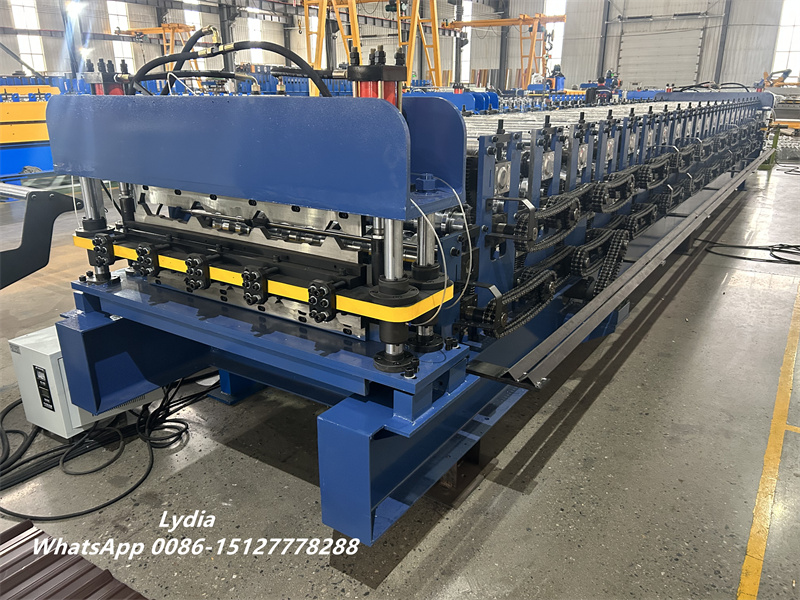

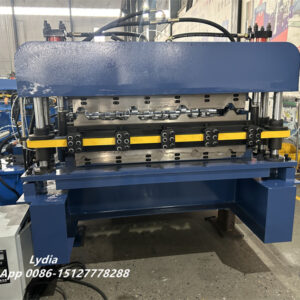

The AG & PBR Double Layer Roll Forming Machine is designed to produce two different metal roofing sheet profiles. This equipment can manufacture AG panel and PBR panel roofing sheets, which are widely used in industrial buildings, agricultural structures, warehouses, and residential roofing systems.
Compared with single-layer machines, the double-layer roofing sheet roll-forming machine saves factory space and reduces equipment investment. Although it contains two forming layers, the machine produces one profile at a time, ensuring high forming accuracy and stable production performance.
The machine can process galvanized steel, aluminum, and color-coated steel coils with a thickness range of 0.4mm to 0.6mm, making it suitable for roofing sheet production in North America, South America, and many international markets.
Aluminum roofing sheets are widely used in modern construction due to their excellent performance and long service life.
AG Panel profile drawing
Material thickness:0.4mm-0.6mm
Feeding width:1038mm/1092mm

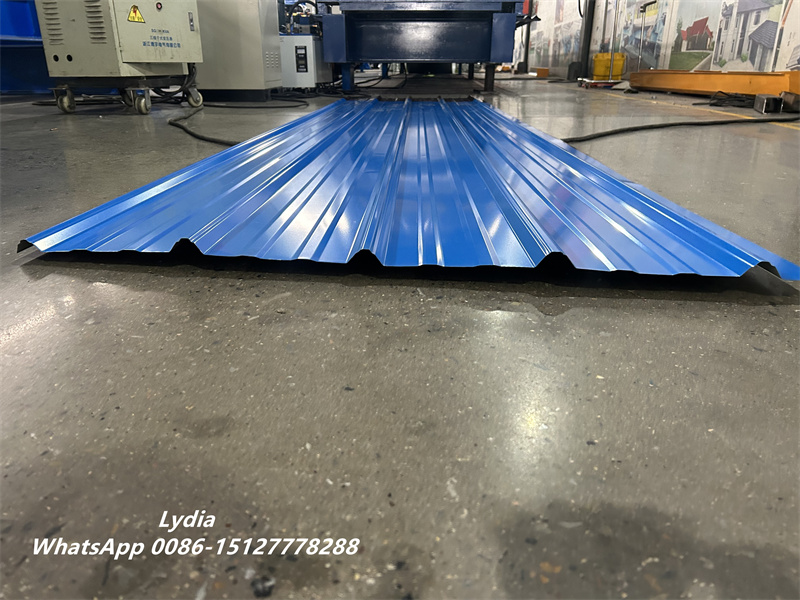

PBR profile drawing
Material thickness:0.4mm-0.6mm
Feeding width:1066mm/1092mm
Lightweight and Easy Installation：
Aluminum is significantly lighter than many traditional roofing materials. This reduces structural load and makes transportation and installation easier.
Strong Corrosion Resistance：Aluminum roofing panels have excellent resistance to oxidation and corrosion, making them ideal for coastal areas and humid climates.Excellent Weather Protection：Aluminum roofing sheets provide strong resistance to wind, rain, and extreme weather conditions, ensuring reliable protection for buildings.Eco-Friendly Material：Aluminum is 100% recyclable, making it a sustainable and environmentally friendly building material.Attractive Architectural Appearance：Aluminum roof sheets are available in different colors, finishes, and profiles, allowing architects to design modern and visually appealing buildings.
PBR Panel Roofing Application
The PBR panel is a widely used metal roofing profile in industrial and commercial buildings. It features strong ribs that provide excellent structural strength and water drainage capability.
Typical applications include:
- Industrial factories
- Steel structure buildings
- Warehouses
- Commercial buildings
- Agricultural buildings

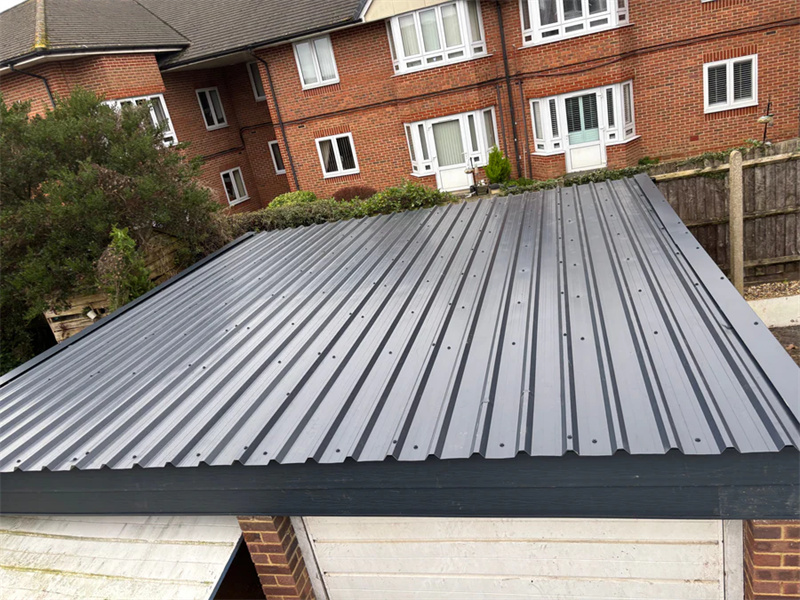

AG Panel Roofing Application
The AG panel is commonly used in agricultural and residential construction. Its design allows efficient water drainage and provides reliable roof protection.
Typical applications include:
- Farm buildings
- Barns and livestock houses
- Residential roofing
- Workshops and garages
- Storage buildings
Advantages of AG & PBR Double Layer Roll Forming Machine
Space Saving Design
The double layer roll forming machine combines two roofing profiles into one machine, significantly saving workshop space and reducing equipment cost.The machine uses a clutch device that prevents both layers from operating simultaneously. This reduces wear on the rollers and increases machine lifespan.

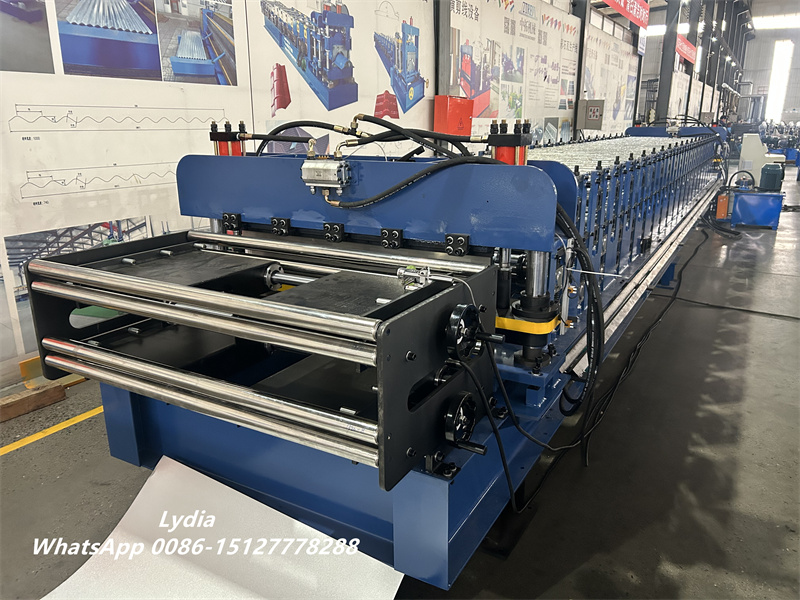

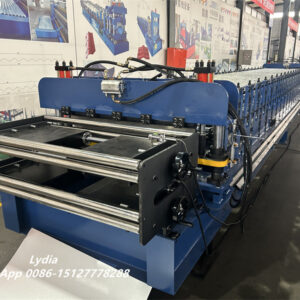

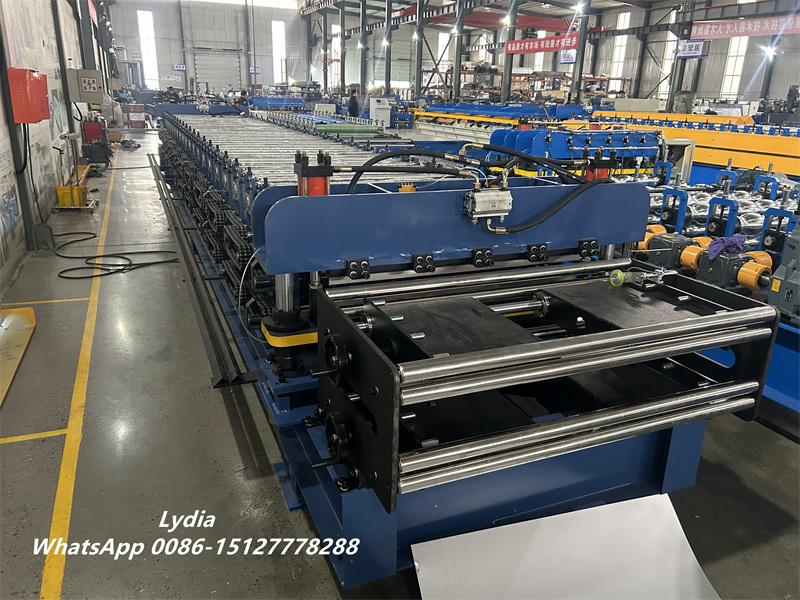

The machine is designed with user-friendly features including:
- Adjustable handrails for coil width adjustment
- Supporting rollers for stable material feeding
- Protective plastic strips to avoid sheet surface scratches
- Hand wheel adjustment for feeding size
Both layers are equipped with manual cutters, allowing operators to cut the sheet easily when production stops.
High Precision Roller System
- Rubber rollers ensure smooth feeding
- External gear transmission synchronizes the shafts
- Dual gear drive system provides stronger power transmission
All rollers are coated with 3mm thick chrome plating, improving hardness and corrosion resistance, ensuring long service life.
What is a double-layer roll forming machine?
A double-layer roll forming machine is equipment designed to produce two different roofing sheet profiles on one machine, helping manufacturers save space and equipment investment.
What materials can this machine process?
The machine can process galvanized steel, aluminum, and color coated steel coils with thickness from 0.4mm to 0.6mm.
Can the profiles be customized?
Yes. The roofing sheet profiles can be custom designed according to customer drawings or market requirements.
| Roof Tile double-layer roll forming machine for the American market | ||
| 1. Formed Material | PPGI, GI, AI | Thickness:0.3-0.6mm |
| 2. Decoiler | Hydraulic automatic Decoiler | 5T Hydraulic decoiler(Different capacity for option,manual one for option) |
| 3. Main body | Roller station | 17+18 rows(As your requirement) |
| Diameter of shaft | 80mm solid shaft | |
| Material of rollers | 45# steel | |
| Machine body frame | 350H steel welded | |
| Drive | By chain | |
| Dimension(L*W*H) | customized | |
| Weight | 10T | |
| 4. Cutter | Automatic | Cr12 with quenched treatment |
| 5. Power | Motor Power | 7.5 KW |
| Hydraulic system power | 5.5 KW | |
| 6. Voltage | 380V 50Hz 3Phase | As your requirement |
| 7. Control system | Electric Box | Customized(famous brand) |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| 8. Forming Speed | 0-20m/min | The speed is adjustable |
If you are interested in the AG & PBR Double Layer Roll Forming Machine, please feel free to contact us for:
- Machine drawings
- Technical parameters
- Customized solutions
- Latest price quotation
Our professional team will help you choose the best roofing sheet production equipment for your business.
