In today’s metal roofing industry, manufacturers need equipment that combines precision, durability, and production efficiency. The AG Roof Panel Roll Forming Machine is specifically engineered to produce high-quality AG panels, also widely known as Tuff-Rib panels, for agricultural, residential, and commercial applications.
By integrating advanced roll forming technology with a stable transmission system, this machine helps roofing manufacturers achieve consistent panel accuracy while reducing labor costs and material waste. In addition, the equipment supports continuous production, making it an ideal choice for companies seeking reliable long-term performance.

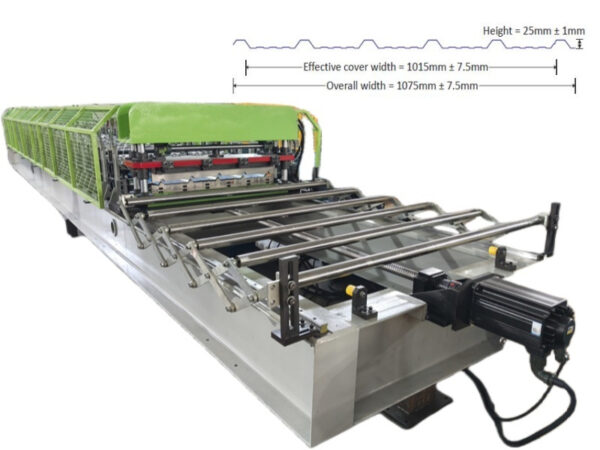

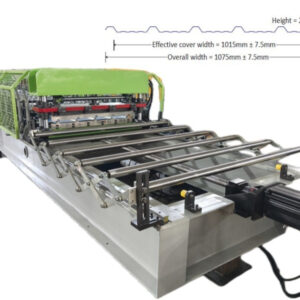

Ag Panel Roll Forming Machine
What Is an AG Roof Panel?

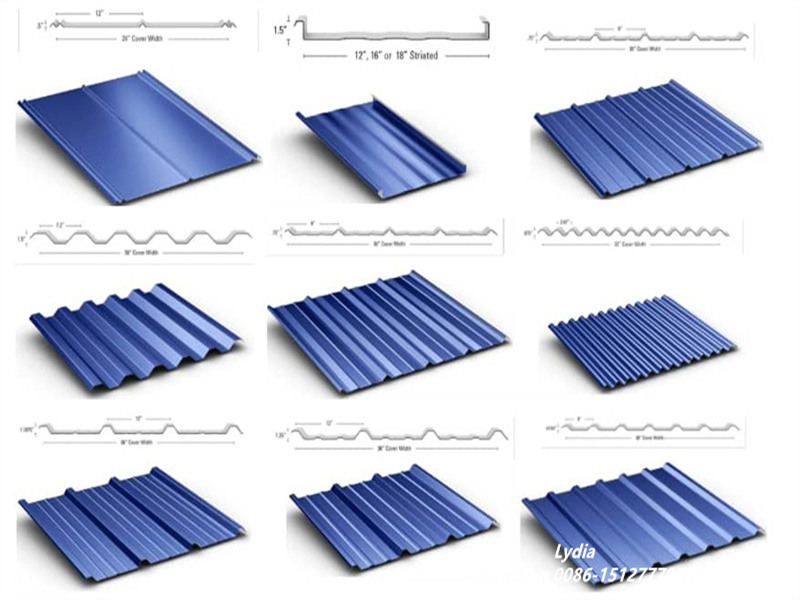

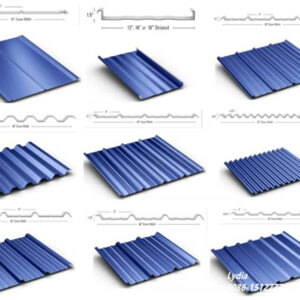

AG roof panels are low-profile corrugated metal panels designed for roofing and wall cladding systems. Because of their ribbed structure, these panels provide excellent strength, efficient drainage performance, and strong wind resistance.

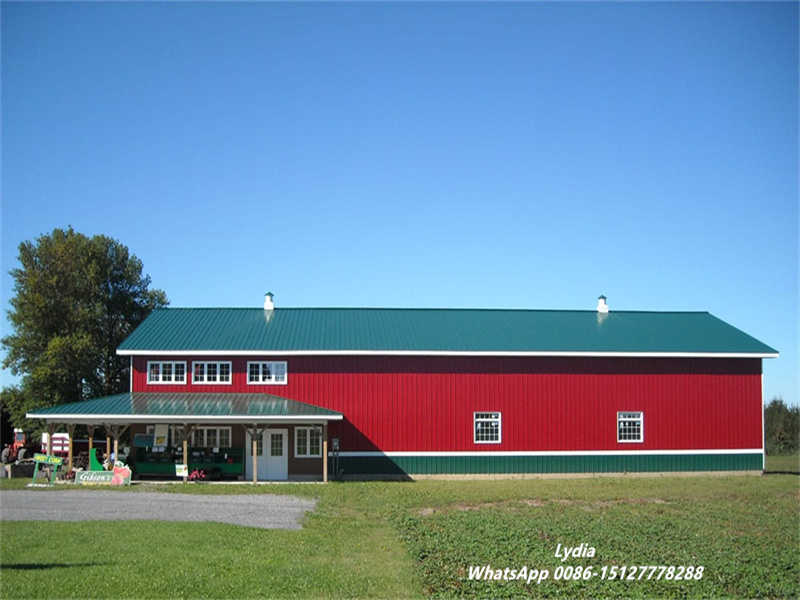

As a result, AG panels have become one of the most popular solutions in the metal construction industry. They are commonly used for:
- Agricultural barns and livestock buildings
- Warehouses and industrial workshops
- Residential roofing systems
- Portable storage structures
- Steel frame buildings and garages
Moreover, metal roofing panels offer fast installation and low maintenance costs, which makes them highly attractive for large-scale construction projects.
Stable and Efficient Roll Forming Performance

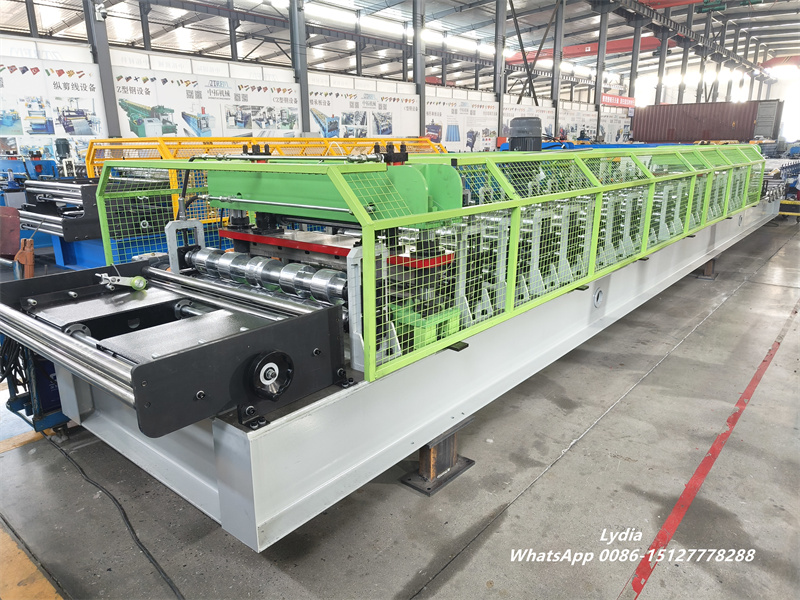

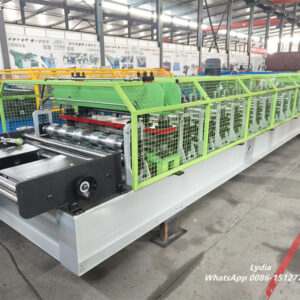

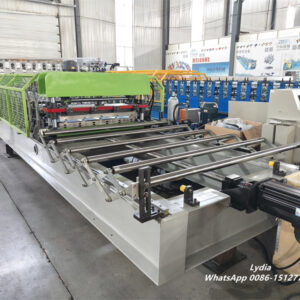

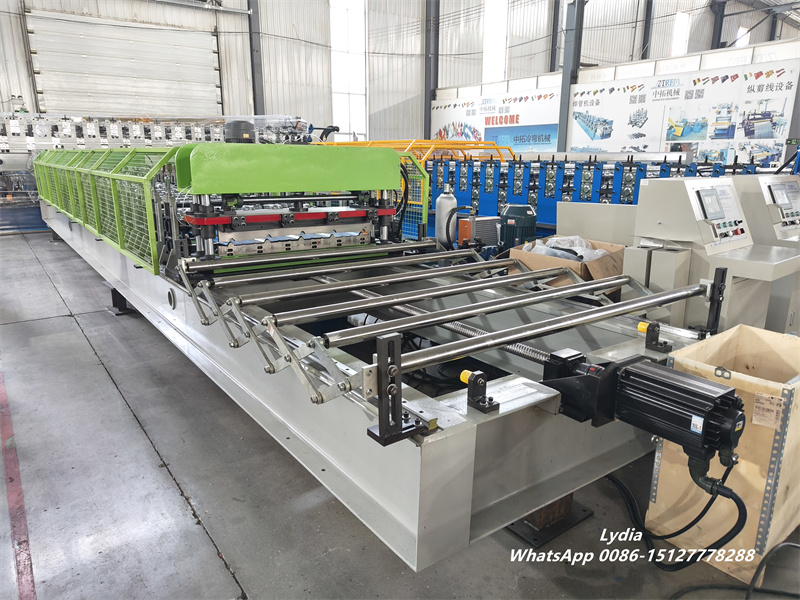

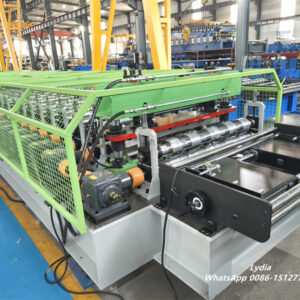

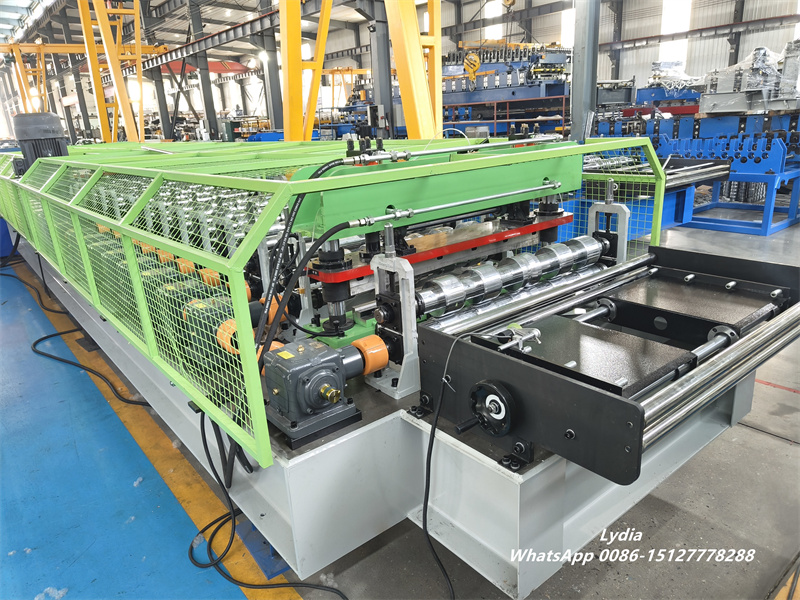

The AG Panel Roll Forming Machine uses a continuous roll forming process to transform metal coils into finished roofing panels with high precision. First, the uncoiler feeds the metal strip smoothly into the guiding system. Then, multiple forming stations gradually shape the material into the required AG panel profile.
After the forming process is completed, the hydraulic cutting device automatically cuts the panel according to the preset length. Finally, operators can collect and stack the finished products efficiently for packaging or transportation.
Because the machine operates continuously, manufacturers can maintain stable production speeds while ensuring consistent panel quality. Furthermore, the advanced control system improves the overall efficiency of the roof sheet roll forming machine production line.
Technical Parameters of AG Roof Panel Roll Forming Machine
| Parameter | Specification |
|---|---|
| Production Process | Uncoiling → Feeding → Roll Forming → Cutting → Collecting |
| Uncoiler Capacity | 5 Ton |
| Coil Thickness | 0.3 – 0.8 mm |
| Suitable Materials | PPGI, GI, Aluzinc, Stainless Steel, Aluminum |
| Forming Stations | 18 Stations |
| Roller Material | 40Cr Heat-Treated & Chrome Coated |
| Shaft Material | 42Cr Steel |
| Shaft Diameter | Ø80 mm |
| Main Motor Power | 7.5 kW |
| Hydraulic Power | 5.5 kW |
| Transmission Type | Chain Drive / Gearbox Optional |
| PLC Control System | Siemens or Delta |
| Encoder Brand | Omron |
| Production Speed | 15–20 m/min |
| Cutting System | Hydraulic Cutting |
| Machine Dimension | 40 ft × 5 ft |
Advantages of the AG Panel Roll Forming Machine
This metal roofing machine combines heavy-duty mechanical construction with intelligent automation. Therefore, it can operate efficiently even during long production cycles.
The machine adopts high-strength rollers and shafts to improve forming accuracy and extend equipment lifespan. At the same time, the PLC control system allows operators to adjust production length quickly and accurately through a user-friendly interface.
Furthermore, the machine supports customized AG panel profiles according to customer drawings and market requirements. This flexibility helps manufacturers expand their product range and adapt to different roofing projects.
Key advantages include:
- High forming precision and stable operation
- Reduced raw material waste
- Easy operation and automatic length control
- Strong machine frame for long-term durability
- Fast installation and convenient maintenance
- Emergency stop devices and safety covers for safer production
In addition, the corrugated roofing panel machine can process different coil materials while maintaining stable forming quality.

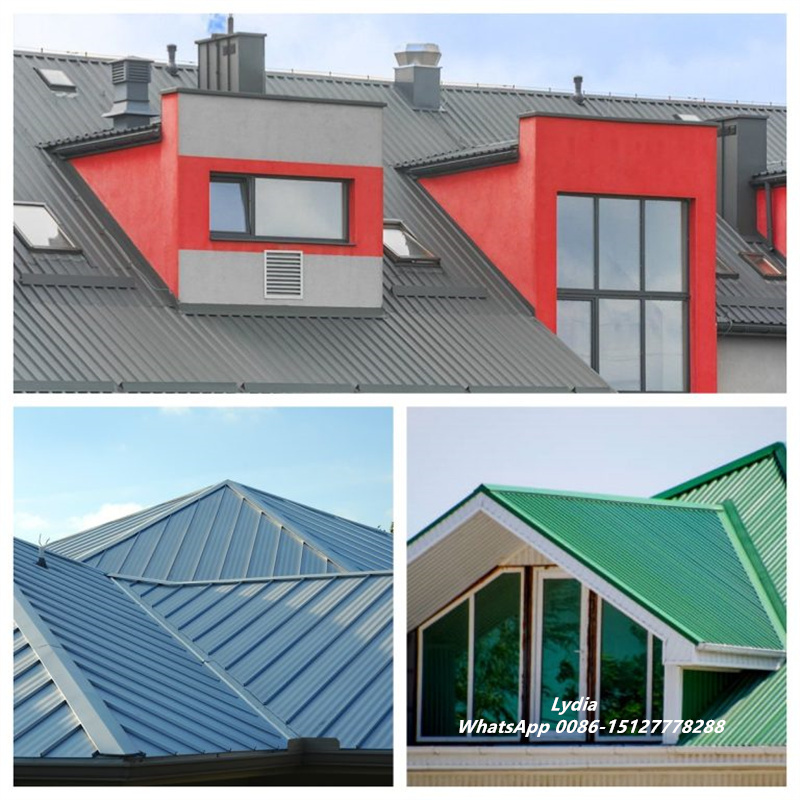

Widely Used in Roofing and Cladding Industries

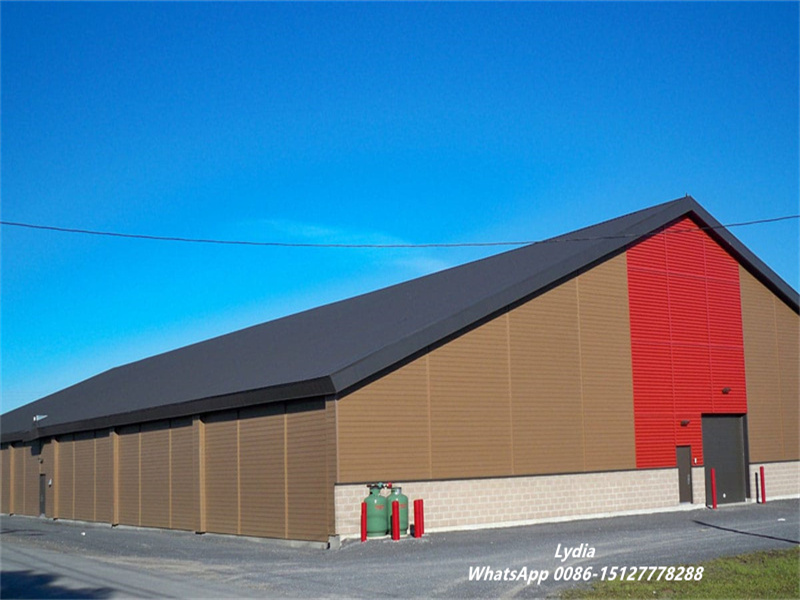

The AG roofing sheet machine plays an important role in modern steel construction manufacturing. Since AG panels are widely used across agricultural and industrial sectors, the demand for reliable production equipment continues to grow.
This machine can process various metal materials and produce roofing sheets suitable for different climates and building styles. Consequently, manufacturers can supply roofing solutions for farms, factories, workshops, storage facilities, and residential projects with greater efficiency.
In addition, the machine delivers smooth panel surfaces and consistent rib dimensions, which improves the final appearance and installation quality of the roofing system. Because of these advantages, many manufacturers choose this Tuff Rib panel machine to improve production capacity and market competitiveness.
Reliable Manufacturing and Customization Support
Every AG Roof Panel Roll Forming Machine undergoes complete assembly and testing before shipment to ensure stable on-site operation. Our engineering team can also customize machine configurations, panel profiles, and automation solutions according to specific production requirements.
From machine design to after-sales support, we focus on helping customers improve production efficiency and achieve long-term manufacturing reliability. Whether you are starting a new roofing sheet production line or expanding an existing factory, this equipment provides a dependable solution for high-volume roof panel roll forming machine manufacturing.
