The Angle Roof Flashing Metal Roofing Drip Edge Roll Forming Machine is widely used in modern building roofing systems where reliable water drainage and edge protection are required. It plays a key role in producing drip edge profiles for residential houses, commercial buildings, industrial plants, and infrastructure projects.

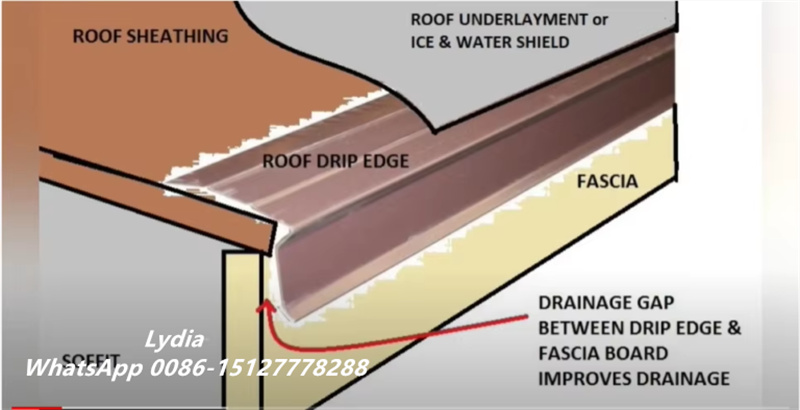

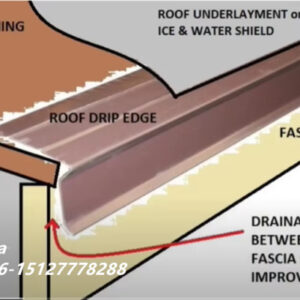

In roofing protection applications, the formed drip edge ensures that rainwater is efficiently guided away from roof edges, preventing moisture from penetrating walls or foundations. This significantly reduces risks such as water leakage, structural corrosion, and long-term building damage, especially in regions with heavy rainfall or snow.
Beyond protection, the system can also support sustainable water management. The produced profiles can be integrated into rainwater harvesting systems for irrigation, cleaning, or landscape use. In urban infrastructure, they help improve drainage efficiency and reduce waterlogging risks during extreme weather conditions.

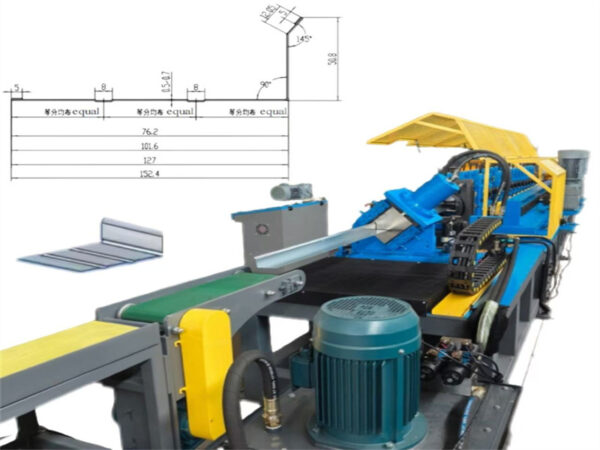

Overview of Metal Roofing Drip Edge Roll Forming Machine
The Metal Roofing Drip Edge Roll Forming Machine is engineered to produce high-precision drip edge profiles used in modern roofing and waterproofing systems. As building standards in North America continue to evolve, contractors and manufacturers increasingly demand reliable solutions that combine durability, efficiency, and visual appeal.
This machine directly addresses those needs by transforming coated steel coils into consistent, dimensionally accurate drip edge components. More importantly, it simplifies production workflows—operators can achieve high output with minimal manual intervention while maintaining excellent product quality. As a result, manufacturers can reduce labor costs and improve overall productivity.
Technical Specifications of Angle Roof Flashing Machine
| Item | Specification |
|---|---|
| Raw Material | PPGI, PPGL, Aluminum |
| Material Thickness | 0.5 – 0.7 mm |

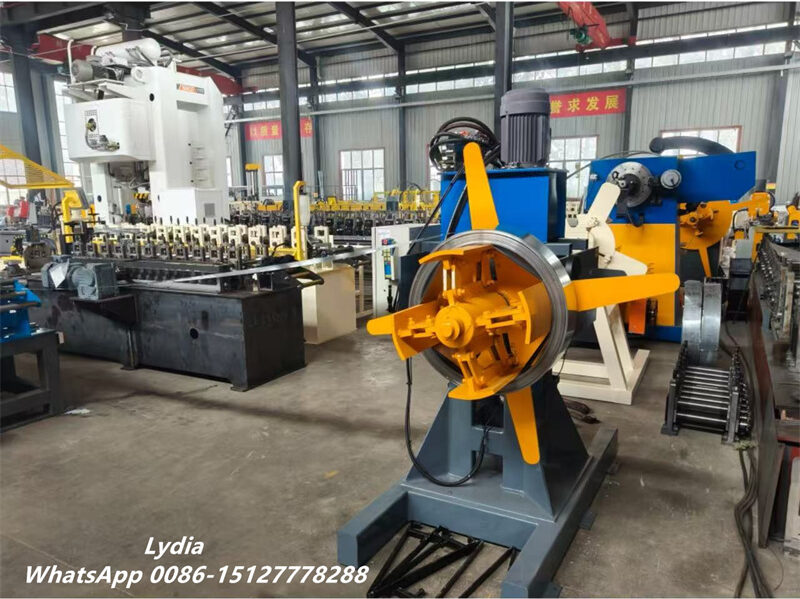

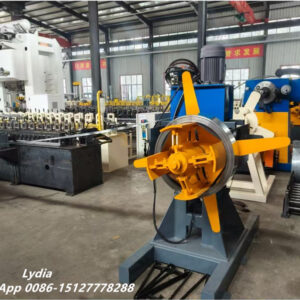

| Decoiler | Manual (Free) / Hydraulic (Optional) |

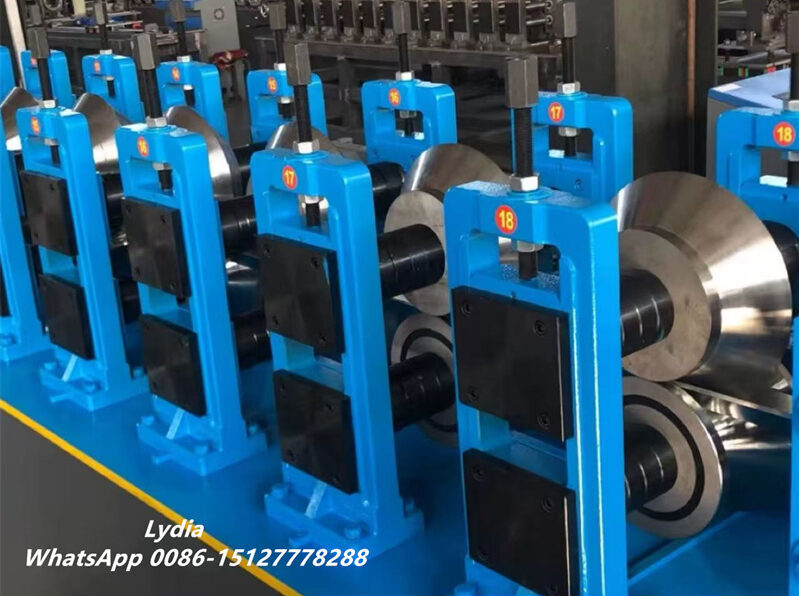

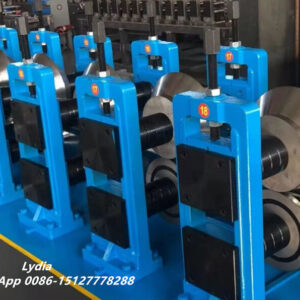

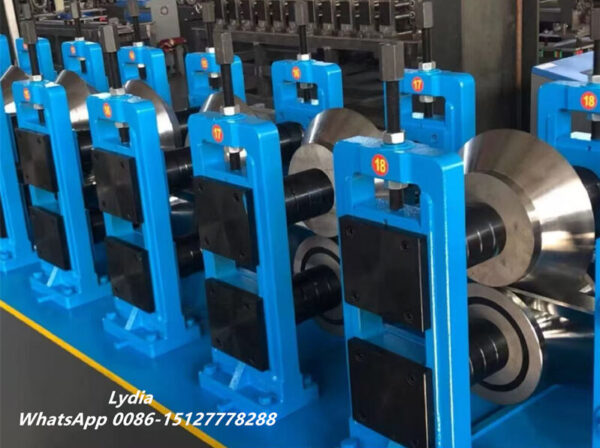

| Roller Stations | 14 Stations (Customizable) |
| Shaft Diameter | 60 mm Solid Shaft |
| Roller Material | 45# Forged Steel + Hard Chrome Plating |
| Drive System | Chain Drive / Gearbox (Optional) |
| Cutting System | Automatic, CR12MOV Material |
| Main Motor Power | 7.5 KW |
| Hydraulic Power | 5.5 KW |
| Forming Speed | 0–45 m/min |

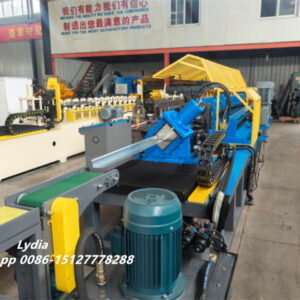

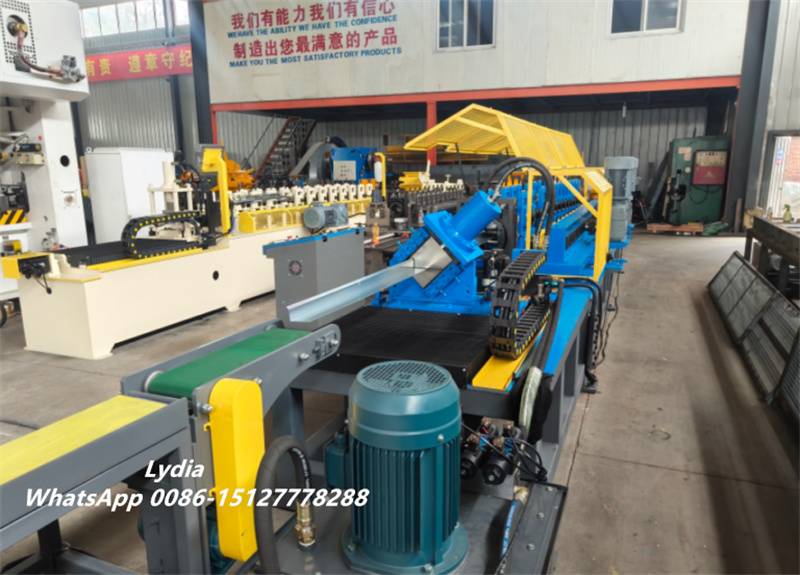

| Control System | PLC Automatic Control (Multi-language Support) |
| Voltage | Customized |
Features of Roof Flashing Drip Edge Roll Forming Machine

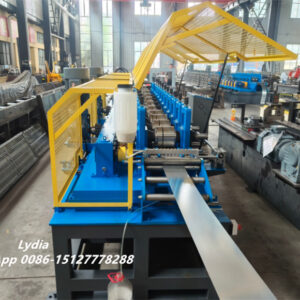

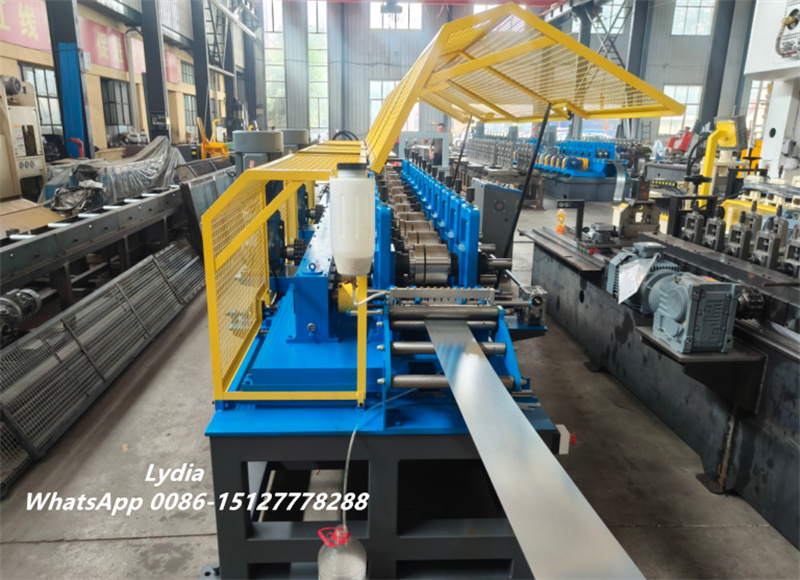

First of all, the machine adopts a robust structural design combined with high-grade materials, ensuring long-term stability even under continuous operation. The rollers, made from forged 45# steel with chrome plating, significantly improve wear resistance while maintaining smooth surface finishing.
In addition, the PLC control system enables fully automated production. Operators can easily set production length, quantity, and batch parameters, which not only improves efficiency but also reduces human error. Meanwhile, the flexible drive system—either chain transmission or gearbox—allows customers to choose based on their production requirements and budget.
Furthermore, the cutting system uses CR12MOV material, which guarantees precise cutting without deformation or scratches. This ensures that every finished drip edge meets strict quality standards required in roofing applications.
Advantages of Metal Roofing Drip Edge Profile System
The drip edge profiles produced by this Metal Roofing Drip Edge Roll Forming Machine deliver a highly effective “three-in-one” protection mechanism for buildings.
To begin with, directional drainage design ensures that rainwater flows away from walls and foundations. This significantly reduces water stains and prevents long-term structural damage. At the same time, advanced surface treatment technology disrupts capillary action, preventing water from creeping along surfaces and causing leakage.
Moreover, the profiles maintain excellent performance under extreme temperature variations. Even in harsh climates ranging from severe cold to high heat, the structure remains stable, which helps reduce cracking and extends building lifespan.
Choosing this Angle Roof Flashing Roll Forming Machine means investing in efficiency, flexibility, and long-term reliability. Not only does it deliver consistent high-speed production, but it also adapts easily to different profile requirements through customization.
In a competitive market, manufacturers need equipment that balances cost and performance. This machine achieves exactly that by combining advanced automation, durable components, and user-friendly operation. Ultimately, it helps businesses expand production capacity, improve product quality, and strengthen their position in the metal roofing industry.
