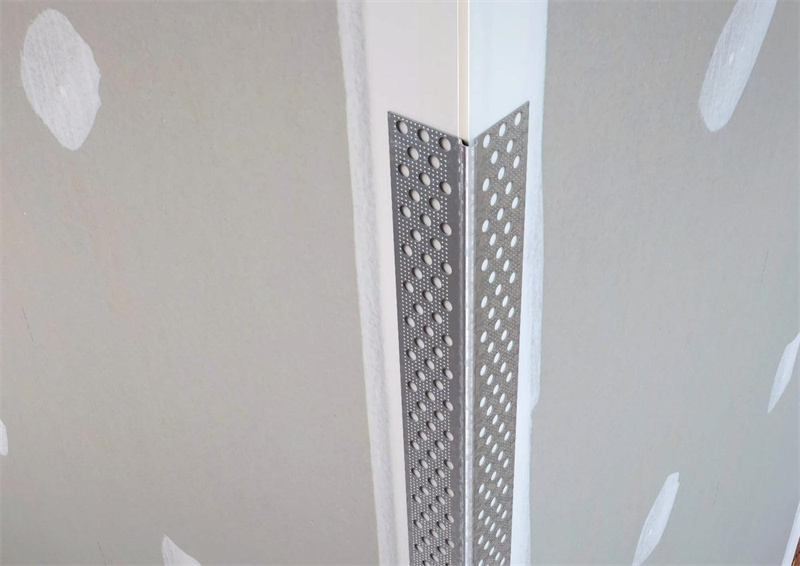

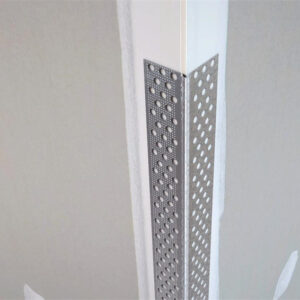

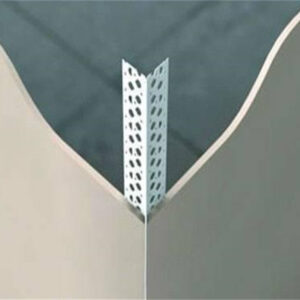

Plasterboard corner bead is an essential component in modern drywall construction. It reinforces external wall corners, protects edges from daily impact, and creates clean, straight lines that improve the overall appearance of interior finishes. Because of its excellent strength and long service life, metal corner bead has become a standard solution for residential, commercial, and industrial building projects.

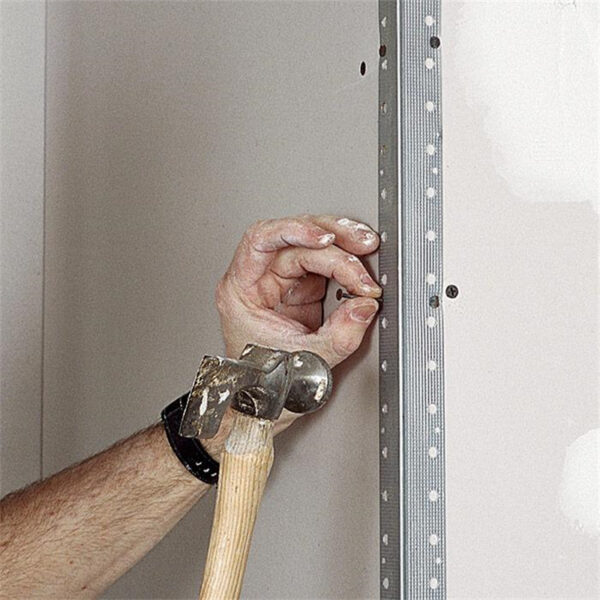

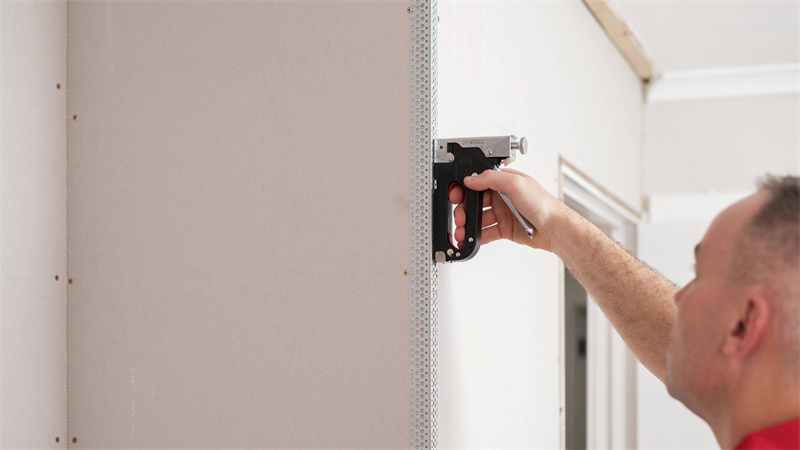

Manufacturers produce plasterboard corner bead from galvanized steel or aluminum to ensure excellent corrosion resistance and reliable performance. Contractors install these profiles on drywall corners before applying plaster or joint compound, creating a durable surface that resists cracking, chipping, and deformation.
Typical applications include:

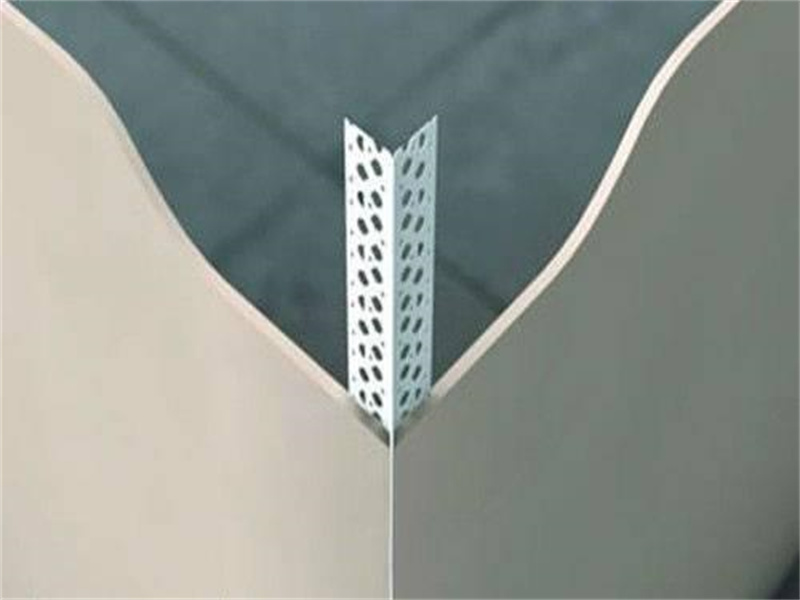

- Interior drywall partition systems
- Residential bedrooms and living rooms
- Commercial offices and shopping centers
- Hospitals and educational buildings
- Ceiling edge finishing
- Window and door openings
- External wall corners
- Roof eaves and architectural decorative corners
As construction standards continue to rise, builders increasingly choose metal corner bead because it improves installation quality while reducing future maintenance costs.
What Is a Plasterboard Corner Bead Making Machine?

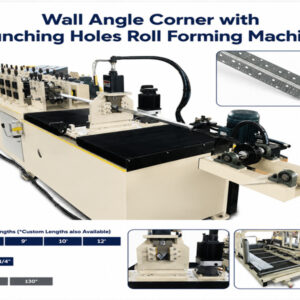

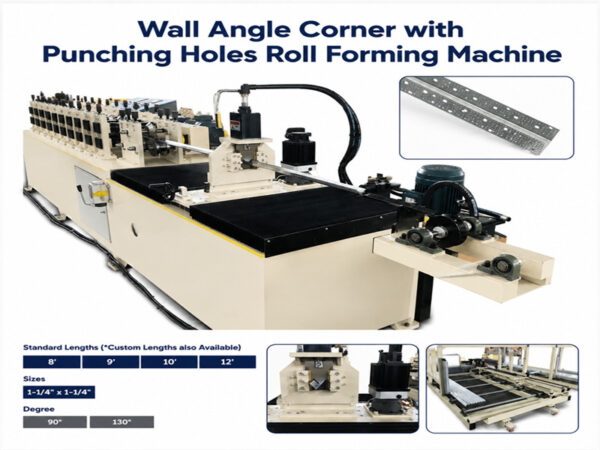

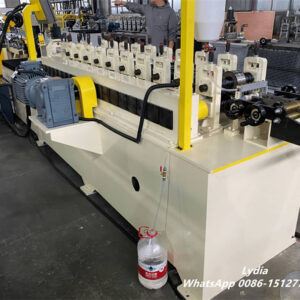

A Plasterboard Corner Bead Making Machine, also called a Drywall Metal Angle Bead Making Machine, is a fully automated roll forming production line designed to manufacture metal corner beads with consistent dimensions and high production efficiency.
The machine transforms flat metal coils into finished L-shaped or customized corner bead profiles through a continuous roll forming process. Meanwhile, integrated punching and cutting systems ensure every product meets strict dimensional accuracy and installation requirements.
Compared with manual production methods, this machine delivers:
- Higher production efficiency
- Stable profile dimensions
- Lower labor requirements
- Reduced material waste
- Consistent product quality
- Flexible customization for different markets
Manufacturers can also customize the machine to produce various corner bead profiles according to customer drawings, including different widths, thicknesses, hole patterns, and profile shapes.

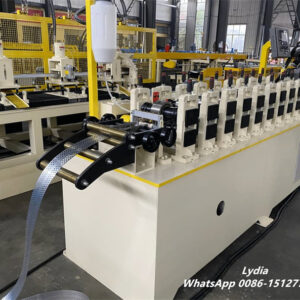

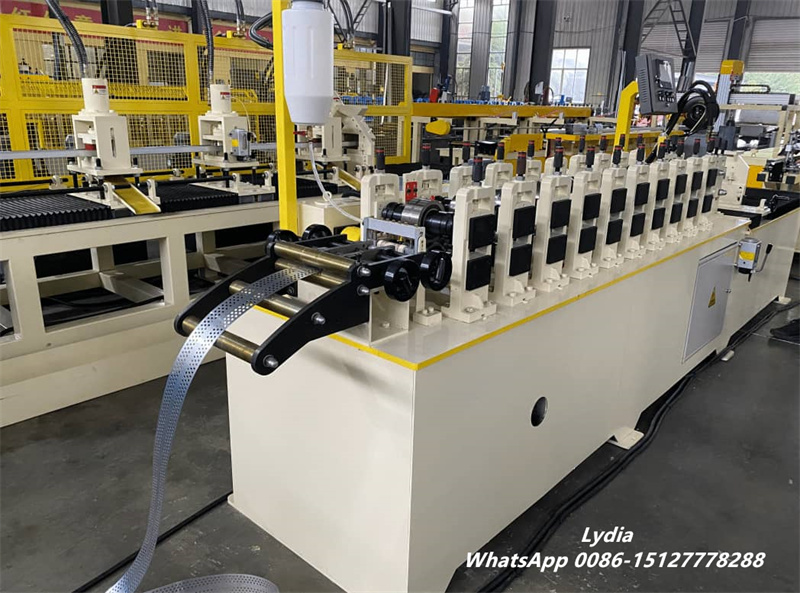

Working Process of the Wall Angle Roll Forming Machine
The production process is fully automated, allowing continuous operation from coil feeding to finished product stacking.
Production Flow:
Decoiling → Guiding & Leveling → Roll Forming → Hydraulic Cutting → Automatic Stacking
During production, the decoiler continuously feeds metal coils into the leveling unit. After the material becomes flat, the punching system creates installation holes according to the programmed pattern. Next, multiple roll forming stations gradually shape the strip into the required angle profile. Finally, the hydraulic cutting system cuts each profile to the preset length before the products move automatically onto the stacking table.
This continuous workflow not only improves productivity but also guarantees consistent product quality throughout long production runs.

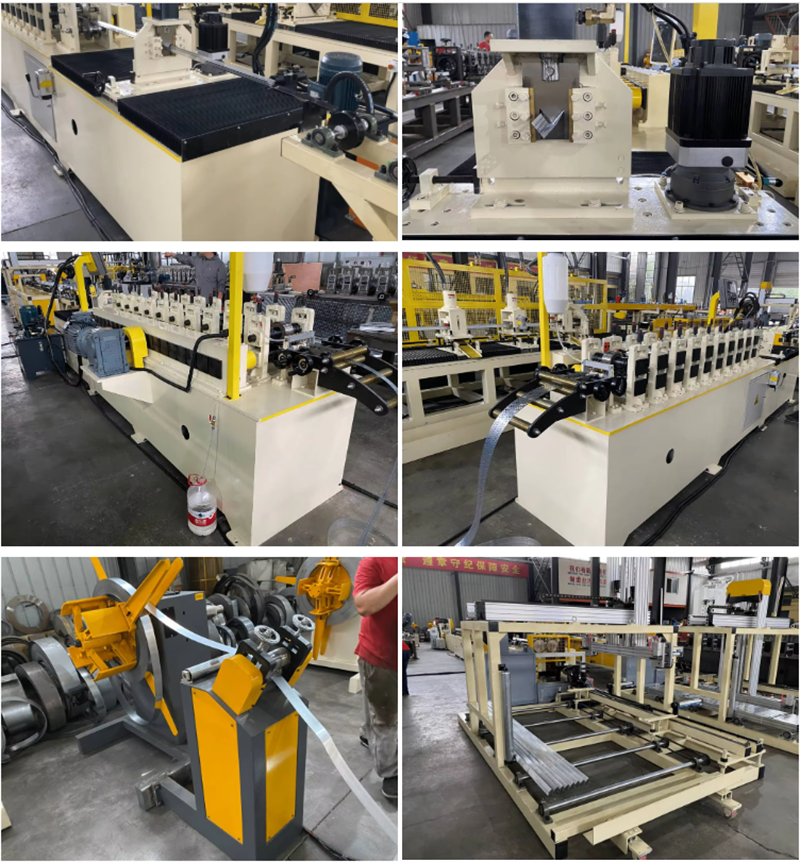

Main Components of the Plasterboard Corner Bead Production Line
Each machine is carefully designed to ensure stable performance and long-term reliability.
| Machine Component | Function |
|---|---|

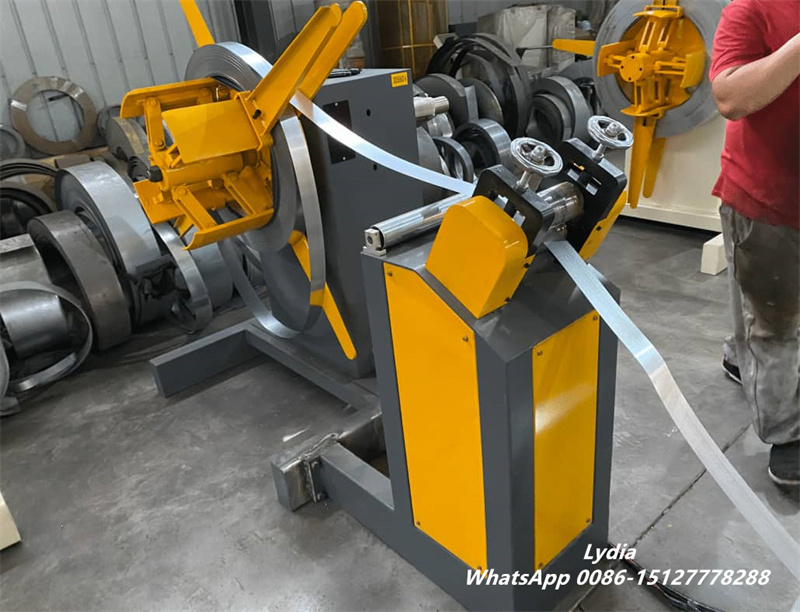

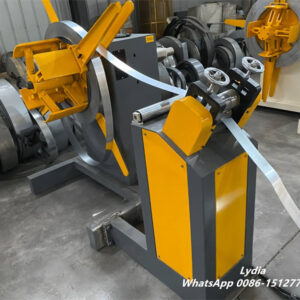

| 2-in-1 Decoiler & Leveler | Unwinds coils and removes coil deformation before forming |
| Guiding & Pinch Rollers | Ensures accurate material feeding |
| Punching Machine | Creates installation holes in customized patterns |

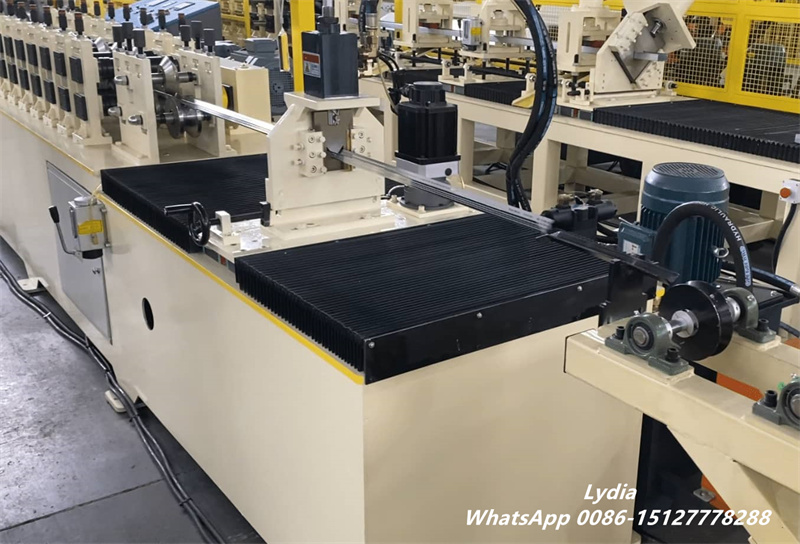

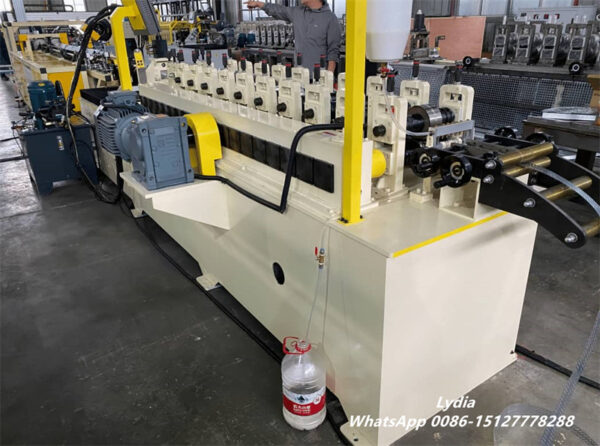

| Roll Forming Machine | Forms metal strip into precise corner bead profiles |

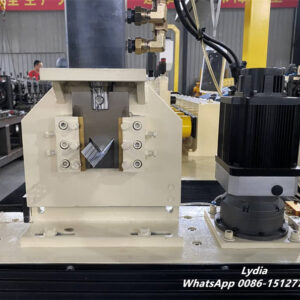

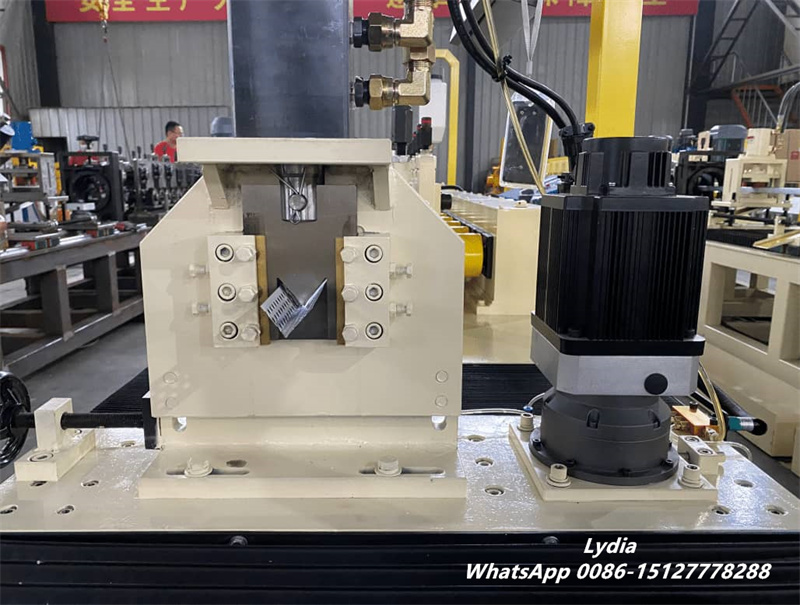

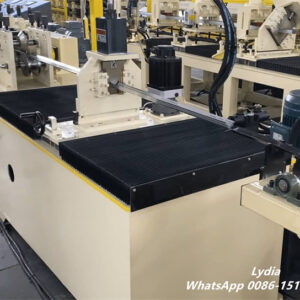

| Hydraulic Cutting System | Cuts profiles to programmed lengths without deformation |
| PLC Control System | Controls production parameters through an intelligent touchscreen |
| Output Table | Collects finished products automatically |
| Automatic Packing System (Optional) | Bundles and stacks products for transportation |
The modular design also allows manufacturers to add optional equipment according to production capacity and packaging requirements.
Technical Specifications and Finished Product Features
The machine supports multiple material types and profile configurations, making it suitable for different construction markets worldwide.
Finished Product Specifications
| Item | Specification |
|---|---|
| Material | Galvanized Steel / Aluminum |
| Material Thickness | 0.3–0.4 mm |
| Corner Size | 20–25 mm or Customized |
| Product Length | 2.5–3.0 m or Customized |
| Hole Pattern | Round, Diamond, Square, Triangle, or Customized |
The finished plasterboard corner bead offers several important advantages:
- High corrosion resistance for long-term durability
- Excellent adhesion with plaster and joint compounds
- Strong impact resistance that protects wall corners
- Lightweight design for easy transportation and installation
- Smooth surface that improves decorative finishes
- Recyclable metal materials that meet environmental standards
Because of these benefits, builders can significantly improve construction quality while reducing future repair costs.
Complete Drywall Partition Wall Equipment
Besides the Plasterboard Corner Bead Making Machine, manufacturers often require a complete production solution for drywall partition systems. Therefore, this machine can be integrated with drywall profile production equipment to establish a complete manufacturing line.
A complete drywall production solution generally includes:
- Drywall Stud Roll Forming Machine
- Drywall Track Roll Forming Machine
- Plasterboard Corner Bead Making Machine
- Ceiling Channel Roll Forming Machine
- Automatic Packaging System
By combining these machines into one production system, manufacturers can produce all major metal profiles required for drywall construction. As a result, they improve production efficiency, reduce manufacturing costs, and satisfy the growing demand from residential, commercial, and industrial construction projects worldwide.
