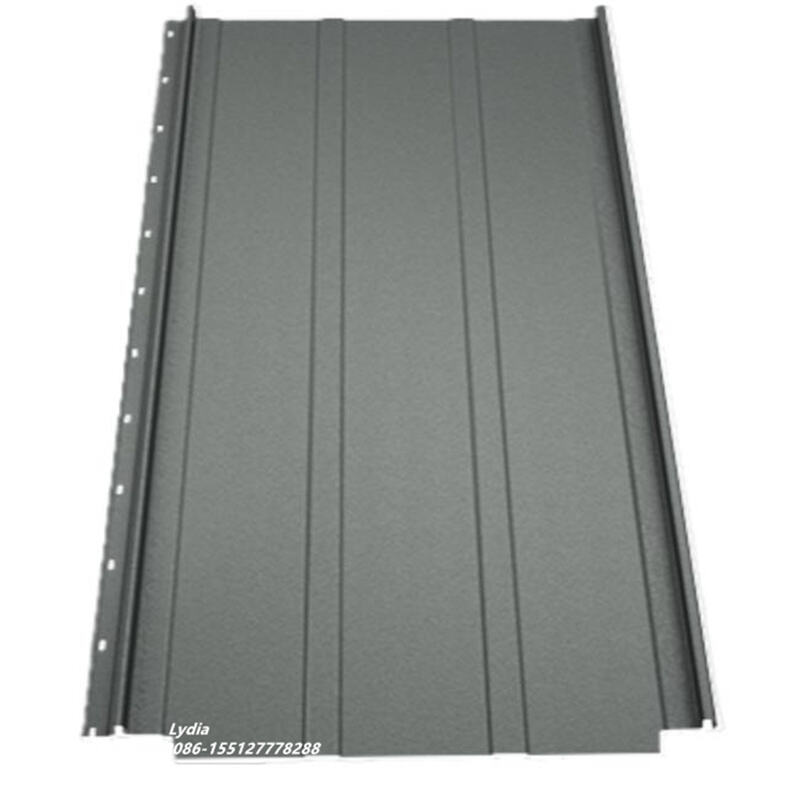

The Retro Panel Roll Forming Machine is a professional automatic production line designed to manufacture 542mm wide click lock metal roof panels with hidden fastening structures. This machine produces modern standing seam roofing panels that combine excellent waterproof performance, attractive appearance, and fast installation advantages.
Compared with traditional folded metal roofing systems, Retro Panel roofing uses a snap-lock joint design, which allows panels to connect quickly without exposed screws. Therefore, it has become an ideal roofing solution for residential buildings, commercial facilities, renovation projects, and architectural structures requiring both durability and aesthetic value.
Modern Click Lock Roofing Panel machine

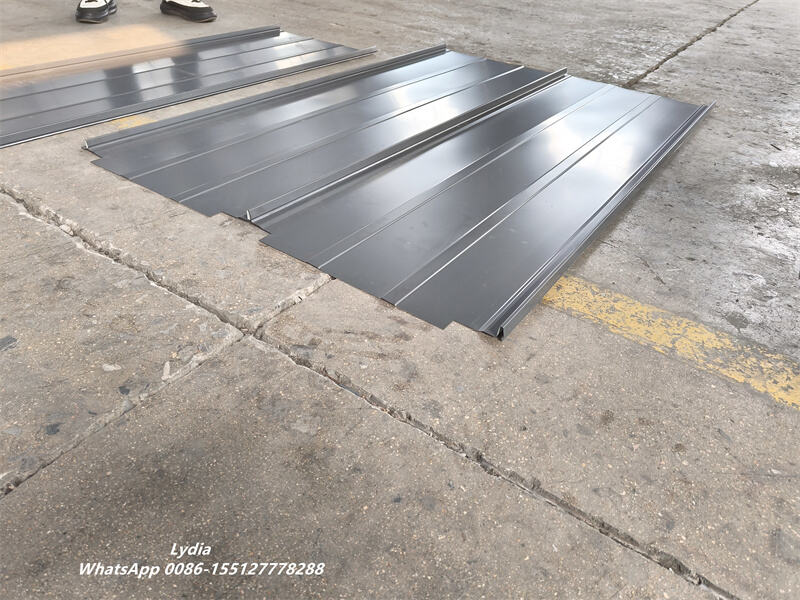

The Retro Panel Roll Forming Machine transforms pre-painted galvanized steel or aluminum coils into finished roofing panels through a continuous cold roll forming process. The produced panels feature a concealed fixing system, which improves the overall appearance while reducing the possibility of water leakage caused by exposed screws.

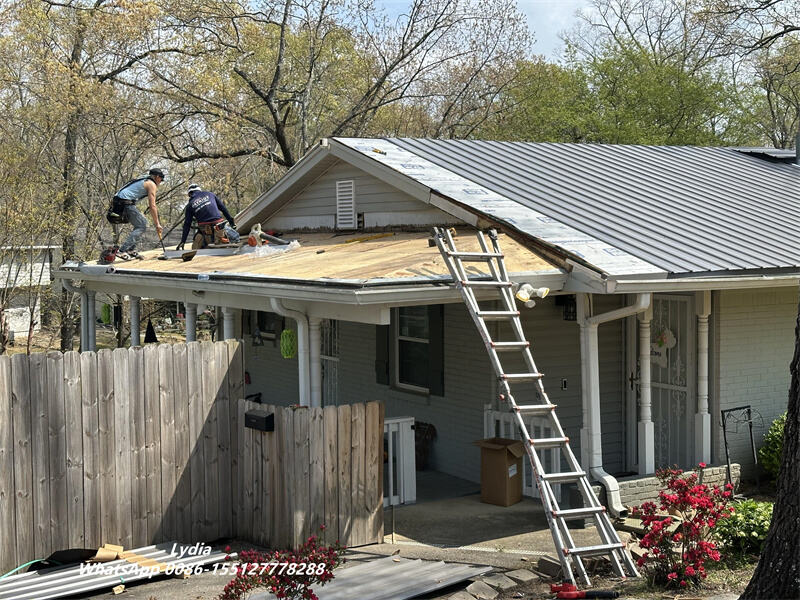

This roofing system is suitable for both traditional houses and modern buildings. Moreover, its flexible panel structure allows manufacturers to produce roofing solutions for steep slopes, irregular architectural designs, heritage buildings, office buildings, and shopping centers without affecting the original architectural style.
The machine is especially popular among roofing manufacturers who need efficient production, stable quality, and customized panel solutions for different construction markets.
Technical Specifications of Retro Panel Machine

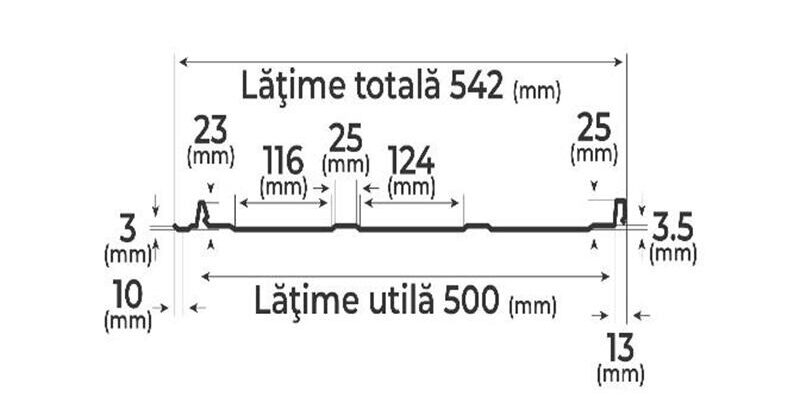

The production line is engineered according to the special profile requirements of Retro Panel roofing. It can accurately form the 542mm total width panel with integrated stiffening ribs and concealed fastening strips.
| Item | Specification |
|---|---|
| Product Type | Retro Panel / Click Lock Roof Panel |
| Total Panel Width | 542 mm |
| Effective Coverage Width | 500 mm |
| Material Thickness | 0.45–0.60 mm |
| Suitable Materials | PPGI, galvanized steel, aluminum coil |
| Rib Height | Approx. 25 mm / 23 mm |
| Forming Stations | 14–18 stations (customized) |
| Control System | PLC + Touch Screen |
| Cutting Method | Hydraulic cutting |
| Production Mode | Fully automatic continuous forming |
The forming rollers are precisely designed to gradually shape the metal sheet while protecting the surface coating. As a result, the finished panels maintain accurate dimensions, smooth surfaces, and reliable locking performance.
Advanced Machine Structure and Production Process

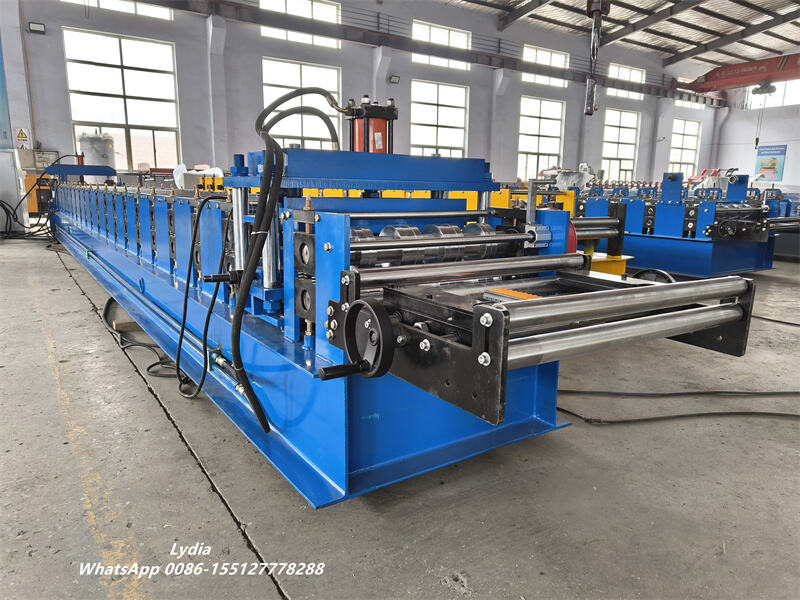

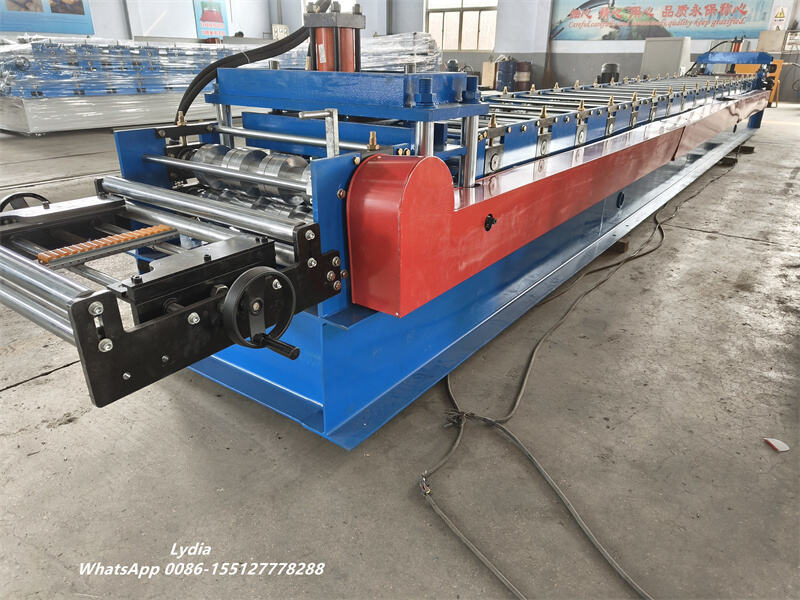

To manufacture this asymmetric click-lock roofing profile, the machine integrates multiple functional units, including decoiling, feeding, punching, roll forming, cutting, and control systems.

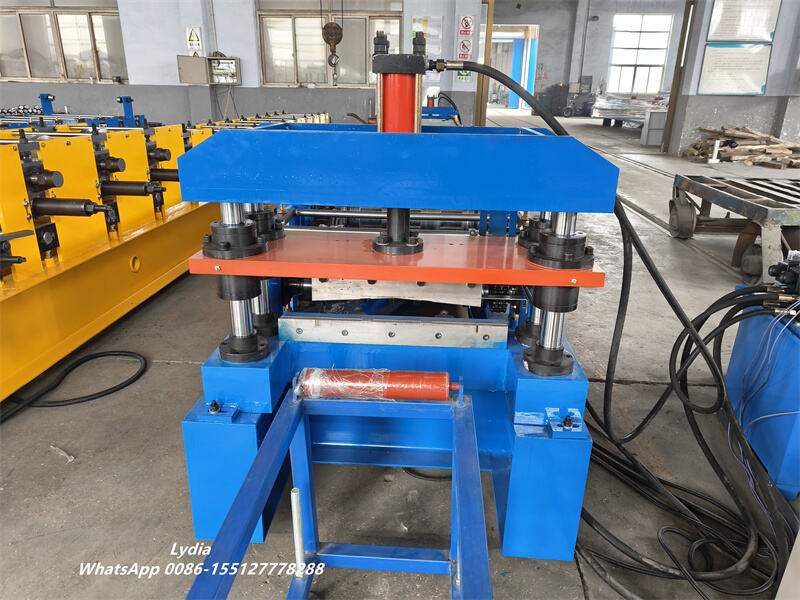

Before forming, the hydraulic punching system creates accurate nail strip slots according to the panel design. These pre-punched fixing holes allow installers to secure the panels invisibly beneath the next connected sheet.
During the forming process, 14–18 sets of precision rollers gradually bend the coil material into the final Retro Panel shape. This step-by-step forming method minimizes surface damage and prevents deformation of the finished roofing panels.
In addition, the automatic PLC control system allows operators to easily adjust production speed, panel length, and output quantity, improving manufacturing efficiency and reducing manual operation requirements.
Main Advantages of Retro Panel Roll Forming Machine
The Retro Panel production line provides several advantages for roofing manufacturers:
- Fast and simple installation
The click-lock connection design reduces installation time compared with traditional standing seam systems. - Clean architectural appearance
Hidden fasteners create a smooth roof surface without visible screws. - Strong structural performance
Longitudinal stiffening ribs improve panel rigidity and reduce surface waviness. - Low slope application capability
The roofing system can be installed on roofs with slopes from approximately 8°. - Flexible architectural application
The panels can adapt to residential roofs, commercial buildings, and special renovation projects. - Wide material compatibility
The machine can process different coated steel and aluminum materials according to customer requirements.
Applications and Market Opportunities
Retro Panel roofing systems are widely used in Europe, North America, and other regions where architectural appearance and long service life are highly valued.
Manufacturers can use this roll forming machine to produce panels for:
- Residential houses and villas
- Modern architectural buildings
- Office buildings
- Shopping centers
- Historical building restoration
- Steep slope roofing projects
- Metal wall and facade applications
With increasing demand for energy-efficient and visually attractive construction materials, Retro Panel Roll Forming Machine provides roofing companies with a reliable solution for expanding their product range.
Customized Retro Panel Production Line from Zhongtuo
Zhongtuo designs and manufactures customized Retro Panel Roll Forming Machines according to different panel drawings, material specifications, and production requirements. The machine layout, roller stations, punching system, and automation functions can be adjusted to meet specific customer needs.
By combining precision engineering with automatic production technology, Zhongtuo helps global roofing manufacturers produce high-quality click lock metal panels efficiently and consistently.
