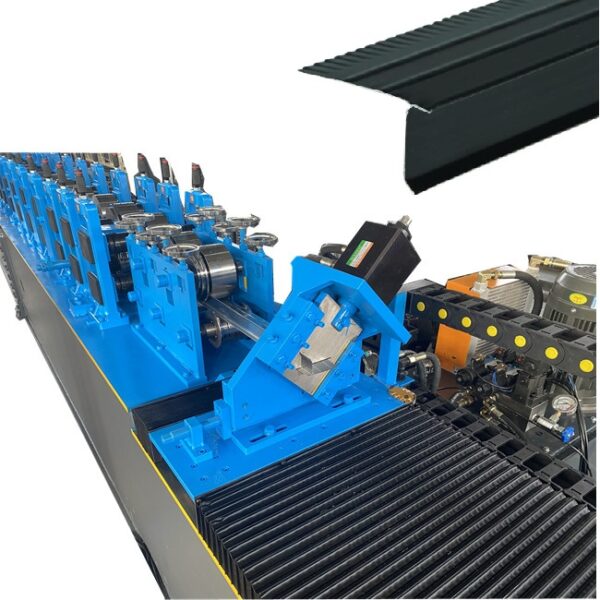

Zhongtuo Roof Drip Edge Roll Forming Machine FHA 90° and F5 Profile Roll Former

Zhongtuo Roof Drip Edge Roll Forming Machine for FHA 90° Aluminum F5 Profiles

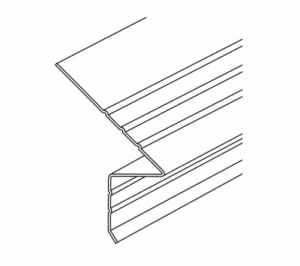

As metal roofing systems continue to evolve, edge protection components such as roof drip edges play an increasingly important role in both performance and aesthetics. To meet growing market demand, Zhongtuo has developed a high-speed Roof Drip Edge Roll Forming Machine, specially designed for FHA 90-degree aluminum F5 drip edge profiles and other common roof edge trims.

This machine offers stable forming, precise cutting, and clean surface protection, making it an ideal solution for manufacturers serving residential and commercial roofing markets.

What Is a Roof Drip Edge and Why Does It Matters

A roof drip edge is a metal trim installed along the gable or eave edge of a roof. Its main function is to control water runoff, preventing moisture from penetrating the fascia or bargeboard. At the same time, it creates a proper spacing point for flashing installation, usually maintaining about a one-inch gap to improve drainage efficiency.

Moreover, this spacing adds a subtle shadow line, enhancing the architectural appearance of the roof edge. By directing water away from wooden components, drip edges significantly reduce the risk of rot, staining, and long-term structural damage.

Common Drip Edge Profiles Used in Roofing Systems

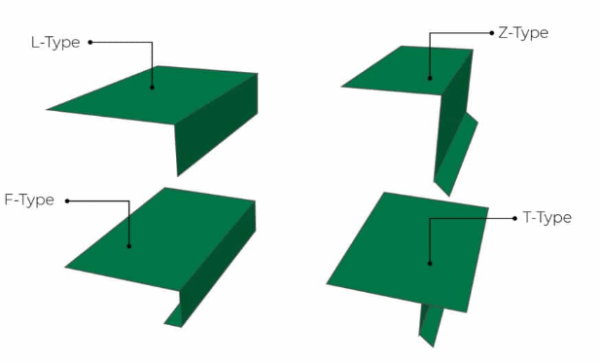

Depending on climate conditions, roof pitch, and installation requirements, drip edges are available in several standard profiles. Among them, the following four types are most widely used:

● L-Type Drip Edge

This profile features a horizontal flange over the roof deck and a vertical flange covering the fascia. As a result, it efficiently channels water away from the roof structure and is suitable for most roofing projects.

● T-Type Drip Edge – Enhanced Waterproofing

Compared with the L-type, the T-type includes an extra flange under the roofing material. Consequently, it provides improved resistance to water penetration, especially in regions with frequent rainfall.

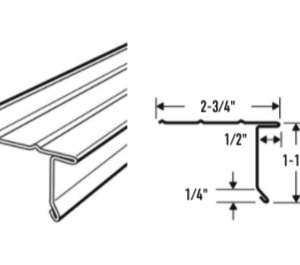

● F-Type Drip Edge – Ideal for Windy Areas

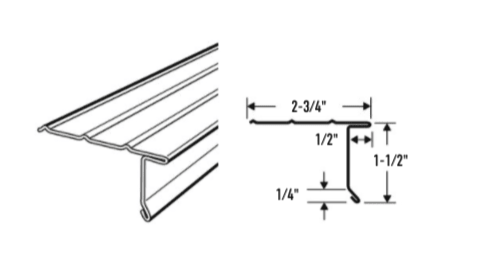

Also known as a gutter apron, the F-type drip edge extends further to overlap both the roof deck and fascia. Therefore, it offers superior protection against wind-driven rain and helps prevent water from flowing behind the gutter.

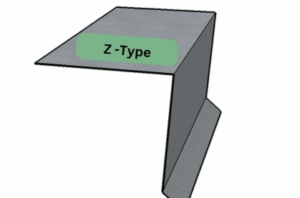

● Z-Type Drip Edge – Designed for Steep Roofs

With its distinctive Z-shaped structure, this profile redirects water back onto the roof surface. For steep-slope roofs, this design ensures smooth drainage and protects the fascia more effectively.

Advantages of Using High-Quality Drip Edges

First of all, drip edges significantly improve water management, guiding rainwater directly into the drainage system.
In addition, they help reduce corrosion and moisture exposure, protecting exterior walls and foundations.
Furthermore, by relieving water pressure at the roof edge, drip edges extend the service life of the roofing system.
From an aesthetic perspective, they also provide a clean and finished appearance.
Finally, in cold climates, drip edges assist in reducing ice and snow accumulation, improving overall roof safety.

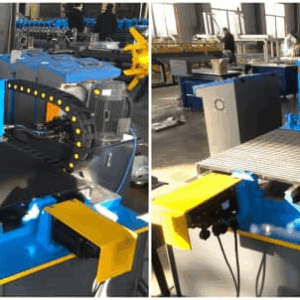

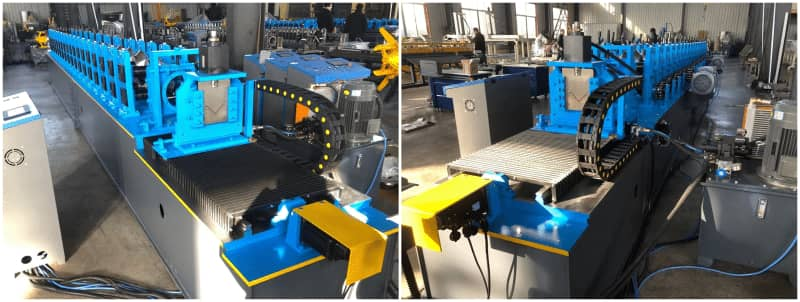

Drip Edge Roll Forming Machine – Working Flow

The Zhongtuo drip edge roll forming machine operates through a fully automatic and efficient production process:

Uncoiling → Main Roll Forming → Hydraulic Tracking Cutting → Product Collection Table → Packing

Thanks to this streamlined workflow, manufacturers can achieve high output while maintaining consistent quality.

Technical Specifications of Zhongtuo Drip Edge Roll Forming Machine

Machine Structure and Quality Assurance

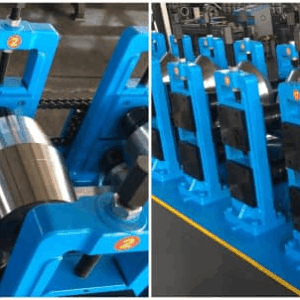

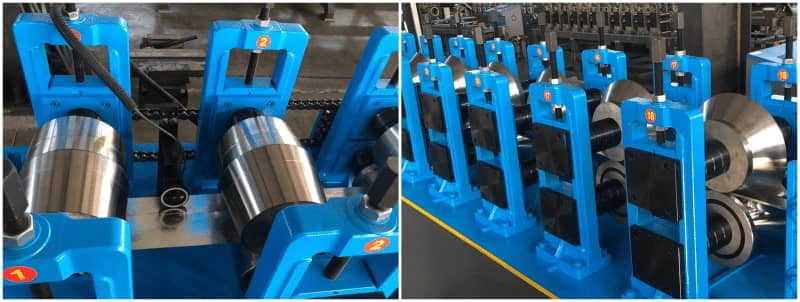

The machine adopts a vertical memorial arch frame structure with a welded steel base frame, ensuring long-term stability during high-speed operation. Meanwhile, high-quality roller bearings from Harbin brand are used to guarantee smooth and durable performance.

In terms of appearance, the machine body features clean welding, no burrs, and uniform industrial painting. Electrical and hydraulic cables are well-organized, which not only improves safety but also simplifies maintenance.

All equipment supplied by Zhongtuo is 100% brand new, and every detail is carefully inspected before delivery. If required, the standard manual decoiler can also be upgraded to a hydraulic decoiler to better match high-capacity production needs.

Reliable Machinefor Roofing Trim Manufacturers

In conclusion, Zhongtuo’s Roof Drip Edge Roll Forming Machine provides an efficient, reliable, and flexible solution for producing FHA 90° aluminum F5 drip edges and other common profiles. With high forming speed, precise cutting, and excellent surface protection, this machine helps manufacturers improve productivity while meeting strict market standards.

If you are looking to expand your roofing accessory production line or upgrade existing equipment, Zhongtuo is ready to support you with professional solutions and global service experience.
