Modern steel buildings demand structural components that combine strength, flexibility, and production efficiency. C and Z purlins have become the preferred framing members for industrial buildings, warehouses, agricultural facilities, commercial projects, and prefabricated steel structures because they provide excellent load-bearing performance while reducing the overall weight of the building.To meet the growing demand for multiple purlin sizes, manufacturers increasingly choose an Automatic C/Z Purlin Roll Forming Machine. This advanced production line can manufacture both C purlins and Z purlins with automatic profile conversion and PLC-controlled size adjustment, helping producers shorten setup time, improve productivity, and maintain consistent product quality.

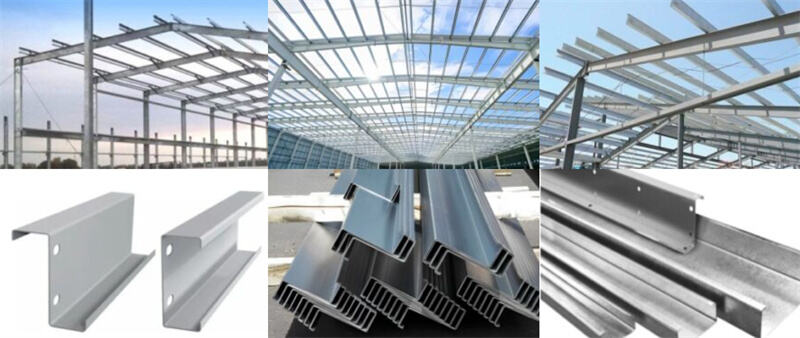

What Are C and Z Purlins?
C purlins and Z purlins are cold roll formed steel sections used as horizontal structural members to support roof panels and wall cladding. Unlike traditional timber supports, steel purlins provide greater strength, improved dimensional stability, and a longer service life.
Manufacturers typically produce these profiles from galvanized steel, black steel, or high-strength steel such as Q235, Q345, and Q420. Thanks to modern cold roll forming technology, the finished sections feature precise dimensions, smooth surfaces, and excellent structural performance.

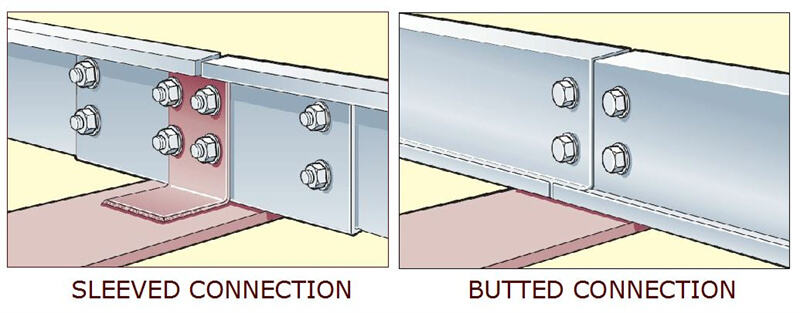

Although both profiles serve similar purposes, each has unique advantages. C purlins are commonly selected for shorter spans and simple framing systems, while Z purlins are ideal for overlapping installations that improve structural continuity on larger roofing projects.

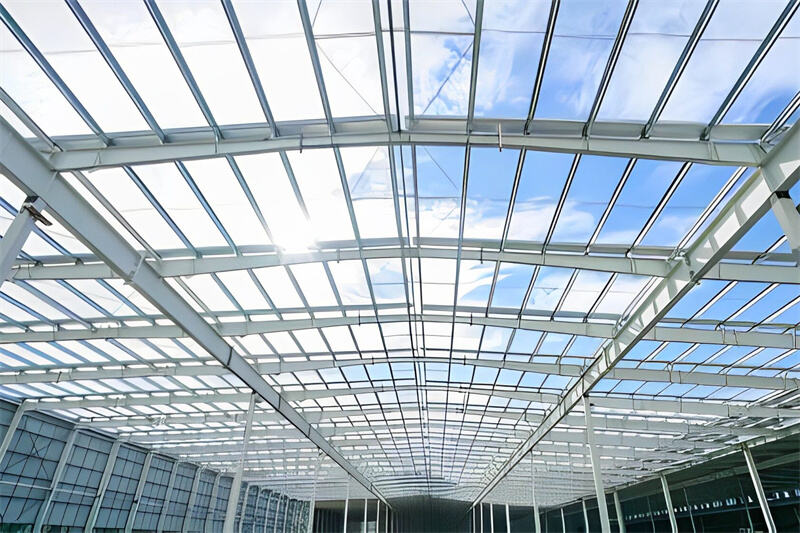

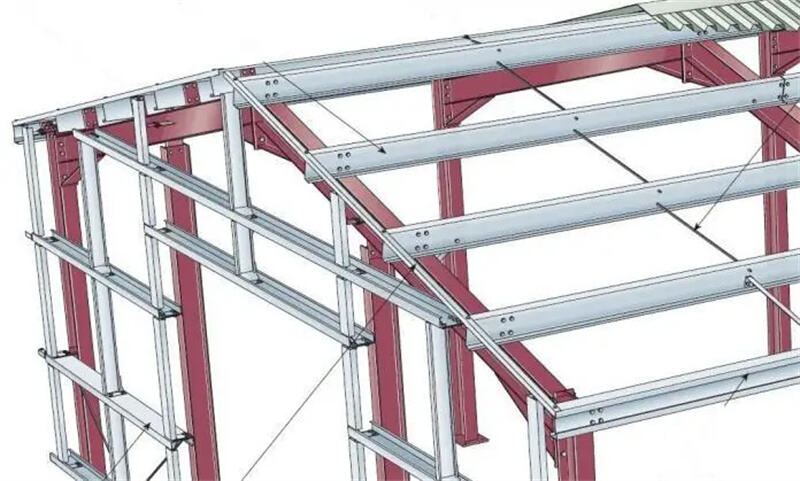

Applications of C/Z Purlins in Modern Construction
Because of their versatility, C/Z purlins are widely used across many types of steel construction projects. Their high strength-to-weight ratio allows engineers to reduce structural weight without sacrificing performance.
Common applications include:
- Industrial factories and manufacturing plants
- Steel warehouses and logistics centers
- Commercial buildings and shopping centers
- Agricultural barns and storage facilities
- Prefabricated steel buildings
Whether supporting roofing sheets or wall panels, properly manufactured purlins provide reliable structural stability throughout the building’s service life.

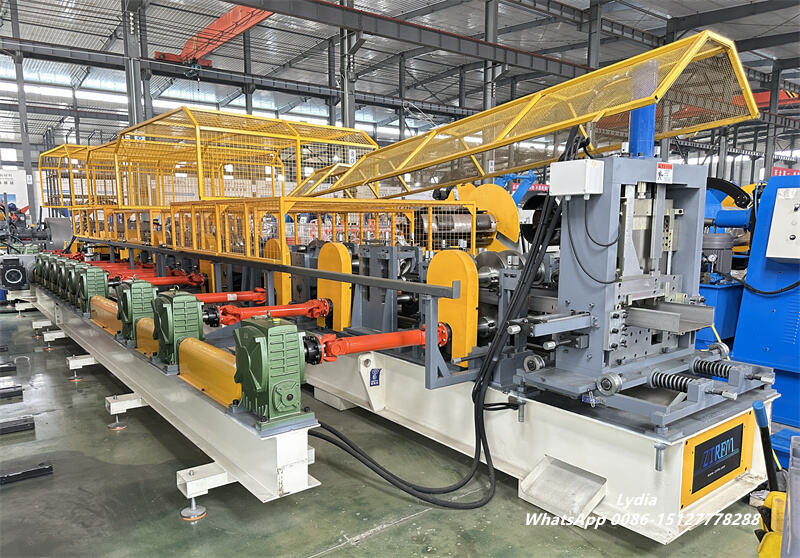

Why Choose an Automatic C/Z Purlin Roll Forming Machine?

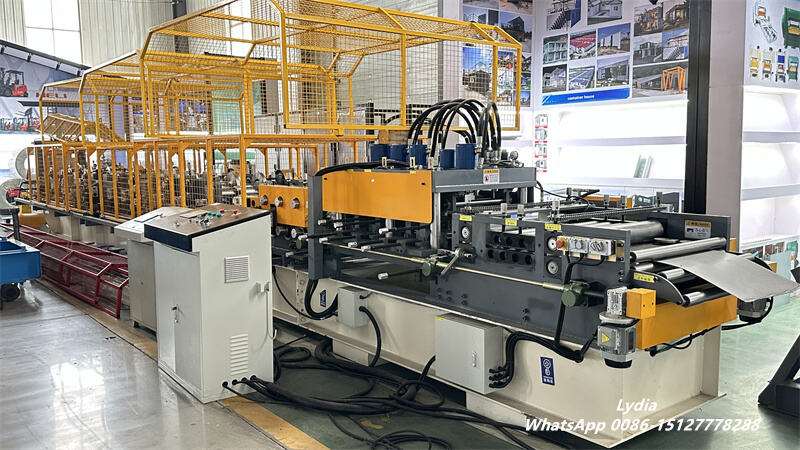

Traditional purlin production often requires manual roller adjustment and lengthy machine setup whenever profile dimensions change. By contrast, an intelligent Automatic C/Z Purlin Roll Forming Machine dramatically simplifies the entire manufacturing process.

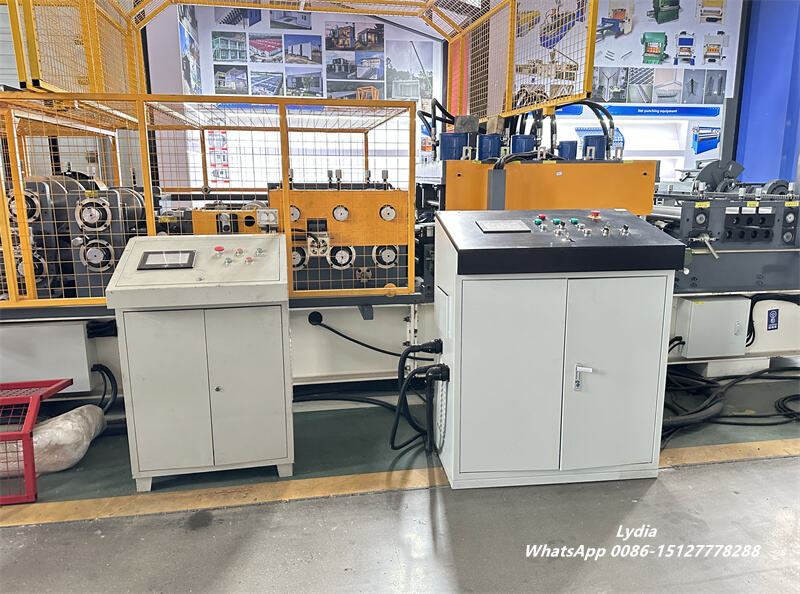

With automatic PLC control, operators can quickly switch between different widths and even convert from C purlin to Z purlin without replacing roller sets. As a result, production efficiency increases while labor costs decrease.
Key machine advantages include:
- Automatic C and Z profile conversion
- PLC-controlled size adjustment

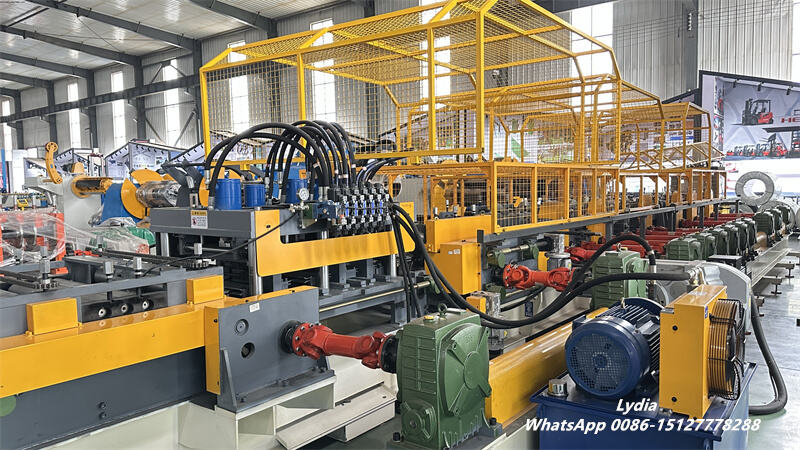

- Servo motor drive for high positioning accuracy
- Gearbox transmission for stable operation
- High-speed continuous production

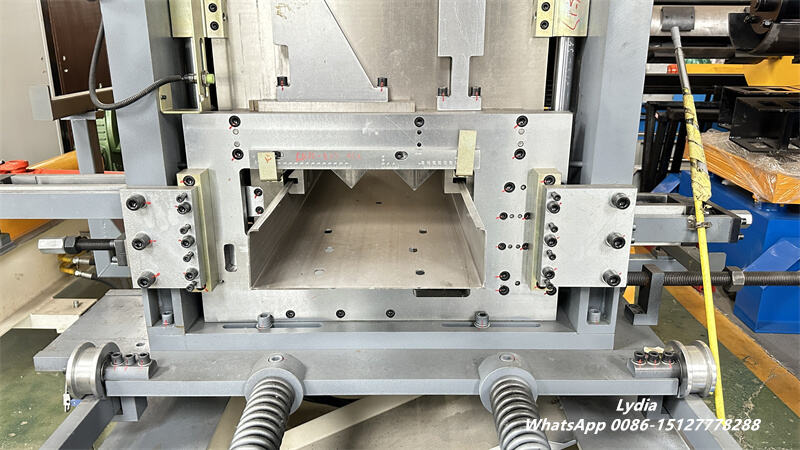

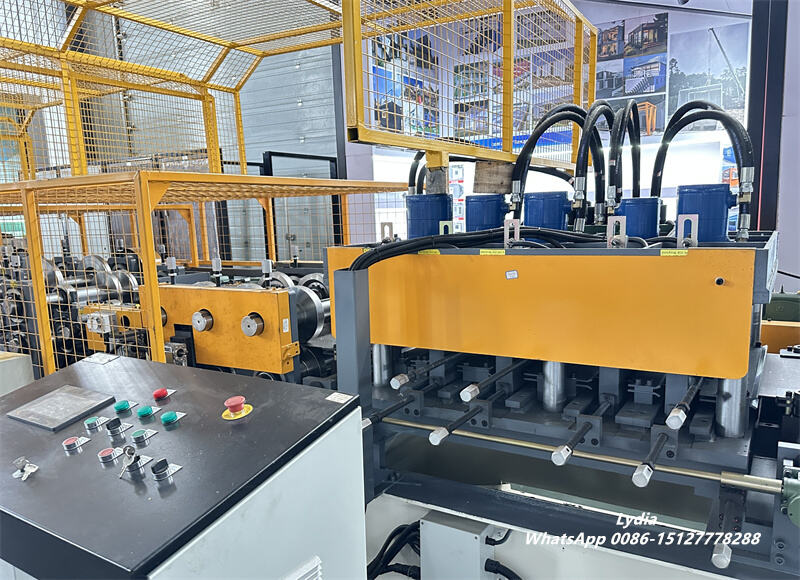

- Hydraulic punching and post-cutting
- Excellent dimensional consistency
- Reduced production downtime
- Lower operating costs
- Suitable for multiple steel grades and thicknesses
These intelligent features enable manufacturers to respond quickly to customized orders while maintaining consistent product quality.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Thickness | 1.0–3.5 mm |
| Material Grade | Q235 / Q345 / Q420 |
| C Purlin Size | 80–350 mm |
| Z Purlin Size | 120–350 mm |
| Roll Forming Speed | Up to 37 m/min |
| Drive System | 42 KW Servo Motor + Gearbox Transmission |

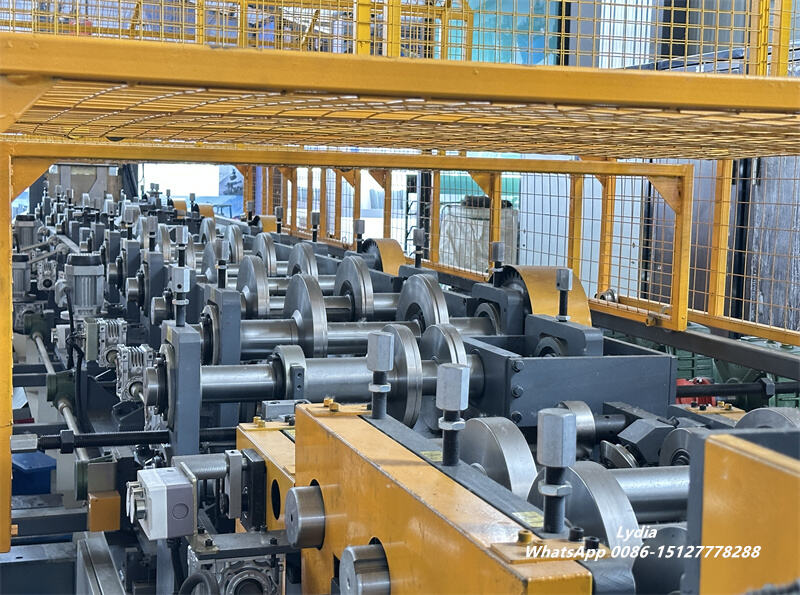

| Roller Stations | 23 Stations |
| Roller Material | Cr12 Heat-Treated Steel |
| Control System | Panasonic PLC + Schneider Electrical Components |
| Power Supply | 380V / 50Hz / 3 Phase |
This configuration allows manufacturers to produce various purlin specifications efficiently while ensuring high precision and long-term machine reliability.
Advantages of Cold Roll Formed Steel Purlins
Compared with traditional timber or hot-rolled structural members, cold roll formed C/Z purlins offer several important engineering benefits.
First, their lightweight design reduces the dead load imposed on the building structure. Consequently, foundations and supporting members can often be optimized, lowering overall construction costs.
Second, despite their reduced weight, these profiles provide excellent bending resistance and structural stiffness. This high strength-to-weight ratio makes them particularly suitable for large-span steel buildings.
In addition, galvanized steel offers outstanding corrosion resistance, allowing purlins to perform reliably in humid, coastal, and agricultural environments with minimal maintenance requirements.
From a construction perspective, the standardized dimensions of roll formed purlins simplify installation and improve project efficiency. Contractors can assemble roof and wall framing systems more quickly, helping shorten construction schedules and reduce labor expenses.
Furthermore, steel remains one of the world’s most recyclable building materials. At the end of a building’s service life, the purlins can be recycled and reused, making them an environmentally responsible choice for sustainable construction projects.
with Servo Motor and Gearbox TransmissionSelecting a high-performance Automatic C/Z Purlin Roll Forming Machine allows manufacturers to produce a wide variety of steel purlins with greater speed, accuracy, and flexibility. By combining automatic profile conversion, intelligent PLC control, servo-driven transmission, and precision roll forming technology, the machine helps improve production efficiency while reducing operating costs. For companies serving the steel construction industry, investing in advanced purlin manufacturing equipment is an effective way to enhance competitiveness and consistently deliver high-quality structural components to customers worldwide.
