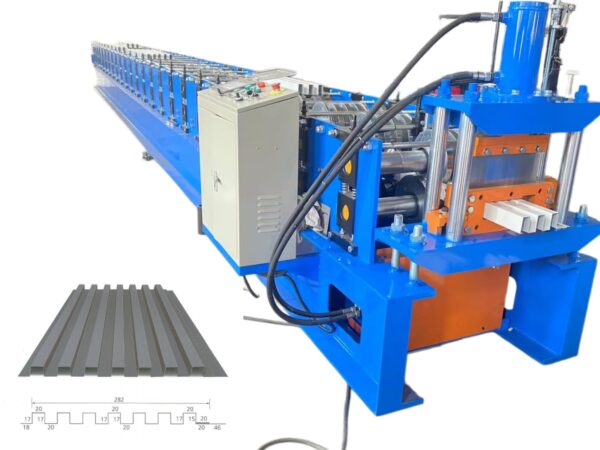

Zhongtuo 90 Degree Horizontal Wall Cladding Roll Forming Machine Metal Wall Panel Production Line

The 90 Degree Horizontal Board Metal Wall Cladding Roll Forming Machine is an advanced automatic production line designed to manufacture high-precision metal wall panels with a 90-degree right-angle profile. It is widely used in the production of modern architectural facade systems where appearance, durability, and installation efficiency are all critical.

This equipment processes raw metal coils such as PPGI, PPGL, and galvanized steel into finished wall cladding panels through continuous roll forming technology. The whole line works automatically from feeding to cutting, which significantly improves productivity and ensures stable product quality.

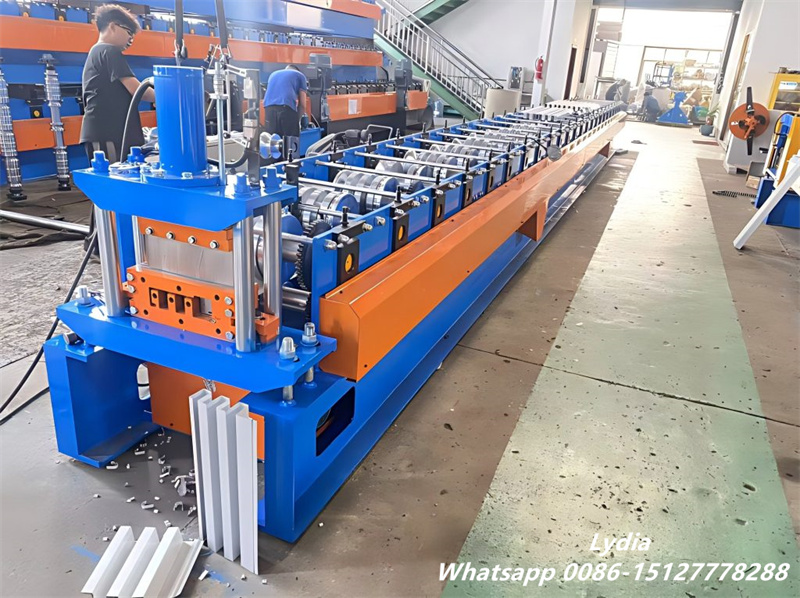

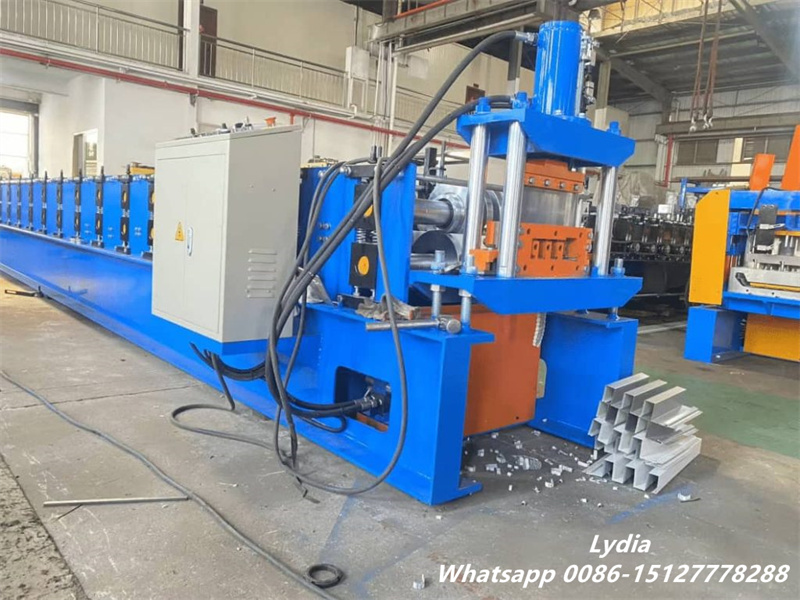

The production process is smooth and continuous. Coil feeding enters the system through a guiding device, then passes through multiple roller stations for gradual forming. After shaping, the panel is accurately bent into a 90 degree structure, and finally cut by a hydraulic system into required lengths. This continuous workflow ensures both speed and precision.

Wide Application of Wall Cladding Panel Making Machine in Construction

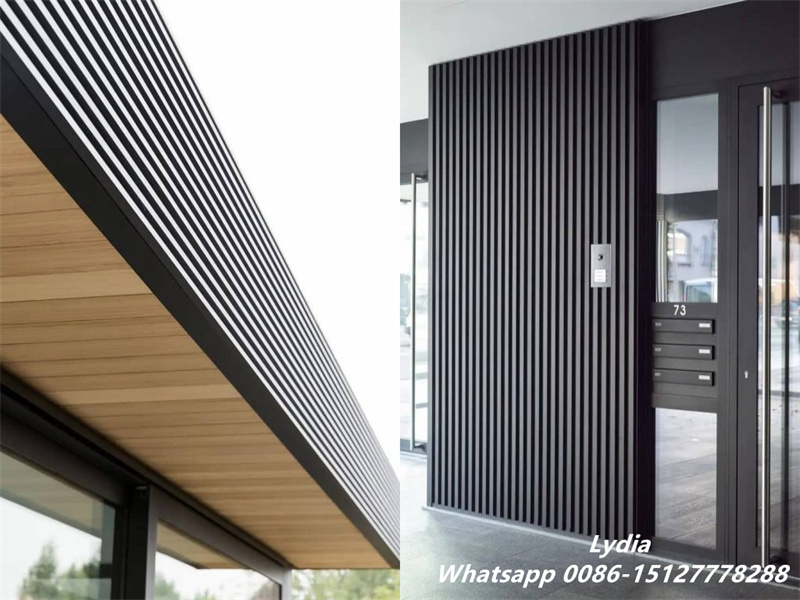

The finished panels produced by this machine are widely used in modern architecture because of their concealed fixing system and clean visual effect. The design eliminates exposed screws, which greatly improves both appearance and waterproof performance.

Industrial Buildings

The machine is suitable for producing panels used in:

• Steel structure workshops
• Warehouses and logistics centers
• Power stations and substations
• Aircraft hangars

These applications require strong and durable metal cladding systems that can withstand harsh environments.

Commercial and Public Buildings

It is also widely used in modern public facilities, such as:

• Exhibition halls
• Shopping malls
• Stadiums
• Office buildings
• Schools and hospitals

In these projects, architects prefer decorative wall cladding systems that combine strength and modern aesthetics.

Stable Structure of Roll Forming Machine for Wall Panel Production

The machine is built with a heavy-duty steel frame to ensure long-term stability during continuous operation. The main structure uses welded H-beam steel, which provides strong rigidity and reduces deformation even under high-speed production conditions.

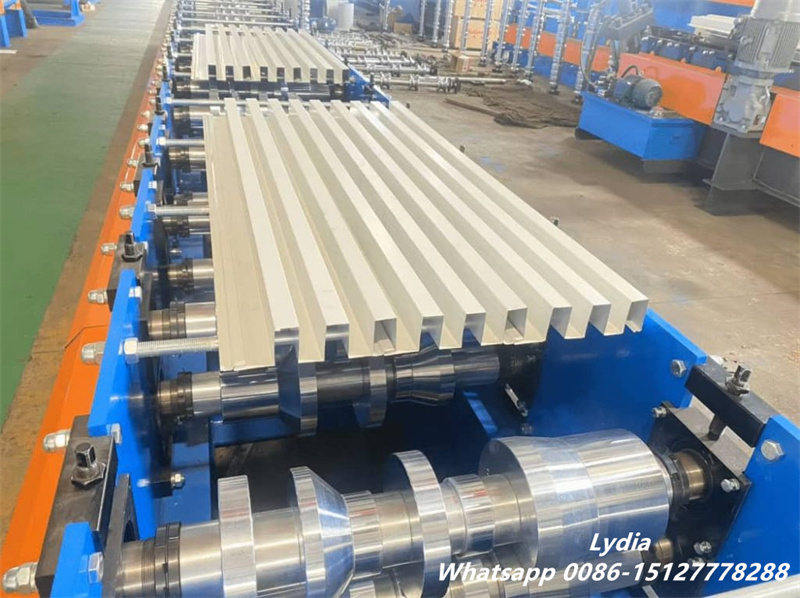

The roller system is one of the most important parts of the machine. It is manufactured from high-quality 45# forged steel and coated with hard chrome. This design improves wear resistance and ensures that the panel surface remains smooth and accurate after forming.

Technical Specification Table

The machine configuration can also be adjusted according to customer requirements, including transmission type, decoiler system, and output speed.

Intelligent Control System of Automatic Roll Forming Equipment

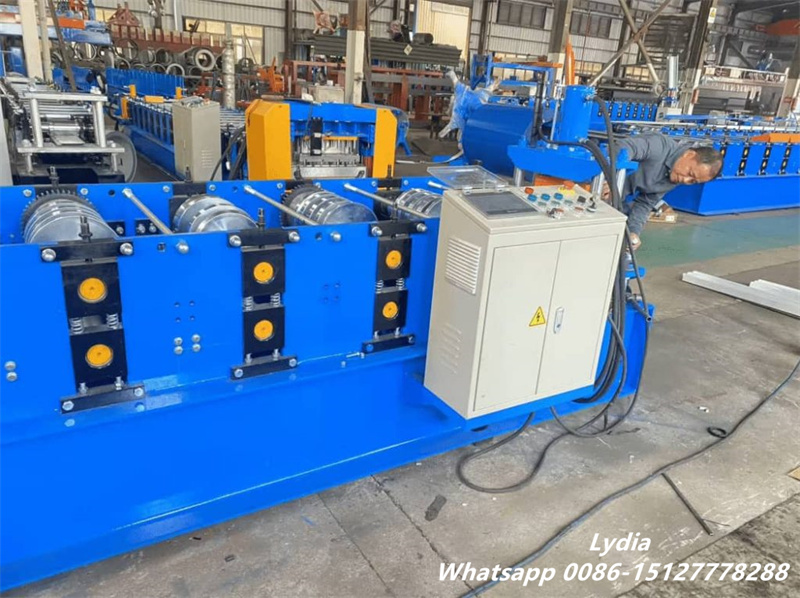

This production line is equipped with a modern PLC control system, which allows operators to manage the entire machine through a touchscreen interface. Production parameters such as length, quantity, and batch number can be easily set and adjusted.

The system automatically completes several functions during production. It controls continuous forming, measures panel length in real time, counts finished pieces, and activates hydraulic cutting at precise positions.

This intelligent automation reduces manual operation and ensures consistent production quality. In addition, the frequency conversion system allows flexible speed adjustment, making the machine suitable for different materials and production requirements.

High-Quality Output of 90 Degree Metal Wall Panel System

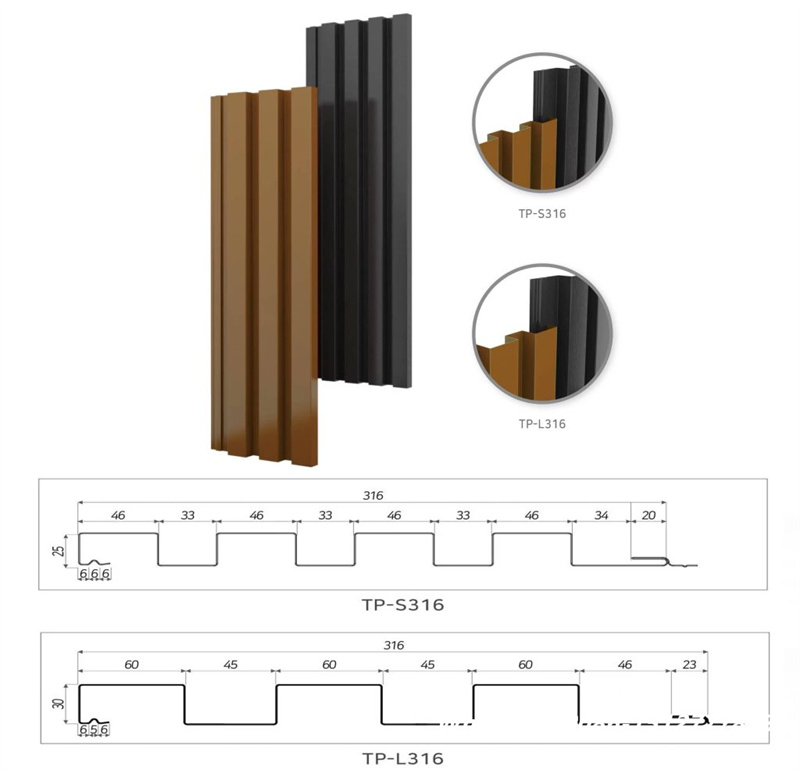

The finished products produced by this machine have excellent structural performance and modern architectural appearance. The concealed joint design eliminates visible screws, creating a clean and smooth facade surface.

Compared with traditional wall panels, this system provides stronger advantages in waterproof performance, wind resistance, and structural stability. The 90-degree folding structure also improves panel rigidity, making it more suitable for exterior wall applications.

The final panels offer:

• Strong bending strength
• Excellent weather resistance
• Smooth surface finish
• Modern architectural style
• Easy and fast installation

Because of these advantages, the system is widely adopted in global metal building envelope projects.

Customized Solution for Global Roll Forming Machine Manufacturer

As a professional roll forming machine manufacturer, we provide fully customized solutions based on customer drawings, production requirements, and market standards.

We support customized profile design, automatic stacking systems, high-speed production lines, and multi-language PLC interfaces. In addition, we provide technical support, installation guidance, and long-term after-sales service for overseas customers.

With strong engineering experience in metal roofing and wall cladding equipment, we help customers improve production efficiency, reduce labor costs, and expand their business in the global construction material market.

If you are looking for a reliable 90 Degree Horizontal Wall Cladding Roll Forming Machine, we can provide a complete turnkey solution tailored to your production needs.
