Metal fencing remains one of the most popular perimeter security solutions across Australia and New Zealand. From residential communities and commercial properties to industrial facilities and public infrastructure projects, steel fence panels offer excellent durability, low maintenance requirements, and an attractive appearance.
To meet the growing demand for high-quality fencing systems, manufacturers require efficient production equipment capable of producing consistent and accurate fence profiles. The Australia Colorbond Metal Fence Roll Forming Machine is specifically designed for producing popular Australian-style metal fence panels, including Wavelok-type and similar Colorbond fencing profiles.
By combining advanced roll forming technology with automated control systems, this machine helps manufacturers increase production efficiency, reduce labor costs, and maintain excellent product quality throughout the production process.

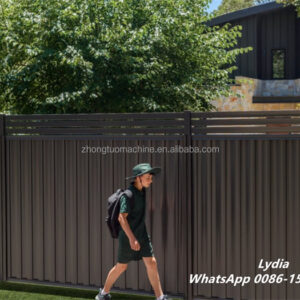

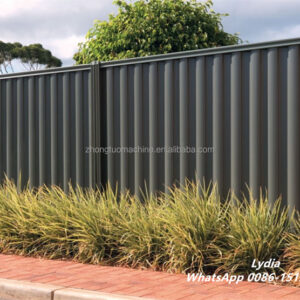

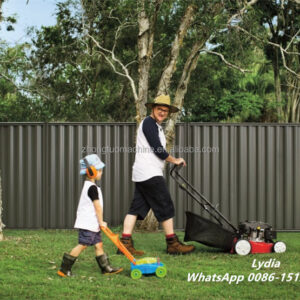

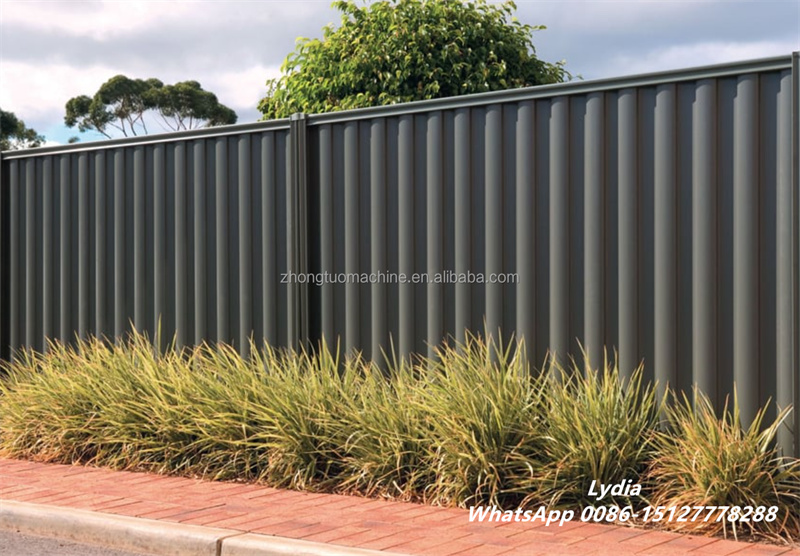

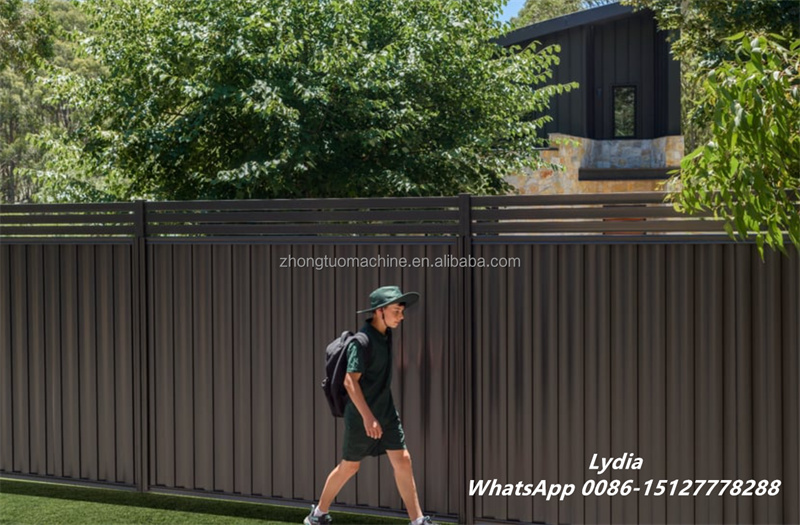

Applications of Finished Metal Fence Panels
The fence panels produced by this machine are widely used in a variety of projects throughout Australia, New Zealand, and other international markets.
Typical applications include:
- Residential boundary fencing
- Garden and backyard enclosures
- Commercial property security fencing
- Industrial facility perimeter protection
- Warehouse and factory fencing systems
- School and university fencing projects
- Public infrastructure barriers
- Agricultural and farm fencing
- Government and municipal construction projects

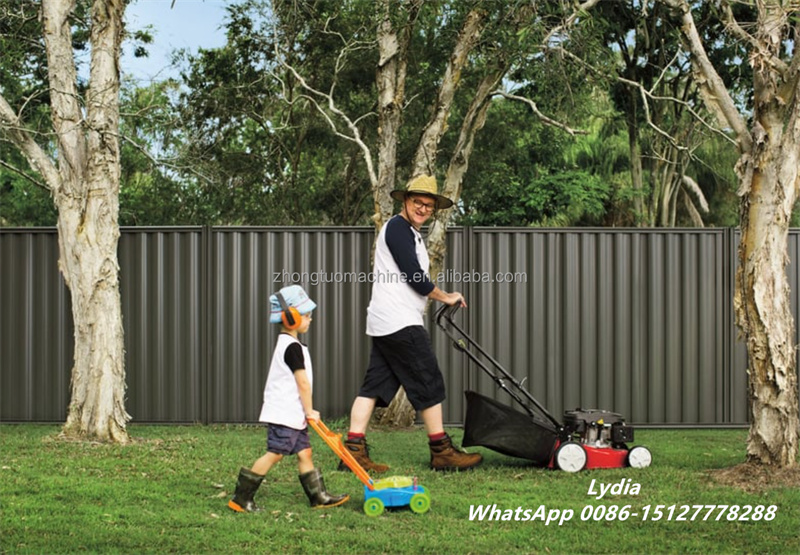

Because Colorbond steel fence panels provide excellent corrosion resistance and weather protection, they perform exceptionally well in coastal regions, high-temperature environments, and areas exposed to heavy rainfall.

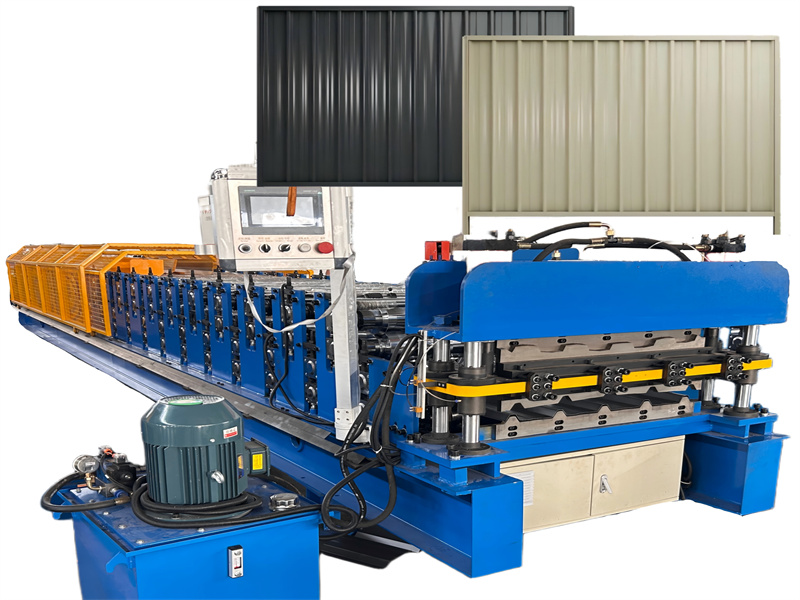

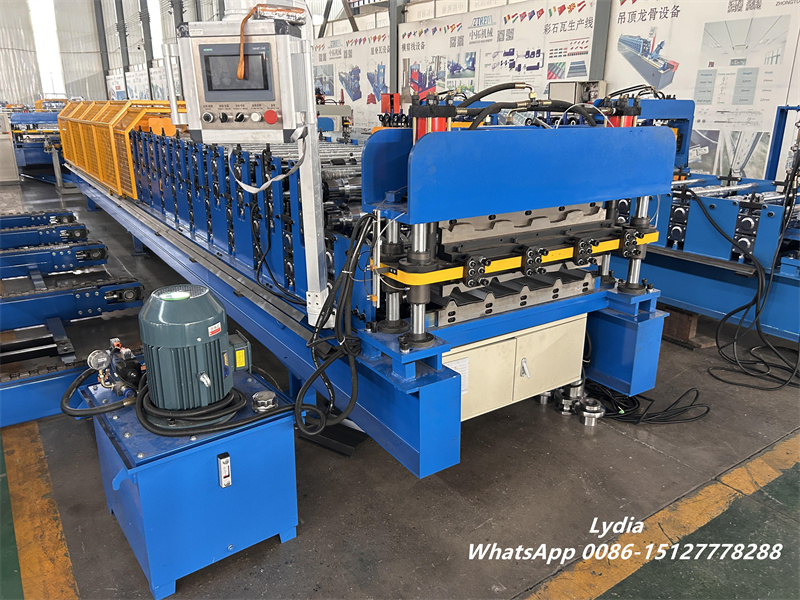

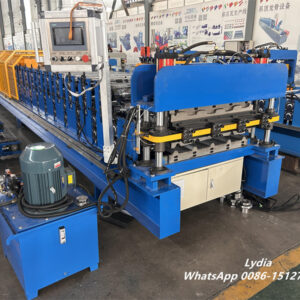

Why Choose This Double-Layer Fence Roll Forming Machine

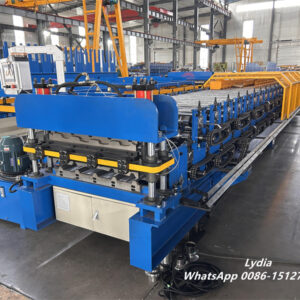

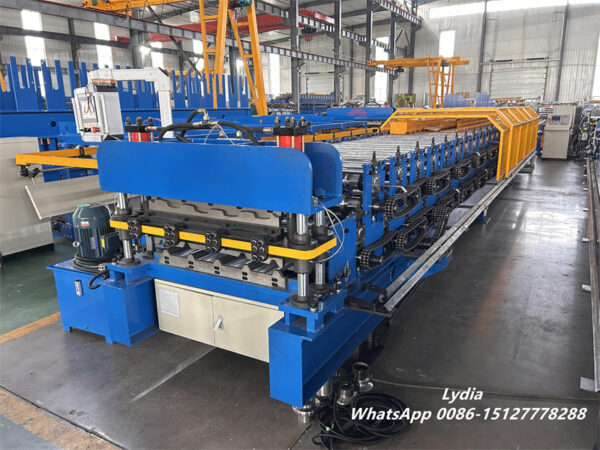

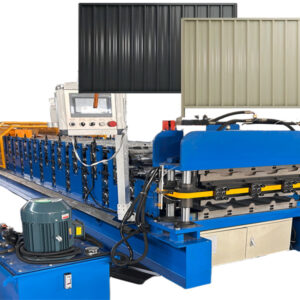

Unlike traditional production lines that manufacture only one profile, this equipment adopts a double-layer design. As a result, manufacturers can produce two different fence panel profiles using a single machine.
This design significantly reduces equipment investment while maximizing factory floor utilization.
Key benefits include:
- Produce two popular fence panel profiles on one machine
- Quick profile switching through clutch adjustment
- Fully automatic PLC-controlled operation
- Stable production speed up to 20 m/min
- Reduced labor requirements
- Lower maintenance costs
- Compact footprint for limited workshop space
- High precision forming with excellent profile consistency
Furthermore, the independent forming concept helps release internal stress during the roll forming process. Consequently, the finished panels maintain better dimensional accuracy and improved surface quality.
Advanced Components Improve Productivity and Reliability
The production line integrates several advanced systems that improve operational efficiency while ensuring long-term equipment durability.

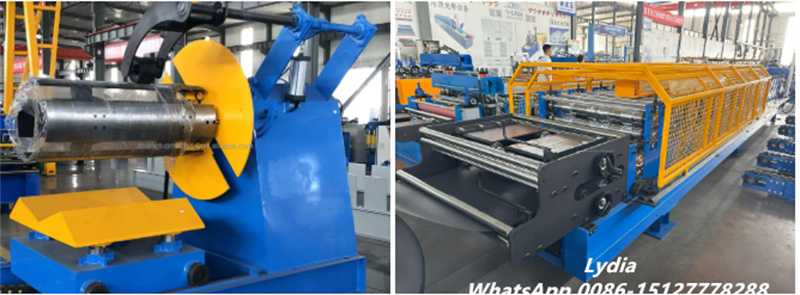

Hydraulic Decoiler
The hydraulic decoiler simplifies coil loading and improves workplace safety.
Its pneumatic hold-down arm effectively prevents coil spring-back during uncoiling, protecting operators from accidental injury. Meanwhile, the hydraulic expansion system reduces manual labor and increases loading efficiency.
Additionally, the optional coil loading car enables operators to handle heavy steel coils quickly and safely through remote control operation.

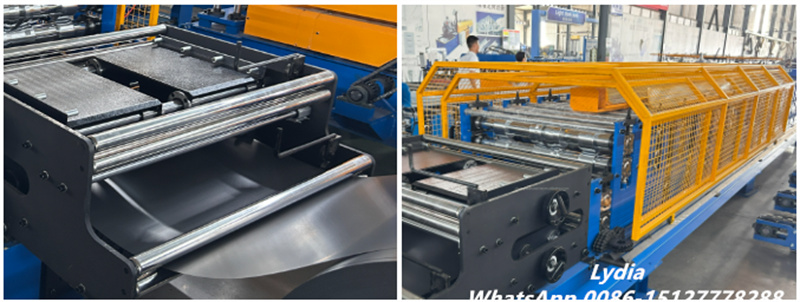

Precision Feeding System
To protect painted Colorbond surfaces, the machine utilizes nylon and plastic guide rollers. These rollers reduce friction while maintaining feeding accuracy.
At the same time, adjustable hand wheels allow operators to precisely control material positioning, ensuring smooth and stable feeding throughout the production process.

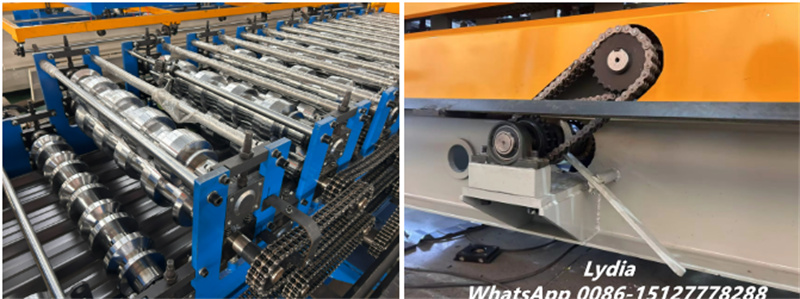

Independent Roll Forming Technology
The roll forming section features high-strength forged steel rollers with precision machining and hard chrome treatment.
As material passes through each forming station, the independent forming design gradually shapes the panel while minimizing internal stress. Consequently, manufacturers obtain straighter panels with improved dimensional consistency and superior finished appearance.
Intelligent Cutting and Control Systems
The machine incorporates both manual cutting and automatic hydraulic cutting functions.
The manual cutter allows operators to trim material whenever necessary during coil changes, reducing waste and lowering production costs. Meanwhile, the hydraulic post-cutting system delivers clean and accurate cuts without interrupting the forming process.
To further enhance equipment longevity, the cutting system includes an automatic lubrication device that continuously supplies oil to the cutting blades.
In addition, the Siemens PLC control system offers:
- User-friendly touch screen operation
- Multi-language interface options
- Production data monitoring
- Automatic length control
- Remote troubleshooting capability
- Easy electrical installation through aviation plugs
As a result, even new operators can quickly learn the system and achieve stable production performance.
Main Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Colorbond Metal Fence Panels |
| Machine Structure | 400mm H-Beam Frame |
| Roller Material | High-Grade 45# Forged Steel |
| Roller Surface Treatment | Hard Chrome Coating |
| Shaft Diameter | Φ80 mm Solid Shaft |
| Shaft Material | Heat-Treated 45# Steel |
| Forming Stations | 20 Stations + 20 Stations |
| Forming Speed | Up to 20 m/min (69 ft/min) |
| Main Motor Power | 7.5 kW |
| Hydraulic Power | 5.5 kW |
| Cutting Type | Hydraulic Post Cutting |
| Blade Material | GCr12 Quenched Steel |
| Drive System | Double 1-Inch Chain Transmission |
| Control System | Siemens PLC with Touch Screen |
| Power Supply | 380V / 50Hz / 3 Phase (Customizable) |
Optional Safety and Automation Upgrades
Manufacturers seeking higher automation levels can equip the machine with additional productivity-enhancing features.

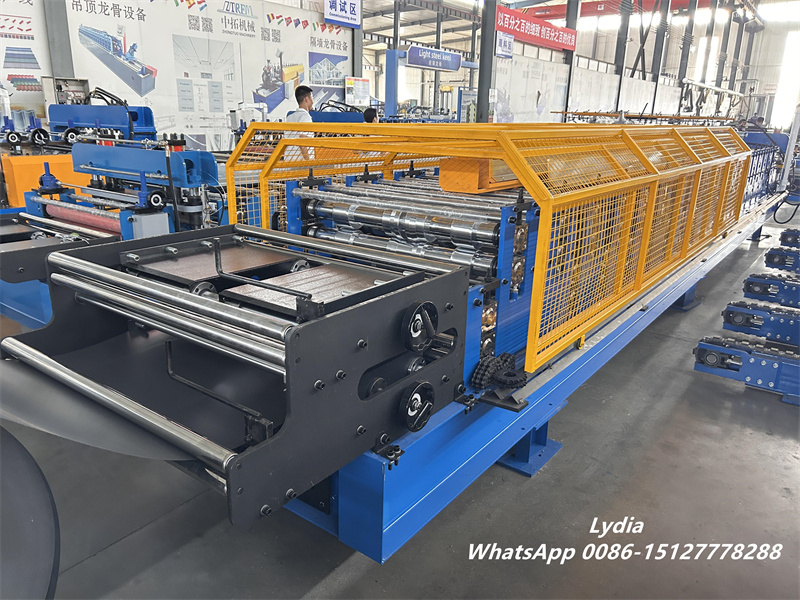

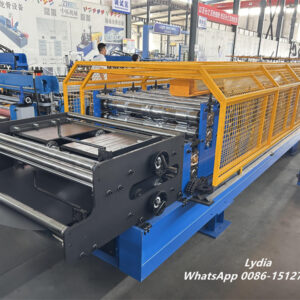

The optional protective enclosure uses a sliding rail structure that allows easy access during maintenance and setup. More importantly, it helps prevent debris from entering the forming area while improving worker safety and compliance with international safety standards.
An automatic stacking system is also available.
This system automatically receives and stacks finished fence panels, reducing manual handling and increasing overall production efficiency. Rubber wheels and nylon protection pads prevent scratches and preserve the finished product’s appearance during collection.
Furthermore, the hydraulic station can be upgraded with an intelligent air-cooling system and automatic temperature monitoring, allowing operators to continuously monitor hydraulic performance during long production runs.
Build High-Quality Fence Panels with Greater Efficiency
For manufacturers targeting the Australian and New Zealand fencing markets, investing in a reliable and flexible production line is essential. The Australia Colorbond Metal Fence Roll Forming Machine provides an efficient solution for producing multiple fence panel profiles while minimizing labor requirements and maximizing factory productivity.
With its robust construction, advanced automation, and precision forming technology, this machine enables fencing manufacturers to consistently deliver durable, attractive, and market-ready fence panels for a wide range of construction and security applications.
