In modern steel structure construction, efficiency and structural precision directly affect the quality and speed of a project. That is why more manufacturers and contractors are choosing the Automatic C Purlin Roll Forming Machine for producing high-strength roofing and wall support components.
This advanced production line continuously transforms steel coils into accurate C-shaped purlins through automated cold rolling technology. Compared with traditional fabrication methods, the machine delivers faster production, stable dimensions, lower labor costs, and consistent product quality. As a result, it has become an essential solution for factories, warehouses, agricultural buildings, prefabricated houses, and commercial steel structures.

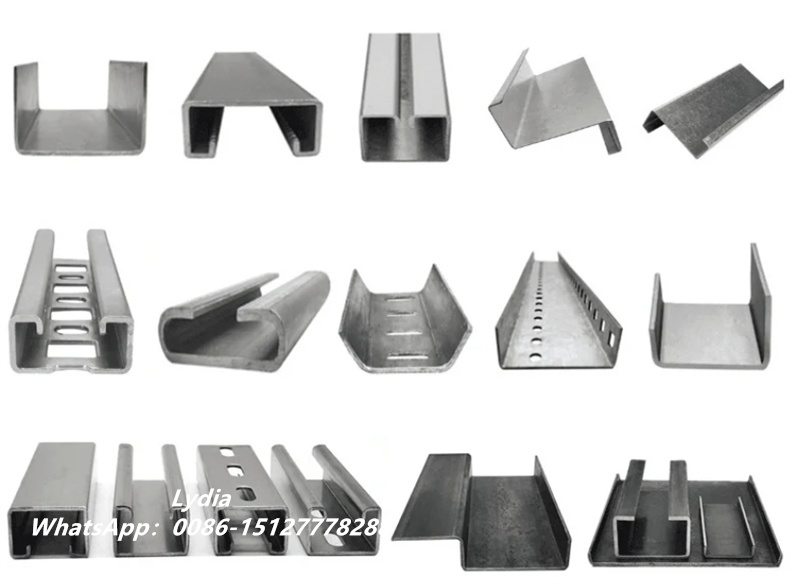

What Is a C Purlin and Why Is It Important?

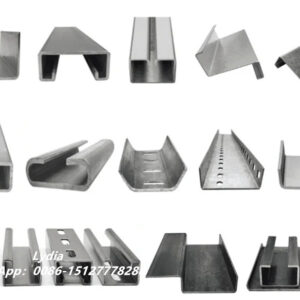

A C purlin, also known as a Cee purlin, is a cold-formed steel section with a C-shaped profile. Manufacturers widely use it as a secondary structural member in roofing systems, wall framing, mezzanine floors, and support structures.
Because of its lightweight design and excellent load-bearing capability, the C purlin helps reduce the total weight of steel buildings while maintaining structural stability. In addition, galvanized or cold-rolled steel materials provide strong corrosion resistance and long service life even in outdoor environments.
Unlike heavier traditional steel beams, C purlins simplify installation and transportation. Therefore, builders can complete projects more efficiently while reducing overall construction costs.

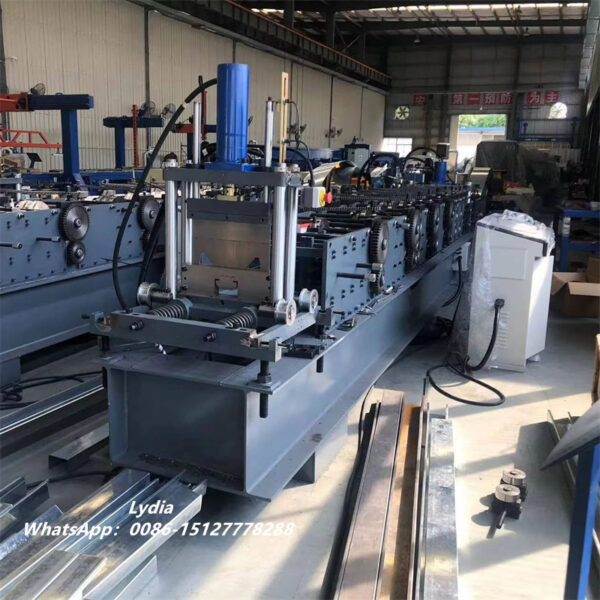

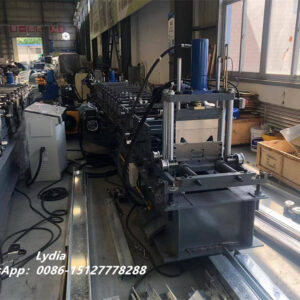

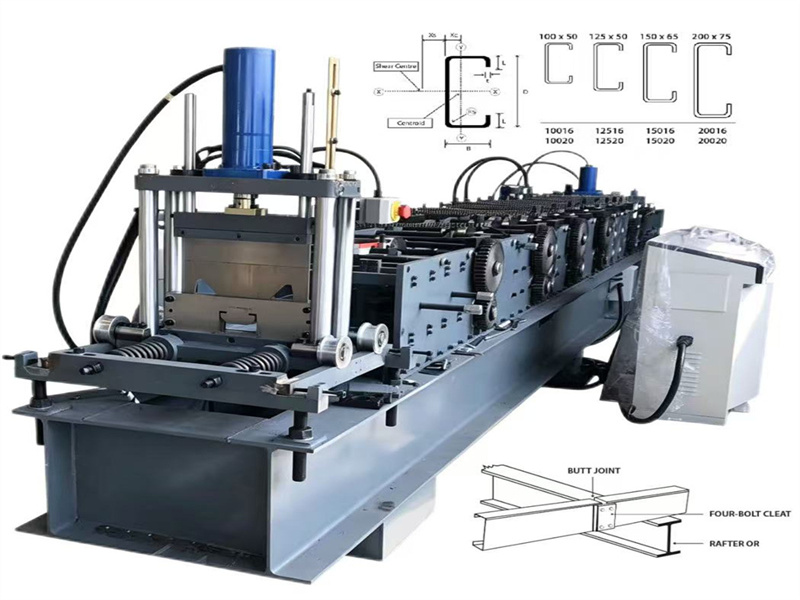

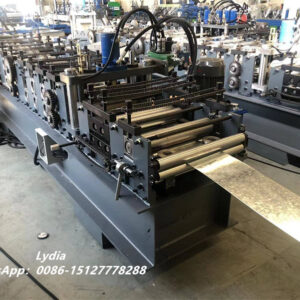

Automatic C Purlin Roll Forming Process

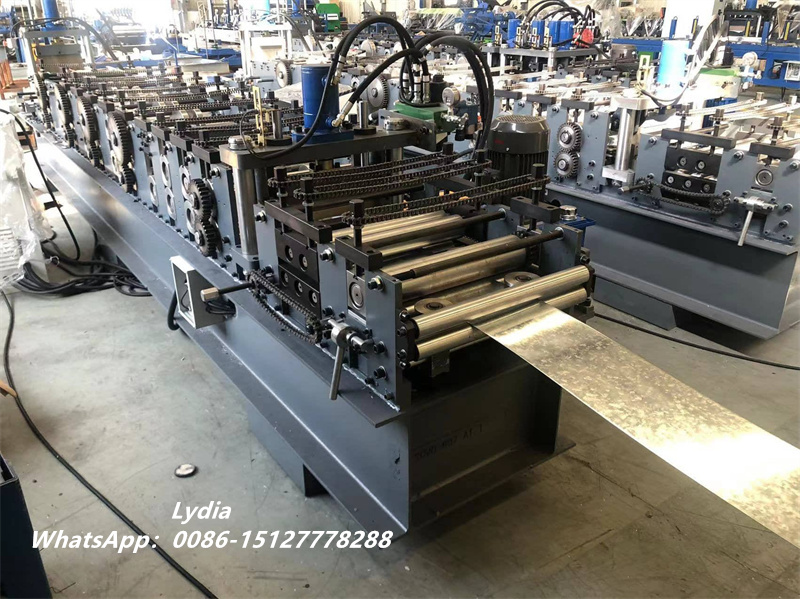

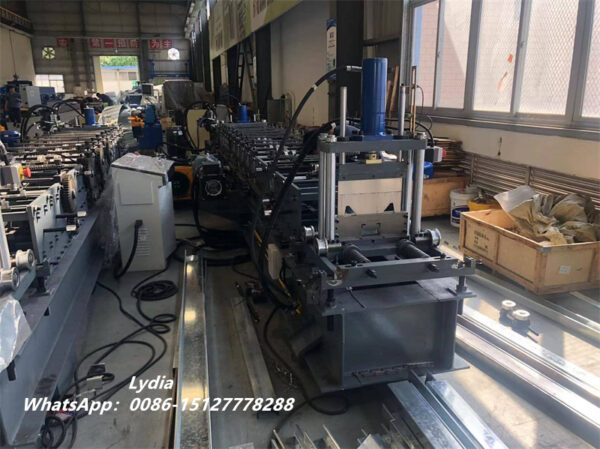

The C purlin roll forming machine operates through a continuous cold-forming process. First, the steel coil feeds into the production line from the decoiler. Then, leveling rollers flatten the material before it enters the roll forming section. After gradual shaping through multiple roller stations, the machine automatically performs punching and cutting according to preset dimensions.
Finally, finished purlins are collected through an automatic stacking system.
Main Production Components
| Equipment Section | Main Function |
|---|---|
| Decoiler | Supports and feeds steel coils |

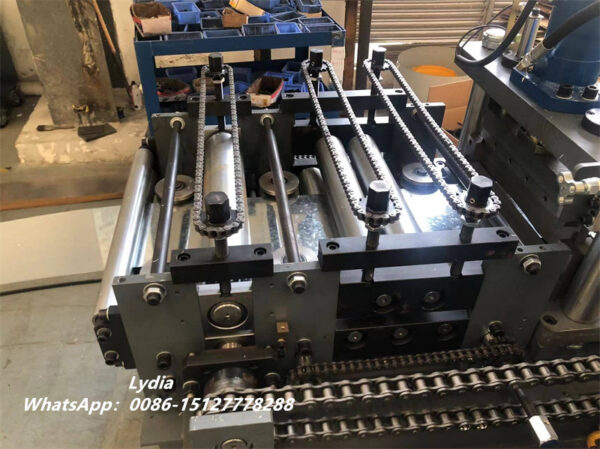

| Leveling Device | Flattens coil material for stable forming |

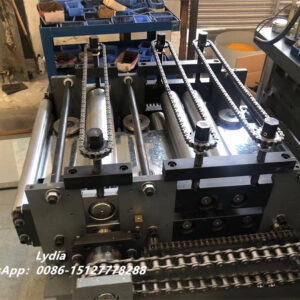

| Roll Forming Unit | Shapes steel into C profile continuously |
| Punching System | Creates installation holes automatically |

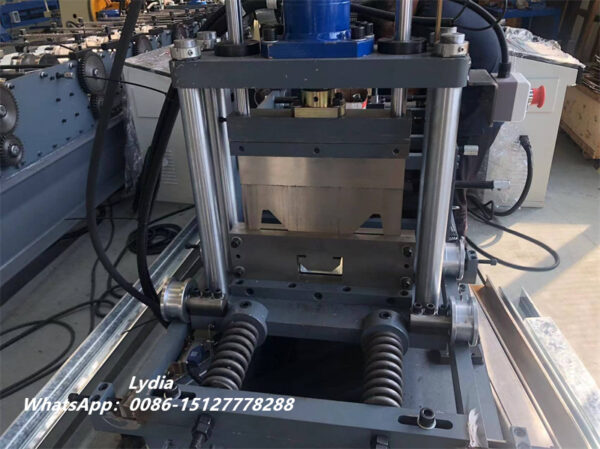

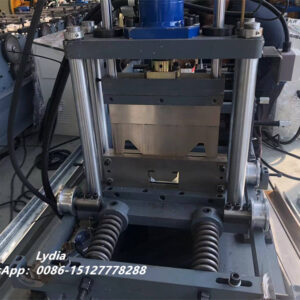

| Hydraulic Cutting Device | Cuts finished profiles precisely |
| PLC Control Cabinet | Controls production parameters automatically |
| Stacker | Collects finished purlins efficiently |
This fully automated workflow significantly improves production efficiency while minimizing manual operation.
Advantages of the Automatic C Purlin Roll Forming Machine
One of the biggest advantages of this machine is its flexibility. The system can automatically adjust web sizes from 50mm to 250mm within minutes, which greatly improves production efficiency for factories handling multiple profile sizes.
At the same time, the machine uses high-quality roller materials and hydraulic systems to ensure stable operation during long production cycles.
Moreover, the automated forming process guarantees uniform profile dimensions and smooth finished surfaces, which improves installation accuracy on construction sites.

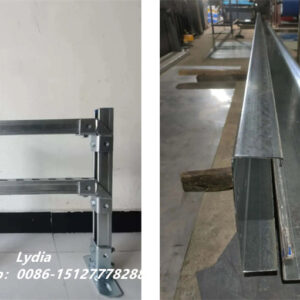

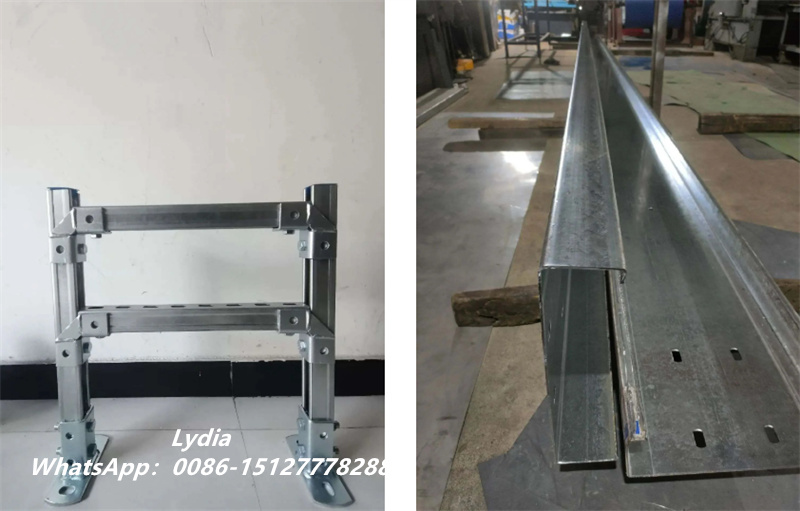

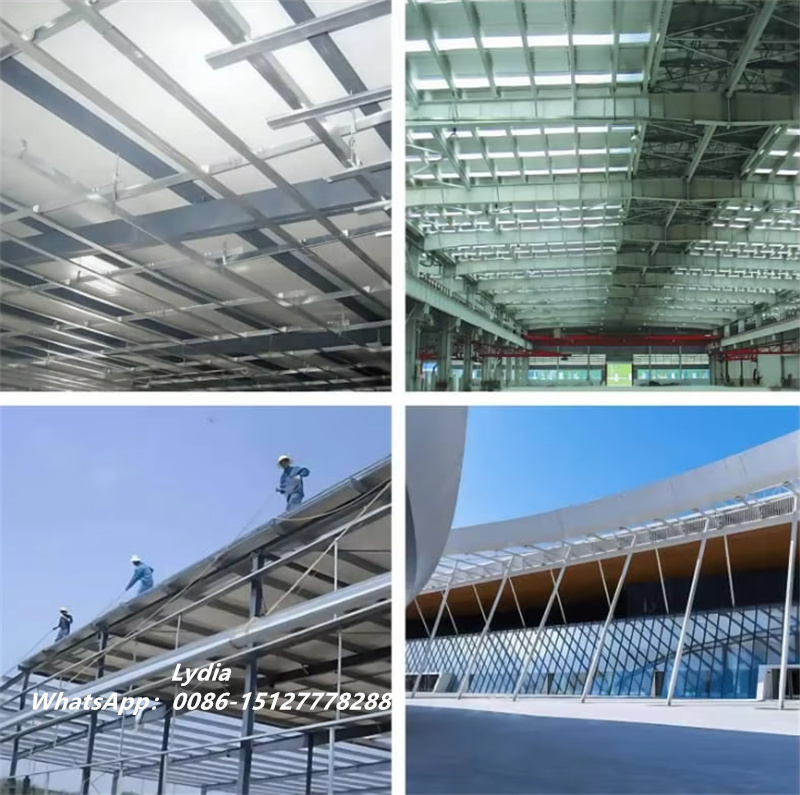

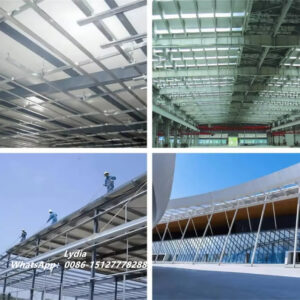

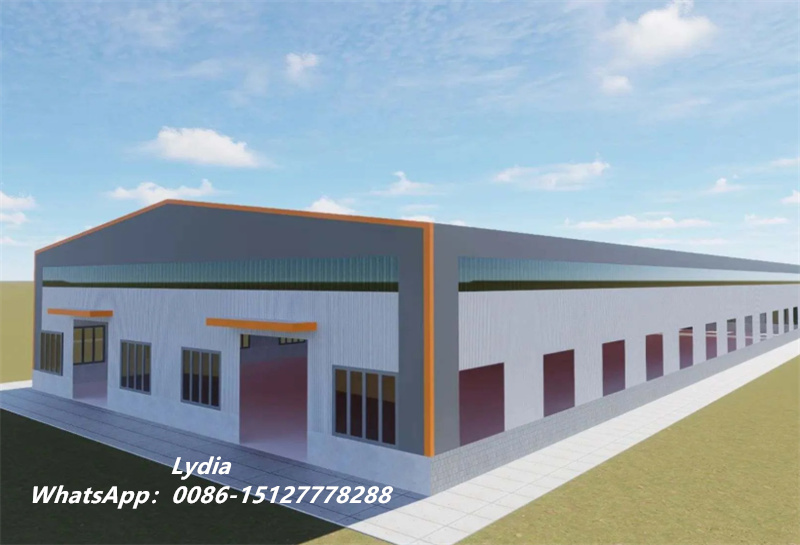

Applications of C Purlins in Steel Buildings
C purlins play a critical role in many steel structure projects because they provide stable support while keeping the building lightweight.
Manufacturers and contractors commonly use them in:
- Industrial workshops
- Prefabricated houses
- Agricultural buildings
- Warehouse roofing systems
For small and medium-span buildings, C purlins offer an economical and reliable structural solution. However, for extremely heavy-load or long-span projects, engineers may combine them with Z purlins or additional reinforcement systems.

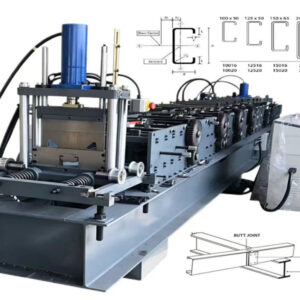

Technical Parameters of MC50-250 C Purlin Roll Forming Machine
| Item | Specification |
|---|---|
| Material Thickness | 0.8–2.5mm |
| Main Motor Power | 15kW / 18.5kW |
| Hydraulic Pressure | 16Mpa |
| Forming Speed | 6–18m/min |
| Forming Stations | 15 Stations |
| Shaft Material | 40Cr (Φ70) |
| Roller Material | Cr12 Vacuum Heat Treatment |
| Blade Material | Cr12Mov |
| Control System | PLC Automatic Control |
| Machine Dimension | 7m × 1.2m × 1.5m |
The machine is especially suitable for lightweight steel structures, container houses, and prefabricated building projects where production flexibility and efficiency are essential.
Reliable for Modern Purlin Machine
As steel construction technology continues to evolve, manufacturers require faster and more intelligent production equipment. The Automatic C-Shaped Purlin Roll Forming Machine combines automation, precision, and durability into one integrated solution.
By improving production speed, reducing labor costs, and ensuring consistent product quality, this machine helps steel structure manufacturers remain competitive in today’s global construction market.
Whether you produce roofing support systems, wall framing components, or prefabricated building materials, investing in a high-quality C purlin roll forming machine can significantly enhance your manufacturing capability and project efficiency.
