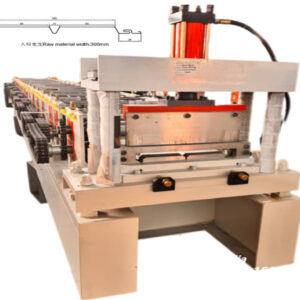

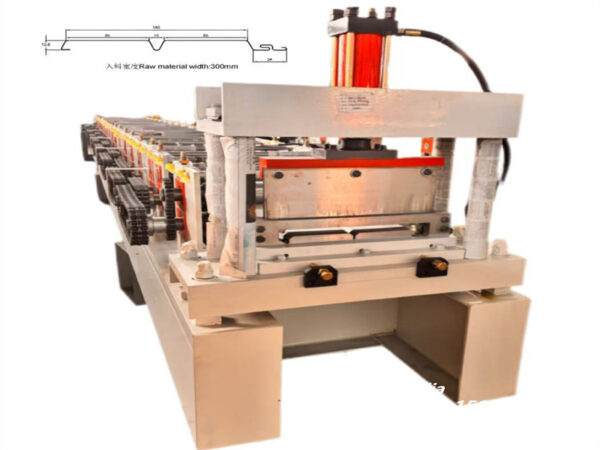

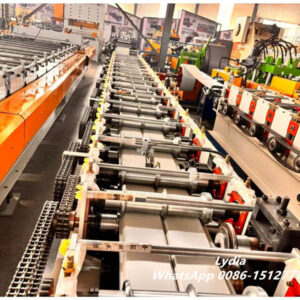

Zhongtuo Automatic Trapezoidal Metal Wall Panel Roll Forming Machine for Exterior Cladding Systems

In today’s construction industry, architects and contractors are demanding wall systems that combine structural durability, modern appearance, and fast installation. The Trapezoidal Exterior Wall Cladding Roll Forming Machine is specially designed to manufacture high-strength metal wall panels with clean trapezoidal profiles for industrial, commercial, and architectural projects.

By transforming flat steel coils into precision-shaped cladding panels, this machine helps manufacturers produce durable exterior wall systems with excellent wind resistance, waterproof performance, and long service life. At the same time, its advanced roll forming technology ensures stable production, accurate dimensions, and smooth panel surfaces.

Unlike traditional curved profiles, trapezoidal wall panels create a sharper and more contemporary architectural style. Therefore, they are widely used in factories, warehouses, logistics centers, shopping malls, workshops, and high-end residential projects.

Wide Applications for Different Building Projects

The machine can produce versatile metal wall panels suitable for many building types and climate conditions. Because trapezoidal profiles provide outstanding structural support, they are especially popular in large-span steel structure buildings.

Typical Application Areas

In addition, these wall panels can work together with glass curtain walls, concrete structures, wood decoration, and insulated wall systems to create modern architectural façades.

Stable Roll Forming Structure for Continuous Production

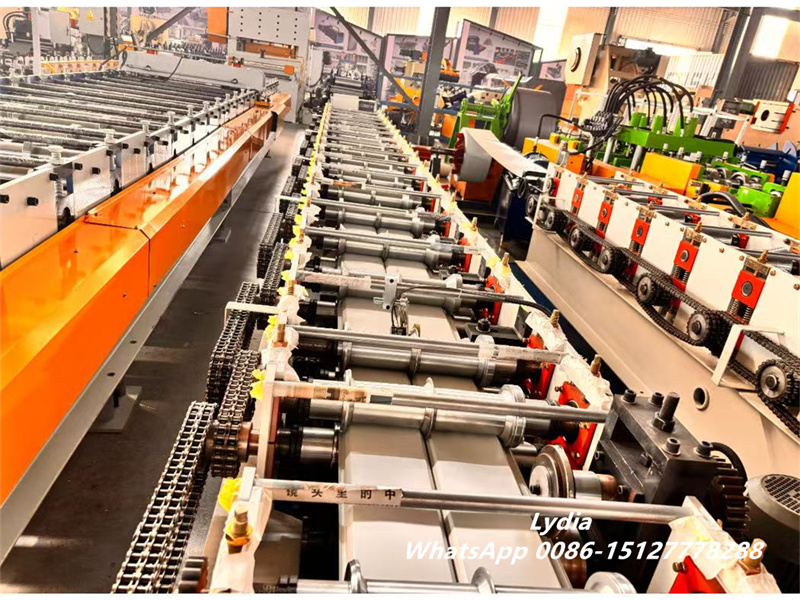

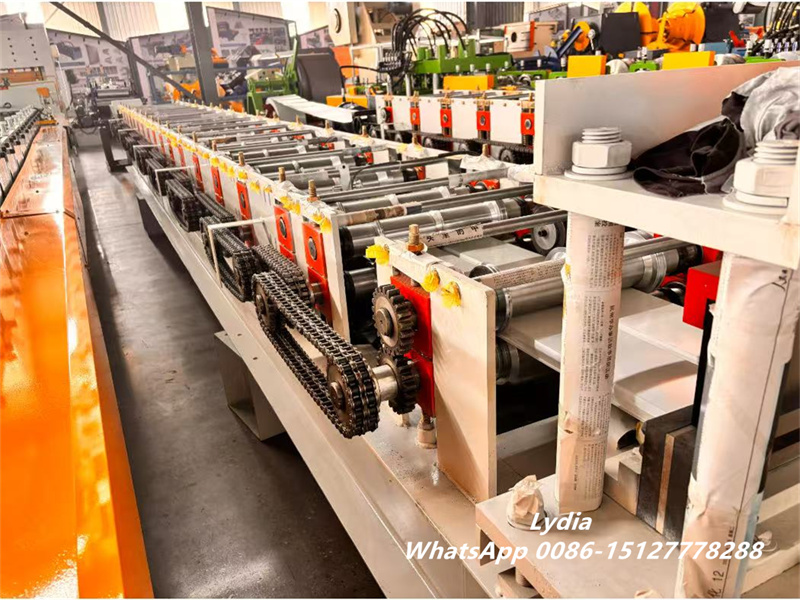

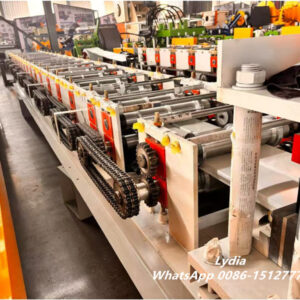

To ensure long-term production stability, the machine adopts a heavy-duty frame structure combined with precision-machined rollers. As a result, the forming process remains smooth even during high-speed operation.

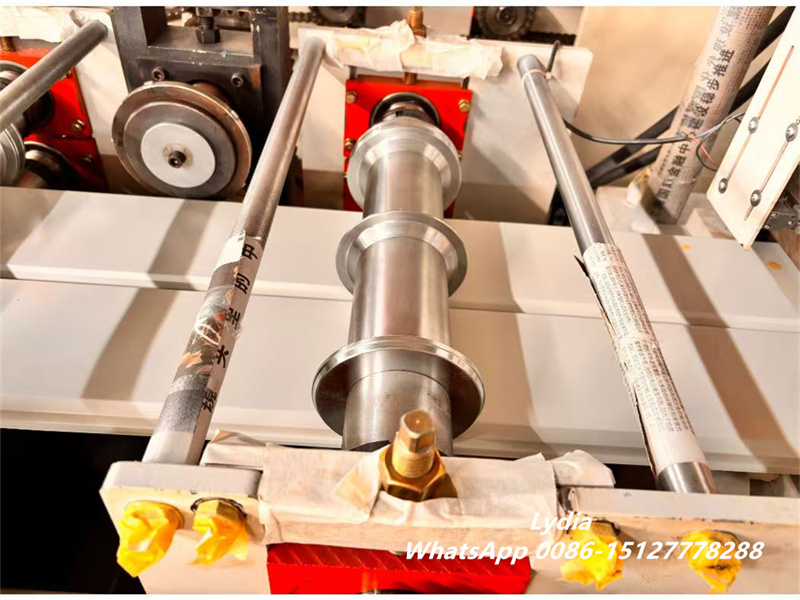

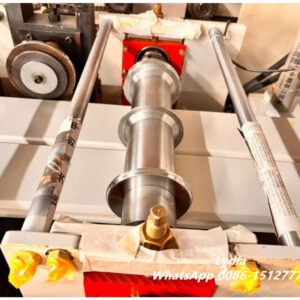

The equipment uses high-quality 45# steel rollers with heat treatment, which improves wear resistance and extends service life. Meanwhile, the 65mm solid shafts provide strong support during continuous forming.

Main Technical Parameters

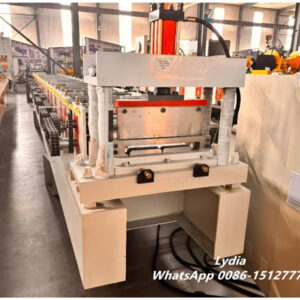

Furthermore, the PLC control system simplifies machine operation and improves production accuracy. Operators can easily adjust cutting length, production quantity, and working speed directly from the touchscreen interface.

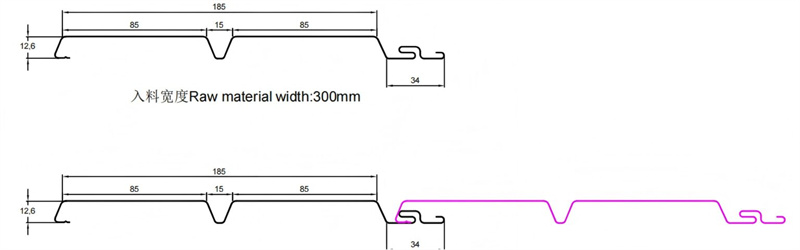

High-Strength Trapezoidal Panels with Excellent Performance

One of the biggest advantages of trapezoidal wall panels is their superior structural strength. The specially designed trapezoidal ribs distribute external pressure more evenly across the panel surface. Consequently, the finished products can withstand stronger wind loads and environmental stress.

At the same time, the deep rib structure creates an efficient drainage channel. Rainwater can quickly flow away from the wall surface, reducing the possibility of leakage and improving waterproof performance.

Moreover, the straight-line geometry of trapezoidal panels gives buildings a clean and modern appearance. Designers can also combine different panel colors and installation directions to create unique façade effects.

Because of these advantages, trapezoidal wall panels have become an increasingly popular solution for modern metal building systems.

Faster Production with Servo Cutting Technology

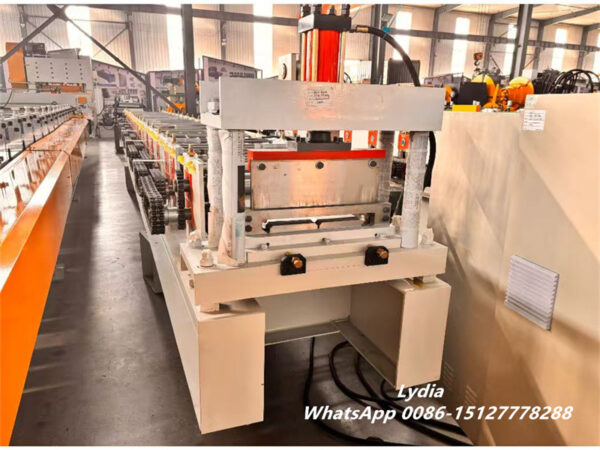

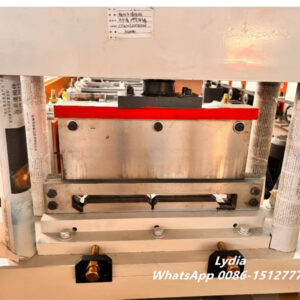

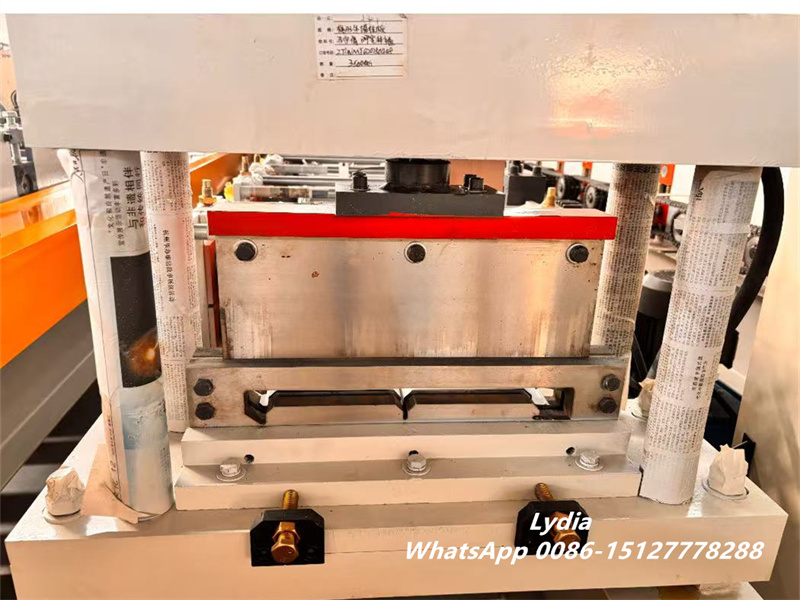

To improve manufacturing efficiency, the machine adopts advanced servo tracking cutting technology. During production, the hydraulic cutter moves synchronously with the panel speed, allowing continuous cutting without stopping the roll forming line.

This flying-cutting design brings several important benefits:

• Higher production efficiency
• Smooth and clean cutting edges
• Reduced material waste
• Lower mechanical impact during operation
• Better dimensional consistency

In addition, the flexible roll forming structure allows manufacturers to adjust panel specifications according to market demand. By changing roller configurations or adjusting forming parameters, the machine can produce different trapezoidal profiles efficiently.

Therefore, manufacturers can respond faster to customized orders and multi-specification production requirements.

Reliable Surface Protection and Attractive Finishing

For architectural projects, surface quality is just as important as structural performance. Therefore, the machine integrates a precise tension control system to protect coated steel surfaces during forming.

The feeding section can apply PE protective film smoothly and evenly, preventing scratches, stains, or surface damage during transportation and installation.

Meanwhile, high-quality color-coated steel combined with modern coating technology provides:

• Excellent corrosion resistance
• Long-lasting color retention
• Reduced maintenance cost
• Enhanced architectural appearance
• Better weather resistance

As a result, the finished wall panels maintain their clean and attractive appearance for many years, even in harsh outdoor environments.

The Trapezoidal Exterior Wall Cladding Roll Forming Machine combines production efficiency, structural reliability, and architectural aesthetics into one integrated solution. Whether for industrial facilities, commercial buildings, or modern residential projects, this machine helps manufacturers produce high-quality metal wall panels with stable performance and competitive production costs.

With adjustable specifications, automatic PLC control, and high-speed continuous forming capability, it is an ideal choice for companies looking to expand their metal wall panel production business and meet the growing demand for modern building façade systems.
