Zhongtuo Container House Bottom Beam Roll Forming Machine 160 Type Steel Frame Forming Machine

The Container House Bottom Beam Roll Forming Machine is an advanced automatic production system designed to manufacture galvanized steel bottom beams, sectional channels, and structural components for modular container houses. As the global demand for prefabricated buildings continues to grow, container house manufacturers increasingly rely on efficient roll forming technology to produce accurate and durable steel frames.

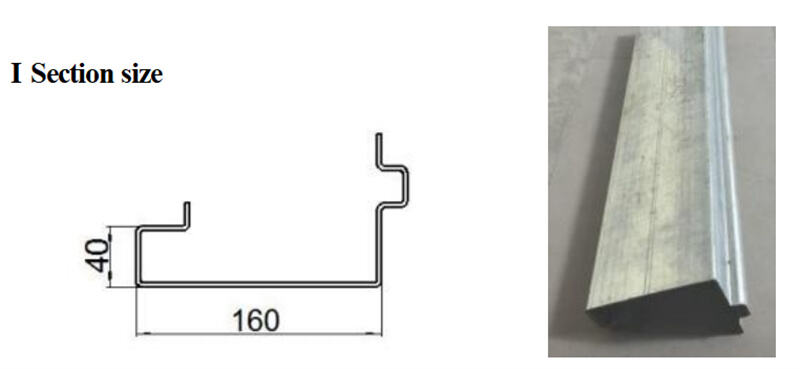

This 160 Type Bottom Beam Forming Equipment is specially developed for producing high-strength container house frame components with a thickness range of 2.0-3.0mm galvanized steel coils. The machine integrates material feeding, leveling, punching, roll forming, straightening, hydraulic cutting, and discharging into one complete production line, helping manufacturers achieve faster production and consistent product quality.

Compared with traditional manual fabrication methods, the container house beam roll forming process improves dimensional accuracy, reduces material waste, and simplifies on-site assembly. It is widely used by modular house factories, steel structure manufacturers, and prefabricated construction companies.

Efficient Solution for Container House Steel Frame Manufacturing

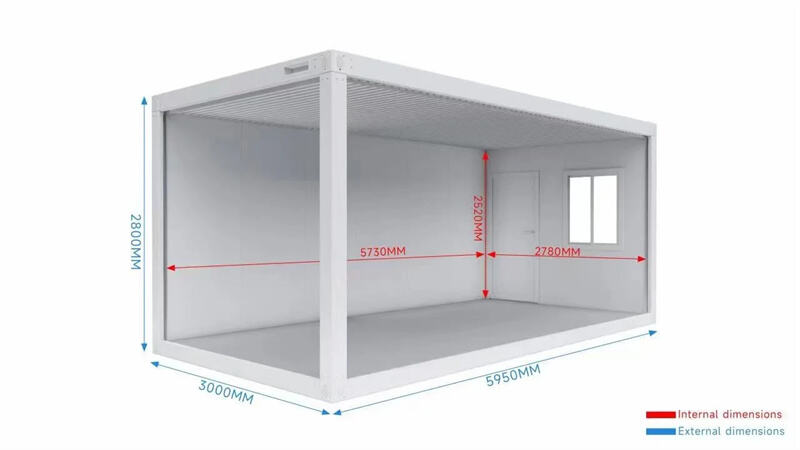

A complete container house structure mainly consists of side columns, top beams, and bottom beams. Therefore, manufacturers usually require different roll forming machines to produce these key components. The Container House Bottom Beam Roll Forming Machine focuses on producing precise bottom sectional beams that provide strong support for the entire container structure.

The machine uses multiple sets of forming rollers to gradually shape flat galvanized steel coils into the required beam profile. Each roller station performs a specific forming function, ensuring smooth deformation and maintaining the strength of the final product.

During production, the steel coil passes through the following process:

Uncoiling → Feeding & Leveling → Roll Forming → Straightening → Hydraulic Cutting → Discharging

This continuous production method allows operators to manufacture large quantities of container house beams with stable dimensions and excellent surface quality.

Because all structural components are produced in advance inside the factory, builders can quickly assemble container houses at construction sites. This approach reduces construction time, minimizes environmental impact, and improves overall project efficiency.

Advanced Structure and Reliable Performance of Bottom Beam Forming Equipment

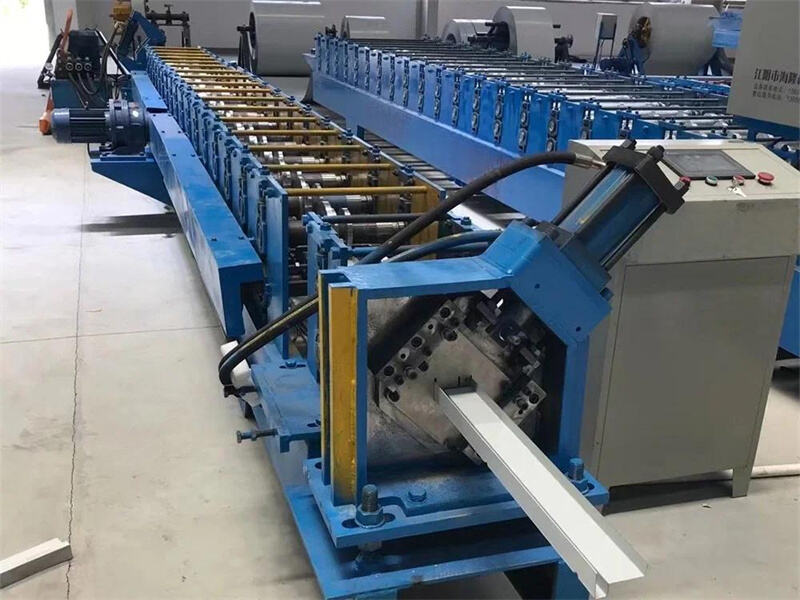

The 160 Type Bottom Beam Forming Machine adopts a heavy-duty welded frame structure and precision mechanical components to ensure stable operation during continuous production.

The machine is equipped with a manual decoiler, leveling system, punching unit, forming section, cutting system, PLC control cabinet, hydraulic station, and finished product collection table. Through automatic control, operators can easily adjust production parameters and maintain consistent output quality.

The forming rollers are manufactured from Gr15SiMn bearing steel with quenching and chrome plating treatment, providing excellent wear resistance and long service life. The main shafts use 40Cr steel with tempering treatment, which enhances strength and durability under high production loads.

Meanwhile, the cutting blades are made from Cr12MoV die steel and processed through vacuum quenching technology, ensuring accurate cutting performance and reducing maintenance frequency.

Technical Parameters of Container House Bottom Beam Roll Forming Machine

The following specifications demonstrate the machine’s strong production capability and industrial reliability:

With this optimized design, the machine delivers stable forming performance while meeting the requirements of modern container house production.

Automatic Production Process for Modular Container Houses

The biggest advantage of using a Container House Frame Forming Machine is that it allows manufacturers to complete structural component production in a controlled factory environment.

The galvanized steel coil first enters the leveling section, where the machine removes material deformation and prepares the sheet for forming. Next, the forming rollers gradually bend the material into the required bottom beam shape. After forming, the hydraulic cutting system automatically cuts the profiles according to preset lengths.

This automated process provides several benefits:

• Consistent beam dimensions for easier assembly
• Reduced dependence on skilled manual labor
• Faster production speed for large projects
• Lower material waste
• Improved structural reliability

After production, finished beams can be transported directly to construction sites and assembled together with columns, roof beams, doors, windows, and wall panels to create complete container houses.

Applications of Container House Beam Roll Forming Machine

The Container House Bottom Beam Roll Forming Machine is mainly used for manufacturing structural components in various prefabricated building projects.

Typical applications include:

• Modular container houses
• Foldable container homes
• Prefabricated steel buildings
• Temporary construction facilities
• Portable offices
• Steel frame housing systems

The machine can also be customized according to different container house designs, profile dimensions, and production requirements. Whether customers need standard container frames or special structural sections, the equipment can provide a flexible manufacturing solution.
