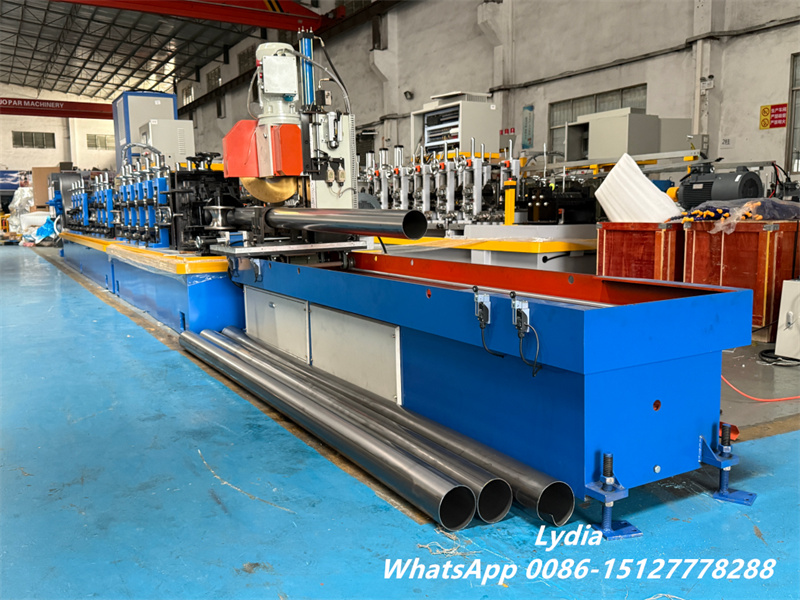

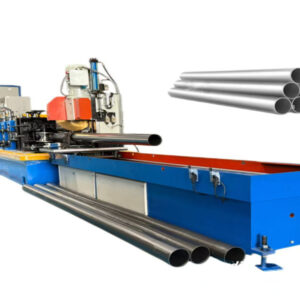

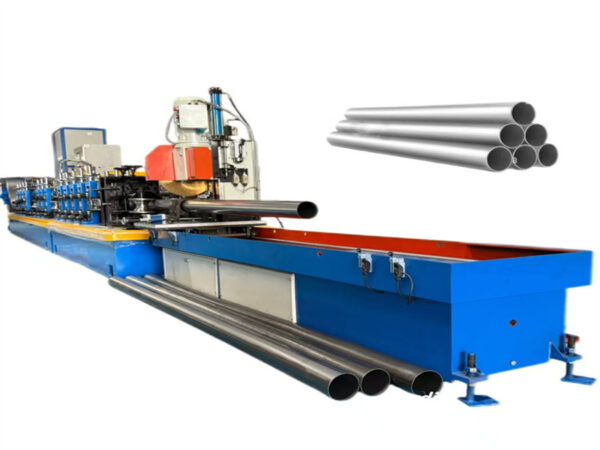

The Customized Laser Welding Pipe Manufacturing Machine is a high-precision industrial solution designed for modern tube production lines. It integrates advanced laser welding technology with automated roll forming systems to manufacture stainless steel pipes used in industries such as HVAC systems, automotive exhaust, sanitary piping, and fluid transport. Compared with conventional welding methods, this system significantly improves production speed, weld quality, and dimensional accuracy, making it a key upgrade for intelligent pipe manufacturing.
Advanced Laser Welding Technology for Modern Pipe Machine
This machine adopts high-energy laser welding as its core process. Unlike traditional welding methods that rely on broad heat input, the laser beam is transmitted through optical fiber and precisely focused on the pipe seam. As a result, energy is highly concentrated, enabling instant melting and deep penetration welding.
Moreover, this precise heat control minimizes thermal distortion. The heat affected zone is extremely small, which helps maintain the original shape and structural integrity of the pipe. Therefore, manufacturers can achieve higher dimensional accuracy while reducing rework and material waste.
In addition, laser welding forms a stable and uniform weld seam. The joint is smooth, dense, and nearly free from porosity or spatter. In many cases, post-weld polishing is not required, which further reduces production cost and improves efficiency.
High Efficiency and Stable Industrial Performance
One of the most important advantages of this system is its outstanding production speed. The welding line can operate at speeds of up to 20 meters per minute or even higher depending on material and thickness. Consequently, it meets the demands of large-scale continuous production.
At the same time, the machine ensures stable operation under long working cycles. Automated control systems maintain consistent welding parameters, reducing human error and ensuring uniform product quality throughout the entire production process. Therefore, manufacturers benefit from both high output and reliable performance.

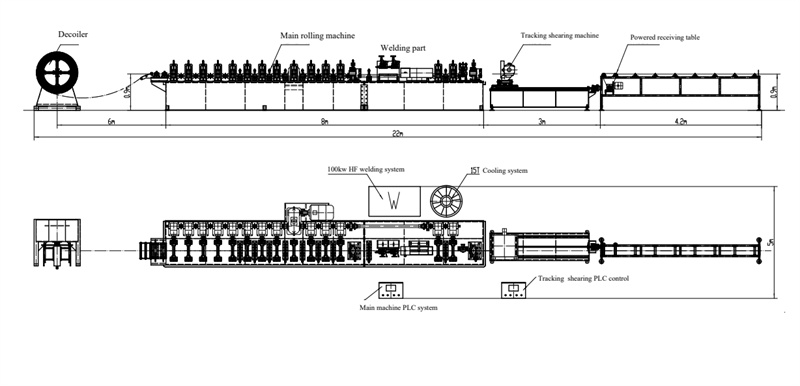

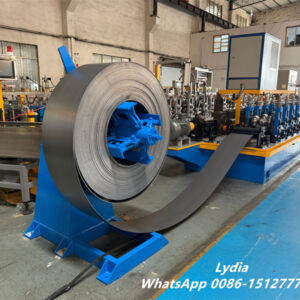

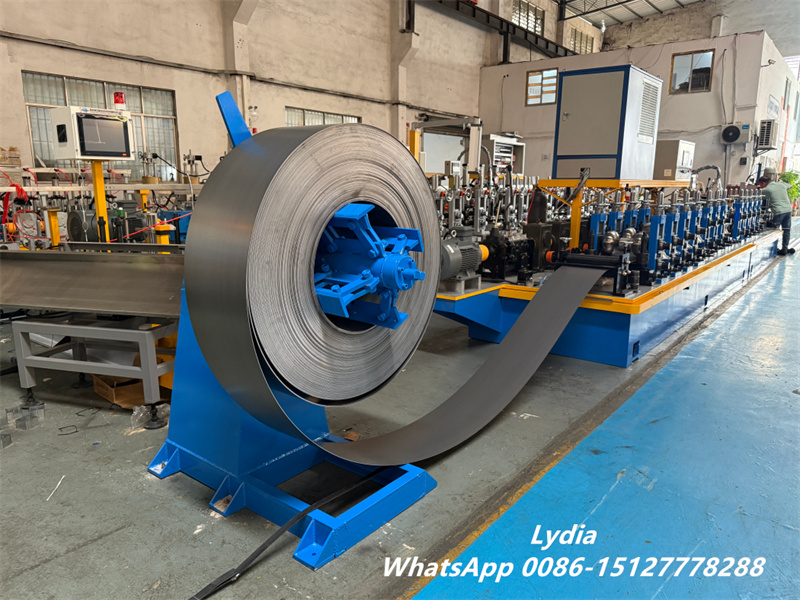

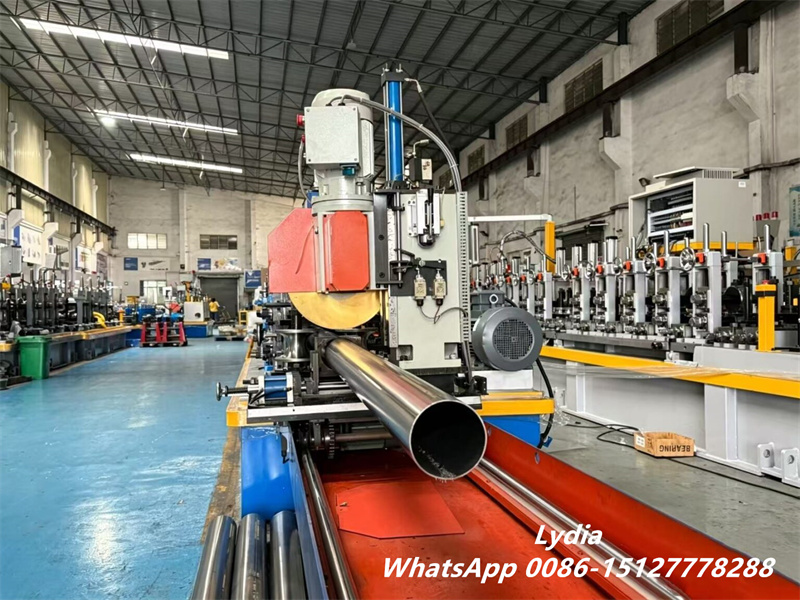

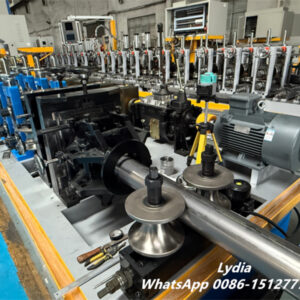

Furthermore, the integration of roll forming and laser welding pipe machine technology in one line improves workflow efficiency. Coil feeding, forming, welding, and cutting are completed in a continuous process, which greatly shortens production time.
Wide Industrial Applications Across Multiple Fields
The laser welded pipe production line is widely used in various industrial sectors due to its versatility and precision. For example, in automotive systems, it is used for manufacturing exhaust pipes, mufflers, and catalytic converter housings. These components require excellent heat resistance, sealing performance, and durability.
In fluid transport systems, the machine produces fuel pipes, brake lines, hydraulic tubes, and air-conditioning pipelines. These applications demand smooth inner walls, high-pressure resistance, and leak-proof welding quality. Therefore, stainless steel pipe manufacturing machine solutions based on laser technology are ideal for stainless steel, aluminum alloy, and copper alloy materials.
Additionally, in structural applications, it is used for producing seat frames, door impact beams, roof racks, and chassis reinforcement pipes. These components benefit from lightweight design combined with high strength, improving both safety and performance in automotive manufacturing.
Technical Parameters and Machine Models
To meet different production requirements, the equipment is available in multiple models. Each model is designed for specific pipe sizes and thickness ranges, ensuring flexible production capability.

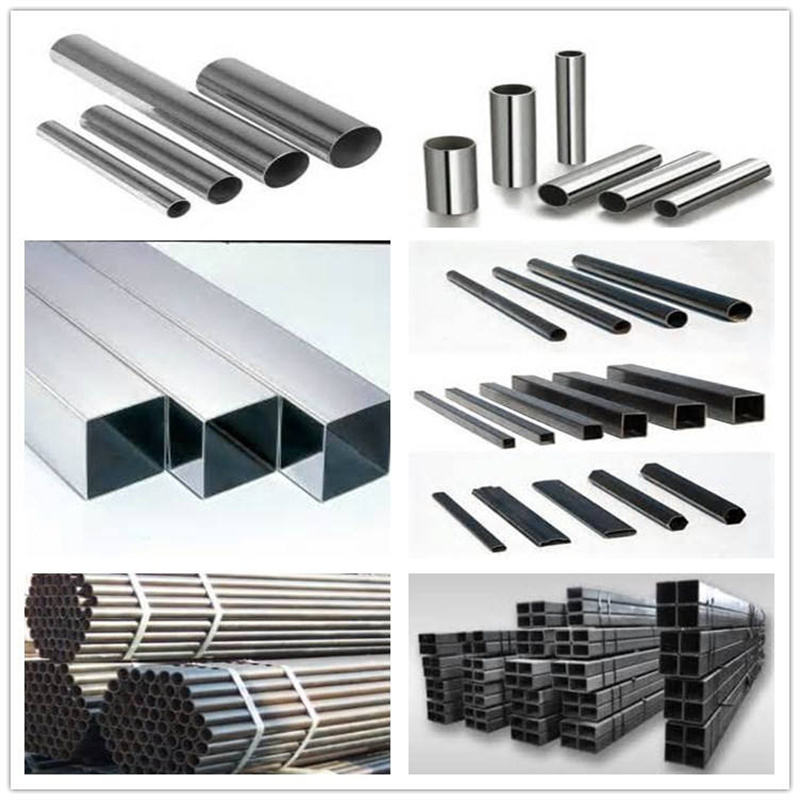

| Machine Model | Wall Thickness | Pipe Diameter | Round Pipe Range | Square Pipe Range | Rectangular Pipe Range |
|---|---|---|---|---|---|
| HG-32 | 0.4–2.5mm | 10–45mm | OD 10–45mm | 10×10–35×35mm | 10×10–30×40mm |
| HG-50 | 0.4–2.5mm | 10–45mm | OD 10–45mm | 10×10–35×35mm | 10×10–30×40mm |
| HG-76 | 0.4–2.5mm | 10–45mm | OD 10–45mm | 10×10–35×35mm | 10×10–30×40mm |
| HG-127 | 0.4–2.5mm | 10–45mm | OD 10–45mm | 10×10–35×35mm | 10×10–30×40mm |
Because of this flexible configuration, manufacturers can easily adjust production specifications without changing the entire system, which greatly improves operational adaptability.
Intelligent Control and Future-Oriented Manufacturing

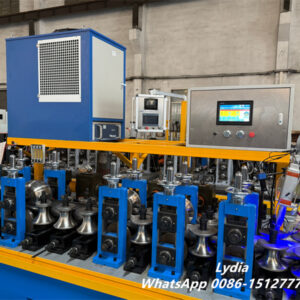

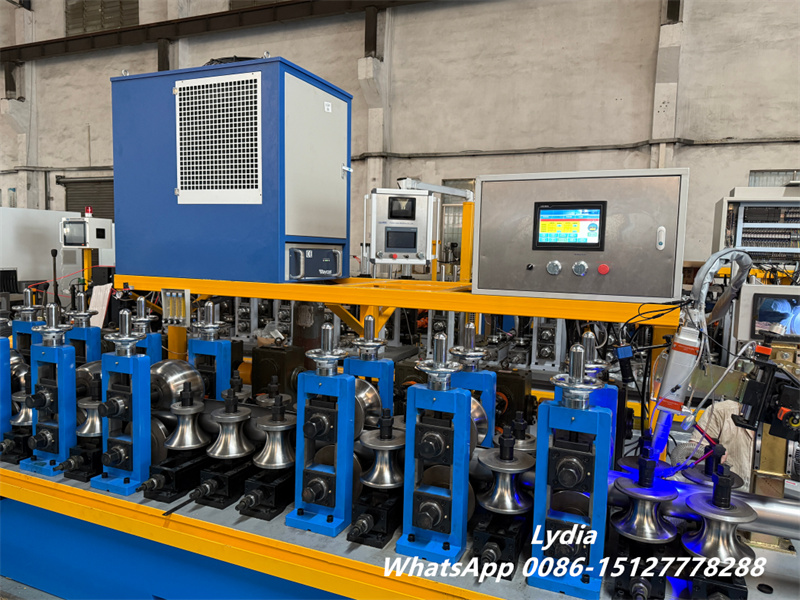

In addition to mechanical precision, the system also features intelligent control technology. Operators can monitor and adjust welding parameters through a digital interface, ensuring consistent quality and easy operation. This reduces the need for highly specialized labor while improving overall production stability.
Moreover, the machine is designed with future industrial requirements in mind. As manufacturing continues to move toward automation and smart factories, this laser welding pipe machine provides a strong foundation for digitalized and high-efficiency production.
In summary, the Customized Laser Welding Pipe Manufacturing Machine combines precision laser welding technology, automated roll forming, and intelligent control into one advanced production system. It delivers superior weld quality, high-speed operation, and wide material compatibility, making it an essential solution for modern pipe manufacturing industries. As production demands continue to increase, this technology offers a reliable path toward higher efficiency, better quality, and smarter industrial upgrading.
