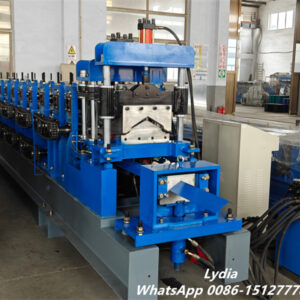

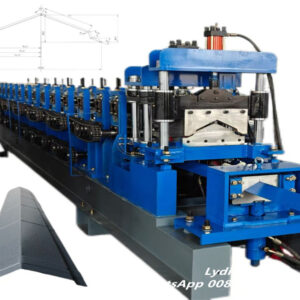

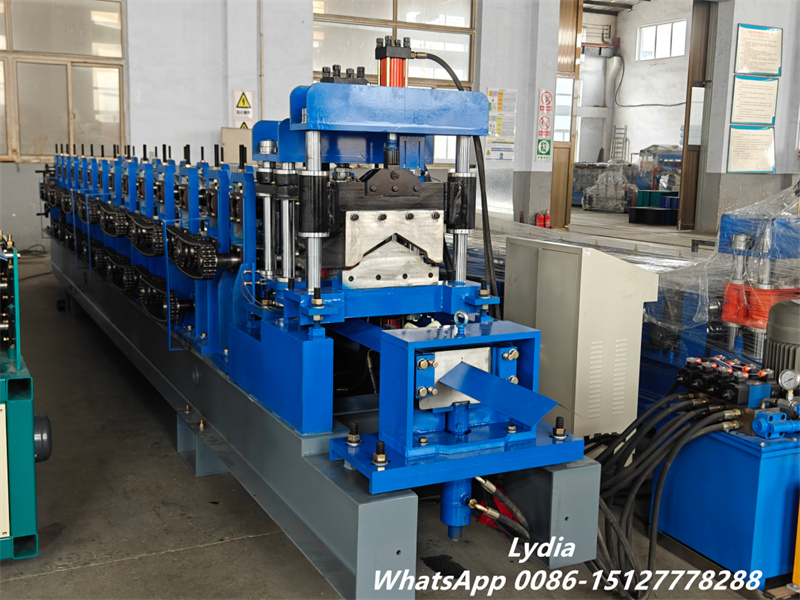

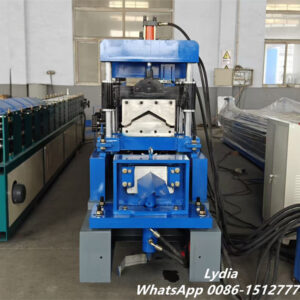

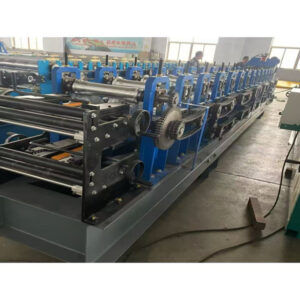

Double Layer Ridge Cap Roll Forming Machine

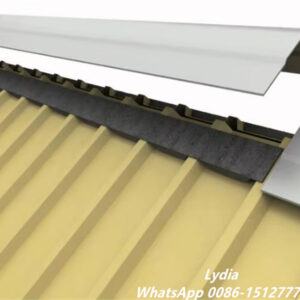

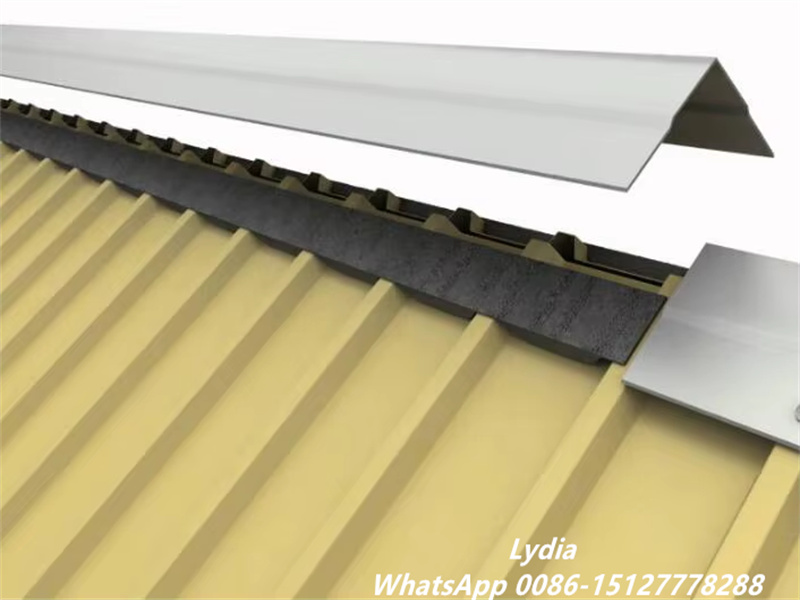

Looking for a versatile and durable ridge cap roll forming machine for your roofing projects? Our Double Layer Ridge Cap Roll Forming Machine is designed to connect roofs, roof ridges, and beams efficiently, producing high-quality ridge caps with consistent precision.
Multi-Function Production

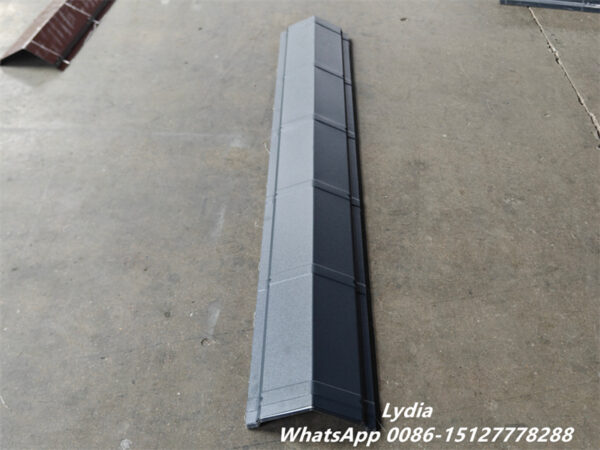

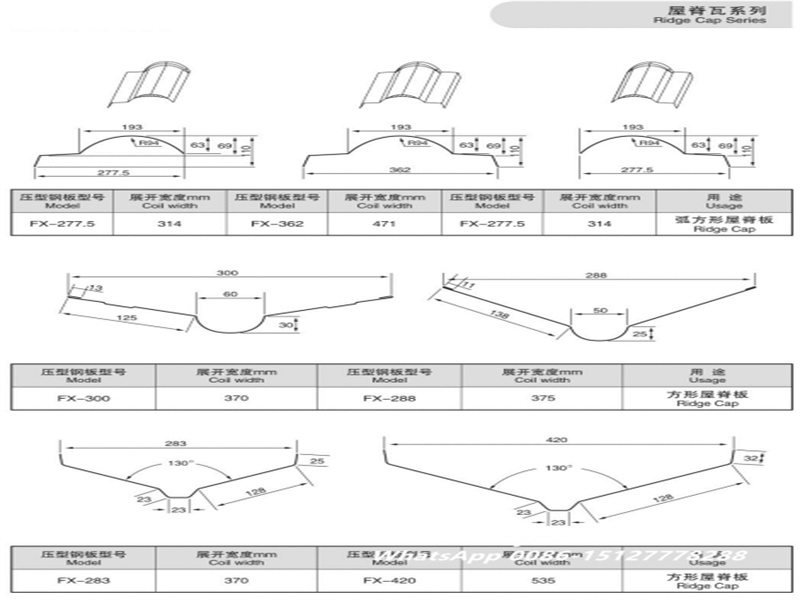

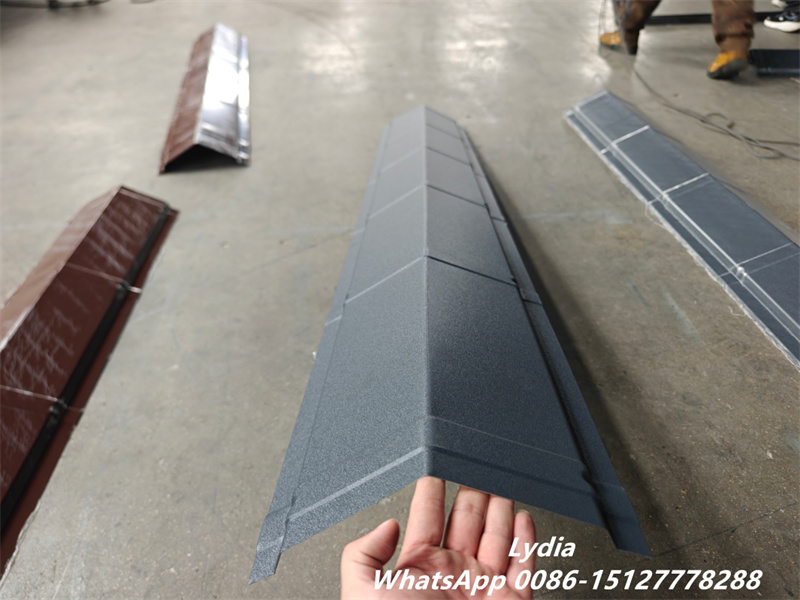

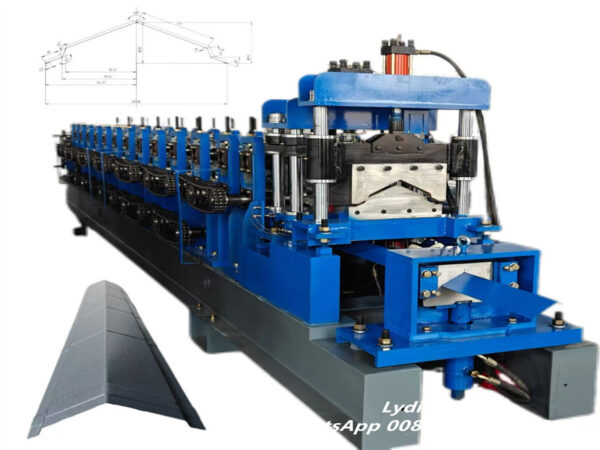

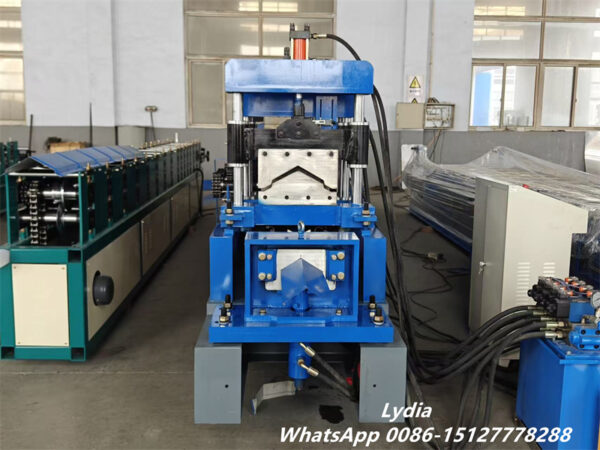

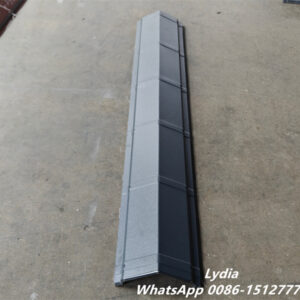

This machine can produce two types of ridge caps in a single line: trapezoidal ridges and glazed ridges. By integrating multiple functionalities into one unit, it reduces production costs, saves space, and maximizes output efficiency.

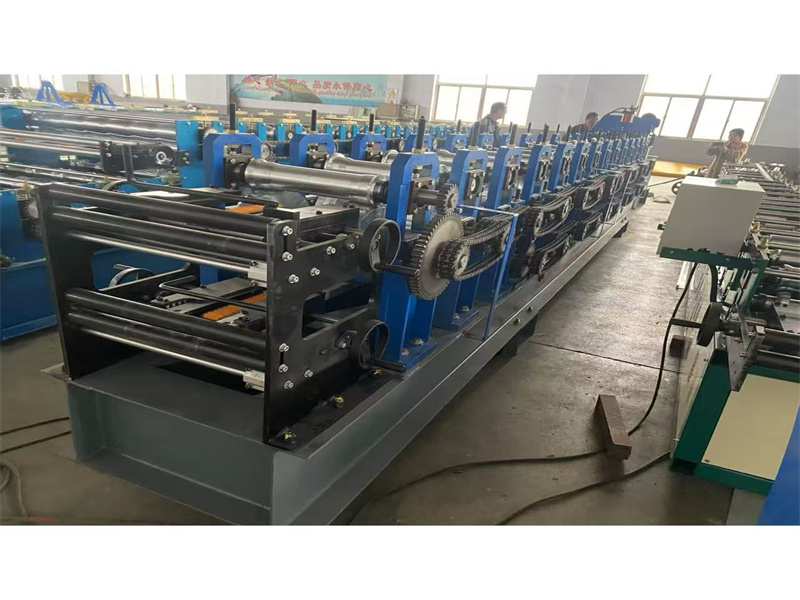

The rollers and shafts are made of high-quality 45# steel with a modulated electroplating process, offering high hardness and long service life. This robust construction ensures long-term production without frequent maintenance.
Technical Specifications of Double Layer Ridge Cap Roll Forming Machine
| Feature | Specification |
|---|---|
| Suitable Material | Color Alu-Zinc Steel Coil |
| Roller | 12 Rows |
| Machine Dimensions | 2.6 × 1.5 × 1.6 m |
| Motor Power | 3 kW |
| Pump Station Motor | 3 kW (Lichao Brand) |
| Plate Thickness | 0.3–0.8 mm |
| Productivity | 3–5 m/min |
| Cutting Blade Material | Cr12, Quenched 58–60℃ |
| Roller Diameter | Φ70 mm |
| Machine Weight | ~3200 kg |
| Main Structure | 350H Beams |
| Processing Precision | Within 1.0 mm |
| Side Panel | 16 mm |
| Chain Wheel & Chain | 1 Inch |
| Voltage | 380V 50Hz 3Phases or customized |
| Control System | PLC Control (Delta) |
| Frequency System | Delta |
| Drive Mode | Motor Driver |
| Touch Screen | Delta |
| Rolling Material | 45# Forging Steel with Chromium Plate |
| Length Tolerance | ±2 mm |
High-Precision and Durable Design
Our ridge cap roll forming machine guarantees ±2 mm length tolerance and 1 mm processing precision, making it suitable for large-scale roofing projects. The combination of robust 350H beams and quenched Cr12 cutting blades ensures stable operation even under heavy-duty production.
Easy Operation with Advanced Control System

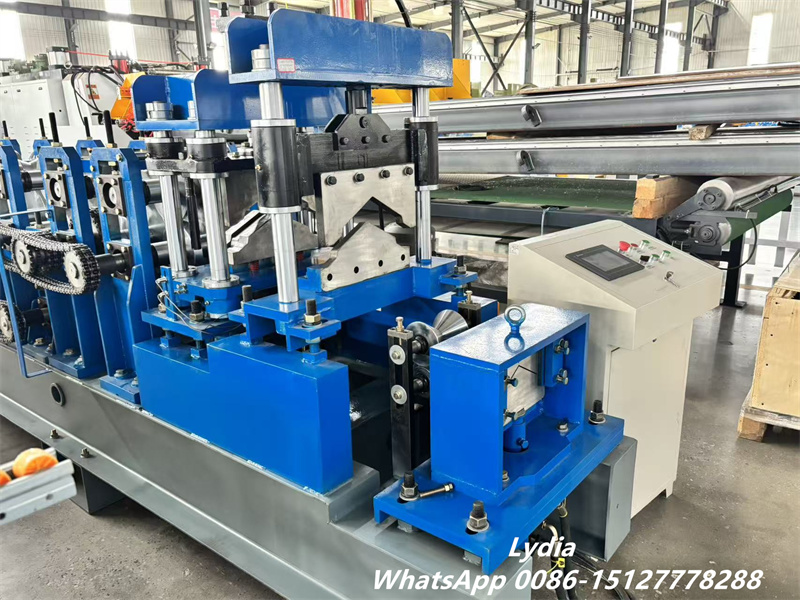

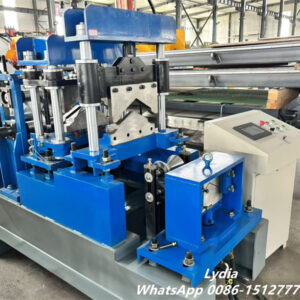

Equipped with a Delta PLC control system and touch screen, this machine allows for intuitive operation and precise adjustments. The motor driver system provides smooth and stable drive, ensuring consistent output quality.
After-Sales Service & Support
We prioritize customer satisfaction with comprehensive support:
- Installation and Training
- On-site factory visits allow hands-on installation guidance and worker training.
- Remote guidance is available through detailed user manuals and video tutorials.
- If needed, our technician can visit your site (buyer arranges lodging and necessary logistics).
- Warranty and Maintenance
- One-year warranty for the entire machine.
- 24/7 technical support via email or phone.
- Two-year free repair if any machine problem occurs.
Why Choose Our Double Layer Ridge Cap Roll Forming Machine?
- High Efficiency: Produces up to 5 meters of ridge caps per minute.
- Versatility: Handles different ridge types with one machine.
- Durable Construction: Made with hardened 45# steel rollers and Cr12 blades.
- Precision: Maintains ±2 mm tolerance for consistent quality.
- Easy Operation: PLC control and touch screen simplify adjustments.
Whether for commercial roofing projects or industrial production, our machine ensures fast, reliable, and high-quality ridge cap formation.
