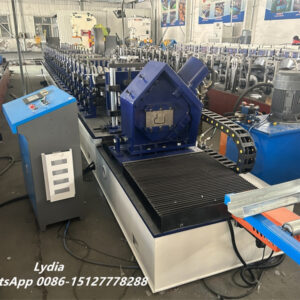

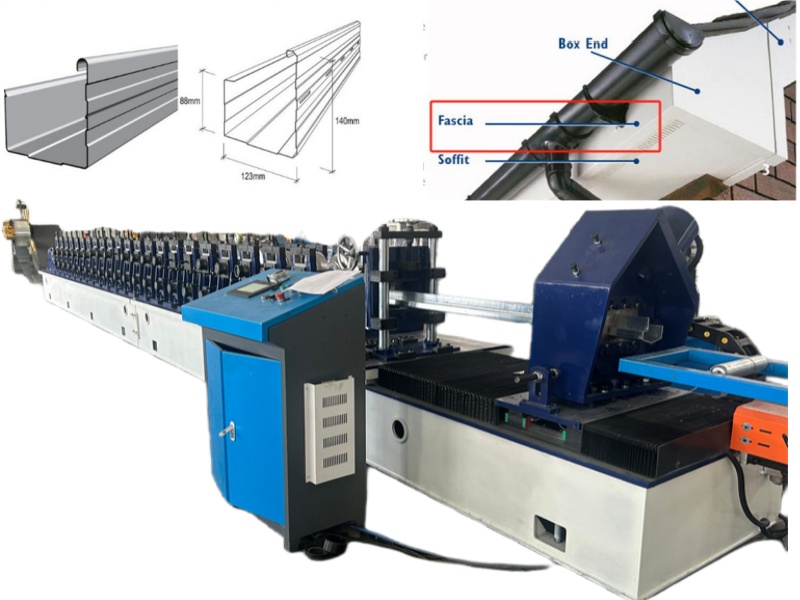

The Fascia Gutter Roll Forming Machine is designed to produce high-quality aluminum rain gutters with excellent forming precision and stable continuous operation. This machine is widely used in residential roofing projects, commercial drainage systems, and modern architectural rainwater management applications.
Unlike traditional gutter systems, fascia gutters combine the functions of a gutter and fascia cover into one streamlined profile. As a result, buildings achieve a cleaner roofline appearance while maintaining effective rainwater drainage performance.
This roll forming line supports long production runs and delivers consistent gutter profiles with smooth edges and accurate dimensions. In addition, the automated control system improves productivity while reducing labor costs.

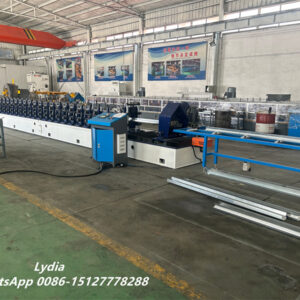

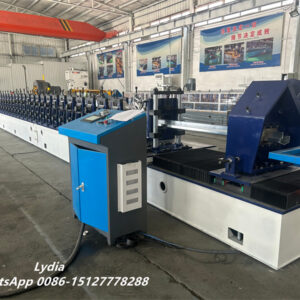

The complete production process operates smoothly and continuously from coil feeding to finished product output.

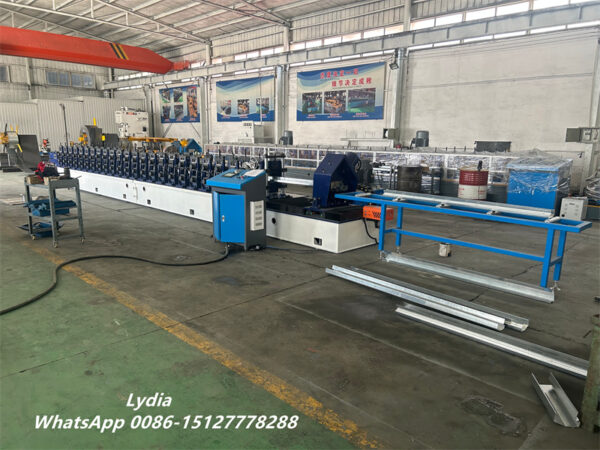

Production Flow
Manual Decoiler → Feeding Guide → Roll Forming Machine → Electric Cutting → Output Table
The standard production line usually includes:

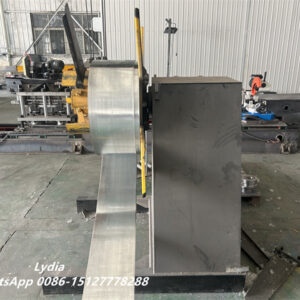

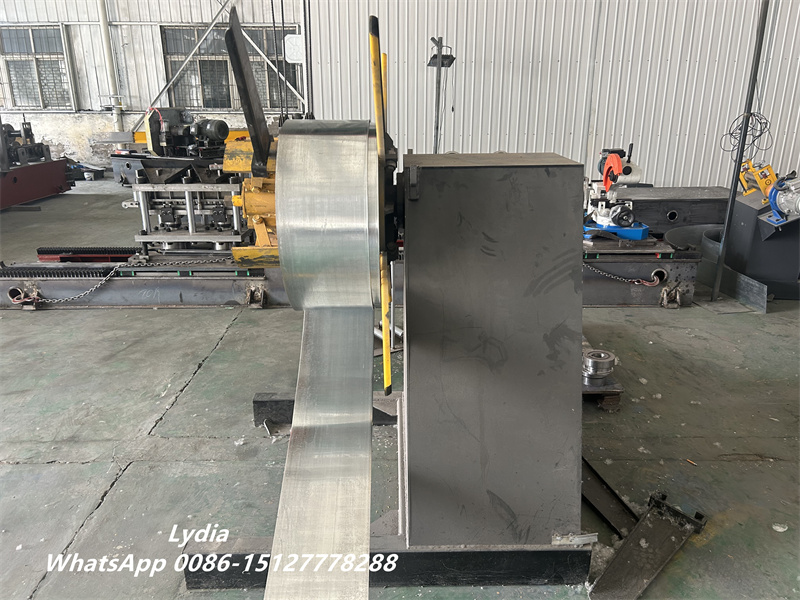

- Manual or hydraulic decoiler
- Feeding and guiding device
- Roll forming section
- Electric or hydraulic cutting unit
- Output table
- Hydraulic station
- Electrical control cabinet
Because of the modular machine structure, manufacturers can also customize additional punching, embossing, or profile-changing functions according to project requirements.
Machine Specifications
| Item | Specification |
|---|---|
| Product Type | Fascia Gutter |
| Coil Width | 14 inch |
| Material | Aluminum, steel,ppgi |
| Material Thickness | 0.6–0.8mm |
| Forming Speed | 70–80 ft/min |
| Roller Stations | 24 Stations |
| Drive System | Chain Drive |
| Main Motor Power | 8 HP |
| Voltage | 240V / 3PH / 60Hz |
| Cutting Type | Electric Shear |
| Control System | Delta CNC / PLC |
| Machine Weight | Approx. 7 Tons |
| Machine Footprint | Approx. 31 ft |
| Safety Covers | Included |
| Emergency Stops | Included |

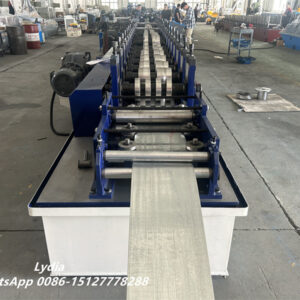

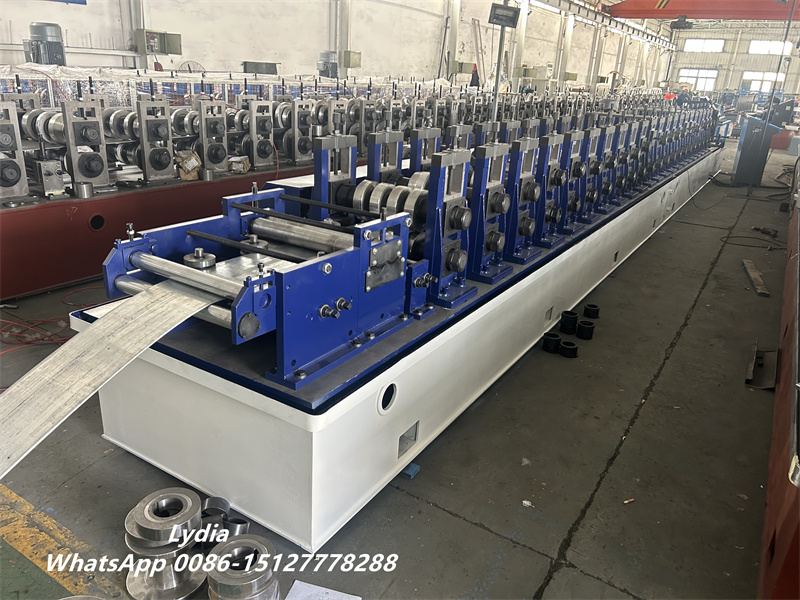

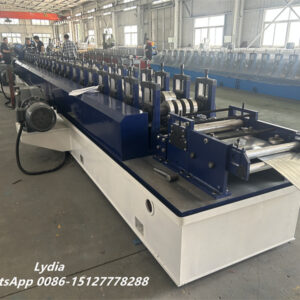

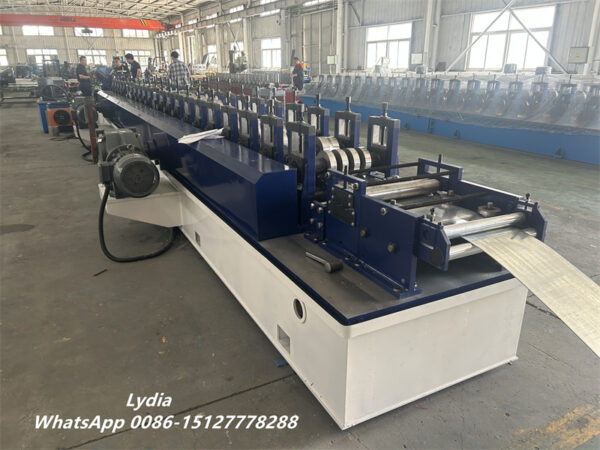

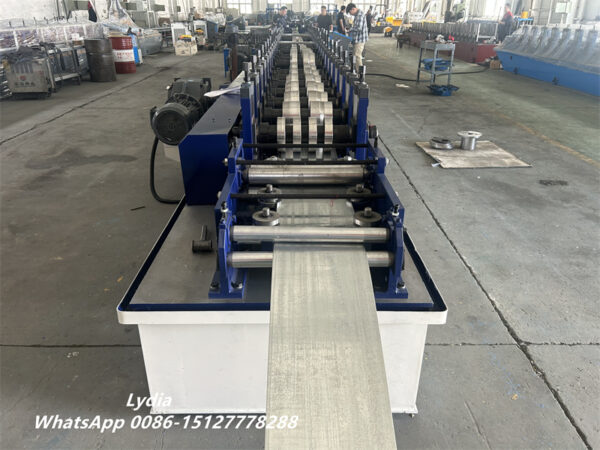

Stable Roll Forming Structure for Precise Gutters

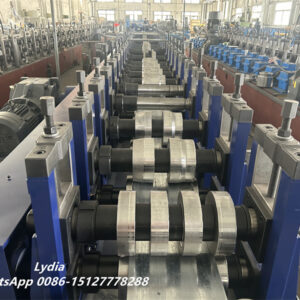

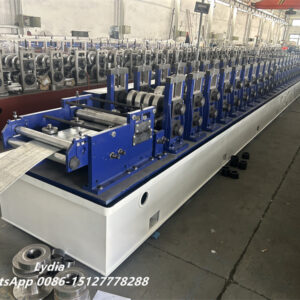

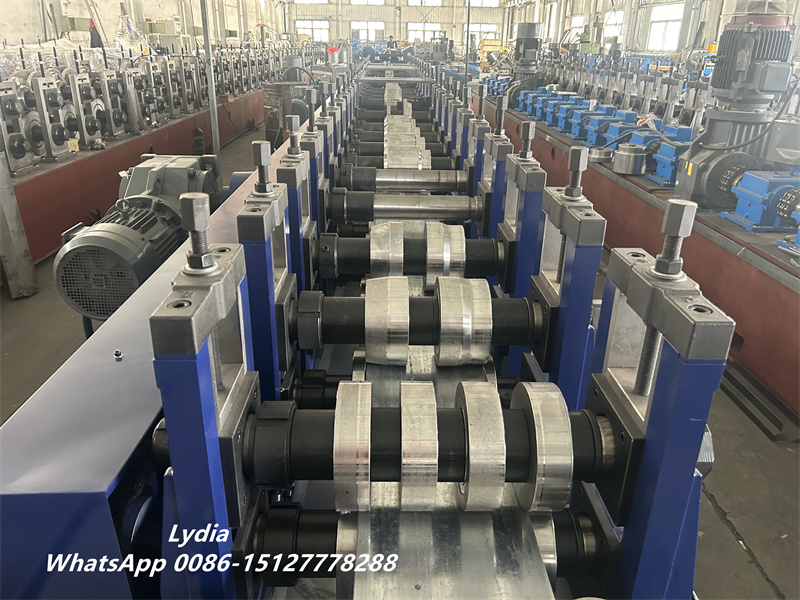

This gutter roll forming machine adopts a multi-station roll forming design to ensure stable shaping throughout the production process. The rollers gradually form the aluminum coil into the required fascia gutter profile without damaging the surface coating.
Moreover, the machine uses durable forming rollers manufactured from heat-treated steel with chrome coating, which improves wear resistance and extends service life. The chain-driven transmission system also provides reliable power delivery for continuous production.
Because of its rigid welded steel frame structure, the machine maintains excellent stability even during high-speed operation.

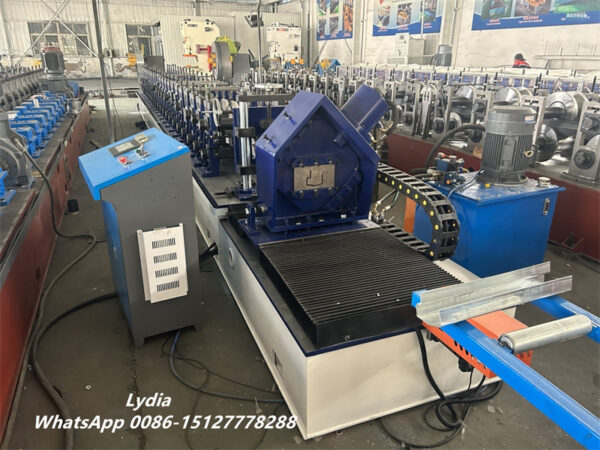

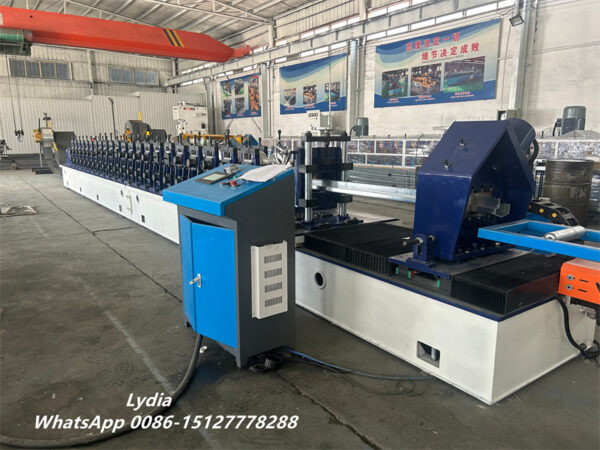

Intelligent Control and Automatic Cutting System

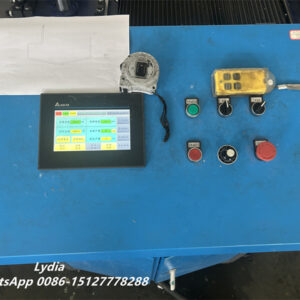

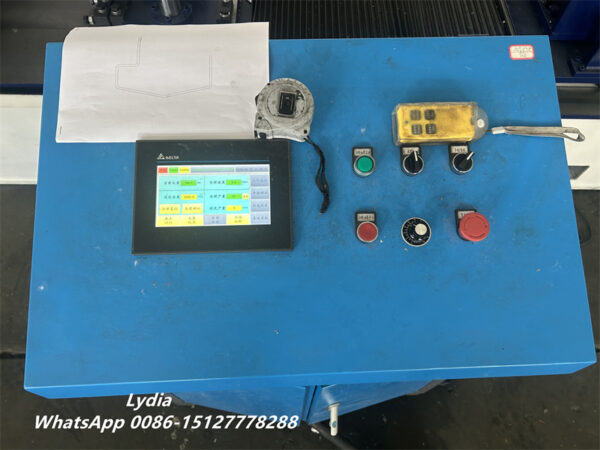

The production line features a Delta PLC control system with a touchscreen interface, making operation simple and efficient. Operators can quickly adjust production parameters, monitor machine status, and control cutting length automatically.

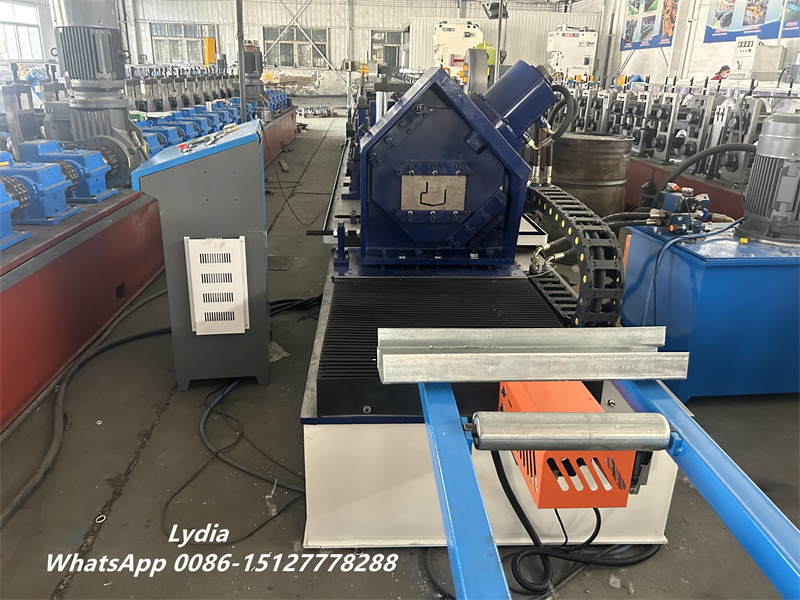

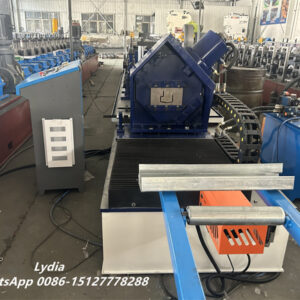

At the same time, the electric shear cutting system ensures smooth and accurate cuts for every finished gutter section. The encoder length tracking system further improves cutting precision and minimizes material waste.
Therefore, manufacturers can achieve both high production efficiency and consistent finished product quality.

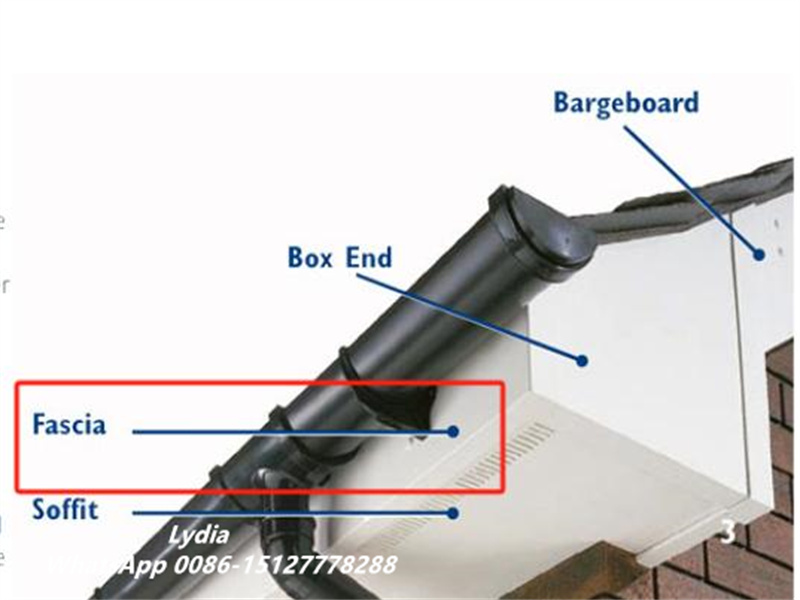

Wide Applications of Fascia Gutters

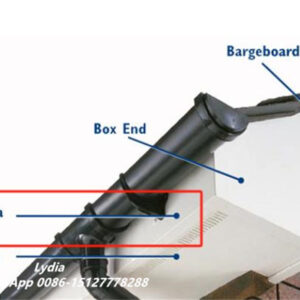

Fascia gutters are commonly used in modern roofing systems where traditional fascia boards are not installed. Their smooth front appearance creates a clean architectural finish while effectively channeling rainwater away from the building.

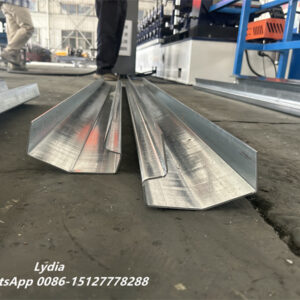

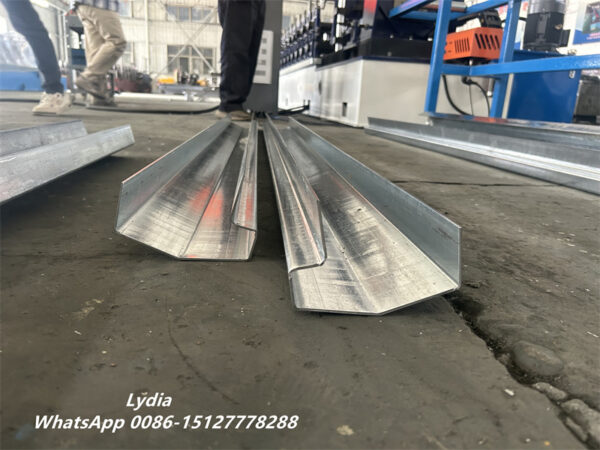

The finished gutters produced by this machine are suitable for:
- Residential roofing systems
- Commercial buildings
- Warehouses
- Agricultural structures
- Modern architectural projects
- Rainwater drainage systems
In addition, aluminum fascia gutters offer excellent corrosion resistance, lightweight installation, and long-term outdoor durability.
Why Choose This Fascia Gutter Roll Forming Machine
This Fascia Gutter Roll Forming Machine combines high-speed production, stable forming performance, and intelligent automation into one efficient solution. Compared with manual fabrication methods, the machine significantly improves productivity and reduces material waste.
Furthermore, the machine can support customized gutter profiles and different material options including aluminum, galvanized steel, and pre-painted steel.
For gutter manufacturers, roofing contractors, and building material suppliers, this machine provides a reliable solution for large-scale rain gutter production with consistent product quality and lower operating costs.
FAQ
What materials can this machine process?
The machine can process aluminum, galvanized steel, galvalume steel, and pre-painted steel coils.

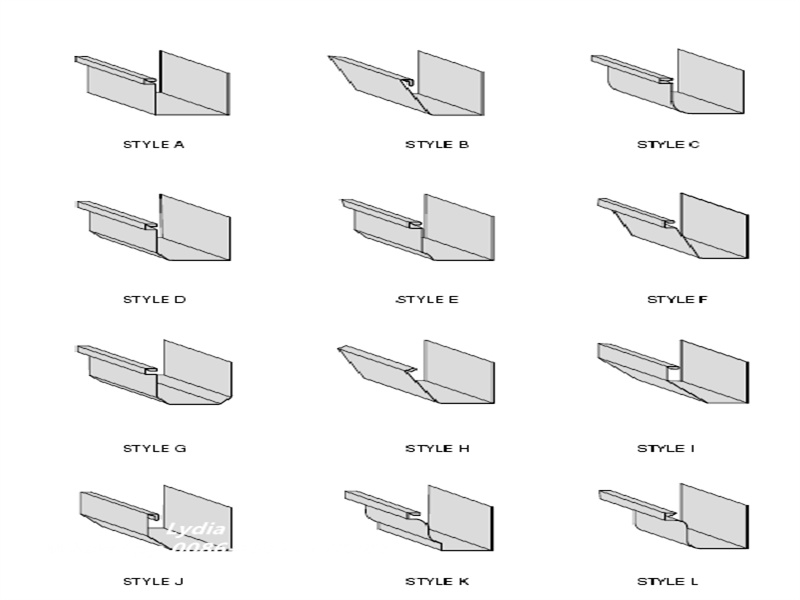

Can the machine produce different gutter sizes?

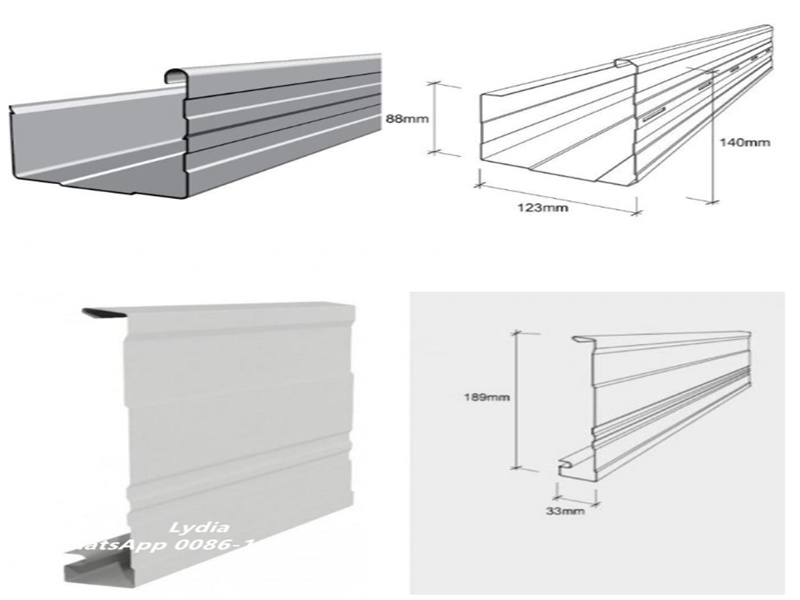

Yes. By changing roller tooling and profile settings, the machine can produce different fascia gutter dimensions.
What is the average production speed?
The production speed generally reaches 70–80 ft/min depending on material thickness and profile complexity.
Is the machine fully automatic?
Yes. The machine uses a Delta PLC automatic control system with automatic length measurement and cutting functions.
Can safety protection systems be added?
Yes. Safety covers and emergency stop systems are already included, and additional protection devices can also be customized.
