Fence Post Roll Forming Machine for Metal Fencing Systems
With professional engineering experience, TRFM provides a complete and reliable fence post roll forming line, including installation, commissioning, and long-term technical support. Thanks to its robust structure and stable performance, this machine operates efficiently at maximum capacity when properly maintained, ensuring long service life and consistent product quality.

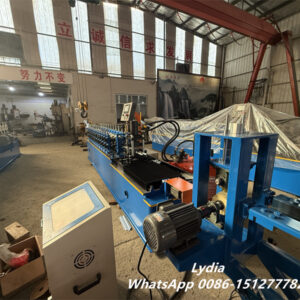

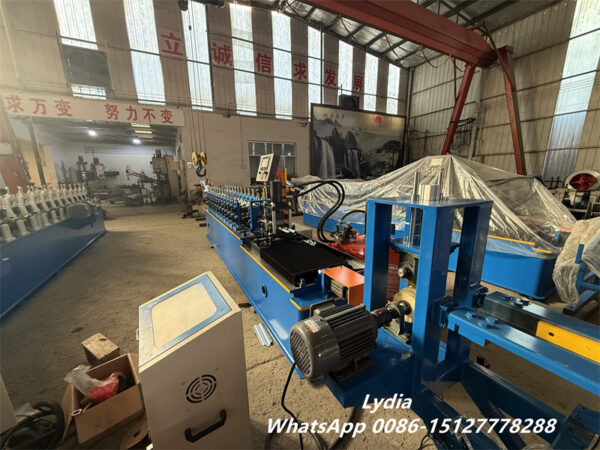

Peach Shape Fence Post Roll Forming Machine
The Peach Shape Fence Post Roll Forming Machine is a fully automatic production line designed to manufacture peach-shaped metal fence posts with punched edges or slotted holes. These profiles are widely used to support wire mesh panels in fencing systems for gardens, schools, factories, highways, and industrial zones.
Moreover, the machine processes light-gauge galvanized steel with thickness ranging from 1.2 mm to 2.5 mm, ensuring both strength and corrosion resistance.
Production Process
The entire line works smoothly and continuously:
- Coil decoiling and feeding
- Online notching or punching
- Precision roll forming according to customer CAD drawings
- Post-punching (optional)
- Hydraulic or flying saw cutting to length
- Automatic stacking and packing
As a result, production efficiency and dimensional accuracy are significantly improved.
Vineyard & Peach Post Installation Application
Peach-shaped fence posts are easy to install and highly adaptable. Depending on site conditions, posts can be:
- Driven directly into soil
- Embedded in concrete
- Bolted onto concrete or other hard surfaces
After fixing the post, fence panels are installed on both sides, forming a stable and secure fencing structure. Therefore, this solution is especially popular for vineyards, farms, and agricultural fencing projects.

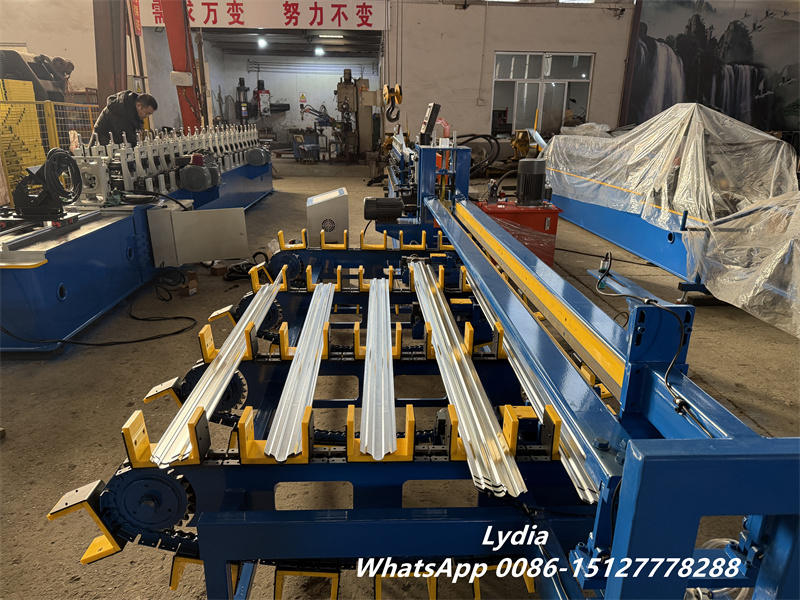

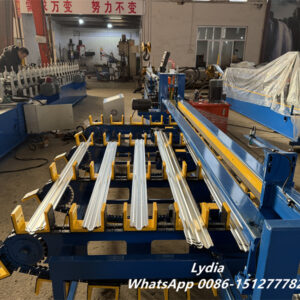

Palisade Fence Post Roll Forming Machine
Palisade fence posts are designed to deter intrusion and enhance perimeter security. Manufactured from cold-rolled galvanized steel, these posts offer excellent rigidity, impact resistance, and long service life.
In addition, color-coated galvanized finishes further improve corrosion resistance, making palisade fencing ideal for residential, commercial, and high-security areas. The palisade fence post roll forming machine enables fully automatic, high-volume production with consistent quality.
fence roll forming machine
Diamond Fence Post Roll Forming Machine
Diamond fence posts are commonly used in mesh fencing systems due to their strength, durability, and cost efficiency. Compared with hardwood posts, metal fence posts offer longer lifespan and lower maintenance costs.
Consequently, the Diamond Fence Post Roll Forming Machine provides a complete solution for producing fencing profiles used in construction sites, public infrastructure, and industrial fencing.

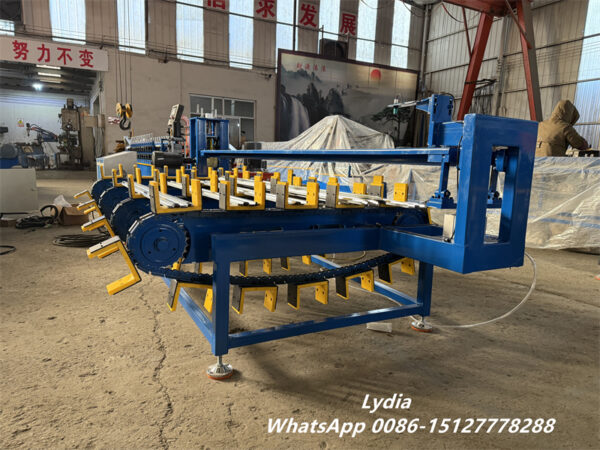

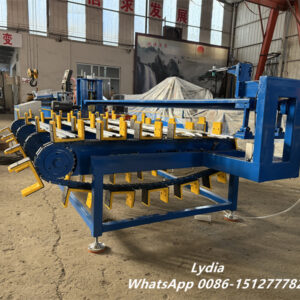

Wire Mesh Fence Post Roll Forming Machine
Wire mesh fence posts are widely applied in expressways, railways, airports, city roads, parks, squares, and green areas. LOTOS has extensive experience in manufacturing roll forming machines for both wire mesh fence posts and metal fence panels.
This machine ensures stable forming accuracy, smooth cutting, and reliable performance for long-term continuous production.

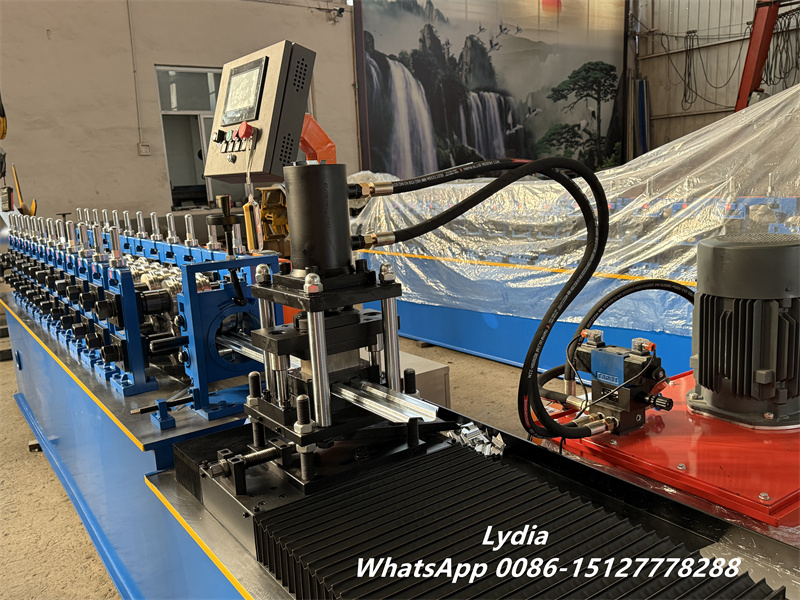

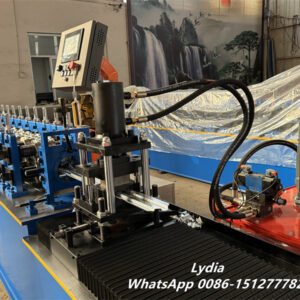

Metal Fence Panel & Post Production Line Overview
To meet higher automation requirements, a complete fencing post roll forming production line can be configured with the following units:
- 2-in-1 decoiler & leveling system
- Servo feeding system
- Mechanical press with punching die
- Roll forming machine
- Online laser spot welding device
- Flying hook bender
- Flying saw cutting system
- PLC electrical control cabinet
This integrated solution significantly reduces labor costs while improving production efficiency.
Main Technical Parameters (Reference)
| Item | Specification |
|---|---|
| Material Thickness | 1.25 – 1.5 mm (customizable up to 4 mm) |
| Working Speed | Up to 18 m/min |
| Roller Stations | 36 groups |
| Roller Material | GCr15 bearing steel, HRC 56–62 |
| Shaft Material | High-quality 45# steel |
| Shaft Diameter | Φ80 mm |
| Main Motor Power | 15 kW |
| Transmission System | Gearbox with helical gear reducer |
| Cutting Method | Flying cold saw cutting |
| Control System | PLC + Touch Screen (DELTA) |
| Cutting Accuracy | ≤ ±2 mm |
Why Choose Our Fence Post Roll Forming Machine?
- Custom design based on customer CAD drawings
- High-strength machine frame for long-term stability
- Precision rollers with strict concentricity control
- Flexible configuration for different fence post types
- Professional installation and after-sales support
In conclusion, whether you need peach-shaped posts, palisade posts, diamond posts, or wire mesh fence posts, our fence post roll forming machines provide a reliable, efficient, and cost-effective solution for your fencing production line.
