The Flush & Reveal Wall Panels Roll Forming Machine from Zhongtuo Machinery is designed to manufacture precision-formed metal panels for modern wall cladding, soffits, fascia systems, and other architectural applications. By forming steel coils through a series of carefully designed roller stations, the machine creates panels with a clean flush surface and a defined reveal or groove between adjacent panels.
Unlike conventional flat metal sheets, flush and reveal panels combine a simple appearance with a subtle linear pattern. This design makes them suitable for contemporary commercial buildings, residential projects, industrial facilities, soffits, interior architectural surfaces, and renovation applications.
Zhongtuo can configure the forming system according to the required panel profile, finished width, reveal dimensions, material thickness, and production requirements. The standard machine processes 0.5–1.6 mm steel coils at a forming speed of approximately 10–15 m/min, while PLC control and automatic width adjustment make the line more convenient for customized production.
Flush & Reveal Wall Panels for Modern Architectural Applications
Flush and reveal wall panels provide architects and contractors with an alternative to traditional ribbed or corrugated metal siding. The main panel surface remains visually clean, while the recessed reveal creates a continuous shadow line that separates individual panels.
This appearance works particularly well on large wall surfaces. Instead of presenting one completely flat metal surface, the reveal introduces visual rhythm and helps emphasize the building’s vertical or horizontal lines. As a result, manufacturers can offer metal cladding with a more refined architectural appearance without making the panel structure unnecessarily complicated.
The panels can also be installed in different orientations depending on the project design. Vertical installation can emphasize building height, while horizontal installation can create a wider and more streamlined appearance. Therefore, a properly configured Flush & Reveal Wall Panels Roll Forming Machine can support a broad range of architectural design requirements.

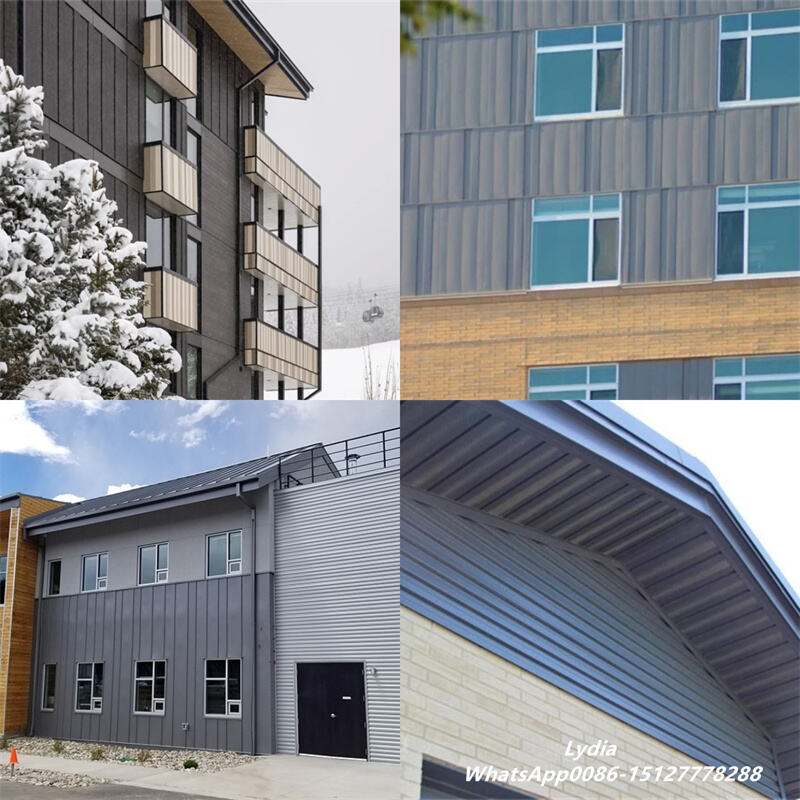

In addition to exterior walls, these panels can serve as metal soffits, fascia panels, under-decking panels, interior wall cladding, and other architectural metal surfaces. The actual application depends on the profile geometry, substrate, material, and installation method selected for the project.
How the Flush & Reveal Wall Panel Machine Forms Metal Panels
The production process begins with a steel coil loaded onto the decoiler. The standard configuration uses a 5-ton decoiler, which provides sufficient capacity for continuous coil feeding during production.
After decoiling, the strip enters the forming section. Instead of creating the final profile in one operation, the machine gradually bends the material through multiple roller stations. Each station performs a controlled forming step, allowing the steel strip to progressively develop the flush surface, groove, reveal, and edge configuration.
This gradual process is important for architectural panels because the finished surface needs to remain clean and consistent. Properly designed roller tooling distributes deformation across the forming stations and helps reduce unnecessary stress on the material.
Zhongtuo uses an arch-frame structure with independent roller stations for this type of machine. The structure provides a stable platform for the forming rollers while keeping the individual stations organized. The rollers are manufactured from treated steel with a quenched and chrome-plated surface, while the shafts receive tempering treatment for improved mechanical performance.
Once the panel reaches the programmed length, the hydraulic cutting system separates the finished panel from the continuous strip. The cutting blades use Cr12 material with quenching treatment and a hardness of approximately 58–62 HRC, providing a durable solution for repeated cutting operations.
Key Features and Technical Specifications of the Roll Forming Line
The Flush & Reveal Wall Panels Roll Forming Machine combines mechanical forming equipment with PLC-based electrical control. This configuration allows operators to manage the production process from a centralized control system and adjust the machine according to the selected panel specification.
One particularly useful feature is the automatic width adjustment. Through the PLC system, the machine can adjust the forming width according to the configured production range. This gives manufacturers greater flexibility when customers request different panel sizes instead of requiring a completely separate production line for every specification.
The machine can use chain, gear, or gearbox transmission, depending on the final machine configuration. Zhongtuo can also select suitable electrical components from brands such as Delta, Siemens, and Schneider according to the customer’s requirements and project budget.
| Item | Technical Specification |
|---|---|
| Machine | Flush & Reveal Wall Panels Roll Forming Machine |
| Decoiler | 5-ton capacity |
| Forming Material | Steel coil |
| Material Thickness | 0.5–1.6 mm |
| Transmission | Chain / Gear / Gearbox |
| Production Speed | 10–15 m/min |
| Roller Material | Treated steel with quenched and chrome-plated surface |
| Shaft Material | Tempered steel |
| Cutting Method | Hydraulic cutting |
| Cutting Blade | Cr12, quenched, 58–62 HRC |
| Welding | Automatic spot welding |
| Control System | PLC |
| Electrical Components | Delta / Siemens / Schneider |
| Standard Voltage | 380V, 50Hz, 3 Phase |
| Customized Voltage | Available according to customer requirements |
The line can also incorporate automatic spot welding according to the selected machine design. In addition, Zhongtuo can customize the electrical configuration for different countries and production environments.
Automatic Width Adjustment and Customized Panel Profiles
Different construction projects often require different panel widths and reveal dimensions. For this reason, a flexible roll forming system can provide a significant advantage for metal panel manufacturers.
The Flush & Reveal Wall Panels Roll Forming Machine can be configured with automatic width adjustment controlled through the PLC. This allows manufacturers to switch between suitable panel specifications more efficiently and respond to customized orders without relying exclusively on standard stock sizes.
The profile itself can also be customized. Customers can provide Zhongtuo with a profile drawing, finished panel width, reveal width, material thickness, and other technical requirements. Zhongtuo can then develop the corresponding roller tooling and forming configuration.
This approach is particularly useful for manufacturers supplying architectural metal cladding. A single production platform can be designed around a family of related profiles, helping the manufacturer expand its product range while keeping the production process manageable.
Furthermore, the machine can be configured for different material requirements within its designed working range. For the standard configuration, the recommended steel coil thickness is 0.5–1.6 mm. Material properties should be confirmed before production so that the roller tooling and machine parameters can be properly matched.
Flush Wall, Reveal Wall and Soffit Panel Production
A major advantage of this machine is its ability to support several related architectural applications. Flush wall panels can provide a smooth and minimal appearance, while reveal panels introduce recessed lines that create a stronger visual pattern.
For soffit applications, the same design concept can be adapted to create a clean underside finish beneath roof overhangs. Metal soffit panels can help protect the building structure while contributing to the overall architectural appearance.
The panels can also be used for fascia areas where manufacturers want the roof edge and wall cladding to share a coordinated metal finish. When the same material and surface treatment are used throughout the project, the building can achieve a more consistent appearance.
For this reason, the Flush & Reveal Wall Panels Roll Forming Machine can be a valuable addition to the product range of metal roofing and wall panel manufacturers. Instead of focusing only on conventional roofing profiles, manufacturers can expand into architectural wall and soffit products with a relatively specialized roll forming system.
Zhongtuo can further optimize the machine according to the customer’s intended application. For example, panel width, groove geometry, cutting length, forming speed, decoiler configuration, and control components can all be discussed before production.
Why Choose Zhongtuo Flush & Reveal Wall Panels Roll Forming Machine?
A reliable Flush Wall Panel Roll Forming Machine should do more than simply bend a steel strip. It needs to maintain profile accuracy, protect the visible panel surface, provide stable material feeding, and allow manufacturers to efficiently handle different production requirements.
Zhongtuo combines a 5-ton decoiler, progressive roll forming, hydraulic cutting, PLC control, and automatic width adjustment into one production line. The treated forming rollers and tempered shafts provide a solid mechanical foundation, while the hydraulic cutting system allows the machine to produce finished panels at programmed lengths.
More importantly, Zhongtuo can develop the tooling around the customer’s actual profile rather than limiting production to one universal panel shape. This makes the machine suitable for businesses that manufacture flush wall panels, reveal wall panels, metal soffits, fascia panels, and customized architectural cladding.
With the right profile design and machine configuration, manufacturers can produce consistent metal panels directly from steel coils and respond more efficiently to both standard and customized building projects.
If you are planning a new Flush & Reveal Wall Panels Roll Forming Machine project, Zhongtuo can design the forming system according to your panel drawing, material specification, finished dimensions, production speed, and automation requirements.
Frequently Asked Questions
1. What materials can the Flush & Reveal Wall Panels Roll Forming Machine process?
The machine is designed to process steel coils with a thickness of 0.5–1.6 mm. The suitable material grade and surface finish can be confirmed according to the customer’s panel requirements before production.
2. What is the production speed of the machine?
The standard forming speed is approximately 10–15 m/min. The actual production speed depends on the panel profile, material thickness, panel dimensions, and machine configuration.
3. Can the machine produce different panel widths?
Yes. The machine can be equipped with PLC-controlled automatic width adjustment. This allows manufacturers to adjust the working width within the designed range and produce different flush or reveal panel specifications more efficiently.
4. Can Zhongtuo customize the Flush & Reveal Wall Panels Roll Forming Machine?
Yes. Zhongtuo can customize the roller tooling and machine configuration according to the customer’s profile drawing, panel width, reveal dimensions, material thickness, cutting length, production speed, and automation requirements.
5. What applications can the finished panels be used for?
The finished panels can be used for flush wall cladding, reveal wall panels, metal soffits, fascia cladding, under-decking, and other architectural metal applications. The final application depends on the panel profile and installation requirements.
