Zhongtuo Metal Omega Channel Furring Channel Roll Forming Machine for Drywall Machine

Metal Omega Channel Furring Channel Roll Forming Machine

In modern drywall and ceiling construction, efficiency, accuracy, and consistency are no longer optional—they are essential. To meet these demands, the Metal Omega Channel Furring Channel Roll Forming Machine is engineered as a fully automated solution for producing hat-shaped and omega-type furring channels with high precision and stable output.

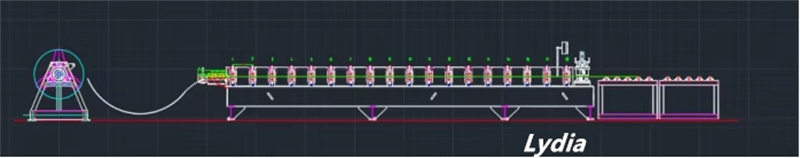

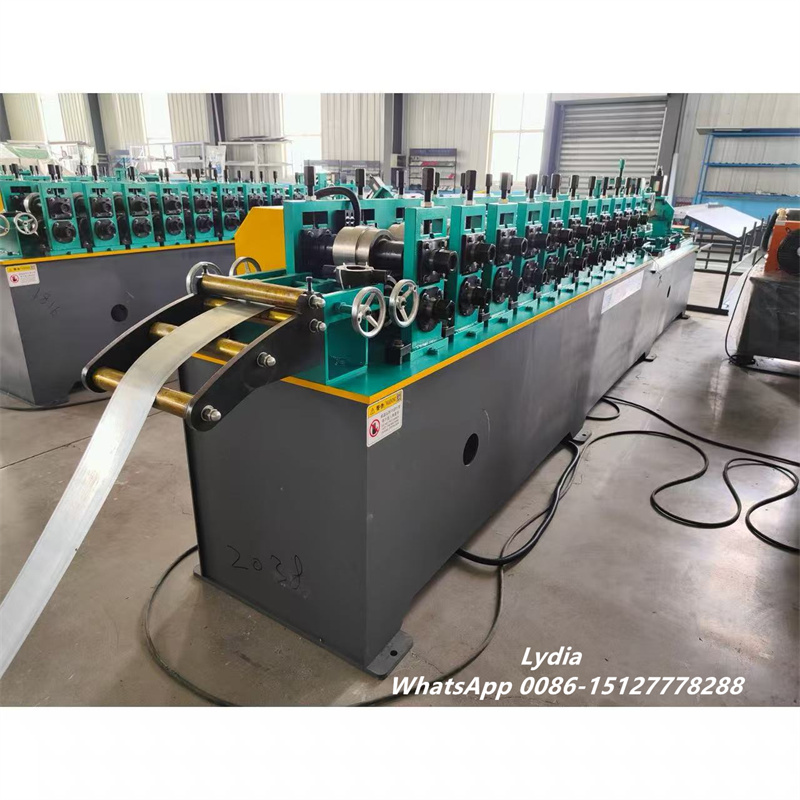

Designed specifically for light steel framing systems, this roll forming machine integrates feeding, roll forming, punching, and cutting into one continuous production line. As a result, manufacturers can significantly reduce labor costs while increasing daily output.

Stable Structure with Industrial-Grade Components

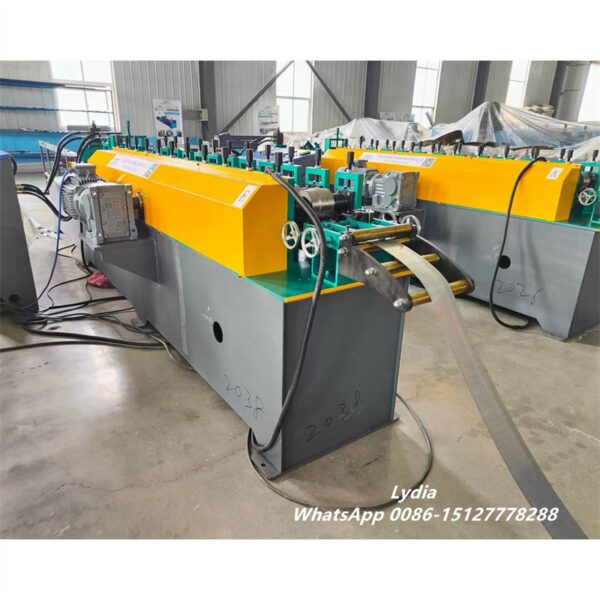

To ensure long-term operation and dimensional accuracy, the main roll forming structure is manufactured from welded heavy-duty steel frames. Meanwhile, the forming rollers are made of 45# steel with hard chrome plating, which effectively prevents wear and surface scratches during high-speed production.

In addition, the gearbox transmission system provides stronger torque and more stable forming compared to chain-driven alternatives, especially when processing thicker materials.

Key Technical Specifications

Below is a clear overview of the main technical parameters for this Metal Omega Channel Roll Forming Machine:

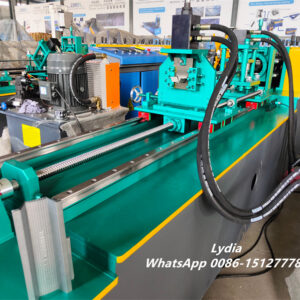

Automatic Cutting with Clean and Accurate Results

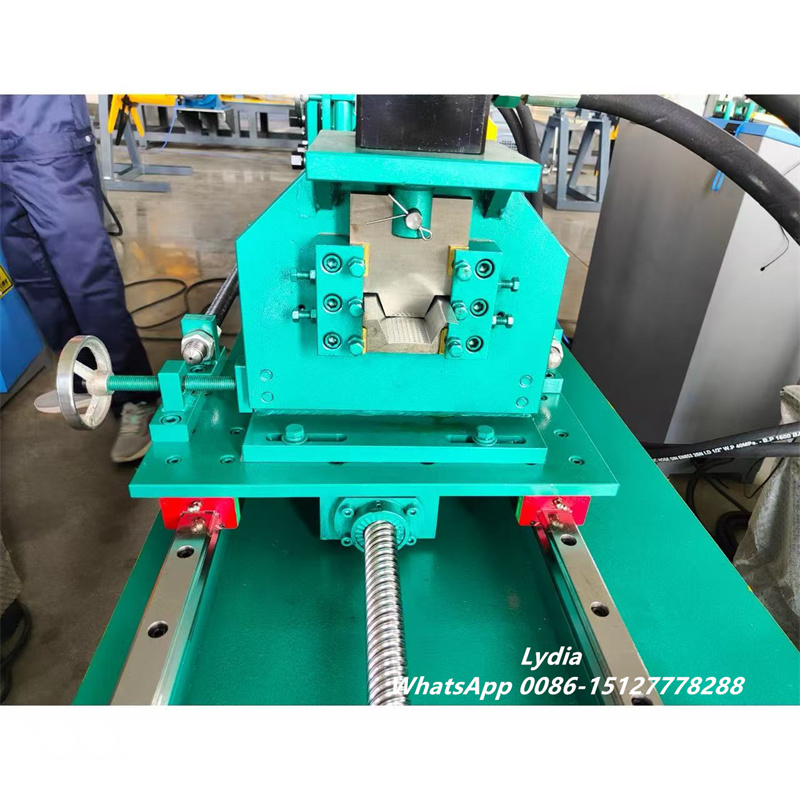

The cutting system uses Cr12MoV mold steel, which guarantees clean edges without deformation. As a result, the finished furring channels require no secondary processing and can be installed directly on-site.

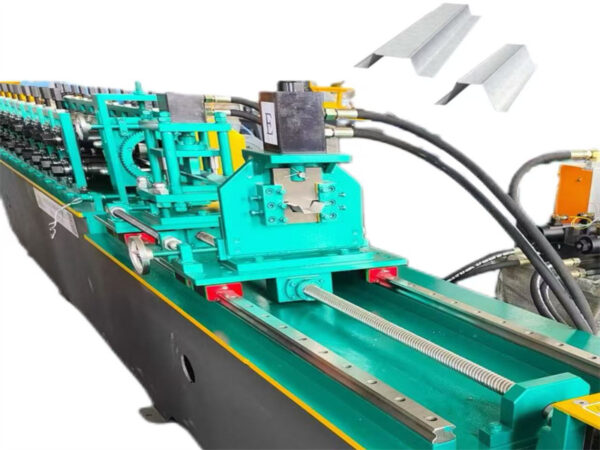

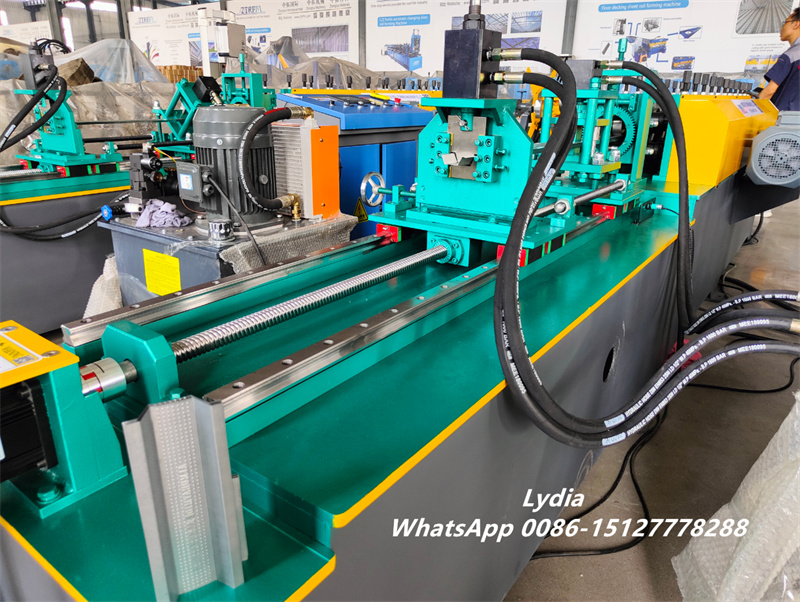

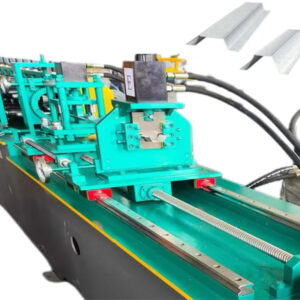

Furthermore, the hydraulic follow-cutting design ensures that cutting accuracy remains consistent even at high forming speeds.

Designed for High-Efficiency Omega & Hat Channel Production

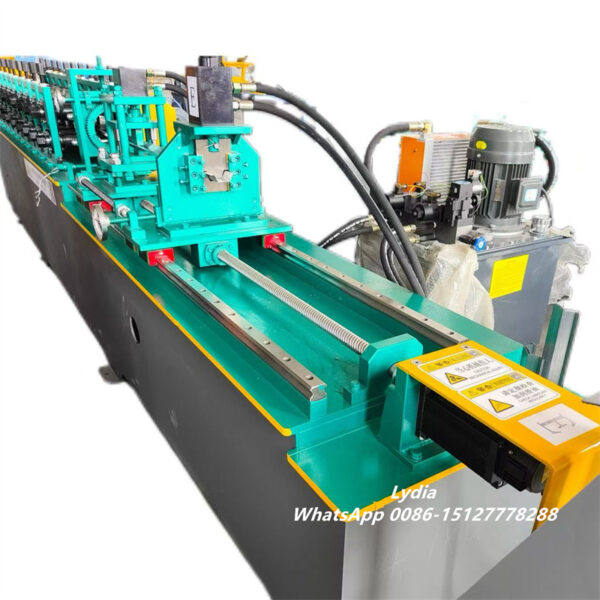

Unlike traditional forming methods that rely heavily on skilled operators, this machine adopts a PLC-controlled automatic system. Therefore, even newly trained workers can operate the line smoothly after basic instruction.

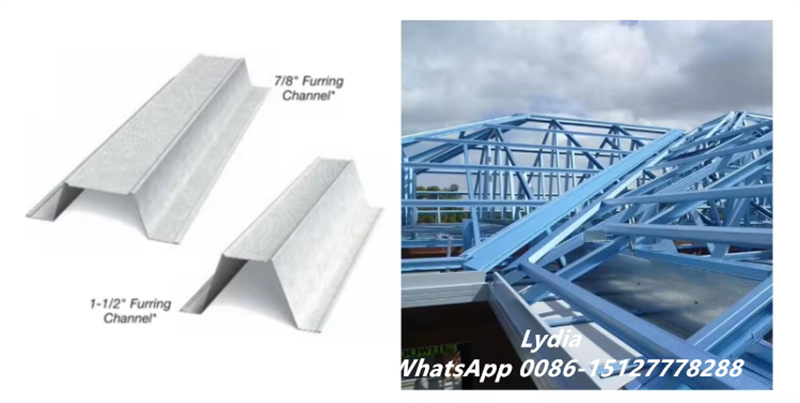

Moreover, the machine is suitable for producing:

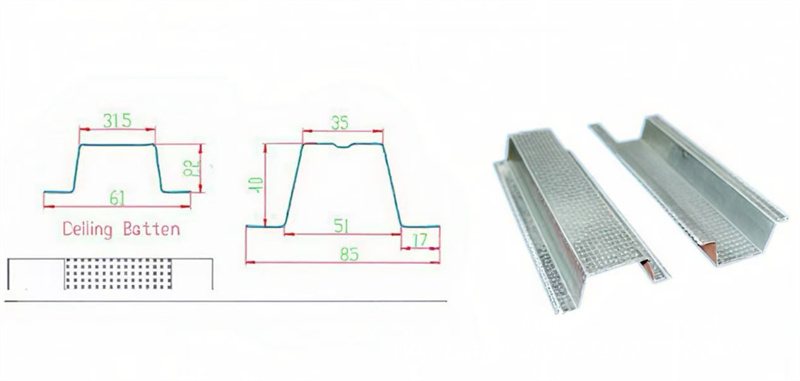

• Omega channels
• Hat-shaped furring channels
• Ceiling keels
• Partition wall framing profiles

By using galvanized steel or color steel coils as raw materials, the finished products meet international standards for drywall and ceiling systems used in residential, commercial, and industrial buildings.

Flexible Configuration for Different Project Needs

To better serve global customers, this furring channel roll forming machine supports:

• Customized profile drawings
• Adjustable feeding width
• Multi-size production through spacers
• Language customization for the control system

Consequently, whether you are producing standard omega channels or special drywall framing profiles, the machine can be tailored to match your exact requirements.

Light Steel Framing Manufacturers

Overall, the Metal Omega Channel Furring Channel Roll Forming Machine is an ideal choice for manufacturers focused on drywall, ceiling, and light steel construction systems. Thanks to its high speed, reliable structure, and automated operation, it delivers stable quality while keeping production costs under control.

If you are looking to upgrade your furring channel production line or expand into new drywall markets, this machine provides a long-term, scalable Machine.
