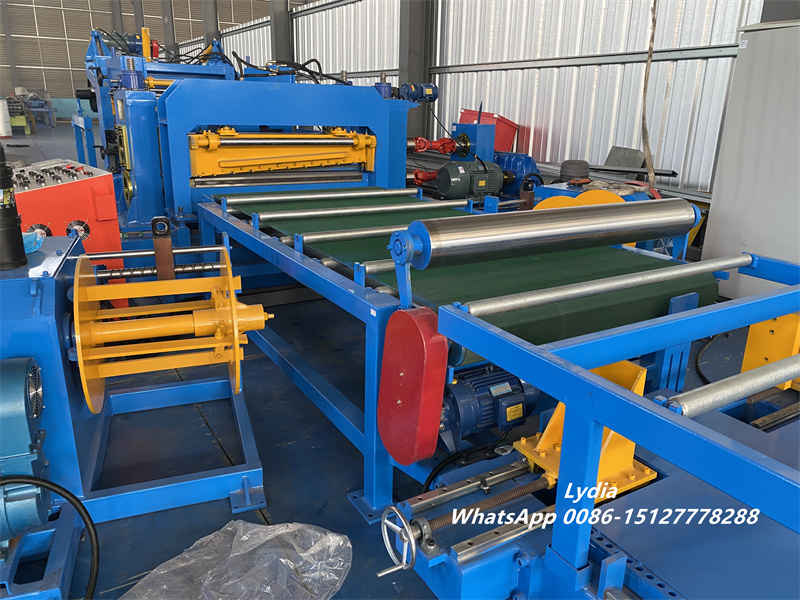

Metal Steel Aluminum PPGI Slitting & Cut-to-Length Line

Coil Processing Machine for Service Centers & Manufacturers

In modern metal processing industries, efficiency, accuracy, and automation directly impact productivity and profitability. Our Metal Steel Aluminum PPGI Slitting & Cut-to-Length Line is engineered to deliver stable performance, precise cutting, and flexible configuration for a wide range of coil materials and production requirements.

This production line integrates uncoiling, leveling, slitting, cutting, conveying, stacking, and recoiling into one continuous and automated system, making it ideal for steel service centers, roofing sheet factories, and metal processing plants.

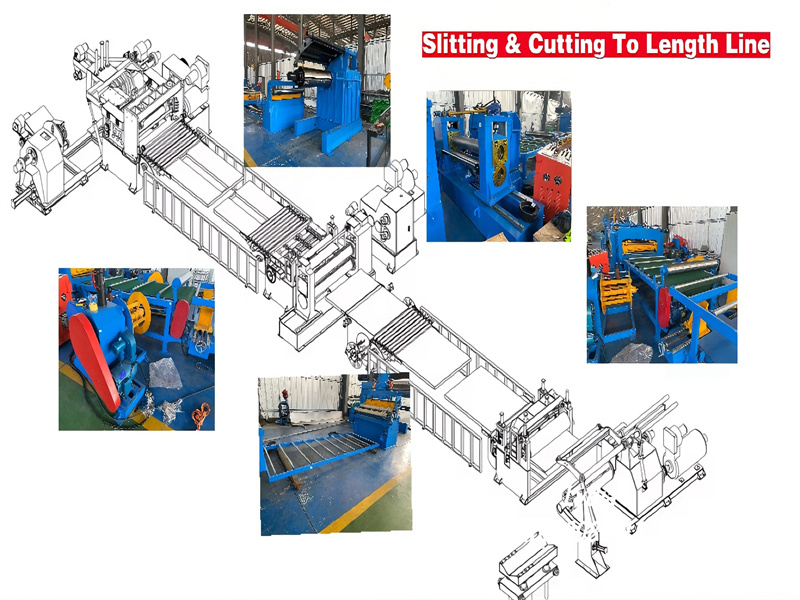

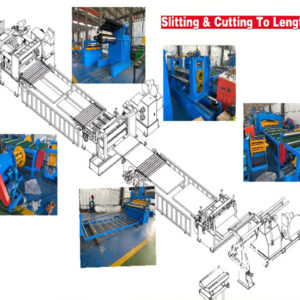

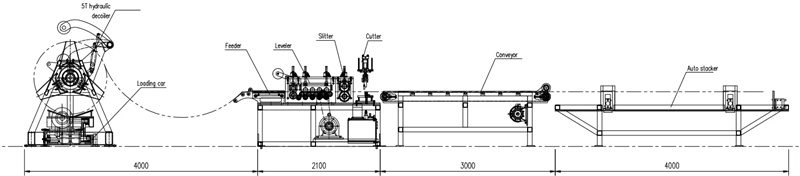

Complete Production Line Configuration

Main Components Overview

Working Process Flow

Uncoiling → Feeding → Precision Leveling → Slitting (Scrap Rewinding) → Cutting to Length (Optional) → Conveyor Transfer → Automatic Stacking → Tension Control → Recoiling

This smooth and logical workflow ensures consistent strip quality while minimizing manual intervention and material waste.

Key Equipment Details

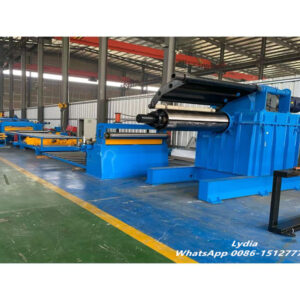

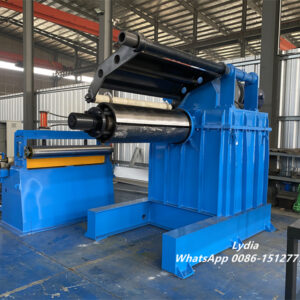

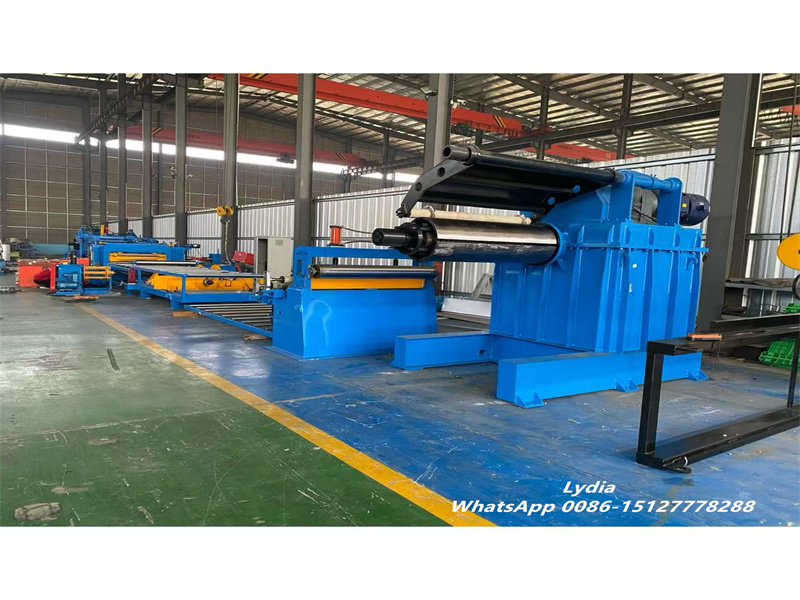

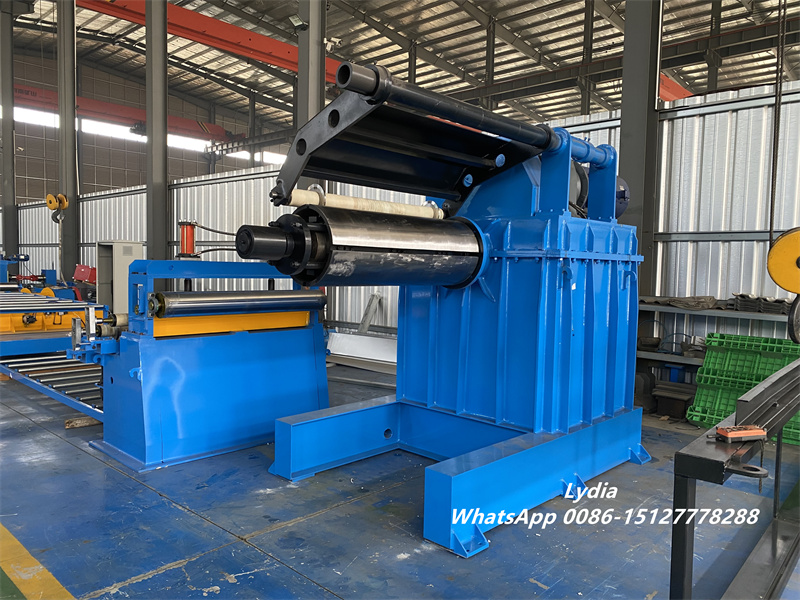

1. 12T Hydraulic Decoiler with Loading Car

Designed for heavy-duty coil handling, the hydraulic decoiler ensures safe, stable, and efficient uncoiling.

• Load capacity: 12 tons
• Coil inner diameter: 480–520 mm (hydraulic expansion)
• Max coil width: 1250 mm
• Hydraulic power: 5.5 kW
• Drive motor power: 7.5 kW
• Integrated loading car for fast coil positioning and reduced labor

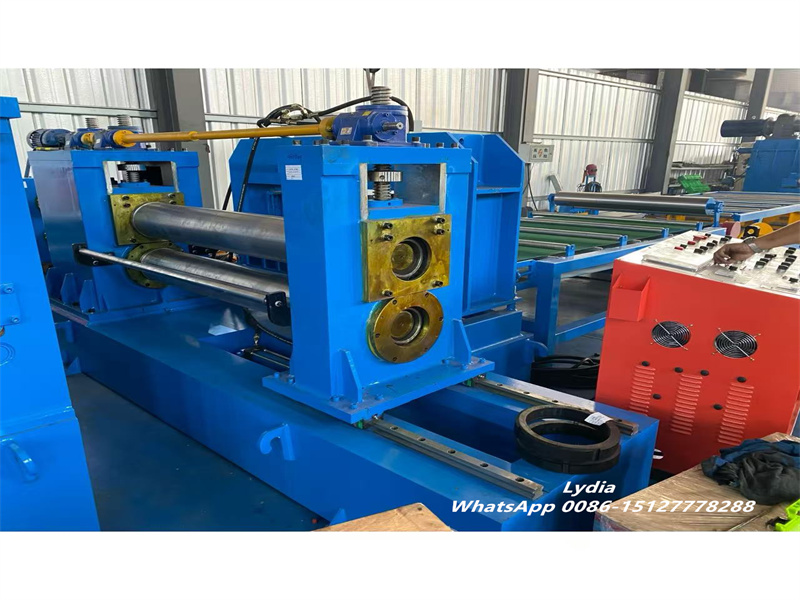

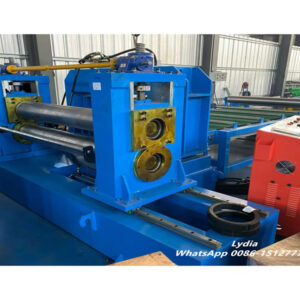

2. Leveling, Slitting & Cut-to-Length Machine

This core unit guarantees flatness accuracy and precise strip dimensions for downstream processing.

Leveling Section

• 17 precision rollers (upper & lower arrangement with rubber support rollers)
• Roller material: 40Cr steel, heat-treated and chrome-plated
• Main roller diameter: 100 mm
• Motorized roller gap adjustment for easy operation
• Leveling power: 15 kW

Slitting Section

• Slitting blades: 13 pcs, adjustable width
• Minimum slit width: 20 mm
• Maximum slitting strips: 12
• Blade material: Cr12Mov
• Slitting speed: 0–25 m/min
• Slitting motor power: 22 kW

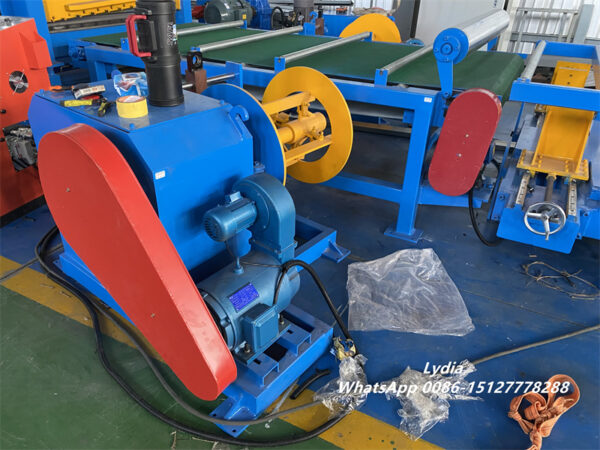

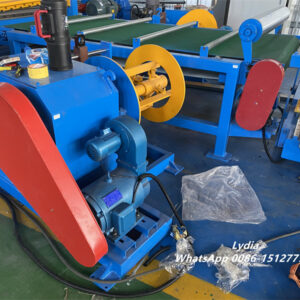

Cut-to-Length Section

• Cutting type: Hydraulic shear
• Blade material: Cr12Mov, quenched
• Cutting power: 7.5 kW
• Optional cutting function depending on production needs

Remote control operation is available to improve operator convenience and safety.

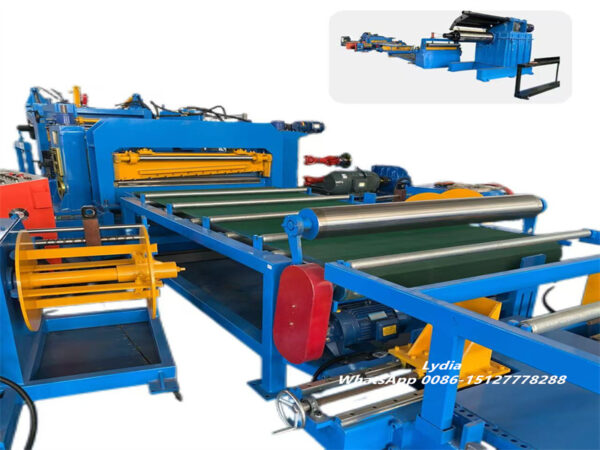

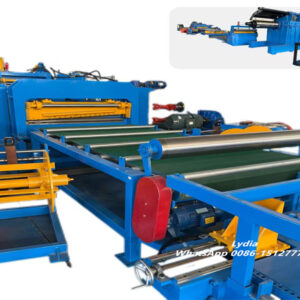

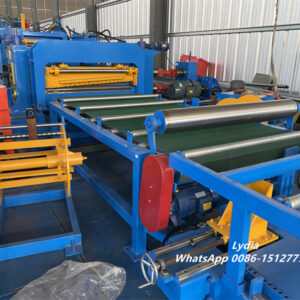

3. Conveyor System

The conveyor transfers finished sheets smoothly to the stacking area, ensuring continuous production without surface damage.

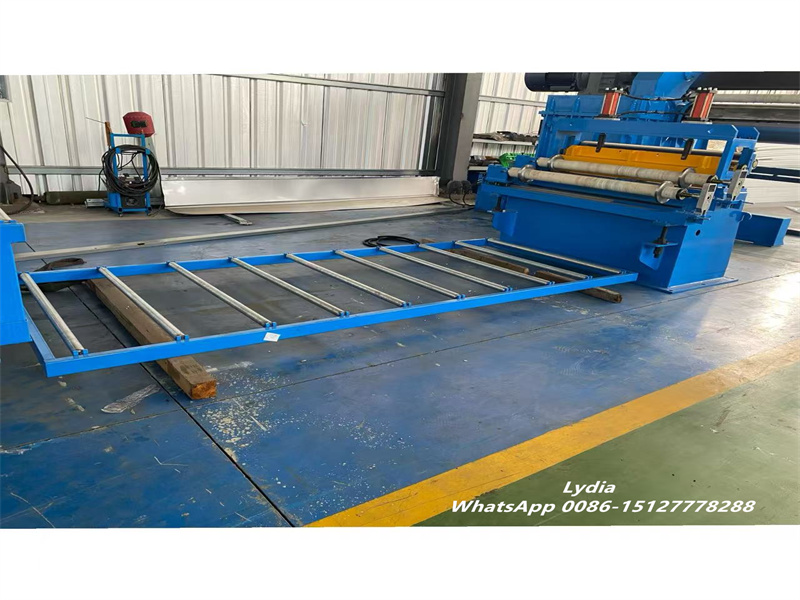

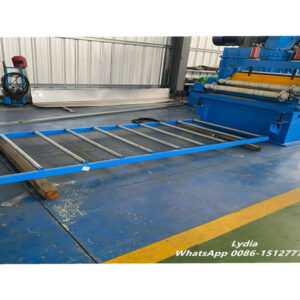

4. Automatic Stacker

The pneumatic auto stacker collects sheets neatly and efficiently, significantly reducing manual handling.

• Max stacking length: 3 meters
• Operating type: Pneumatic
• Ensures uniform stacking and easy packaging

Materials & Applications

This line is suitable for processing:

• Carbon steel
• Galvanized steel
• Aluminum coils
• PPGI / PPGL
• Stainless steel (optional configuration)

It is widely used in:

• Steel service centers
• Roofing and cladding production
• Sheet metal fabrication plants
• Construction material factories

Advantages of Our Slitting & Cut-to-Length Line

• High precision leveling for surface-critical materials
• Flexible slitting and cutting options to match different orders
• Automated stacking and recoiling to reduce labor cost
• Stable hydraulic and control systems for long-term operation
• Custom engineering available based on coil thickness, width, and production speed

We can also integrate advanced options such as automatic coil loading, tension control systems, scrap handling, and customized packaging solutions to enhance line efficiency further.

Customized Solutions for Your Production Goals

Every factory has unique output and workflow requirements. Our engineering team can tailor the slitting or cut-to-length line to your operation, helping you increase productivity, reduce downtime, and improve finished product quality.

Whether your focus is light gauge processing, high-output cut-to-length production, or multi-strip slitting, we provide a reliable and scalable solution to support your business growth.
