In modern roll forming production, manufacturers no longer rely on secondary operations to create holes, slots, or notches. Instead, they integrate press and punching systems directly into the roll-forming line, enabling continuous processing with higher efficiency and tighter tolerances. Zhongtuo provides a range of punching solutions designed to match different production speeds, material types, and product complexities.By combining forming and punching into one streamlined process, producers reduce labor costs, improve consistency, and shorten delivery times—key advantages in today’s competitive global market.
What Is an Inline Press & Punching System?

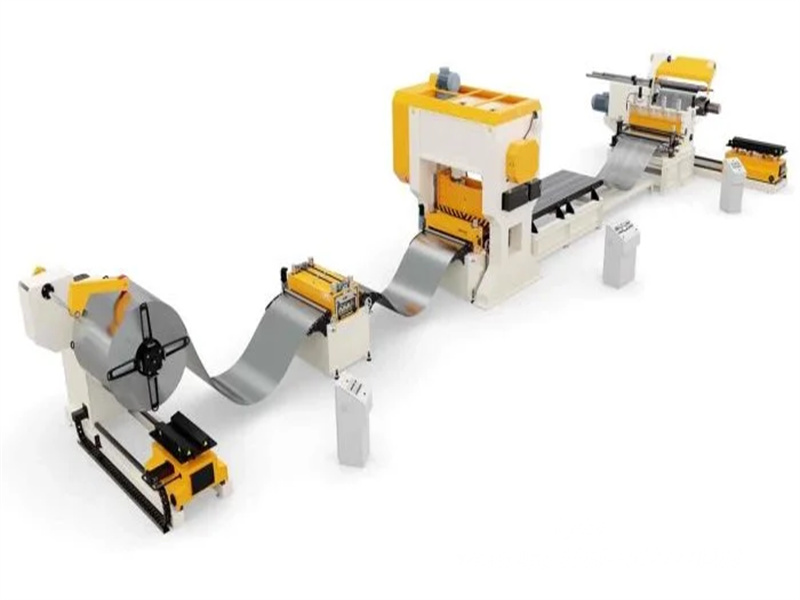

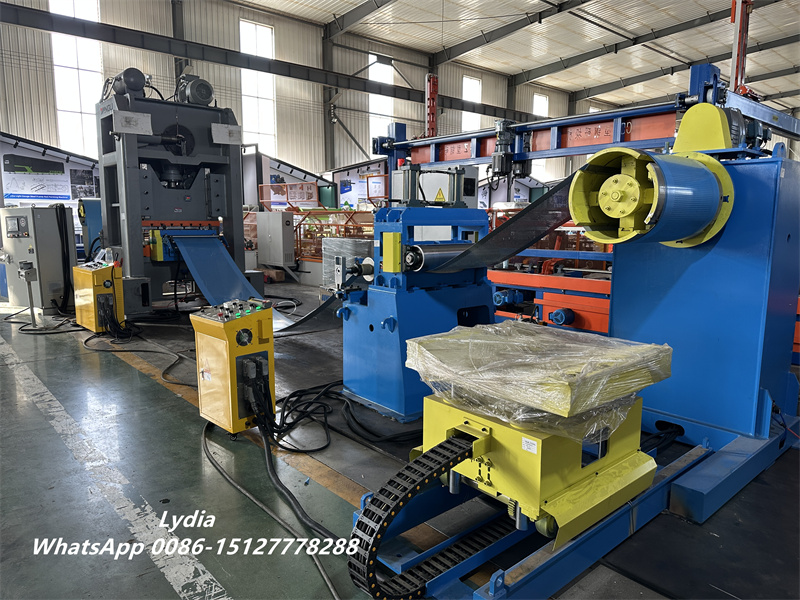

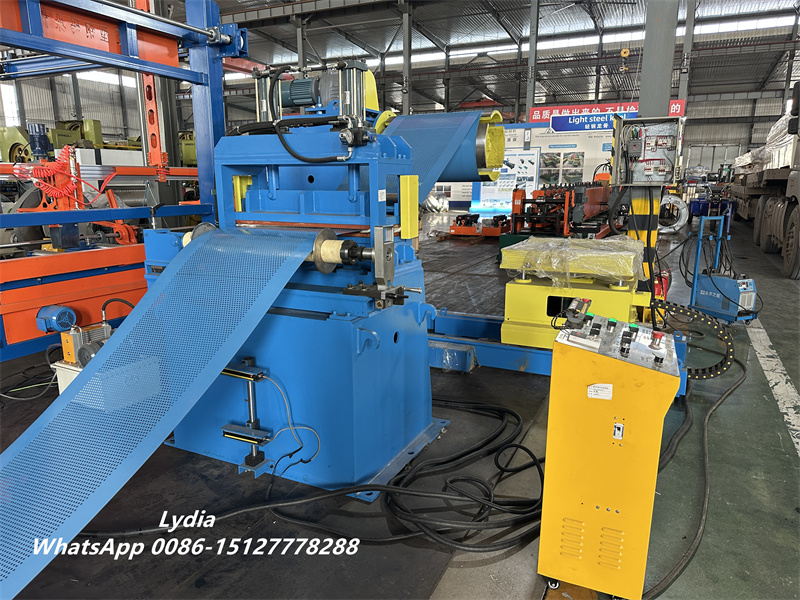

An inline press and punching system works together with the roll forming machine to process metal coils into finished profiles while simultaneously adding functional features. As the strip passes through the line, the punching unit performs operations such as hole punching, slotting, notching, and even cutting to length.
Because these actions happen without stopping the machine, the production flow remains stable. As a result, manufacturers achieve both higher output and more precise positioning of features across long production runs.
Pre-Punch vs Post-Punch: Key Differences
Choosing between pre-punch and post-punch systems depends on how and when features need to be added. Each method serves a specific production purpose, and understanding their differences helps optimize line design.
Pre-punch systems operate before the forming process begins. The machine punches holes into the flat strip between the decoiler and forming stations. This approach ensures excellent consistency because the material remains flat and easy to position. Therefore, it works best for standardized products with repetitive hole patterns, such as C/Z purlins or cable trays.
On the other hand, post-punch systems perform punching after the profile has been fully formed. This allows the machine to align holes with the final shape of the product. Consequently, manufacturers prefer post-punching for complex or custom profiles where geometry plays a critical role.
In many advanced production lines, engineers combine both systems. By doing so, they gain flexibility while maintaining accuracy across different product requirements.

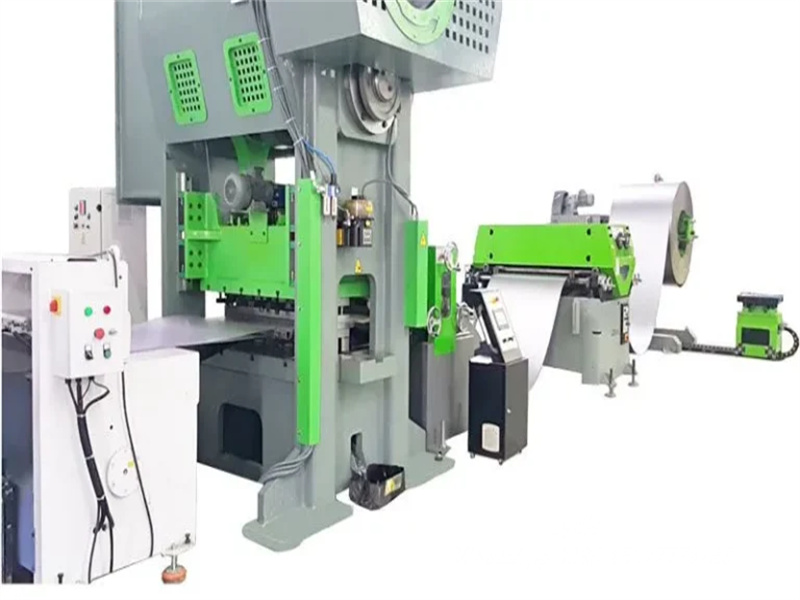

Hydraulic vs Mechanical Presses in Roll Forming
Press systems typically rely on either hydraulic or mechanical technology. While both can achieve high-quality punching, they differ significantly in performance characteristics.
| Feature | Hydraulic Press | Mechanical Press |
|---|---|---|
| Working Principle | Oil-driven cylinders | Flywheel and crank mechanism |
| Speed | Moderate | High-speed production |
| Precision | High (PLC-controlled) | Good but less flexible |
| Force Application | Constant throughout stroke | Peak force at specific points |
| Flexibility | Excellent for complex designs | Best for repetitive products |
| Maintenance Cost | Higher | Lower |
| Noise Level | Lower | Higher |
Hydraulic presses offer superior control and adaptability, making them ideal for thicker materials and intricate punching patterns. In contrast, mechanical presses excel in high-speed environments where manufacturers produce large volumes of uniform parts.
How to Choose the Right Punching line
Selecting the right press and punching system requires a careful evaluation of production needs. First, consider the material thickness and strength, as these directly affect the required punching force. Next, assess the complexity of the product—simple, repetitive designs favor mechanical systems, while customized profiles benefit from hydraulic control.
Additionally, line speed plays a crucial role. High-output factories often prioritize mechanical presses for efficiency, whereas projects demanding precision lean toward hydraulic solutions. Budget and long-term maintenance costs should also factor into the decision.
Zhongtuo designs its punching systems with these variables in mind, ensuring that each solution delivers stable performance, reliable operation, and consistent product quality.
Advantages of Zhongtuo Press & Punching Systems
Zhongtuo integrates advanced engineering and practical production experience into every punching solution. As a result, customers gain several clear benefits.
First, the systems support fully automated inline production, reducing manual intervention. At the same time, optimized tooling ensures clean cuts and accurate hole positioning. Moreover, the machines maintain stable operation even under continuous high-speed conditions.
In addition, Zhongtuo equipment offers strong compatibility with different roll forming lines, allowing flexible configuration based on customer requirements. This adaptability helps manufacturers respond quickly to changing market demands without major equipment upgrades.
An efficient press and punching system is no longer optional—it is essential for modern roll forming production. By integrating punching operations directly into the line, manufacturers significantly improve productivity, reduce costs, and ensure consistent product quality.
Whether you choose pre-punch or post-punch, hydraulic or mechanical systems, the right configuration will ultimately determine your production efficiency and competitiveness. With Zhongtuo’s tailored solutions, manufacturers can confidently build high-performance roll forming lines that meet both current and future demands.
