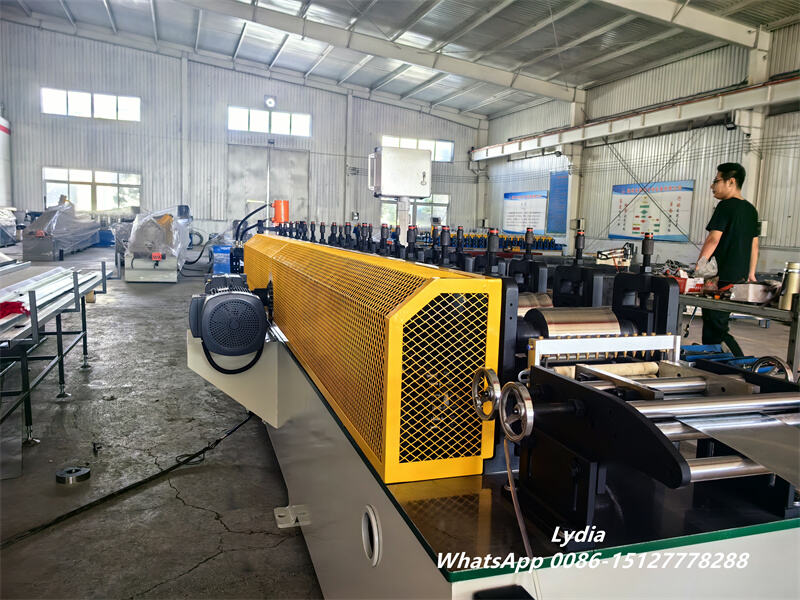

Zhongtuo Shutter Door Roll Forming Machine Automatic Rolling Shutter Door Profile Machine for Galvanized Steel

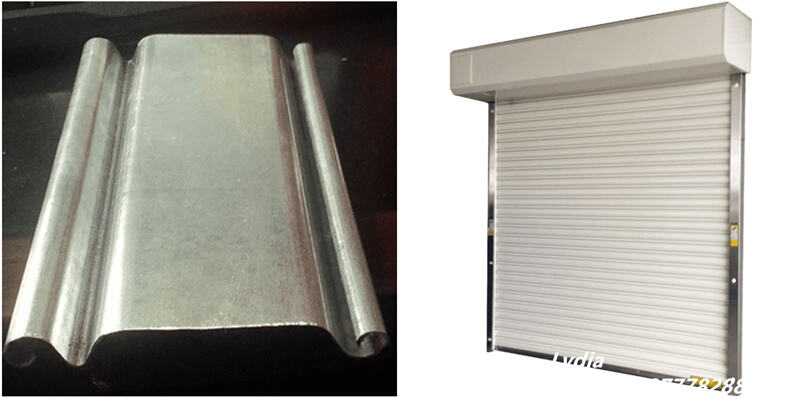

The Shutter Door Roll Forming Machine is a specialized cold roll forming line designed to produce high-quality rolling shutter door profiles from galvanized steel, color-coated steel, or other suitable metal coils. The complete production line integrates decoiling, feeding and guiding, roll forming, hydraulic post-cutting, hydraulic station, PLC control system, and finished-product output into one continuous process. By gradually forming the metal strip through multiple precision roller stations, the machine produces shutter door profiles with consistent dimensions, smooth surfaces, and stable forming quality. It is widely used for manufacturing rolling shutter doors for factories, warehouses, supermarkets, shopping malls, garages, commercial buildings, and other industrial or architectural applications.

Shutter Door Roll Forming Machine for High-Precision Rolling Shutter Door Production

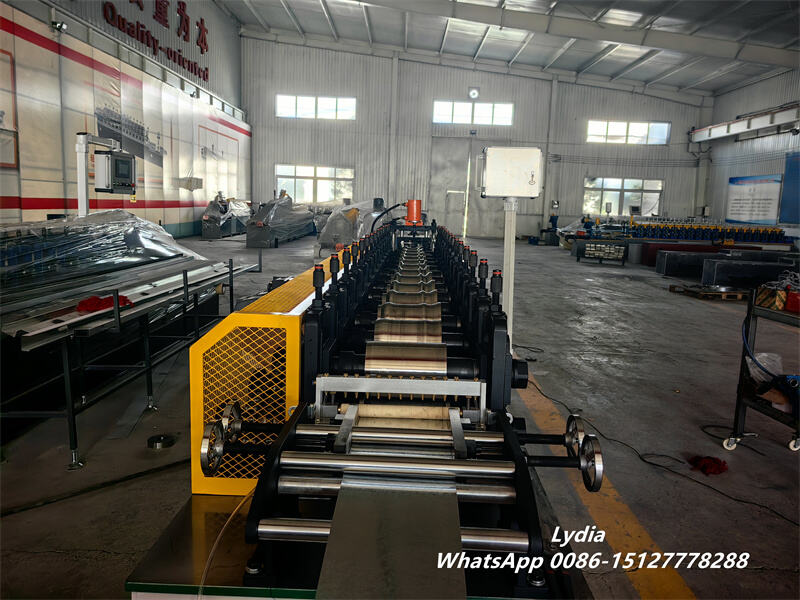

The Rolling Shutter Door Roll Forming Machine is designed for efficient and stable continuous production. The forming rollers are manufactured from high-quality No. 45 forged steel and precision-machined to ensure accurate profile forming. Roller shafts are processed by grinding to improve dimensional precision, while the roller surfaces can be treated with hard chrome plating for enhanced wear resistance and longer service life. The rigid welded machine frame provides stable support during operation, while the transmission system, motor, and gearbox deliver reliable forming power. Depending on the required profile, the roller stations and forming process can be customized according to customer drawings, allowing the same type of production line to manufacture different rolling shutter door profiles, including standard, industrial, commercial, heavy-duty, perforated, and other customized designs.

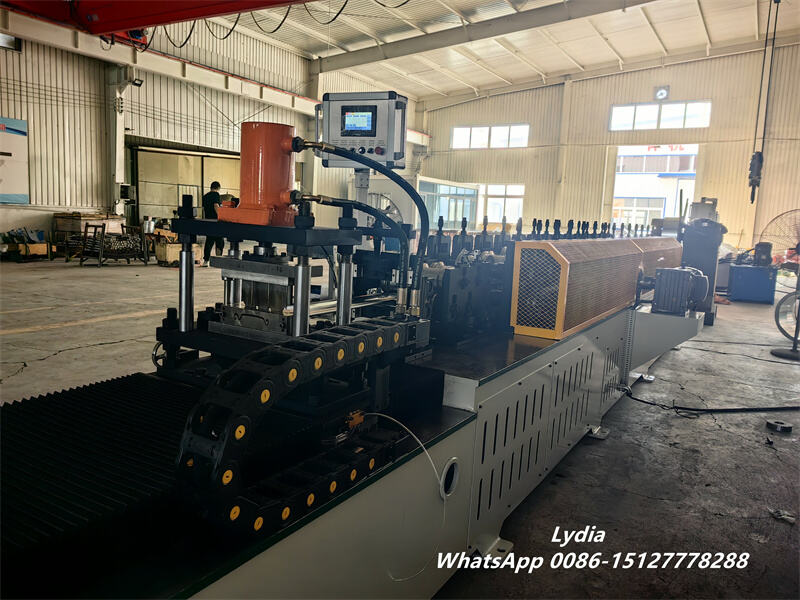

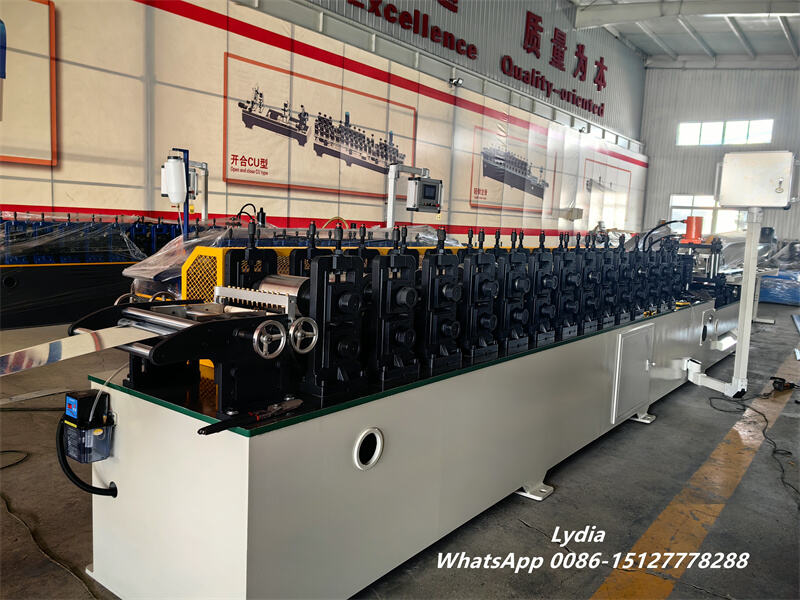

The machine is equipped with an automatic hydraulic post-cutting system for accurate finished-product length control. During production, the steel strip is continuously formed and measured by an encoder. Once the product reaches the preset length, the PLC control system automatically stops the forming line and activates the hydraulic cutter. After cutting, the machine resumes production automatically. The welded cutting frame provides good rigidity, while heat treatment can help reduce deformation during operation. The integrated PLC control system allows operators to set cutting length, production quantity, and other operating parameters through the control panel, making the Shutter Door Roll Forming Machine easy to operate and suitable for long-term continuous production with reduced manual intervention.

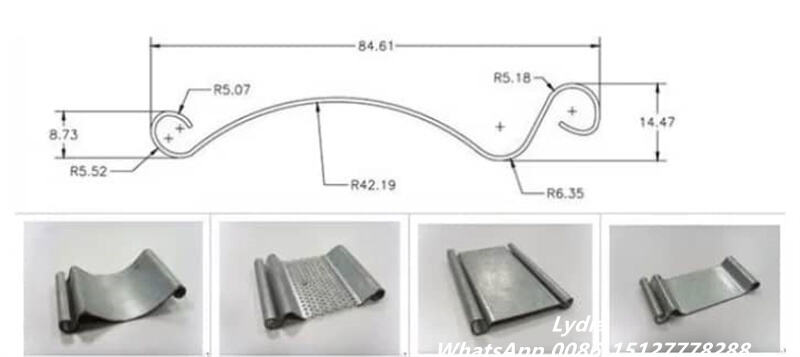

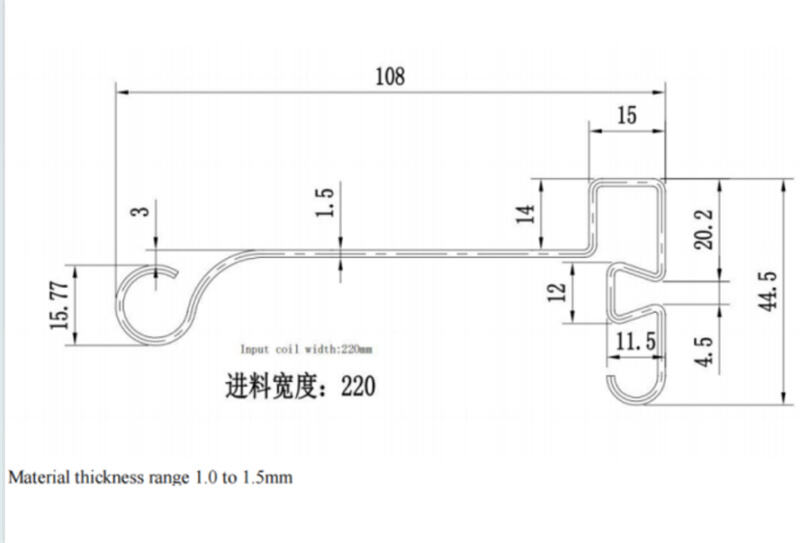

Material and Profile Specifications

Main Features of the Rolling Shutter Door Machine

The Rolling Shutter Door Machine can be configured according to the customer’s actual production requirements, including profile dimensions, coil width, material thickness, production speed, coil weight, cutting length, and automation level. Different decoiler capacities can also be selected depending on the raw material coil, while optional protective guards can be added to improve production safety. The feeding and guiding device helps keep the strip correctly aligned before entering the forming section, reducing material deviation and supporting consistent profile quality throughout the production process.

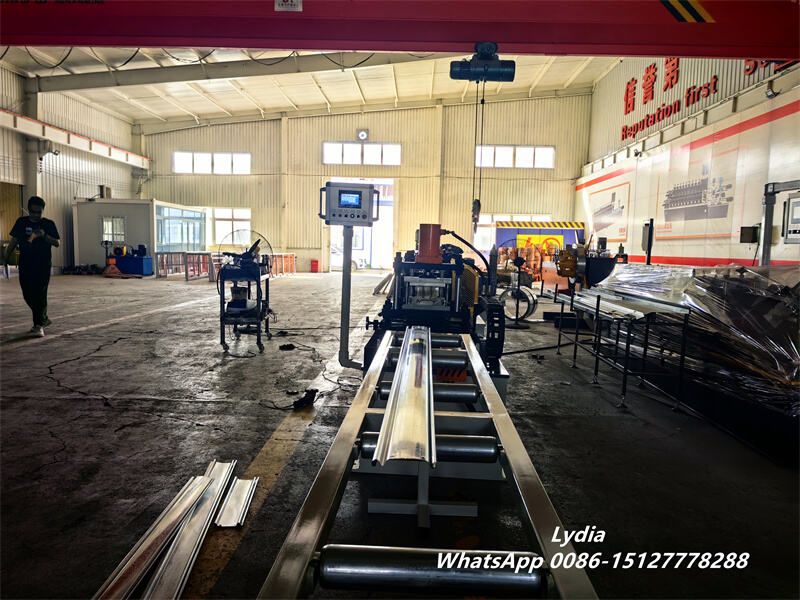

The finished profiles are transferred to the run-out table after hydraulic cutting, making them convenient for collection and stacking. The continuous forming process reduces manual operations and helps manufacturers achieve higher production efficiency compared with traditional individual forming methods. With a reasonable machine layout and integrated hydraulic and electrical systems, the production line is also convenient for daily operation, maintenance, and adjustment. The machine can be used with additional equipment, such as a seaming machine, when the complete rolling shutter door production process requires profile seaming or assembly.

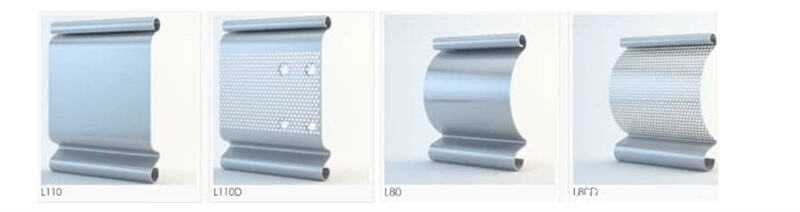

Customized Rolling Shutter Door Profiles

For manufacturers with specific profile requirements, the Shutter Door Roll Forming Machine can be engineered based on customer-provided drawings and actual production needs. The forming roller design, number of forming stations, decoiler configuration, cutting method, transmission system, and control system can all be adjusted according to the application. This flexibility makes the machine suitable for producing galvanized rolling shutters, industrial roller shutters, commercial shutter doors, garage doors, fire-resistant shutter profiles, perforated roller shutters, and other customized door profiles. With high forming precision, stable performance, automatic length control, customizable profile design, and efficient continuous production, it provides a reliable solution for modern rolling shutter door manufacturing.

For a complete rolling shutter door production solution, manufacturers can also integrate several auxiliary forming machines according to their product range. The Door Frame Roll Forming Machine is designed to manufacture accurate steel door frame profiles, while the Shutter Door Bottom Slat Roll Forming Machine produces bottom slat and bottom rail profiles for rolling shutter systems. In addition, the Shutter Door Guide Rail Roll Forming Machine is used to manufacture side guide rails and tracks that help control the movement of the shutter curtain. Together with the main Shutter Door Roll Forming Machine, these machines can form a complete production solution for manufacturing different components of a rolling shutter door system.

Shutter Door Roll Forming Machine
↓
Door Frame Roll Forming Machine
↓
Shutter Door Bottom Slat Roll Forming Machine
↓

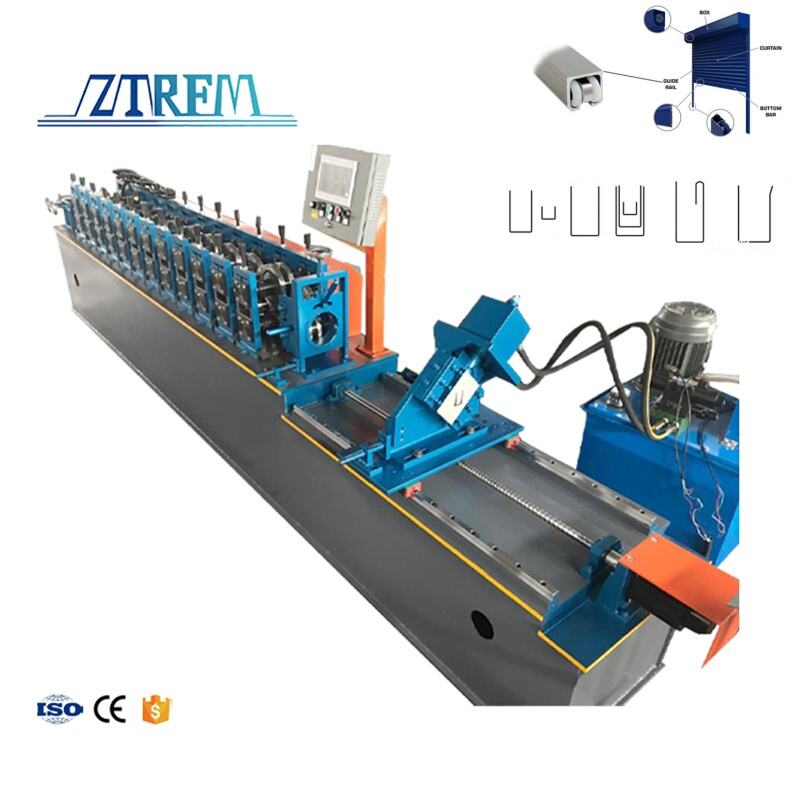

Shutter Door Guide Rail Roll Forming Machine
