Slotted Deflection Track Roll Forming Machine

In modern light-gauge steel construction, head-of-wall deflection is no longer optional; instead, it has become a structural and code-driven requirement. Therefore, manufacturers and contractors increasingly rely on slotted deflection tracks to manage vertical and horizontal building movement effectively.

In this context, this article presents a deep slotted deflection track roll forming machine suitable for Phase 1 implementation. At the same time, the system is designed with scalability in mind, allowing future upgrades as market demand evolves. The solution is inspired by proven industry concepts such as MaxTrak® SLT, while remaining flexible for custom engineering and regional code compliance.

Why Slotted Deflection Tracks Matter

Unlike conventional track systems, slotted deflection tracks allow steel studs to float freely inside the track legs. As a result, vertical movement caused by slab deflection or roof live loads is absorbed at the track level rather than being transferred into the studs.

Consequently, axial loading on wall studs is minimized, which helps prevent cracking in gypsum boards and damage to finished surfaces. Moreover, optional horizontal slots in the track web allow the system to accommodate lateral drift caused by seismic forces or wind loads. For this reason, slotted deflection tracks are widely specified in high-rise and performance-driven building designs.

Typical Applications

Because of their movement-isolation capability, slotted deflection tracks are commonly used in:

• Interior non-load-bearing partitions
• Exterior curtain wall framing systems
• Head-of-wall conditions requiring controlled vertical slip
• Seismic- and drift-sensitive structures

In practice, isolating movement at the top of the wall allows engineers to meet AISI and ASTM requirements without over-designing the stud framing. Therefore, overall material usage and project costs can be reduced.

Movement Capability

Depending on project requirements, the roll-formed slotted deflection track system supports multiple movement ranges:

• Vertical deflection (standard): up to 1-1/2″ total (±3/4″)
• Vertical deflection (deep-leg option): up to 2″ total (±1″)
• Horizontal drift (2D version): up to 4″ total (±2″)

Thus, a single product family can address a wide range of structural demands. Furthermore, by adjusting leg depth and slot geometry, manufacturers can offer multiple performance levels using the same roll forming platform.

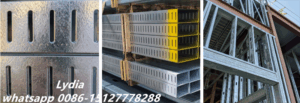

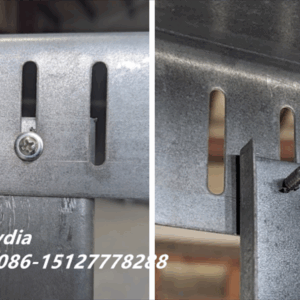

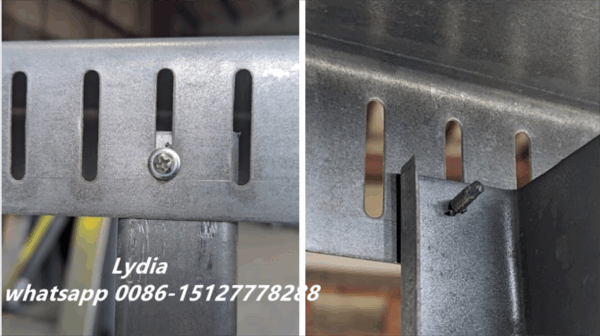

Slot Design & Engineering Logic

Slot geometry is a critical performance factor. Specifically, the slot dimensions must allow secure fastener attachment while still permitting free movement.

Typically:

• Slot width: ~0.22″
• Slot length: ~1-1/2″ (standard)
• Slot spacing: 1″ on center

Accordingly, slot accuracy and repeatability are essential. Therefore, slot forming or punching must be fully integrated into the roll forming line. In turn, this integration ensures consistent product quality at high production speeds.

Supported Material Thickness (Phase Strategy)

To balance tooling investment with market demand, material thickness coverage can be staged by production phase:

As shown above, Phase 1 already covers the most commonly specified gauges. Later, Phase 2 expansion allows manufacturers to enter heavier structural markets with minimal redesign.

All materials are produced in accordance with AISI S240 and ASTM A1003 cold-formed steel framing standards.

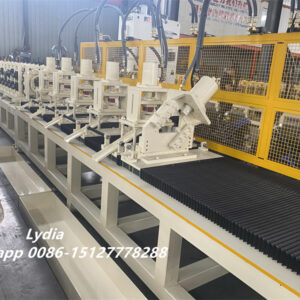

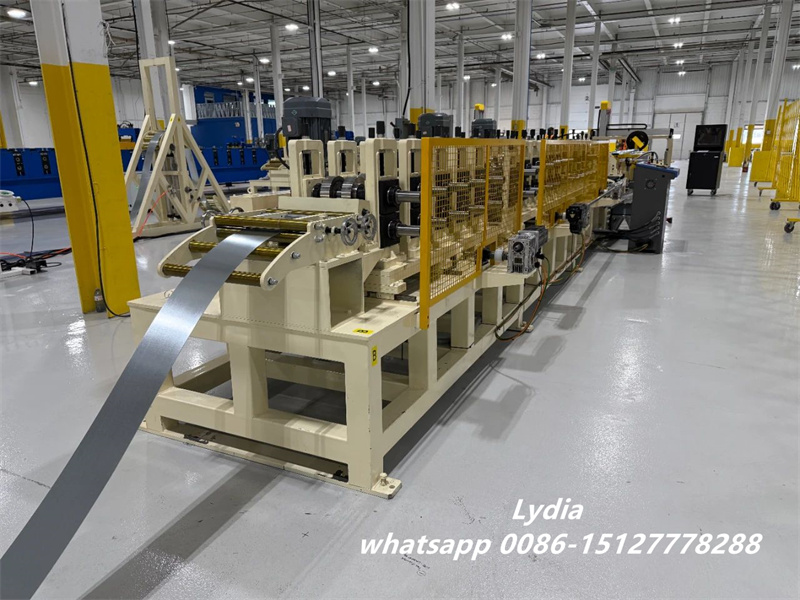

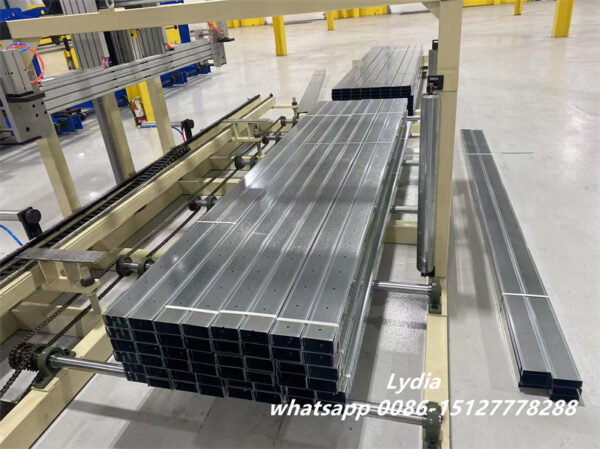

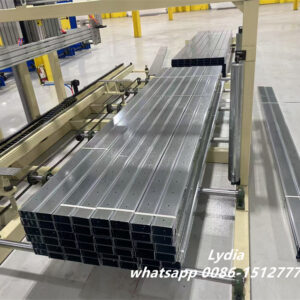

From a production standpoint, slotted deflection tracks are roll-formed with precision vertical slots integrated directly into the leg profile. During manufacturing, slot formation is synchronized with the roll forming process to maintain dimensional stability.

Additionally, the machine design enables:

• Accurate slot spacing and alignment
• Clean slot edges with minimal burrs
• Smooth gauge transitions across the product family

As a result, performance requirements are met without sacrificing line speed or forming efficiency.

Advantages of a Slotted Deflection Track Roll Forming Machine

By investing in a dedicated slotted deflection track roll-forming machine, manufacturers gain several clear advantages.

First, the system provides superior control of head-of-wall vertical and lateral movement. Second, it significantly reduces field issues related to stud loading or finish damage. Moreover, installation becomes faster and more predictable.

Other benefits include:

• Reduced labor costs through simplified installation
• Compatibility with multiple stud depths and wall systems
• Customizable slot patterns and profile dimensions

Therefore, producers can serve both standard construction projects and high-performance structural applications using a single production line.

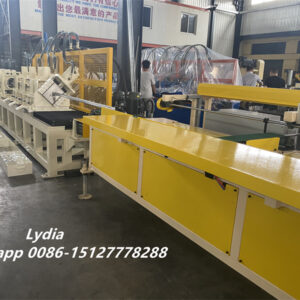

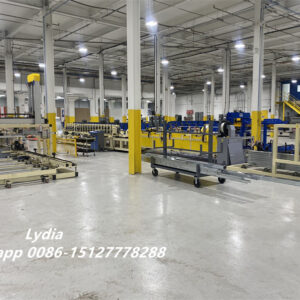

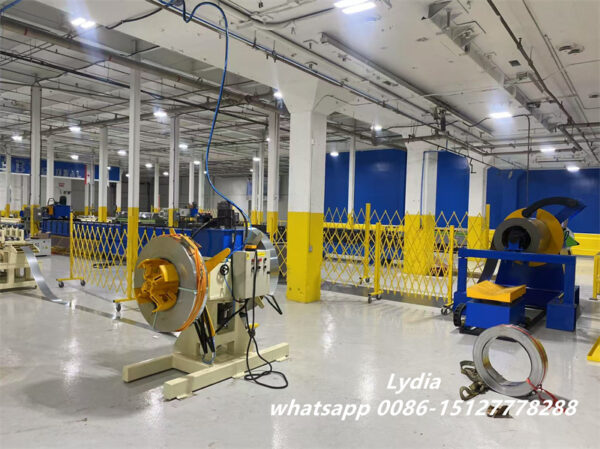

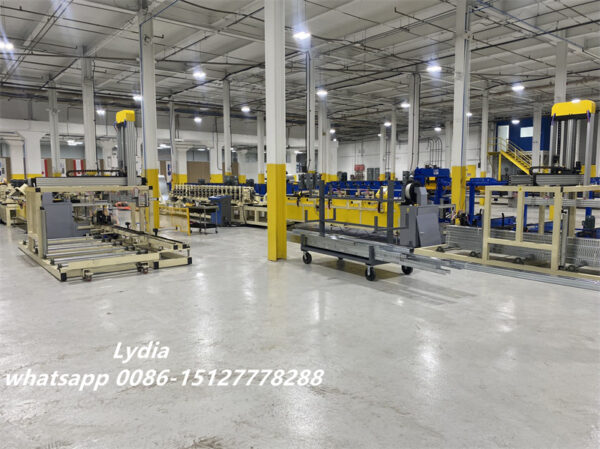

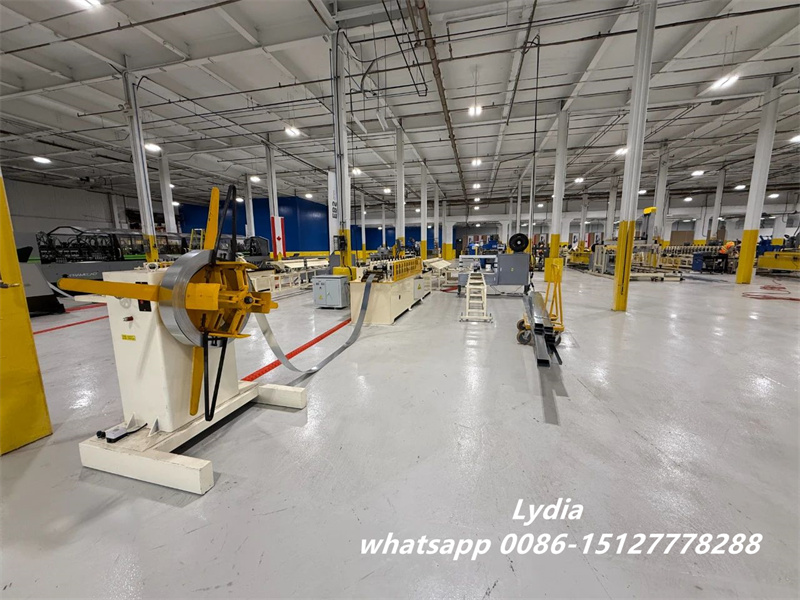

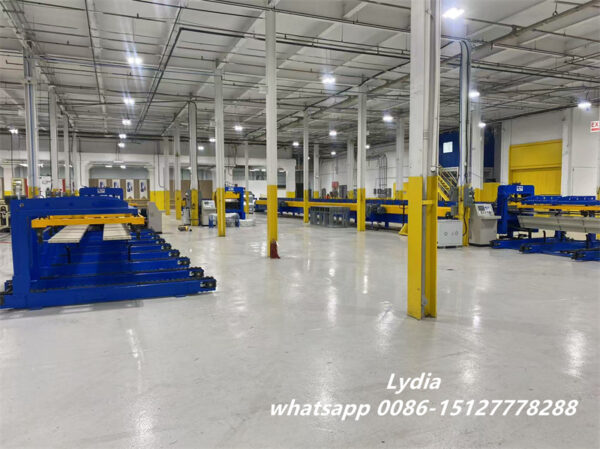

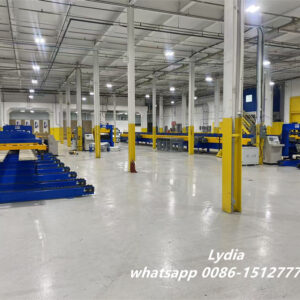

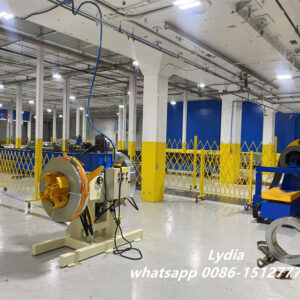

Standard Roll Forming Machine Configuration

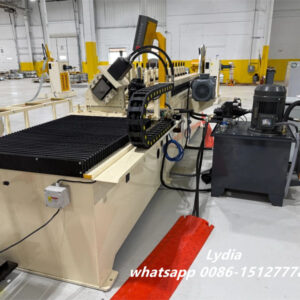

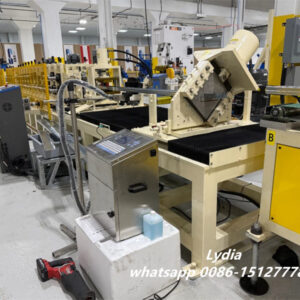

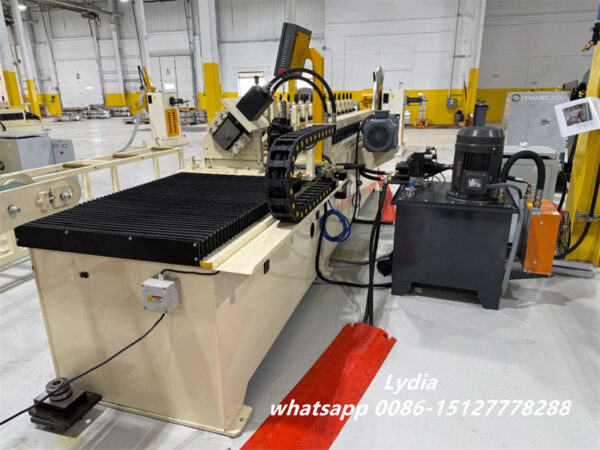

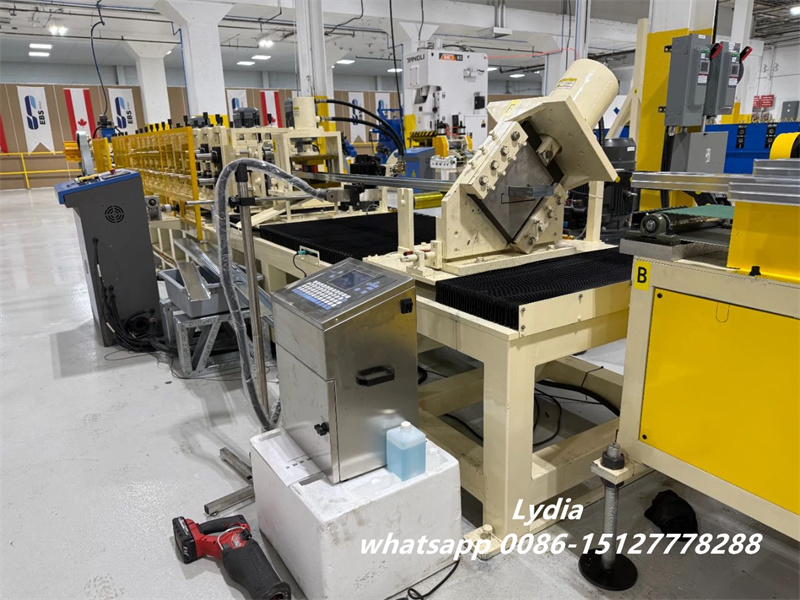

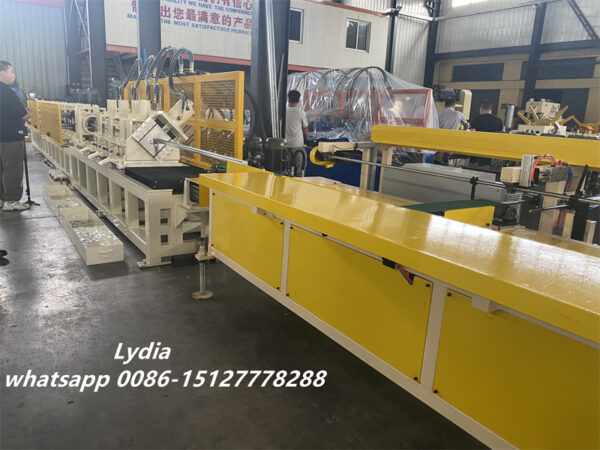

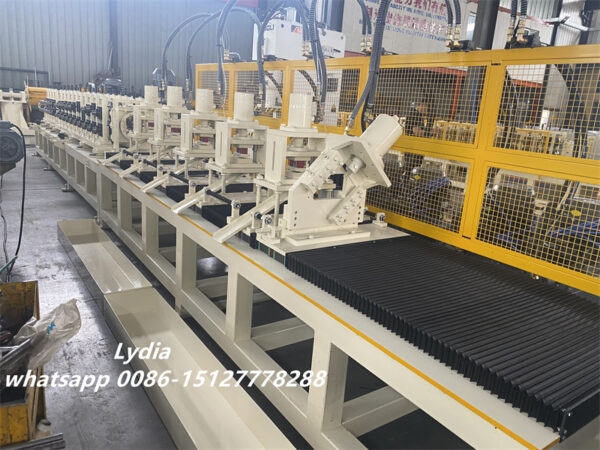

The ZTRFM Slotted Deflection Track Roll Forming Machine is engineered for stable, continuous production and precise slot control. For clarity, the main machine parameters are summarized below:

Overall, this standardized configuration ensures high forming accuracy, stable slot alignment, and long service life. At the same time, it allows customization based on local power standards and specific production requirements.

In summary, a deep slotted deflection track roll forming machine represents a future-ready manufacturing solution for modern steel framing systems. From Phase 1 onward, the system already supports the most demanded gauges and movement ranges. Subsequently, Phase 2 upgrades can extend capacity to heavier profiles and advanced applications.
