Modern architectural roofing systems demand more than basic weather protection. Today’s projects require clean visual lines, concealed fasteners, fast installation, and long-term durability. That is why the Prime Click S roof panel has become increasingly popular in residential, commercial, and industrial construction.

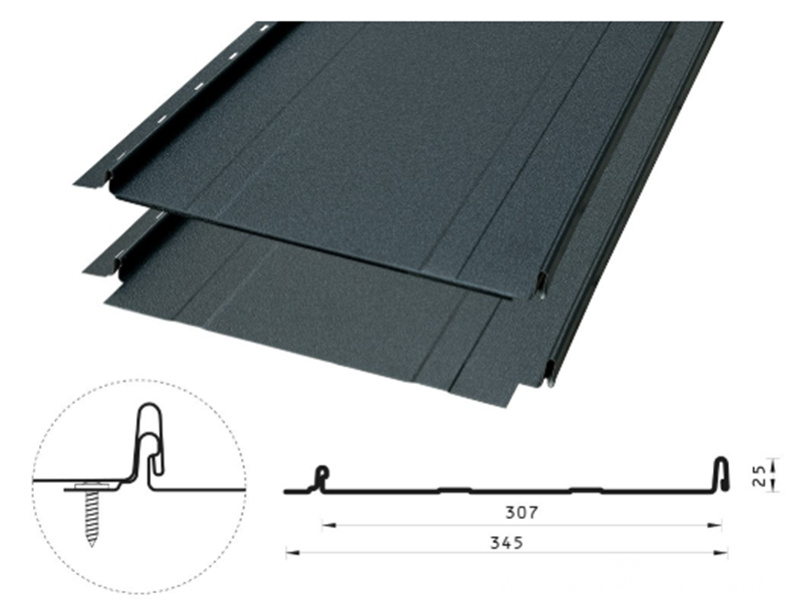

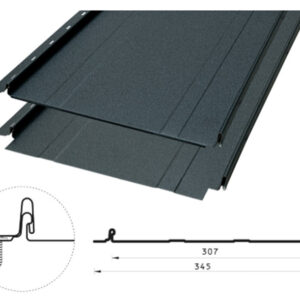

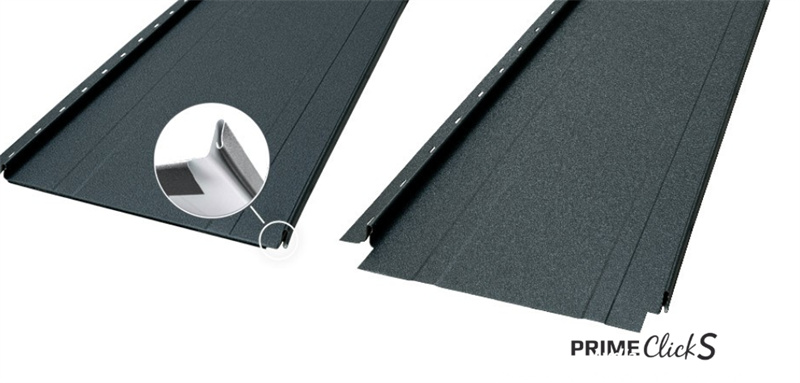

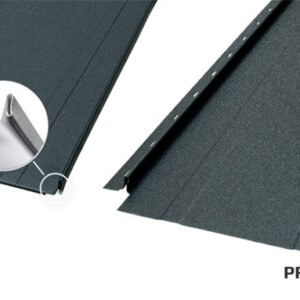

The Prime Click S Snap Lock Standing Seam Roof Panel belongs to the standing seam family and features a concealed fastening structure with snap-together seams. Unlike traditional mechanically seamed roofing systems, this profile allows installers to lock adjacent panels together simply by pressing them into place. As a result, installation becomes faster, cleaner, and more cost-effective.
In addition, the elegant vertical rib appearance gives buildings a modern architectural style. Many contractors use this roofing system for villas, warehouses, commercial centers, agricultural buildings, airports, and contemporary façade projects.
Because the fastening clips remain hidden beneath the panels, the roof surface maintains a smooth appearance while significantly reducing the possibility of water leakage.
Why the Snap Lock Roofing System Is So Popular
The demand for Snap Lock Standing Seam Roll Forming Machines continues to grow worldwide. Compared with exposed-fastener roofing sheets, snap lock standing seam systems offer superior waterproof performance and longer service life.
Furthermore, the installation process is much simpler than traditional double-lock standing seam systems. Contractors do not need additional electric seam-closing tools, which helps reduce labor costs and installation time.
Another major advantage is design flexibility. Manufacturers can produce different panel widths, rib heights, and decorative styles according to customer requirements.
The Prime Click S roofing profile also performs extremely well in areas with heavy rain, snow, or strong winds because the interlocking seams improve structural stability.
Key advantages include:
- Hidden fastening system
- Excellent waterproof performance
- Modern architectural appearance
- Fast installation process
- Long service life
- Low maintenance requirements
- Compatible with steel, aluminum, copper, and zinc materials

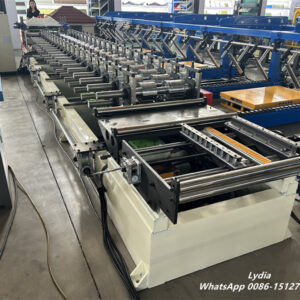

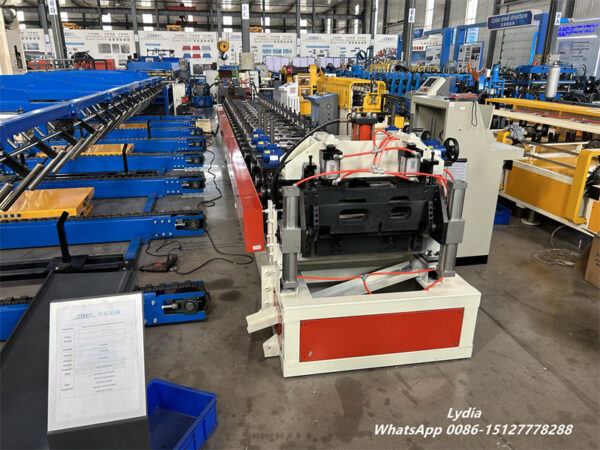

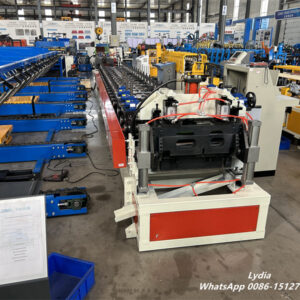

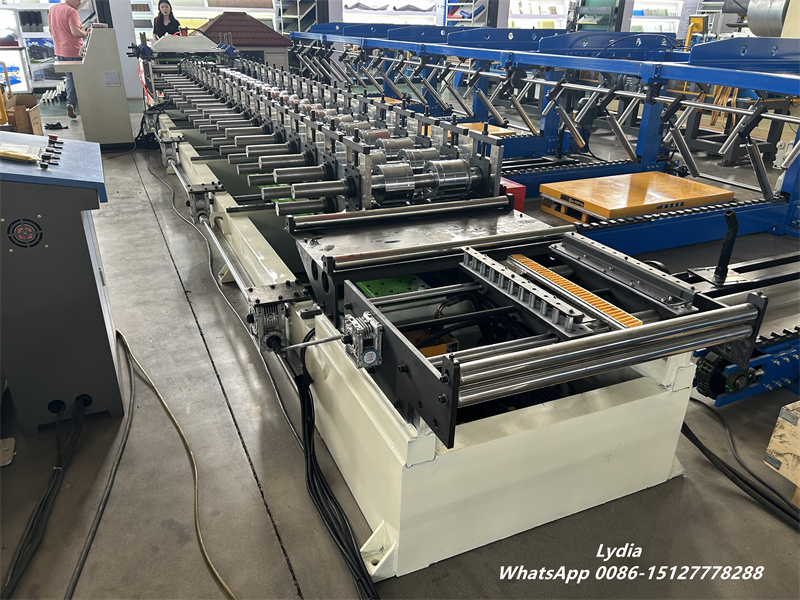

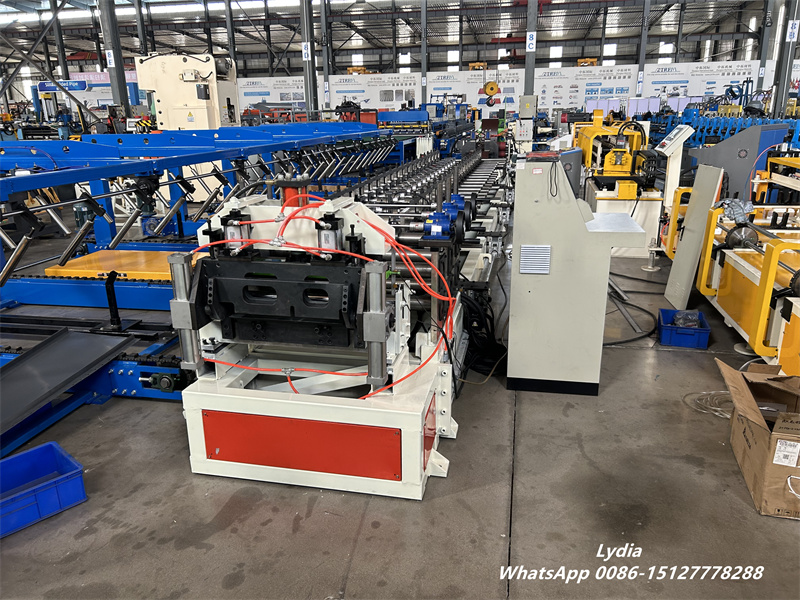

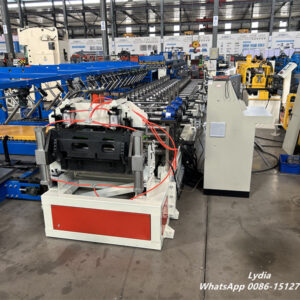

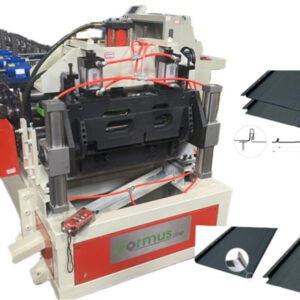

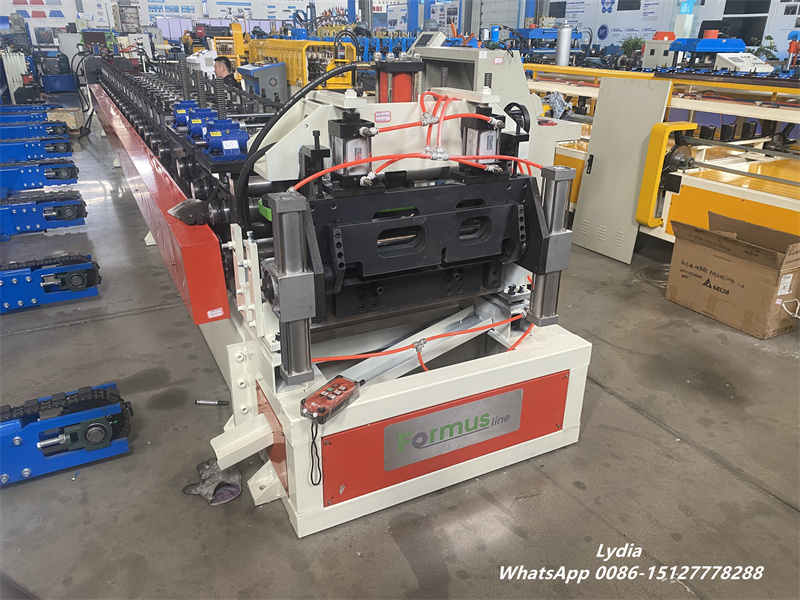

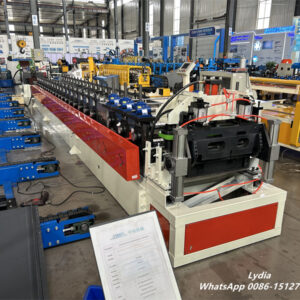

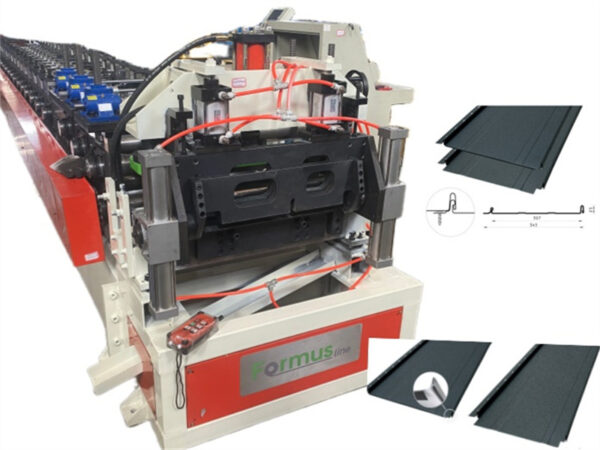

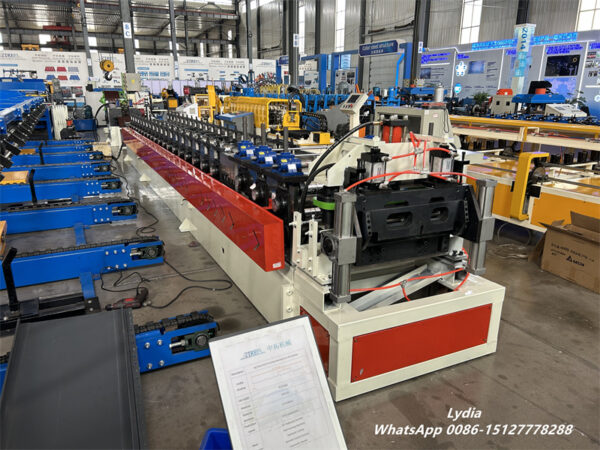

How the Snap Lock Standing Seam Roll Forming Machine Works

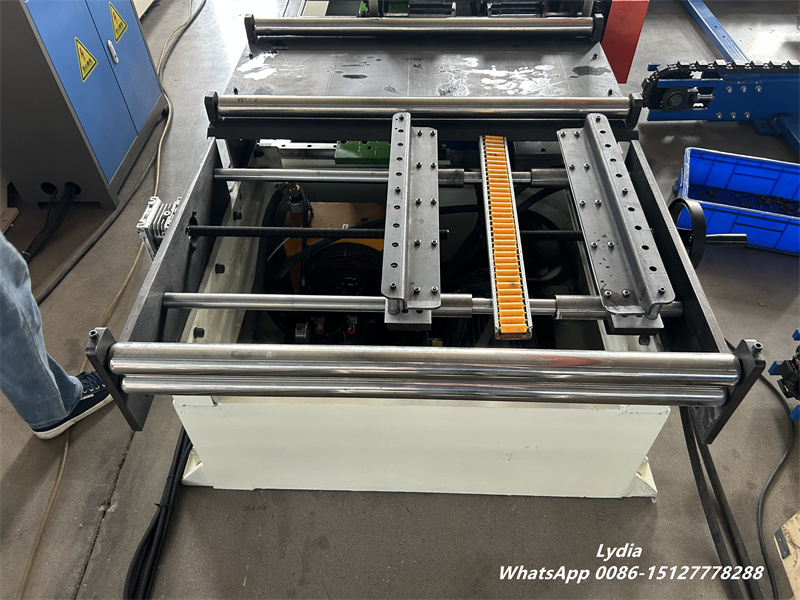

The production process begins when the metal coil is loaded onto the hydraulic decoiler. Then the material enters the feeding and leveling section to ensure stable and accurate forming.
Afterward, the sheet passes through multiple roller stations where the flat metal gradually transforms into the Prime Click S standing seam profile. Each roller station carefully bends the material without damaging the coating surface.
Next, the machine forms the male and female locking edges that allow the panels to snap together during installation. Depending on customer requirements, the production line may also include embossing, ribbing, perforating, or punching systems.
Finally, the hydraulic cutting device cuts the finished roofing panels to the preset length automatically.
The entire line operates through a PLC control system, allowing operators to adjust panel length, production speed, and batch quantity directly from the touchscreen interface.
Main Technical Parameters of the Machine
The configuration of a Snap Lock Standing Seam Roll Forming Machine may vary according to panel design and production requirements. However, the following specifications are commonly used for the Prime Click S profile.
| Item | Specification |
|---|---|
| Material Thickness | 0.4–0.8 mm |
| Suitable Materials | PPGI, PPGL, Aluminum, Copper |
| Forming Stations | 12–18 Stations |
| Panel Width | Customized |
| Seam Height | 25–38 mm |
| Cutting Type | Hydraulic Cutting |
| Drive System | Chain Drive or Gearbox |
| Control System | PLC Automatic Control |
| Production Speed | 10–25 m/min |
| Voltage | 380V / 50Hz / 3 Phase |
| Decoiler Capacity | 5T–10T |
Because different markets prefer different roofing standards, manufacturers can customize the machine according to drawings or sample panels provided by customers.
Applications of Prime Click S Roof Panels

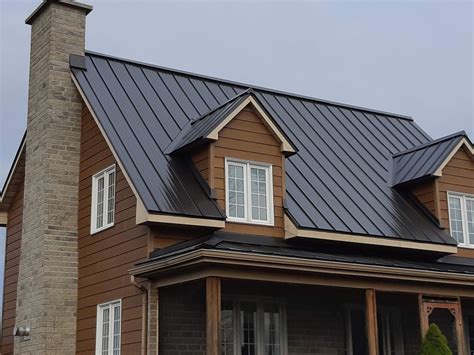

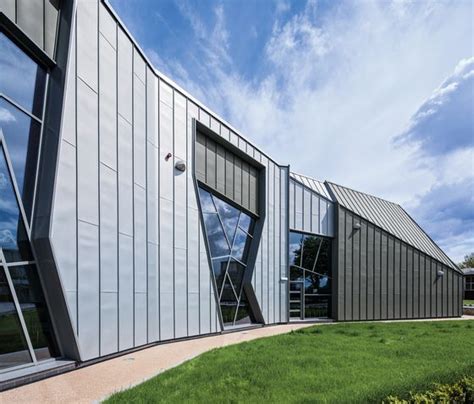

Today, architects and builders widely use Prime Click S standing seam panels in both roofing and wall cladding applications. Their clean vertical seam design creates a premium visual effect that works especially well in modern architectural projects.
Additionally, the concealed clip installation method improves weather resistance while preserving the exterior appearance of the building.
Common applications include:
- Residential villas
- Commercial buildings
- Industrial workshops
- Airport terminals
- Shopping centers
- Agricultural facilities
- Modern façade systems
- Prefabricated steel structures
Moreover, the system can adapt to curved surfaces, tapered roofs, and low-slope roofing structures, making it highly versatile for complex architectural designs.
Why Choose Our Snap Lock Standing Seam Roll Forming Machines
Our company specializes in manufacturing advanced Snap Lock Standing Seam Roll Forming Machines for global customers. With years of experience in cold roll forming technology, we provide reliable equipment solutions for roofing manufacturers and construction companies worldwide.
We use high-precision CNC machining to ensure roller accuracy and stable machine performance. At the same time, our engineers optimize each forming station to reduce material stress and improve panel quality.
In addition, we offer complete technical support including:
- Machine installation guidance
- Overseas commissioning service
- Profile customization
- PLC programming support
- Operator training
- Lifetime technical assistance
Whether customers need portable job-site machines or high-speed automatic production lines, we can provide customized solutions for different production capacities and roofing profiles.
The Prime Click S Snap Lock Standing Seam Roll Forming Machine combines architectural aesthetics, fast installation, and durable roofing performance into one efficient manufacturing system. Therefore, it has become one of the most competitive roofing solutions in the global metal roofing market today.
