Zhongtuo Square Downspout Roll Forming Machine Automatic Rainwater Downpipe Making Machine

Modern construction projects require drainage systems that are not only functional but also match the architectural appearance of buildings. The Square Downspout Roll Forming Machine is specially designed to manufacture high-quality square rainwater downpipes from galvanized steel, aluminum, and pre-painted steel coils. Compared with traditional round downpipes, square downspouts provide better visual integration, larger drainage capacity, and easier installation on modern building facades.

This automatic rainwater downpipe making machine adopts advanced cold roll forming technology, allowing manufacturers to produce straight, accurate, and durable square downpipes with high efficiency. With PLC automatic control, hydraulic cutting, and a strong forming structure, the machine provides a reliable solution for residential, commercial, and industrial drainage system production.

Efficient Production of Square Rainwater Downpipes

The square downspout roll forming machine transforms flat metal coils into finished square pipes through a continuous forming process. The complete production line includes decoiling, feeding, roll forming, automatic cutting, and product collection.

During operation, the machine gradually bends the material through multiple precision roller stations. This method avoids material deformation and ensures smooth surfaces, accurate dimensions, and consistent pipe shapes.

Meanwhile, the automatic hydraulic cutting system cuts finished downpipes according to preset lengths. Operators only need to input production parameters through the PLC control panel, and the machine can complete continuous production with minimal manual intervention.

As a result, manufacturers can achieve higher output, lower labor costs, and more stable product quality.

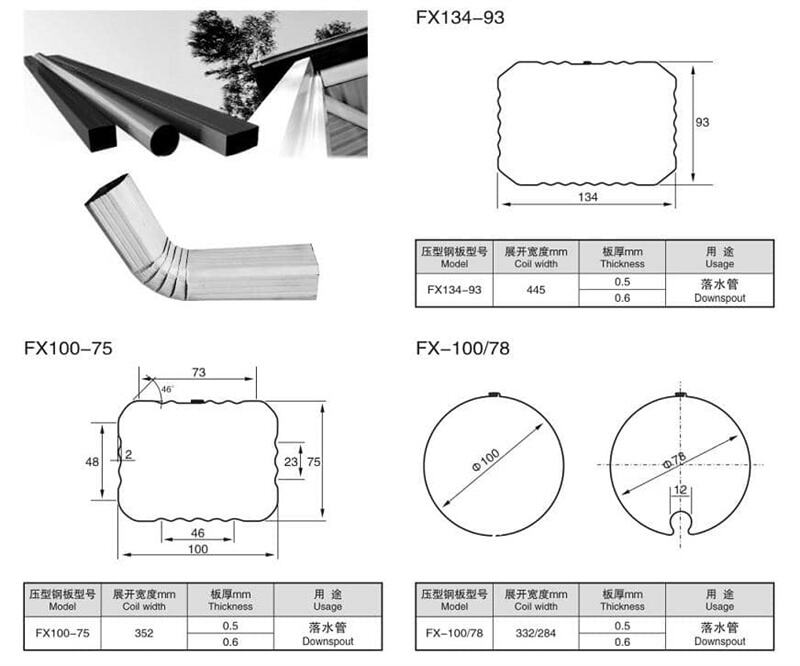

Technical Specifications of Square Downspout Machine

Strong Structure Ensures Long-Term Operation

To meet the demands of continuous industrial production, this square downpipe forming machine uses a heavy-duty welded frame and high-strength transmission components.

The forming rollers are manufactured from 45# steel with chrome coating, which improves hardness, wear resistance, and service life. At the same time, the 75mm solid shafts provide excellent stability during high-speed operation, reducing vibration and improving forming accuracy.

Furthermore, the hydraulic cutting system uses Cr12MoV material, ensuring clean cutting edges without scratches, deformation, or damage to the finished square pipes.

With these design advantages, the machine maintains reliable performance even under long working cycles.

Wide Applications in Modern Construction Projects

Square downspouts have become increasingly popular because they combine drainage performance with architectural design. The machine can produce square rainwater pipes widely used in different construction fields.

High-rise buildings and commercial complexes
Modern buildings often feature straight lines and minimalist facades. Square downpipes can be integrated into curtain walls, decorative channels, or exterior designs, creating a cleaner architectural appearance.

Industrial factories and logistics warehouses
Large industrial roofs collect significant amounts of rainwater. Square downspouts offer larger water flow capacity compared with traditional round pipes of similar dimensions, making them suitable for warehouses, workshops, and production facilities.

Prefabricated buildings and modular houses
Prefabricated construction focuses on speed and standardization. The square downspout machine can produce fixed-length pipes quickly, reducing cutting and connection work during installation.

Residential communities and villas
For premium housing projects, square rainwater pipes provide a modern appearance while protecting foundations, walls, and landscaping from excessive water accumulation.

Agricultural buildings and farm structures
The durable metal drainage system performs well in barns, greenhouses, and agricultural facilities where long-term outdoor exposure is required.

Smart PLC Control and Customized Solutions

The square downspout roll forming machine features a user-friendly PLC control system that allows operators to set production length, quantity, and batch requirements easily.

The electrical components can be customized according to customer requirements, with options from internationally recognized brands such as Siemens, Delta, Omron, and Schneider. The control system also supports multiple languages, making operation convenient for customers worldwide.

In addition, we provide customized solutions according to different pipe sizes, raw materials, and production requirements. Before shipment, each machine undergoes complete testing to ensure stable operation after installation.

Complete Service for Global Downpipe Production

As a professional manufacturer of rainwater gutter machines, downspout roll forming machines, and metal forming equipment, we provide complete production solutions from machine design to after-sales support.

The machine can be delivered with:

• Automatic hydraulic decoiler
• Feeding and guiding system
• Square downspout roll forming unit
• Hydraulic cutting system
• PLC electrical control cabinet
• Product receiving table
• Installation guidance and operation training

After receiving the equipment, customers can quickly start production by connecting electricity and hydraulic systems. Technical manuals, operation videos, and remote support are also available. For projects requiring additional assistance, professional engineers can provide on-site installation and commissioning services.

The Square Downspout Roll Forming Machine offers an efficient, accurate, and flexible way to manufacture modern metal rainwater drainage products, helping manufacturers expand their building material production capabilities and meet growing market demand.
