The Standing Seam Roof Panel Roll Forming Machine with Taper from Zhongtuo is a versatile standing seam metal roof machine designed to manufacture long-length standing seam roof panels for residential, commercial, industrial, and architectural roofing projects. The standing seam metal roof panel machine can process galvanized steel or aluminum coils and can be customized for adjustable widths, tapered panels, curved roofing, snap-lock profiles, and concealed-fastener standing seam systems.
Unlike conventional exposed-fastener roofing, a standing seam metal roof uses concealed clips or interlocking seams to create a clean roof surface with fewer exposed fasteners. Therefore, this standing seam metal roof forming machine is suitable for long roof runs, low-slope roofing applications, modern architectural projects, and customized building designs.
Depending on the profile design, the machine can also be developed as a Snap lock roof panel machine, lock roof machine, or customized Standing seam forming machine. For customers looking for a roof panel machine for sale snap lock, Zhongtuo can design the forming system according to the required snap-lock profile, panel width, material, thickness, and production capacity.
Zhongtuo customizes each standing seam roof panel machine according to the customer’s profile drawing, effective width, seam design, taper requirements, production speed, and electrical standard.
Standing Seam and Snap Lock Roof Panel Production

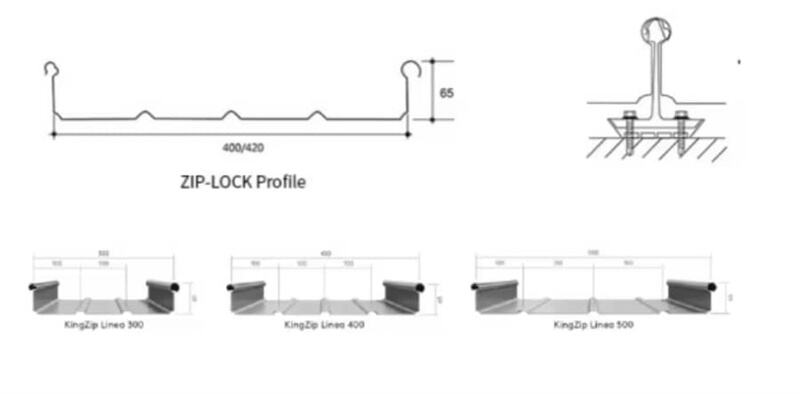

The machine can manufacture different standing seam and snap-lock profiles by changing the forming configuration or developing an adjustable forming system. Depending on the required profile, available panel widths can include 300 mm, 400 mm, and 500 mm, while customized widths are also available.

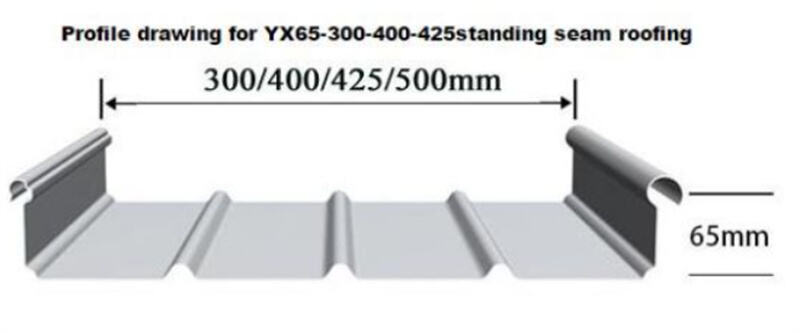

For example, a YX65-300/400/500 configuration can produce three effective panel widths from one adjustable forming machine. This provides manufacturers with greater flexibility when serving roofing projects with different panel specifications.
For customers searching for a snap lock roof machine or lock roof machine, the forming system can be developed around the actual locking geometry. The final roller configuration depends on the seam shape, material thickness, panel width, and required installation method.
The machine can also incorporate an automatic taper function. Instead of producing only parallel-edge panels, the tapering system gradually changes the panel width according to programmed requirements. This makes the equipment suitable for fan-shaped layouts, curved architectural structures, and other customized roof designs.
For mobile production requirements, Zhongtuo can also develop a portable standing seam roof panel machine that can be transported closer to the construction site. This configuration is particularly useful for projects requiring long panels that are difficult or expensive to transport after production.
Roll Forming System and Machine Configuration

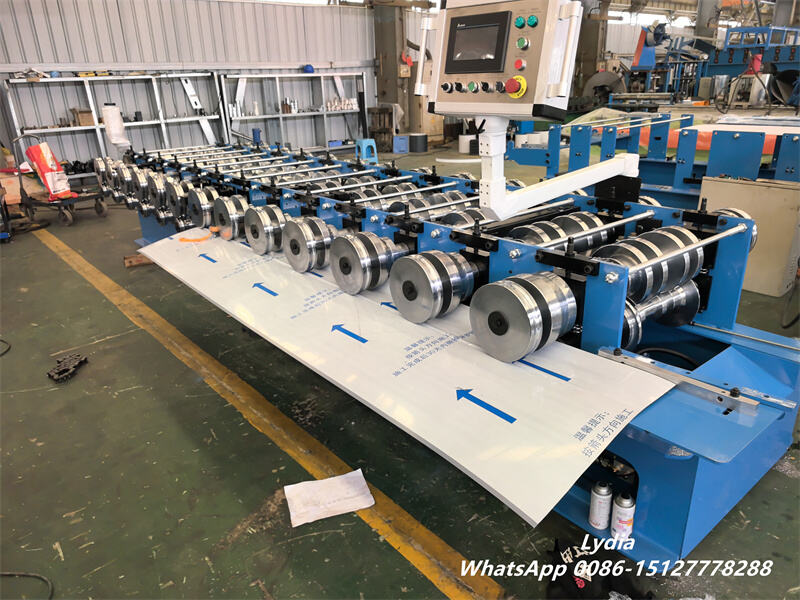

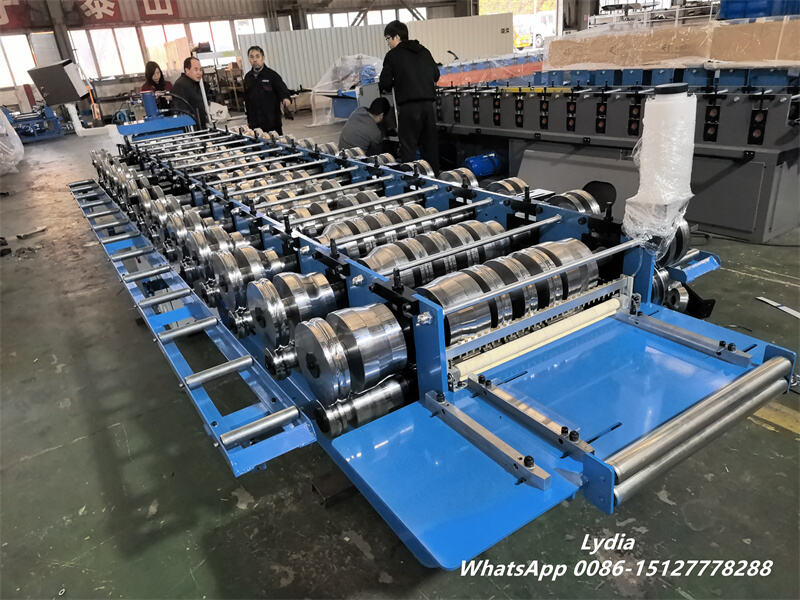

During production, the decoiler feeds the metal coil into the forming section, where multiple forming stations progressively shape the material into the required standing seam profile. This gradual forming process helps maintain dimensional consistency while minimizing sudden deformation of the sheet.
A typical adjustable configuration uses approximately 14 forming stations, 40Cr forming rollers, precision-machined shafts, and a 5.5 kW main motor. Depending on the final machine specification, the rollers can receive polishing, heat treatment, and hard chrome plating.

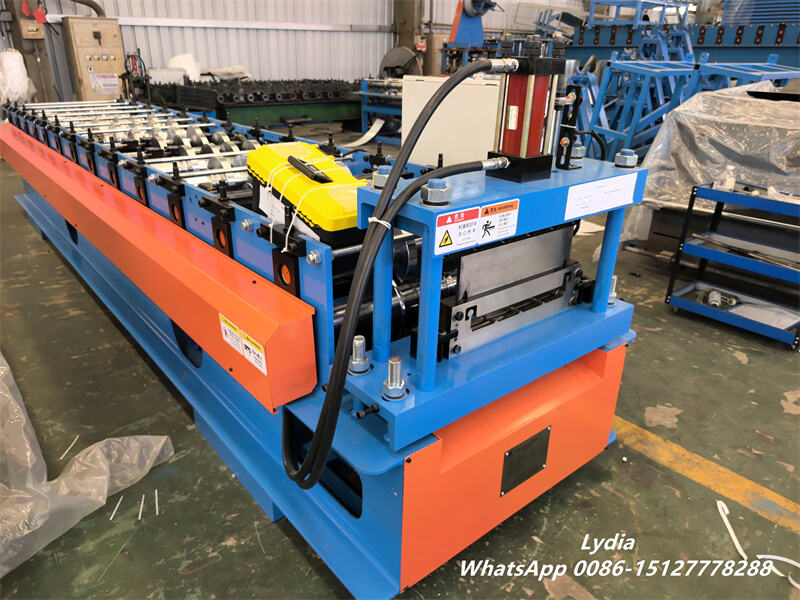

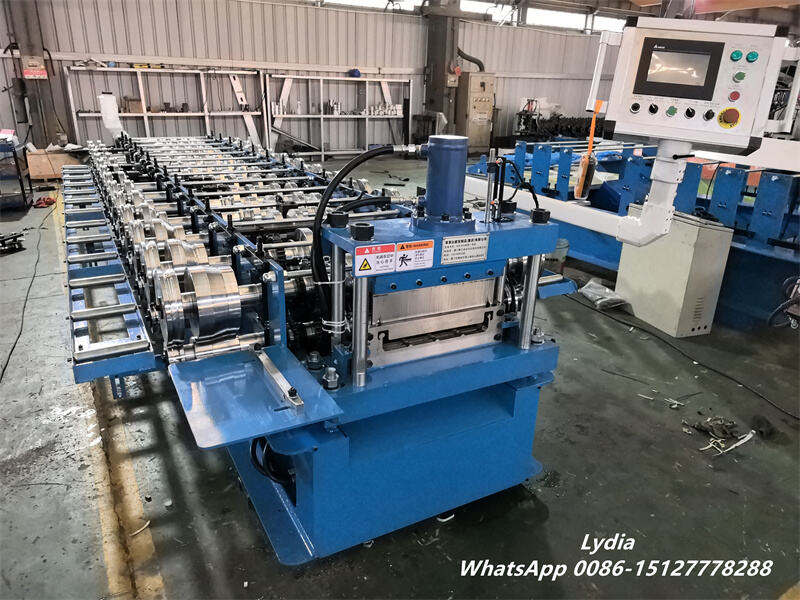

The hydraulic cutting system cuts the formed panel to the programmed length. The PLC controller coordinates the inverter, encoder, touchscreen, and cutting system, allowing operators to set the required panel length and production quantity directly through the control interface.
With a typical forming speed of approximately 22 m/min before cutting, the machine provides continuous production for long standing seam roof panels. Actual production speed depends on material thickness, profile geometry, panel length, and machine configuration.
| Item | Typical Specification |
|---|---|
| Machine Type | Standing Seam Roof Panel Roll Forming Machine |
| Profile | YX65-300 / 400 / 500 or Customized |
| Effective Width | 300 / 400 / 500 mm |
| Suitable Material | Galvanized Steel / Aluminum |
| Steel Thickness | Approx. 0.5–0.8 mm |
| Aluminum Thickness | Approx. 0.7–1.2 mm |
| Material Strength | Approx. G300 MPa |
| Forming Steps | Approx. 14 Stations |
| Forming Roller Material | 40Cr |
| Main Shaft Diameter | Ø75 mm |
| Main Motor | 5.5 kW |
| Forming Speed | Approx. 22 m/min |
| Cutting Type | Hydraulic Cutting |
| Cutting Motor | 4.0 kW |
| Cutting Tool | Cr12, Heat Treated |
| Control System | PLC + Inverter + Touchscreen + Encoder |
| Length Tolerance | ≤ ±2.0 mm |
| Taper Function | Available |
| Curving Machine | Optional |
| Seaming Machine | Optional |
| Power Supply | Customized to Customer Requirement |
The specifications above represent a reference configuration rather than a fixed standard. Zhongtuo can modify the standing seam metal roof rolling machine according to the customer’s material, profile, production speed, electrical standard, and workshop conditions.

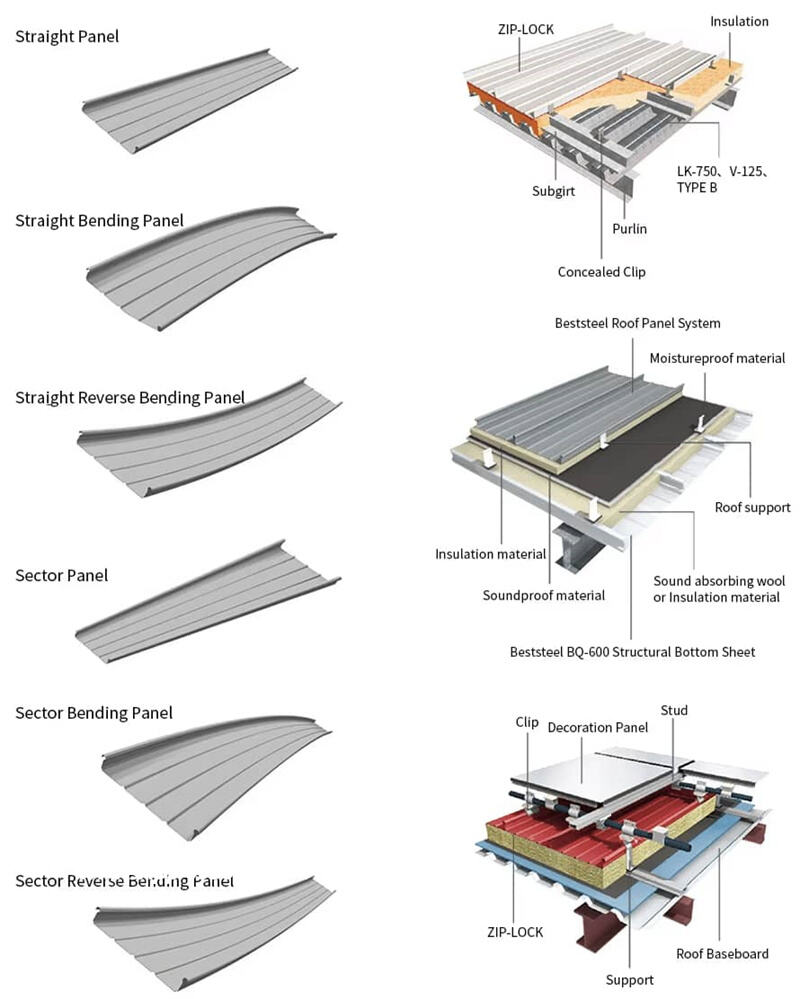

Tapered and Curved Standing Seam Metal Roof Panels
Modern architectural roofing often requires more than straight rectangular panels. As a result, the standing seam roof panel roll forming machine with taper provides additional flexibility for projects where panel width changes along the panel length.
The automatic tapering system can work together with the forming line to produce panels with customized width variations. This allows manufacturers to produce panels for curved building layouts, fan-shaped roofs, and specialized architectural structures with greater production flexibility.
For projects requiring curved panels, Zhongtuo can supply a matched standing seam metal roof seam machine and compatible roof panel curving equipment. The curving machine uses precision-machined 40Cr rollers and a 4 kW main motor, with an optional 2 kW servo motor. The typical curving speed is approximately 12 m/min.
The curving machine can form both positive and negative arches. Straight panels can generally be curved in one operation, while tapered panels may require two forming operations depending on the material, thickness, panel geometry, and required radius.
The PLC system can store multiple positive and negative radius settings, allowing operators to produce different curved sections according to project requirements.
For aluminum panels with suitable material characteristics, repeated curving operations can achieve smaller radii. However, the actual minimum radius should be confirmed through material testing and the customer’s panel geometry before production.
Snap Lock, Standing Seam and Concealed-Fastener Applications
The Snap lock roof panel machine can be configured for roofing profiles in which adjacent panels interlock through specially designed seams. The exact locking structure depends on the customer’s profile drawing and installation requirements.
For projects using concealed clips, Zhongtuo can develop the machine around the required metal roof clip machine application. The final clip geometry and panel seam should be confirmed before roller design because different standing seam systems use different locking structures.
For customers searching for an engler lock roof machine, Zhongtuo can also evaluate the supplied profile drawing and determine whether the required locking geometry can be manufactured through customized roll forming tooling.
This approach is important because standing seam profiles that appear similar can have different seam dimensions, locking angles, panel widths, and material requirements. Customized roller design therefore helps ensure that the finished panel matches the customer’s actual installation system.
Standing Seam Metal Roof Seaming and Welding Equipment
After the roof panel is installed, the longitudinal seam may require mechanical locking or electric seaming depending on the selected profile and installation method.
Zhongtuo can supply a portable standing seam metal roof electric seaming machine for projects requiring on-site seam closing. The corresponding standing seam roof seaming machine can be selected according to the seam profile and panel material.
It is important to distinguish roll forming from seam closing. The roll forming machine creates the standing seam panel profile, while the metal roof seamer machine is used after panel installation to close or mechanically form the longitudinal seam where required.
For customers searching for a standing seam metal roof welding machine, the appropriate equipment depends on whether the project requires actual welding or mechanical seam forming. Many standing seam roofing systems rely on interlocking or mechanically seamed connections rather than conventional welding.
Therefore, Zhongtuo recommends confirming the roof profile and installation method before selecting a standing seam metal roof seam machine or seaming equipment.
Portable Standing Seam Roof Panel Machine
For construction projects where transportation of long roof panels is inconvenient, a portable standing seam roof panel machine can provide an alternative production method.

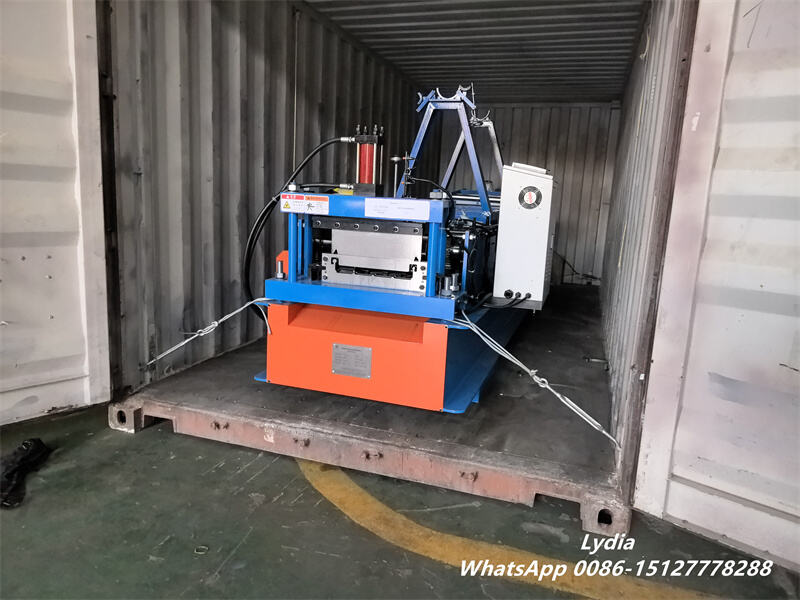

The roll forming equipment can be designed for containerized or mobile installation, allowing the machine to be transported closer to the construction site. Operators can then produce long panels according to the actual roof dimensions and installation schedule.
A portable configuration can combine the following equipment:
- Decoiler
- Standing seam roll forming machine
- Hydraulic cutting system
- PLC control cabinet
- Panel support rack
- Tapering system
- Curving machine
- Electric seaming equipment
- Manual seam-locking tools
This configuration creates a flexible production solution for contractors and roofing manufacturers working on large projects or remote construction sites.
Standing Seam Metal Roof Machine Applications

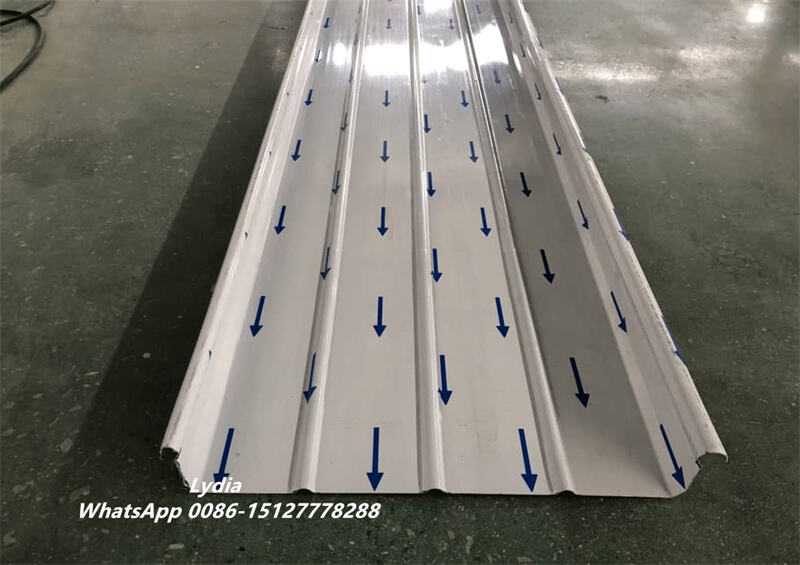

The standing seam metal roof machine is suitable for manufacturing concealed-fastener roof panels for warehouses, offices, commercial buildings, public facilities, workshops, agricultural structures, and architectural projects.
Long-length roll-formed panels can reduce the number of transverse joints across the roof. Meanwhile, the concealed fastening structure provides a clean roof appearance and reduces exposed fastener penetration compared with conventional exposed-fastener roofing systems.
The machine can also be customized for different internationally used standing seam profile designs. When a customer provides a profile drawing or physical sample, Zhongtuo’s engineers can evaluate the forming sequence and develop suitable rollers and tooling around the required geometry.
This customized approach is also applicable to snap-lock and other concealed-fastener roof panel designs.
Customized Standing Seam Roof Panel Roll Forming Solutions
Zhongtuo provides more than a standard standing seam metal roof panel machine. We develop complete roll forming solutions according to the actual roof panel design and production requirements.
A complete system can include a decoiler, roll forming machine, hydraulic cutting unit, PLC control system, product racks, tapering system, curving machine, manual edge-locking tools, and electric seaming equipment.
The configuration can therefore range from a basic standing seam metal roof forming machine to a complete mobile roofing production system.
The matched standing seam curving machine can process both positive and negative arches, while an electric seaming machine can assist with closing the longitudinal seam after panel installation. Together, these machines create a more integrated workflow for producing, curving, installing, and seaming standing seam roof panels.
Zhongtuo also manufactures roof and wall panel machines, C/Z purlin machines, floor deck machines, ridge cap roll forming machines, drywall stud and track machines, cable tray machines, and customized profile roll forming equipment.
If you have a standing seam roof panel drawing, target width, material thickness, snap-lock profile, taper requirement, or required radius, Zhongtuo can design the standing seam metal roof rolling machine around your specific production requirements.
Frequently Asked Questions
1. What is a standing seam roof panel roll forming machine?
A standing seam roof panel roll forming machine continuously forms galvanized steel or aluminum coils into standing seam roof panels. Depending on the profile, the machine can produce concealed-fastener, snap-lock, or mechanically seamed roofing panels.
2. Can this machine produce snap lock roof panels?
Yes. The machine can be customized as a Snap lock roof panel machine according to the customer’s profile drawing. The roller configuration is designed according to the required seam geometry, panel width, material, and thickness.
3. Can the machine produce tapered standing seam panels?
Yes. An automatic taper system can be integrated into the production line to produce panels with changing widths. The specific taper range should be confirmed according to the customer’s panel drawing.
4. Can I buy a portable standing seam roof panel machine?
Yes. Zhongtuo can develop a portable standing seam roof panel machine for on-site or mobile production. The equipment can be designed around the available workshop or container space.
5. Does Zhongtuo provide a standing seam roof seaming machine?
Yes. Zhongtuo can provide compatible standing seam roof seaming machine and electric seaming equipment according to the roof profile and installation method.
